You see custom silicone parts in many things you use every day. These parts are special because silicone bends easily, lasts a long time, and can handle heat and chemicals. Many businesses use silicone because it has special features:
The silicone product market keeps getting bigger as businesses want more custom silicone parts for their own needs.
Silicone is used in medical devices, implants, seals, gaskets, and car parts, which shows it can do many jobs.
Industry | Significance |
|---|---|
Medical Devices | Used for tubing, catheters, implants, and tests because it stays strong in heat and does not break down with chemicals. |
Research | Liked for being safe and useful, and people keep checking how it affects the environment. |
LED Lighting | Needed for things that get hot, and it helps parts stay clear and strong. |
When you pick the right silicone material and molding process, your parts work well and follow the rules for each industry.
Key Takeaways
Custom silicone parts are useful and can be found in many fields. They are used in medical, automotive, and electronics because they last long and handle heat well.
Picking the right silicone material and molding process is very important. This helps your parts work well and stay safe.
Prototyping is a key step. It lets you test designs fast and find problems early. This saves both time and money before making lots of parts.
Knowing what affects cost, like tooling, material type, and how many you make, helps you plan your budget for silicone projects.
Quality control is very important. Always check if your parts meet industry standards. This makes sure your silicone parts are safe and work well.

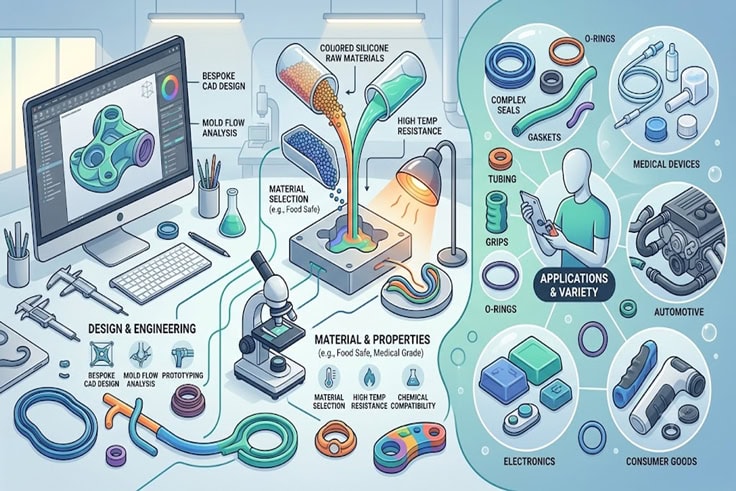

WHAT ARE CUSTOM SILICONE PARTS
KEY FEATURES AND BENEFITS
Custom silicone parts are used in many fields. Silicone is special because it can handle heat well. It keeps water away and stays strong when temperatures change. Silicone works where other materials might not. It does not break down easily from chemicals, UV light, or ozone. It stops germs and is safe for medical and food uses.
Here is a simple table showing how silicone compares to other materials:
Advantage | Silicone | Other Materials |
|---|---|---|
Durability | High | Varies, often lower |
Heat Resistance | -60°C to 230°C | Limited, often lower |
Chemical Resistance | Excellent | Often poor |
Flexibility | High | Varies, often lower |
Silicone can block electricity or let it pass, depending on what you need. It bends and squeezes easily, so seals and gaskets fit well and last long.
Tip: When you design with silicone, remember it shrinks when cured. It can change shape under pressure. This matters for the sizes you choose.
COMMON USES
Custom silicone parts are found in many things you use. Silicone is used in everyday items, medical tools, car parts, planes, machines, and kitchen tools. It helps make models for showing products, test parts for checking strength, and clear pieces like light covers.
Application Type | Description |
|---|---|
Appearance Models | Used for nice models in product shows and checking designs, good for electronics and car parts. |
Functional Prototypes | Lets you test parts with materials that act like real plastics for checking strength. |
Transparent Components | Makes clear parts like light covers and windows, important for car lights and medical tools. |
Silicone is trusted for seals, gaskets, tubes, and parts that must stay clear and strong in heat. Its special features make it a favorite for engineers and designers who want safe and reliable parts.
SILICONE MATERIALS OVERVIEW
MAIN TYPES OF SILICONE
There are many kinds of silicone for custom parts. Each kind has special features for different jobs. Here are the main types you might find:
Food-grade silicone: Safe for kitchen tools and baby items.
Medical-grade silicone: Used in implants and surgical tools.
High-temperature silicone: Handles heat in cars and planes.
Flame-retardant silicone: Protects wires and buildings from fire.
Conductive silicone: Used in electronics for electricity flow.
Optical-grade silicone: Stays clear for lights and lenses.
Fluorosilicone: Flexible and resists chemicals in fuel systems.
You need to pick the right silicone for your project. The right choice helps your parts last longer and work better.
FOOD GRADE VS MEDICAL GRADE SILICONE
Food-grade silicone and medical-grade silicone are both safe. They have different uses and rules. Look at the table below:
Property | Food-Grade Silicone | Medical-Grade Silicone |
|---|---|---|
Compliance | FDA-compliant, odorless, tasteless | USP Class VI or ISO 10993 certified |
Safety | Does not leach harmful substances | Biocompatible, non-toxic, non-reactive |
Temperature Stability | Stable up to 200°C+ | Works under extreme temperatures |
Intended Use | Kitchenware, baking molds | Implants, tubing, medical devices |
Additives | May contain additives | No plasticizers or organic additives |
Medical-grade silicone rubber is safe for the body. It can be cleaned in many ways. You can use it for short or long-term body contact.
PLATINUM-CURED VS PEROXIDE-CURED SILICONE
You often pick between platinum-cured and peroxide-cured silicone. These cure in different ways and have special features.
Feature | Platinum Cured Silicone | Peroxide Cured Silicone |
|---|---|---|
Curing mechanism | Platinum catalyst | Organic peroxide |
Mechanical performance | Stable and consistent | Less uniform |
Safety and cleanliness | No by-products | By-products present |
Purity | Very high | Lower |
Flexibility | More flexible, long-lasting | Less flexible, stiffens |
Biocompatibility | Excellent | Limited |
Thermal stability | Superior | Good |
Platinum-cured silicone is very pure and strong. It works well for medical and food uses. Peroxide-cured silicone costs less but may leave by-products. You use it when purity is not as important.
PROPERTIES AND MATERIAL SELECTION CRITERIA
You must think about a few things when picking silicone for custom parts. The table below shows what to check:
Criteria | Description |
|---|---|
Chemical Resistance | How well the material handles acids and other chemicals |
Operational Conditions | Type of use (static or moving), temperature range, and pressure |
Testing Methods | Test the materials under real or similar conditions to check performance |
Tip: Always test your silicone rubber the same way you will use it. This helps you avoid problems later.
Picking the right silicone makes your parts safer, stronger, and more reliable.
CUSTOM SILICONE PARTS MANUFACTURING WORKFLOW
DESIGN AND ENGINEERING
First, you design your silicone parts. Good design makes strong and useful products. You must think about shrinkage after cooling. Silicone can shrink by 2-4%. Plan vents in the mold to stop air bubbles. Put gates in smart places so silicone flows well. Picking the right silicone helps your parts last longer. Talk with your team early. Working together helps you avoid mistakes and makes production easier.
TOOLING DEVELOPMENT
Next, you make molds for your parts. CNC and EDM machines help create these molds. The tooling you choose affects speed and cost. Look at this table for common tooling choices:
Tool Type | Timeline | Cost |
|---|---|---|
Production Tooling | 3-6 weeks | Varies by complexity |
HCR (Machined tools) | 1-2 days (1-25 parts) | $2,500 + $20/part |
LSR (Injection molding) | 3-7 days | $2,500 + $10/part |
Tip: Production tooling takes longer but makes more parts. Quick tooling is good for testing prototypes fast.
PROTOTYPING
Prototyping lets you test ideas before making many parts. You can use 3D printing, form molding, or rapid molds. These methods help you make prototypes quickly, sometimes in less than 10 days. You check how your prototypes fit, look, and work. You also make working prototypes to see if your design is good. Rapid molds for LSR give you detailed prototypes ready for production. Prototyping helps you fix problems early and saves money.
PRODUCTION
After prototyping, you start production. You mix silicone with color and other things. Molding machines shape the silicone. Curing makes the silicone strong and stretchy. You trim and clean the parts to remove extra material. Surface treatments can make parts look or work better. Production gives you many parts that match your prototypes.
QUALITY INSPECTION
Quality inspection keeps your parts safe and reliable. You check size with calipers or CMM machines. You test strength and flexibility. You look for problems with your eyes or microscopes. You also test parts in real-life situations. These steps make sure your parts meet your needs every time.

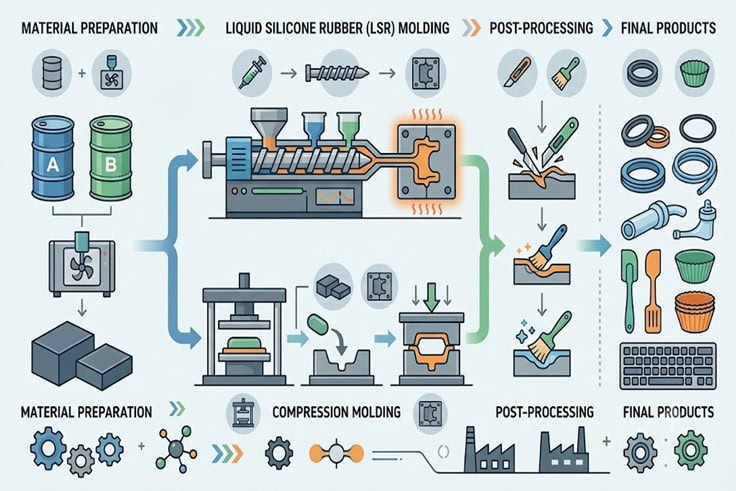

SILICONE MOLDING PROCESSES
There are different ways to shape silicone parts. Each way has its own good points and uses. Knowing about these silicone molding methods helps you pick the best one.
COMPRESSION MOLDING
Compression molding uses heat and pressure to shape silicone. You put raw silicone in a mold and press it down. The silicone fills the mold space. This method is good for soft parts and tight fits. It costs less for small or medium batches. You can make simple and big parts, but it takes more time. It is not the best for tricky shapes.
Compression molding is good if injection molding costs too much.
People use it for seals, gaskets, and basic silicone molds.
LIQUID SILICONE RUBBER INJECTION MOLDING
Liquid silicone rubber injection molding pushes liquid silicone into a mold. It uses pressure to fill the mold. This method makes tricky shapes and tight fits. It works fast and wastes less material. The closed system keeps things clean. You can cover other materials with silicone. But, starting and stopping costs more. The mold is harder to set up.
Advantages of LSR Injection Molding | Limitations of LSR Injection Molding |
|---|---|
Shorter cycle time | Higher startup and shutdown costs |
Prevents contamination | Limited to specific applications |
Ideal for complex parts | Mold complexity increases cost |
Less scrap material | Longer cure times |
Ability to over-mold |
|
TRANSFER MOLDING
Transfer molding mixes compression and injection molding. You put silicone in a chamber and push it into the mold. This method works with both high consistency rubber and liquid silicone. It is good for tricky shapes and tight fits. You can add metal or plastic pieces inside. Transfer molding is faster than compression molding.
Method | Applications | Characteristics |
|---|---|---|
Transfer Molding | Complex geometries, insert molding | Handles HCR and LSR, faster cycles than compression |
SILICONE EXTRUSION
Silicone extrusion pushes silicone through a die to make shapes. You use it for tubes, seals, and long pieces. This method gives you flexible and strong parts. It is a nonstop process, so you get long parts. Silicone extrusion keeps parts safe from heat and sunlight. It is used a lot in building and engineering.
Silicone extrusion is best for simple shapes.
You get parts that bend and last a long time.
SILICONE OVERMOLDING
Silicone overmolding lets you cover other things with silicone. You use it to wrap hardware or join two parts. Overmolding is common in making products and electronics. It gives better grip, safety, and strength.
Process Type | Description | Applications |
|---|---|---|
Overmolding | Multi-step process, molds components together | Encapsulate hardware, production |
3D PRINTED MOLDS FOR RAPID PROTOTYPING
3D printed molds help you make silicone samples fast. You can make tricky shapes for medical tools and soft parts. This method lets you change designs quickly and make small batches. You do not pay a lot for regular molds. 3D silicone printing is quick and flexible. It is great for custom molds and testing ideas.
Note: 3D printed molds help you test designs faster and cheaper, especially if you have less money or tools.
COMPARISON OF SILICONE MOLDING METHODS
You should look at all silicone molding methods to choose the right one. Each way changes how good, fast, and costly your parts are.
Method | Strengths | Limitations | Best Use Cases |
|---|---|---|---|
Compression Molding | Cost-effective, tight tolerances | Longer cycles, simple shapes | Seals, gaskets, basic parts |
LSR Injection Molding | Complex shapes, fast cycles | Higher setup costs | Medical, electronics, over-molding |
Transfer Molding | Handles inserts, faster than compression | Mold complexity | Complex parts, insert molding |
Silicone Extrusion | Continuous, flexible, durable | Limited to simple profiles | Tubes, seals, construction |
Overmolding | Combines materials, protects hardware | Multi-step, mold complexity | Electronics, production |
3D Printed Molds | Rapid prototyping, flexible design | Lower surface quality | Prototypes, custom silicone molds |
Vacuum Casting | High-quality finish, small batches | Needs master model, limited mold life | Appearance models, testing |
Tip: Always pick the silicone molding method that fits your part’s needs. Think about how you make molds and check their quality for the best results.
DESIGN GUIDELINES FOR CUSTOM SILICONE PARTS
WALL THICKNESS AND DIMENSIONING BEST PRACTICES
You want your custom silicone parts to last. Try to keep the wall thickness between 2mm and 4mm. This helps stop warping and makes curing even. If you use the same wall thickness everywhere, your parts shrink less. Your parts will also be more alike. Flexible silicone parts with the right size work better when bent or squeezed.
Make sure the wall thickness is the same everywhere.
Stay between 2mm and 4mm for the walls.
These tips help flexible parts work well and last longer.
Tip: Thin walls can rip or bend. Thick walls might not cure all the way.
DRAFT ANGLES AND PARTING LINE DESIGN
Silicone is not like hard plastic. You can use no draft angle or even a negative one. Silicone bends, so it comes out of molds easily. Plan your parting lines in simple spots. This makes it easier to make your parts. Good parting lines mean less trimming and cleaner parts.
SHRINKAGE AND TOLERANCE CONSIDERATIONS
Silicone gets smaller when it cures. You need to think about this when you measure. Look at the table below for shrinkage and tolerance rates:
Type of Silicone | Typical Shrinkage Rate | Tolerance Consideration |
|---|---|---|
LSR | 2.5% - 4.0% | At least 2.5% of the dimension or ±0.003 in. |
HCR | 1.5% - 3.0% | At least 2.5% of the dimension or ±0.003 in. |
General | 2% - 4% | Refer to ISO 3302-1:2014 for dimensional tolerances. |
Always ask your manufacturer what tolerance is best for your part.
DESIGN FOR MANUFACTURABILITY AND COST REDUCTION
You can save money if you make smart choices early. Use simple shapes and do not add extra details. Making more parts at once lowers the price for each part. Pick the right silicone for your job. Work with a skilled manufacturer who can help you save money and make better parts.
Strategy | Description |
|---|---|
Simplify part geometry | Fewer details can make tooling and making parts cheaper. |
Increase production volume | Making more parts spreads out the tooling cost. |
Select appropriate silicone materials | The right material keeps you from wasting money. |
Work with experienced manufacturers | Skilled makers can give advice and help you save money. |
COMMON DESIGN MISTAKES TO AVOID
You can stop many problems by following some easy rules:
Do not use sharp corners. Round edges are better for silicone.
Do not change wall thickness suddenly.
Always plan for shrinkage.
Talk to your manufacturer early in the process.
Note: If you plan well and talk clearly, your silicone parts will turn out better.
CUSTOM SILICONE PARTS COST FACTORS
When you start a project, you should know what makes custom silicone parts cost more or less. There are many things that change the final price. Here are the main things that matter:
Material type
Part design complexity
Manufacturing process
Surface finish and post-processing
Quality standards and certifications
TOOLING COST
Tooling cost is usually the first big thing you pay for. You need molds and tools to shape your silicone parts. If your design is tricky, you need special molds. These cost more money. If you want very exact sizes or special shapes, the price goes up. Simple molds are cheaper and work for basic parts. If you make more parts, you can spread out the tooling cost. This means each part costs less.
Tip: Ask your manufacturer about different mold choices. Picking the right tooling can help you save money.
MATERIAL COST
Material cost changes based on the silicone you pick. Medical-grade and food-grade silicone cost more because they must be very safe. High-temperature or flame-retardant silicone also cost more. If you use regular silicone, you pay less. The amount of silicone in each part also changes the total cost. Choosing the right material helps you get good quality and a fair price.
Silicone Type | Typical Cost Range | Special Features |
|---|---|---|
Standard | Low | Basic durability |
Medical-grade | High | Biocompatible, safe |
Food-grade | Medium | Safe for food contact |
High-temp/Flame-ret. | High | Heat and fire resistance |
PRODUCTION VOLUME
Production volume means how many parts you order. If you order more parts, each one costs less. This is because you share the setup and mold costs over more pieces. Manufacturers can work faster and buy more materials at once, which saves money. If you only order a few parts, each one costs more because you pay for setup every time.
Ordering more parts makes each part cheaper.
Making lots of parts helps factories work better.
How many you order is important for the price of each part.
SECONDARY OPERATIONS
Secondary operations are extra steps after molding. You might need to trim, finish, print, or treat your parts. These steps can make your silicone parts look nicer or work better. Every extra step adds to the cost. If you keep your parts simple, you pay less. If you want special finishes or marks, the price will go up.
Note: Plan your extra steps early. This helps you avoid surprises and keeps your project on budget.
QUALITY CONTROL AND CERTIFICATION
DIMENSIONAL INSPECTION
You want your silicone parts to fit and work every time. Dimensional inspection checks the size and shape of each part. You can use tools like calipers, gauges, or even 3D scanners. These tools help you measure if your parts match the design. If you find mistakes early, you can fix them before you make many parts. This step keeps your quality high and helps you avoid waste.
Tip: Always check a few parts from each batch. This helps you catch problems before they get bigger.
MECHANICAL PERFORMANCE TESTING
You need to know if your silicone parts stay strong and flexible. Mechanical performance testing checks how your parts bend, stretch, and hold up under pressure. You might pull or squeeze the parts to see if they break. You can also test how they work in hot or cold places. These tests show if your parts meet your quality needs. If a part fails, you can change the design or the material.
Test for stretch and tear strength.
Check how parts react to heat and cold.
Make sure each part works the way you want.
FDA, ISO, ROHS, AND REACH COMPLIANCE
You must follow rules when you make silicone parts for medical, food, or electronic uses. These rules keep people safe and make sure your parts have good quality. Many industries use special standards and certifications. Here is a table that shows some important ones:
Standard/Regulation | Description |
|---|---|
ISO 9001 | Sets rules for quality management systems. |
ISO 10993 | Checks if medical silicone is safe for the body. |
ISO 13485 | Focuses on quality for medical devices. |
21 CFR Part 210/211/820 | Sets good practices for drugs and medical devices in the U.S. |
Medical Device Regulation | Lists rules for medical devices in Europe. |
Regulation (EC) No 1935/2004 | Sets rules for silicone that touches food in the EU. |
You should always ask your manufacturer if they follow these standards. This helps you trust the quality of your silicone parts. If you need parts for special uses, make sure they meet the right rules.
APPLICATIONS OF CUSTOM SILICONE PARTS
Custom silicone parts are used in many different industries. These parts are important where safety, strength, and flexibility are needed. Here are some main ways people use these parts.
MEDICAL AND HEALTHCARE
Custom silicone parts are found in many medical tools. Doctors and patients use these parts every day. Silicone is safe for the body and does not cause problems. The table below shows how these parts help in healthcare:
Application Type | Description |
|---|---|
Medical Devices | Used in catheters, tubing, and respiratory masks due to biocompatibility. |
Implants | Suitable for breast implants, joint replacements, and heart valves. |
Specialty Formulations | Includes controlled drug release and high tear-strength materials. |
Silicone is trusted for surgery and patient care because it is very precise.
AUTOMOTIVE AND TRANSPORTATION
Custom silicone parts are used in cars, trucks, and airplanes. These parts include gaskets, seals, and hoses. Silicone can handle heat and chemicals in engines. You also find these parts in electric cars and trains. They help engines work well and keep cabins quiet.
Note: Silicone parts last longer than other materials in tough car jobs.
ELECTRONICS AND CONSUMER PRODUCTS
Silicone is used in electronics to protect and insulate. Custom silicone parts keep water and dust out of phones and smartwatches. These parts are also used for keypads, buttons, and covers that bend. Silicone makes products safer and more comfortable.
INDUSTRIAL EQUIPMENT
Factories and machines need strong parts to work well. Custom silicone parts are used in pumps, valves, and seals. These parts protect machines from heat, oil, and chemicals. Silicone helps machines run safely and smoothly.
FOOD AND BEVERAGE EQUIPMENT
Silicone is used in kitchens and food factories. Custom silicone parts are found in baking molds, tubing, and seals for drink machines. These parts must be safe for food. Silicone does not change taste or smell, so it is great for these jobs.
Tip: Always make sure your silicone parts are safe for food use.
Custom silicone parts help many industries because they are safe, strong, and flexible. You can trust them for many important jobs.
HOW TO CHOOSE A CUSTOM SILICONE PARTS MANUFACTURER
Picking the right silicone parts manufacturer helps you get safe products. You need to think about a few important things before you choose.
MANUFACTURING CAPABILITIES
Check if the manufacturer can do your project. Ask if they have made silicone parts before. See if they use methods like injection molding, compression molding, or extrusion. Find out if they can make both easy and hard shapes. Make sure they can use different silicone materials like VMQ, LSR, or HCR. A good team can help you fix problems and make your designs better.
QUALITY STANDARDS
Quality is important if you want parts that last. See if the manufacturer follows strict rules. Look for certifications like ISO 9001 or ISO 13485. These show the company cares about quality and safety. Ask how they test silicone parts for size, shape, and sealing. The table below shows what you should check:
Criteria | Description |
|---|---|
Dimensional stability | Parts must keep their shape under stress, heat, and time. |
Elastic recovery | Good parts go back to their shape after being squeezed. This helps seals last longer. |
Thermal resistance | Silicone usually works from −55°C to +230°C, depending on the type. |
Sealing performance | How well the part stops leaks depends on how it is made. |
Material selection | Different silicone types (VMQ, LSR, HCR) act in special ways. |
Design considerations | Things like wall thickness and draft angles are important. |
Tip: Always ask for test reports and samples to see the quality of the parts.
PROTOTYPING SUPPORT
Prototyping lets you see if your design works before making many parts. Pick a manufacturer who can make prototypes fast. Ask if they use 3D printing or quick molds for samples. Good prototyping helps you test fit, look, and how it works. You can find mistakes early and save money.
PRODUCTION CAPACITY
Production capacity means how many parts the company can make. You need to know if they can make small or big orders. Ask about their machines and workers. Find out how fast they can send you your parts. A company with good capacity can meet your deadlines and help you grow.
Note: Picking a manufacturer with the right skills and tools makes your silicone project easier and safer.
You get better results if you learn about silicone materials and molding. Using smart design tips helps your parts work well and stay safe. Picking the right silicone saves money and makes your parts stronger. Experts can help you choose silicone, design molds, and check quality. They help you avoid mistakes and follow important rules. Always think about all the details before you start your silicone project. This way, your parts will be safe and work the right way.
FAQ
What makes silicone better than other materials?
Silicone can handle heat, bending, and lasts a long time. It does not get ruined by sunlight or chemicals. People use it in many fields like medicine and food.
Can you use silicone parts for food and medical products?
Yes, you can use them. Food-grade and medical-grade silicone follow strict safety rules. Always look for safety labels before using silicone for food or medical things.
How do you clean and care for silicone parts?
You can clean silicone with soap and water. For food or medical use, you might need to sterilize it. Do not use sharp things that could scratch or cut the surface.
What is the typical lifespan of a silicone part?
Most silicone parts last for many years. They do not wear out from heat or chemicals. How long they last depends on how you use and take care of them.
