UNDERSTANDING MEDICAL PLASTIC PROTOTYPES
WHAT ARE MEDICAL PLASTIC PROTOTYPES
Medical plastic prototypes are early models. They test life-saving tools. Engineers build them during early steps. You use a healthcare device prototype now. It checks shape and fit. Advanced methods build your designs. For example, CNC machining makes exact plastic parts. It cuts them from blocks. Modern medical plastic prototypes spot errors fast.
PROTOTYPE VS PRODUCTION MEDICAL PARTS
Early prototypes differ from final parts. They change in speed and cost.
Feature | Early Prototypes | Final Production |
|---|---|---|
Primary Goal | Design validation and testing | Mass manufacturing and commercial sale |
Tooling Cost | Low upfront cost | High tooling investment |
Speed | Fast delivery in days | Longer setup and cycle times |
Bridge tools fill this gap. LKprototype offers great vacuum casting services. They make strong plastic parts. You save money on tools. This step delivers great models early.
ROLE IN MEDICAL DEVICE DEVELOPMENT
Strong medical device prototyping turns ideas real. It lowers business risks today. Early prototype development helps your plan:
Core Feasibility: You check basic power links.
Usability Testing: You test easy clinical handling.
Material Validation: You check strength under stress.
Risk Mitigation: You catch flaws before paying.
π‘ Fast testing prevents costly failures later. It keeps your launch on time.
DEFINE INTENDED USE AND TEST GOALS
Set clear test goals first. Each stage needs specific traits:
Form and Fit: Simple models check space fit.
Functional Bench Testing: Tough models check fluid flow.
Clinical Usability: Easy models test patient care.
Smart medical device prototyping strategies save money. You make perfect test models. You keep high speed always.

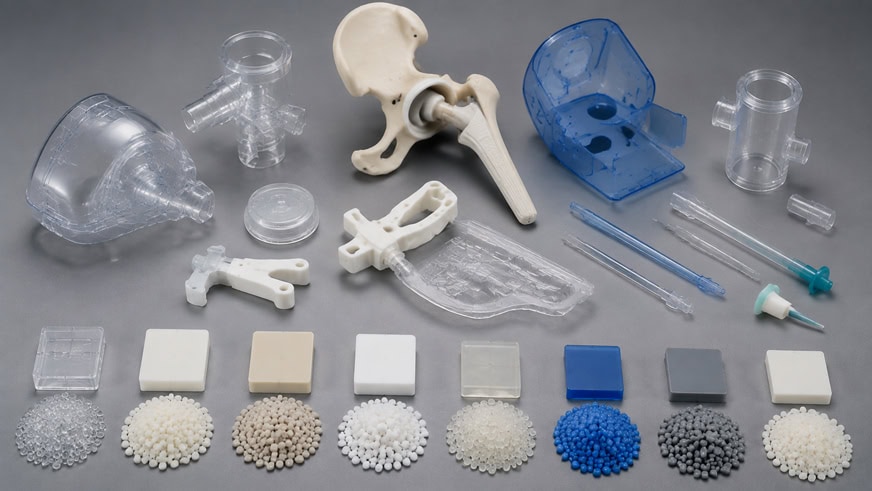

SELECTING MEDICAL PROTOTYPE MATERIALS
MATERIAL CONTACT AND EXPOSURE NEEDS
You must check device tissue contact. Match plastic types to your needs. Do this step very early.
Criteria Category | Key Focus | Impact on Prototype Performance |
|---|---|---|
Biological Performance | Biocompatibility | Ensures user safety and non-toxicity |
Application Performance | Mechanical Integrity | Gives good strength and toughness |
Chemical Resistance | Substance Compatibility | Stops damage from fluids and cleaners |
Processability | Manufacturing Fit | Helps make parts very quickly |
Safe certified plastics prove device safety. This helps speed up clinical tests.
PEEK, PEI, COC, PC, ABS, AND PP
Strong plastics have special traits. PEEK stays tough in heat. PEI stays very stiff under loads. COC gives clean optics for chips. PC adds great impact strength. ABS offers low cost and toughness. PP gives good hinge flex life.
Make early parts with exact CNC machining. This helps test true raw resins.
FLEXIBLE AND ELASTOMER MATERIALS
Soft parts need elastic plastics. Use liquid silicone or TPE now. LKprototype offers fast vacuum casting. They make soft parts with exact hardness. This process saves money on tools.
STERILIZATION METHOD COMPATIBILITY
Medical plastics must survive tough cleaning. Heat, light, and gas alter parts:
Autoclave (Steam): PEEK takes 1,000 steam turns. PC turns very cloudy fast.
Gamma Radiation: PE keeps strong. PC and PP turn yellow.
Ethylene Oxide (EtO): PVC and ABS handle gas well.
CHEMICAL AND CLEANING RESISTANCE
Harsh cleaners can crack weak parts. Polysulfone handles strong chemicals well. New PC types stop housing cracks. Tough materials keep test models safe. This helps during clinical trials.
BIOCOMPATIBILITY AND ISO 10993
ISO 10993 BIOLOGICAL EVALUATION
Safety checks protect patients from harm. Modern ISO rules need smart risk plans. Do not use simple checklists. You must find early risks. Test every single medical device prototype carefully.
Check safety across these basic areas:
Cytotoxicity, sensitization, and irritation
Systemic toxicity and pyrogenicity
Hemocompatibility and material degradation
ISO 10993-13 rules demand long real tests. Watch plastic breakdown over time. Check high additive amounts fully. Chemical tests track small loose compounds. Use very high heat for tests.
BODY CONTACT TYPE AND DURATION
Body contact paths guide your tests. Group parts by skin contact type. Check mucosal membranes and broken skin. Contact time means limited, prolonged, or permanent.
Surface Contact Subcategory | Primary Biological Endpoints / Tests | Conditional Endpoints |
|---|---|---|
Intact Skin Contact | Cytotoxicity, Sensitization, Irritation | Chemical characterization |
Breached or Compromised Surface | Cytotoxicity, Sensitization, Intracutaneous Reactivity | Systemic Toxicity |
Good tests help models pass rules fast.
MATERIAL GRADE AND SUPPLIER DATA
Pick safe medical plastics. Get full proof from good suppliers. Resin makers give technical sheets now. They share chemical data with officials.
π‘ Certified plastic sheets speed up official approvals. They save money.
LKprototype uses safe certified plastics. They make accurate custom parts. Their team provides fast CNC machining steps. They cut hard models from safe blocks. Their vacuum casting builds soft elastic parts. These parts match real production traits. Controlled methods bring fast legal checks.
PROTOTYPE MATERIAL LIMITATIONS
Early models differ from final parts. 3D printing plastics lack full approvals. Cutting tools and mold sprays leave dirt.
Treat early medical device prototype models carefully. Do not insert them long term. Good plans stop late legal delays.

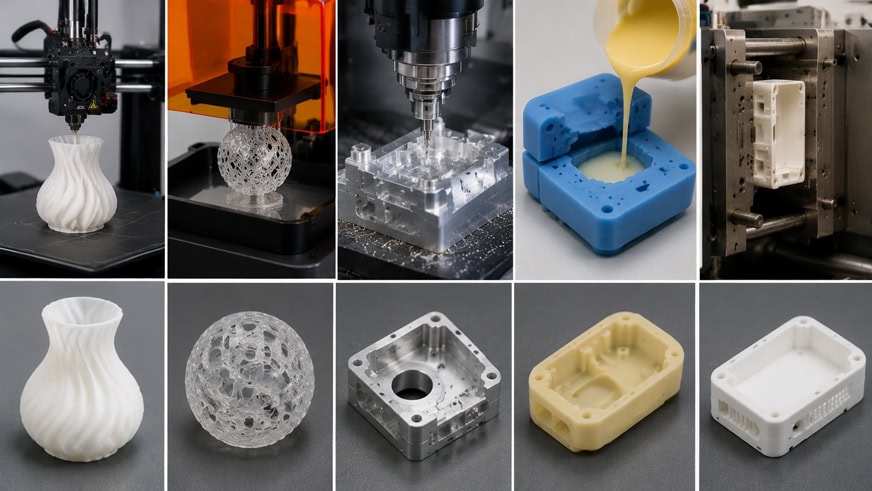

RAPID PROTOTYPING METHODS
CNC MACHINING FOR PRECISION PARTS
You can cut solid plastic blocks easily. This creates tight-tolerance components directly. High-precision CNC machining keeps real material strength. It stops heat damage completely. Engineers pick this method for fluid manifolds. It also builds strong covers.
SLA, SLS, AND MJF PROTOTYPING
3D printing makes hard shapes fast. SLA gives fine details for visual models. SLS and MJF make strong nylon parts. They need no support structures. These tools help your rapid prototyping goals.
VACUUM CASTING FOR SMALL BATCHES
LKprototype offers great vacuum casting options. These help early product testing. Soft molds copy master patterns with great detail.
Feature Category | Details & Benefits |
|---|---|
Cost Savings | Low setup fees save extra money. |
Quality & Precision | Smooth surfaces look like real molded parts. |
Batch Limits | Molds make 50 to 500 parts. |
Medical Applications | Molds build surgical tools and orthoses. |
You can use multi-cavity molds now. This helps higher batch needs during testing.
RAPID TOOLING FOR MOLDED PARTS
Aluminum molds connect early prototypes to final factory production:
You test real medical resins under true working conditions.
Molds finish in a few short weeks.
Early DFM checks lower big money risks.
Bridge production makes parts for clinical trials.
PROCESS SELECTION COMPARISON
Pick your making method based on project speed:
π‘ Matching part counts with smart processes saves your team money.
Machining: Best for accurate real plastic parts.
3D Printing: Great for fast shape checks.
Cast Urethane: Perfect for short runs and soft parts.
Rapid Tooling: Needed for final resin checks.
Smart choices keep your testing plan moving fast. Efficient steps speed up your final product launch.
QUALITY AND REGULATORY REQUIREMENTS
ISO 13485 QUALITY SYSTEM REQUIREMENTS
Pick strong partners. They need good systems for early designs. Strict iso standards control purity. They keep steps reliable. ISO 13485 guides medical device suppliers.
ISO Quality Management System | Focus & Primary Goal | Relevance to Medical Prototype Suppliers |
|---|---|---|
ISO 13485:2016 | Strict safety rules, risk management, and user safety | Main system rule for all medical part suppliers. |
ISO 9001 | General system rule for high quality and happy clients | Base quality rule often used with ISO 13485. |
Smart teams choose iso 13485 certified prototyping. It keeps early designs safe from bad errors. LKprototype uses set process rules. They build accurate device housings every time.
FDA QMSR DESIGN AND DEVELOPMENT
The FDA updates rules to match global standards. You must write down every build step now. Save every note in your design history file. LKprototype offers quick CNC machining choices. These options help meet all official rules. Their team makes exact parts. They follow strict safety laws carefully.
ISO 14971 RISK MANAGEMENT INPUTS
ISO 14971 rules need smart risk plans. Check early models for weak points. Stop part flaws before mass factory runs.
Validation Frameworks: Use strict checks to control every build step.
Scientific Molding Protocols: Use smart molding for solid part shapes.
Environmental Controls: Build parts inside clean spaces. Stop bad dust.
LOT TRACEABILITY AND CERTIFICATES
Full part tracking keeps your project safe. Get complete paper records for all plastic parts.
Functional Dimension | ISO 13485 Implementation Mechanism | Quality & Traceability Impact |
|---|---|---|
Quality Control | Set system rules with verified tools and steps. | Ensures tough plastic parts match all safety goals. |
Traceability | Deep tracking logs follow parts from raw blocks. | Proves real safety compliance during full legal reviews. |
LKprototype gives safe proof papers for each batch. They track all custom models across their shop. Their team follows raw plastic from start to finish.
π‘ Good paper records make government safety checks easy.
WHEN CLEANROOM PRODUCTION IS NEEDED
Body contact tools need very clean work rooms. LKprototype uses quick vacuum casting inside clean spaces. This stops dirt. Their team tracks every plastic piece. They follow all safety rules during all build steps.
DESIGNING MEDICAL PLASTIC PARTS
CRITICAL DIMENSIONS AND TOLERANCES
Set exact physical limits early. Tight limits keep parts working well. High-precision CNC machining holds key features. It works on tough materials. Exact sizes stop bad alignment. This protects handles and joints.
WALL THICKNESS AND DRAFT ANGLES
Keep wall thickness very even everywhere. Changing thickness causes stress and marks. Add a small draft angle. Make it 1 to 2 degrees. Slanted walls help parts leave molds.
FLUID PATHS, SEALS, AND LEAK RISKS
Stop liquid leaks in medical components. Hold tight limits under Β±0.05 mm. Smooth surfaces protect soft O-rings. Control flat surfaces for good seals. This protects your healthcare device prototype.
π‘ Smooth sealing surfaces prevent micro-leaks in high-pressure fluid channels.
ASSEMBLY AND SNAP-FIT DESIGN
Snap fits connect parts without screws. Keep material strain low during snaps. This stops small cracks. LKprototype offers expert vacuum casting services. They make soft flex joints fast. These parts match real factory performance. Test snap clips on your healthcare device prototype. This step proves mechanical durability.
DFM REVIEW BEFORE PROTOTYPING
Run a full design check first. Early reviews catch sharp inner corners. They also find thick walls fast. This check improves your workflow. Early fixes lower overall project costs.
Design Element | Best Engineering Practice | Key Project Benefit |
|---|---|---|
Wall Thickness | Maintain uniform nominal thickness | Prevents sink marks and warp |
Draft Angles | Apply 1Β° to 2Β° taper minimum | Ensures easy part ejection |
Radius Edges | Add internal corner fillets | Reduces structural stress points |
TESTING MEDICAL PLASTIC PROTOTYPES
FORM, FIT, AND ASSEMBLY TESTING
Test your early parts before launching products. First checks show if parts fit together well. Engineers analyze stacked tolerances on assemblies now. They confirm that every part aligns right. LKprototype offers precise CNC machining services. This creates exact early parts. These components verify smooth motion in big housings.
MECHANICAL AND FATIGUE TESTING
Mechanical tests show strength under high stress. You test physical models using basic ways:
Drop tests check physical strength after hard falls.
Crush tests check strength under big loads.
Fatigue tests check long durability under stress.
Testing Method | Target Feature / Application | Key Validation Focus |
|---|---|---|
Flexural Deflection Testing | Snap-Fits & Living Hinges | Measures exact strain using special real plastics. |
Enclosure Drop Testing | External Chassis & Enclosures | Checks physical impact strength on outer covers. |
Structural Fatigue Loading | High-Stress Load Components | Tests full material durability under repeated use. |
Check every medical device prototype under real loads. This stops early breaks during patient care.
FLUIDIC AND LEAK TESTING
Fluid manifolds must hold tight leakproof seals. Ingress tests check surface quality and rigidity. This keeps gasket squeeze very even. LKprototype uses expert vacuum casting options. They make top silicone seals and soft cases. These cast parts help your healthcare device prototype. They pass fluid tests without high tool costs.
CHEMICAL AND THERMAL TESTING
Expose working models to harsh cleaners now. Run hot heat cycles next. These tests prove chemical safety and heat resistance. Tough heat checks show good shape retention. Your medical device prototype stays flat during cleaning.
HUMAN FACTORS AND USABILITY TESTING
Clinical trials get quick feedback from nurses. Clinicians handle your healthcare device prototype daily. They check button setups, handles, and balance. These smart tests improve final polymer prototypes. They meet top user needs and safety goals.
MEDICAL PROTOTYPE DEVELOPMENT LIFECYCLE
PROOF-OF-CONCEPT PROTOTYPES
Good medical products start with clear user needs. You set initial goals using ISO 13485 rules. Next, you check technical feasibility. You also assess early risks. Simple models test basic mechanics fast. Fast methods check core features during early work.
ENGINEERING AND DESIGN VALIDATION
Smart design work turns CAD files into real parts. You build working models. They help test strength under real loads. High-precision CNC machining makes strong plastic parts. It keeps tight limits.
βοΈ Testing real models proves your design ideas work.
You run usability trials. You also complete safety tests. Proper validation proves your design meets all safety rules.
PILOT AND PRODUCTION-LIKE BUILDS
Pilot builds connect early testing to full production. You build small batches using production-intent setups. LKprototype offers expert vacuum casting. They make high-quality, production-like plastic parts.
Stage Focus | Primary Operational Goal | Key Output |
|---|---|---|
Pilot Runs | Check line steps and build speed | Real parts for testing |
Scale-Up | Grow factory output with fast speed | Final market devices |
These early batches provide samples for safety checks. You check assembly line safety. You also fix process flaws. Testing full prototype batches lowers risks before mass production.
PRODUCTION TRANSFER AND CHANGE CONTROL
The final phase moves designs into mass production. You write a full Design History File. It tracks all technical details. Documented changes keep full lot traceability during official reviews. Smart design work ensures reliable quality across all batches. Guided prototyping moves your team into full production. Focused development completes successful medical products safely.
COMMON RISKS AND PROJECT CHECKLIST
ASSUMING ALL GRADES ARE BIOCOMPATIBLE
Pick raw resins with great care now. Standard commercial plastics have bad additives. They also contain dangerous colorants. Mold release agents ruin safe builds. Commercial resins might fail safe rules. LKprototype buys certified materials with tracking logs. Check tech papers before cutting starts.
TREATING PROTOTYPES AS FINAL DEVICES
Engineers confuse early prototypes with real units. Printed parts lack true molding traits. Stress varies across making methods. Precision CNC machining makes exact test units. It checks shapes fast. Meanwhile, vacuum casting makes smooth parts quickly. It also copies elastic pieces. Still, test real factory parts later. Fast prototypes find early design flaws. They never swap final testing. Functional parts show early mechanical errors.
IGNORING STERILIZATION EFFECTS
Heat and radiation change plastic strength. Test resin stability during deep cleans. This table shows resin changes after cleans:
Polymer Resin | Sterilization Method & Exposure | Structural & Mechanical Changes |
|---|---|---|
PEEK | β’ 20β30 steam cycles | β’ Hardness grows ~49% by step 20. |
Radel PPSU | β’ 200β1,000 steam cycles | β’ Shows color changes after 200 turns. |
Ultem PEI | β’ 2,000 autoclave cycles (132Β°C) | β’ Keeps full strength in heat. |
Polysulfone (PSU) | β’ 100β500 steam cycles | β’ Cracks after 100 clean turns. |
Polycarbonate (PC) & POM | β’ Gamma radiation (25β40 kGy) | β’ Suffers quick chain breaks. |
Wrong resins cause early part breaks. Test cleaning limits very early.
MISSING LOT AND PROCESS TRACEABILITY
Officials need full tracking for all goods. Missing logs cause costly delay issues. Save digital files right away. Clear papers help final legal reviews.
MEDICAL PROTOTYPE PROJECT CHECKLIST
Follow this basic list to lower risks:
Check safety papers for raw materials.
Review cleanroom rules for build steps.
Test cleaning data for picked plastics.
Audit shop systems for ISO 13485 rules.
Save design steps in history files.
Smart plans bring quick official wins. They speed up product sales.
FAQS
WHICH PLASTIC IS BEST FOR MEDICAL PARTS
No single plastic fits every medical tool. Choose resins based on goals. Contact conditions matter too. Tough PEEK resists hot heat cycles. Clear polycarbonate offers high impact strength. It works well for fluid covers. You can test real resins early. High-precision CNC machining checks material performance.
DO PROTOTYPES NEED ISO 10993 TESTING
Early visual models skip biological checks. However, test prototypes for patient contact. Do this before clinical trials. You must check toxicity and irritation risks. Irritation risks need checks too. Evaluate sensitization risks before human studies. Certified safe materials reduce project delays. They help during official checks.
WHEN DOES ISO 13485 APPLY
Iso standard quality rules apply often. Use them for regulated healthcare tools. Suppliers use quality rules to control risks. They track material lots carefully. This keeps part builds consistent. Working with certified partners protects projects. You avoid design flaws and audits.
CAN VACUUM CASTING MAKE MEDICAL PARTS
Yes, fast casting builds top test parts. LKprototype excels at vacuum casting. They make soft elastic parts easily. They also build smooth seals and housings.
π‘ Vacuum casting makes smooth, soft features easily. You skip expensive metal tools.
This process checks short-run plastic models. You test parts before buying molds.
WHEN IS CLEANROOM PRODUCTION REQUIRED
You need cleanrooms when dust hurts safety. Airborne microbes threaten device safety too. Implants need cleanroom production spaces. Blood channels need clean spaces too. Sterile tools also require cleanrooms. Clean assembly spaces stop dirt contamination. They protect critical part surfaces well.
π‘ Fast quality matches speed launch. They keep your project funds safe.
Good plastic models mix build speed. They need true materials. They also need strict safety rules. You must pair test goals. Do this with real build materials early. Iso 13485 certified prototyping stops bad redesigns. It helps pass final official checks. Early safety checks remove legal delays. They bring fast market wins.
Work with skilled makers today. Simplify your device prototyping path. LKprototype gives fast precision. They offer accurate CNC machining steps. They also provide great vacuum casting work. Message our smart engineering team now. Get quick design help. Get fast prototype guidance. You also get full legal material checks.
