CNC prototype machining uses machines controlled by computers. These machines cut away material to make parts from solid blocks. This subtractive process helps you make prototypes and test if they work. CNC makes parts that are very accurate and match your design. You can change your design fast and try new ideas quickly. Here is why CNC is good for making new products:
Aspect | Description |
|---|---|
Speed | Makes prototypes in a few days, not weeks. |
Precision | Can make parts very exact, like ±0.001 inches. |
Design Iteration | Lets you change designs and make new parts fast. |
Consistency | Gives you the same quality every time. |
Scalability | Good for making small amounts before making a lot. |
CNC machining also saves money because you do not need new molds for small batches. If you want results you can trust, think about using LKprototype’s CNC prototype machining services.
Key Takeaways
CNC prototype machining makes parts fast. You can get them in a few days. This helps you test designs quickly.
This method is very accurate. It can make parts with tight tolerances like ±0.001 inches. This means parts fit together well.
CNC machining lets you change designs easily. You can improve prototypes without waiting a long time.
CNC machining uses real materials. You can test prototypes in real situations. This gives better results.
Picking the right CNC machining company is important. Look for skill, quality certificates, and clear communication.

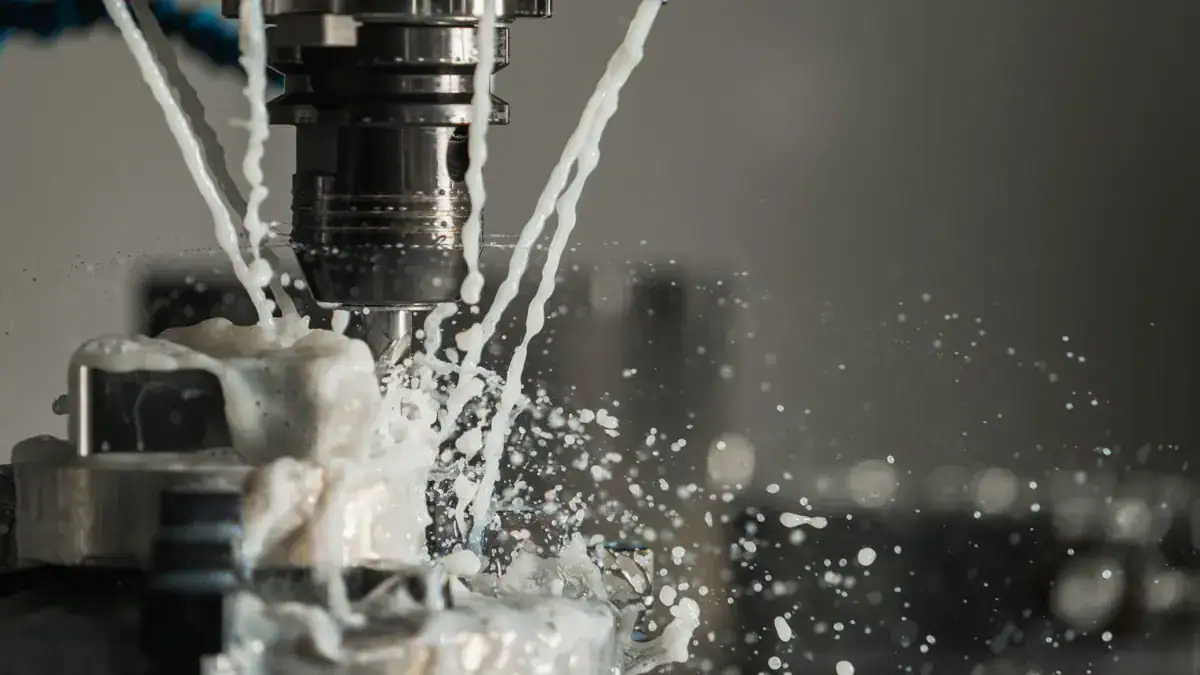

QUICK ANSWER: WHAT IS CNC PROTOTYPE MACHINING?
Definition of CNC Prototype Machining
CNC prototype machining uses machines run by computers. These machines cut and shape materials into parts. You can use CNC milling and turning to make a few prototypes fast. This method is best when you need to check if a part fits and works before making many. The parts are made from real materials, so you can trust the results.
CNC prototype machining helps you:
Make parts quickly to check designs
Test with real materials
Create shapes with high detail
Why Rapid Prototype CNC Machining Is Widely Used
CNC machining is popular for rapid prototyping because it makes accurate and reliable parts. You can use it for many things:
Checking if your design works
Testing how parts work
Making first samples before big production
Changing designs fast
Making small batches before mass production
The main goal of CNC prototype machining is to see if your prototype works well. You can check the shape, see if it fits with other parts, look at threads, and check the surface. If the prototype is not right, you can try a new design quickly.
Tip: CNC machining lets you change your design fast, so you can make your prototypes better each time.
When to Choose CNC Prototype Machining
Pick CNC prototype machining when you need parts made with high detail, fast, and from real materials. The table below shows what to think about:
Factor | Description |
|---|---|
Precision | CNC machining makes detailed and accurate parts. |
Material Options | You can use many metals and plastics for different needs. |
Turnaround Time | CNC machining gives you parts quickly for your project. |
Cost | It is good for making one or a few parts. |
Scalability | You can use CNC machining for small or pre-production runs. |
Skilled Operation | You need skilled workers for the best results. |
If you want good results and expert help, you can try LKprototype’s CNC prototype machining services.
KEY BENEFITS OF CNC PROTOTYPE MACHINING
Precision and CNC Machining Tolerances
When you make prototypes, you need them to be very exact. CNC prototype machining gives you better accuracy than other methods. The table below shows how CNC, 3D printing, and soft tooling compare:
Method | Material Range | Typical Tolerances | Lead Time | Best Use |
|---|---|---|---|---|
CNC machining | Production-grade metals and engineering plastics | ±0.0005″ to ±0.005″ | Days for simple parts; 1–2 weeks for complex | Functional testing, production-intent parts, tight tolerances |
3D printing | Polymers and select metals | ±0.005″ to ±0.020″ | Hours to days | Form/fit checks, ergonomic studies, complex internal geometry |
Soft tooling | Cast urethanes and silicones | ±0.005″ | 1–3 weeks | 5–50 unit prototype runs in flexible polymers |
CNC machining helps you get the right fit for your parts. This is important when you need pieces to work together.
Functional Testing with Production-Grade Parts
You want your prototypes to act like the real thing. CNC prototype machining uses the same materials as final products. This lets you:
Test how strong and tough your part is
See if it can handle heat or chemicals
Check its weight and balance
Make sure your design works in real life
You can pick materials like Aluminum 6061-T6 or Stainless Steel 304. These materials help your prototypes pass hard tests. Your parts will be ready for showing to others or trying out in the field.
Rapid Iteration for Product Development
CNC prototype machining lets you work fast. You do not need special tools or molds. You can change your design and make new parts quickly. This saves you both time and money.
The CNC process is automated, so you can get prototypes fast, sometimes in just hours. This helps you finish your design and get your product to market faster than old methods.
You can test, learn, and make your prototypes better without waiting a long time. This makes your work go smoother.
From Prototype to Low-Volume Production
CNC machining is good for making one part or a small batch. After you test your prototype and like the design, you can use the same process to make more. You do not have to switch suppliers or machines. This keeps your parts the same and saves time for engineers.
If you want CNC prototype machining you can trust, try LKprototype’s CNC prototype machining services. You will get help from experts for both making prototypes and small batches.
CNC PROTOTYPE MACHINING VS OTHER RAPID PROTOTYPING METHODS
CNC Machining vs 3D Printing
You might wonder how cnc machining and 3D printing are different. Both help you make prototypes fast, but they are not the same. Cnc machining is very exact and uses strong materials like metals and special plastics. 3D printing has more material choices, like soft plastics and resins, but is not as accurate.
Factor | CNC Machining | 3D Printing |
|---|---|---|
Tolerances | ± 0.001″–0.005″ (high) | ± 0.004″–0.02″ (varies) |
Cnc machining works with metals like aluminum and titanium, and plastics like PEEK and polycarbonate.
3D printing uses plastics like PLA and ABS, soft TPU, and some metal powders.
Cnc machining is best when you need parts that must fit just right. 3D printing is good for quick models or tricky shapes.
CNC Machining vs Vacuum Casting
Vacuum casting is another way to make prototypes. It uses silicone molds to make up to 50 of the same part. This method is often faster and costs less for small groups. Cnc machining costs more to set up, but makes stronger parts and gives you more material choices. Pick vacuum casting for small runs and cnc machining for tough, working prototypes.
CNC Machining vs Injection Molding
Injection molding is great for making lots of parts. It needs pricey molds and takes longer to get ready. Cnc machining is better for small batches and lets you change your design easily. You do not have to buy hundreds of parts. Cnc machining also saves you from paying for expensive molds.
Method | Advantages | Disadvantages |
|---|---|---|
CNC Prototype Machining | High precision, material versatility, rapid turnaround | Higher costs, geometric limitations, requires skilled operation |
Injection Molding | Efficient for mass production | High mold costs, longer setup times |
CNC Machining vs Rapid Tooling
Rapid tooling helps you make molds fast for short runs. Cnc machining gives you quick parts and high accuracy. Rapid tooling can give better material properties for some parts, but costs more to set up. Use cnc machining if you want to test or change your design quickly.
How to Choose the Right Prototype Process
Think about speed, cost, material, and what your project needs. Use this table to help you pick:
Criteria | Description |
|---|---|
Speed | Fast methods like 3D printing or cnc machining are best for quick results. |
Cost | Simple and fast methods cost less and let you test more. |
Material Selection | Choose the method that fits your material needs. |
Application Needs | Match the process to what your project needs. |
Tip: If you want strong and exact prototypes, cnc machining is a smart pick. If you need expert help, check out LKprototype’s CNC prototype machining services.

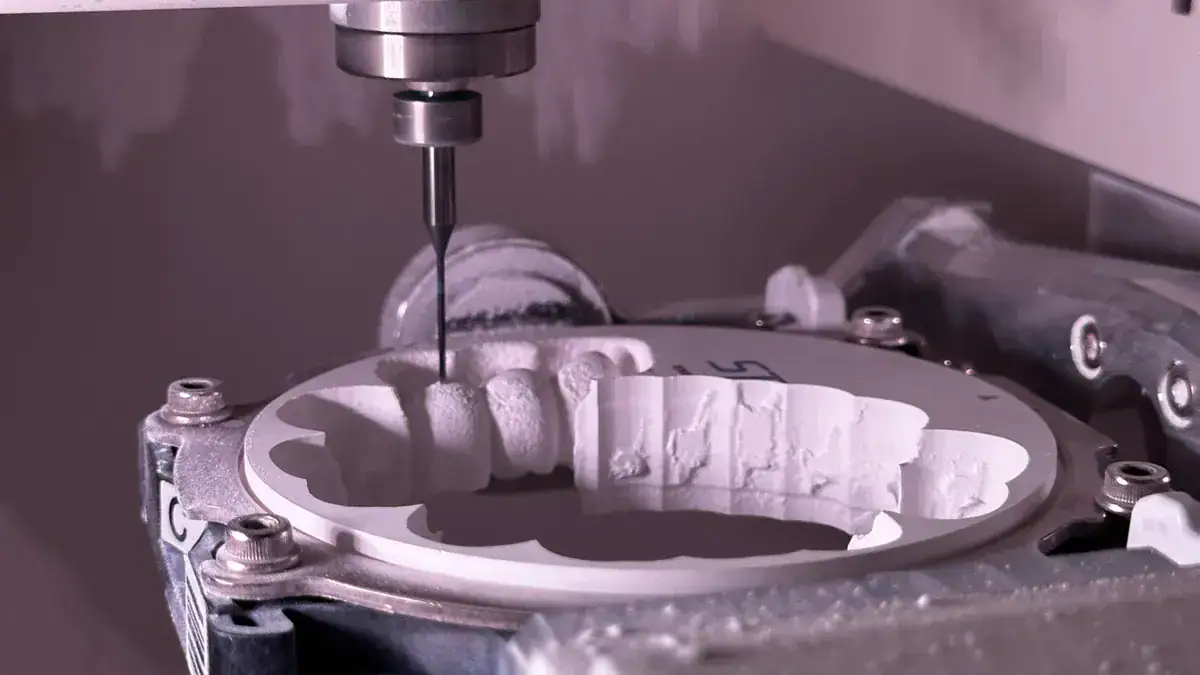

HOW THE CNC PROTOTYPE MACHINING PROCESS WORKS
When you want to make a prototype, you follow a clear process from start to finish. Each step in cnc machining helps you get a part that matches your design and works as you expect. Here is a simple table that shows the main steps:
Step | What Happens |
|---|---|
Design and CAD Modeling | You create a 3D model using CAD software. This model guides the whole process. |
CAM Programming | You turn your design into instructions for the cnc machine. |
Machining | The cnc machine cuts and shapes your material into the prototype. |
Finishing and Quality Control | You check the part and finish the surface to meet your needs. |
CAD Design Preparation
You start with a detailed 3D model. CAD software lets you draw every feature of your part. This model acts as the blueprint for cnc machining. If you make a mistake here, it can affect the whole process. Always double-check your design before moving on.
CAM Programming
Next, you use CAM software to turn your CAD model into a language the cnc machine understands. This step creates G-code, which tells the machine how to move and cut. You can set speeds, tool paths, and cutting depths. Good programming helps you avoid errors during machining.
Precision CNC Machining Operations
Now, the real work begins. The cnc machine follows the program and shapes your material. You can use metals or plastics. The machine cuts, drills, and mills with high accuracy. This step gives you a prototype that matches your design closely.
Quality Inspection and Dimensional Verification
After machining, you need to check your part. You measure key features and compare them to your CAD model. This step makes sure your part meets your needs. If you find a problem, you can fix your design and try again.
Surface Finishing and Post-Processing
The last step is finishing. You might sand, polish, or coat your part. Good finishing makes your prototype look and feel like a real product. It also helps you test how the part will work in real life.
Tip: If you want expert help at every step, you can use LKprototype’s CNC prototype machining services. Their team can guide you from design to finished part.
MATERIALS FOR CNC PROTOTYPE MACHINING
Common Metal Materials
You can choose from many metals for CNC prototype machining. Each metal has special features that fit different projects. Here are some of the most common metals you might use:
Aluminum: Great for aerospace parts, car parts, and consumer products. It machines easily and resists rust.
Steel: Works well for strong parts like shafts and gears. You see it often in cars and machines.
Stainless Steel: Best for medical tools and food equipment. It does not rust and stays clean.
Titanium: Used in airplanes and medical implants. It is light and very strong.
Copper Alloy: Good for electrical connectors and heat sinks. It carries electricity and heat very well.
Common Plastic Materials
Plastics give you many options for CNC prototypes. You can pick a plastic based on how tough, clear, or heat-resistant you need your part to be.
Acetal (Delrin): Machines smoothly and lasts a long time.
Nylon: Strong, stiff, and resists wear.
UHMW: Very good for parts that need to last.
PEEK: Handles high heat and chemicals.
PPS: Good for tough jobs.
Ultem: Holds tight sizes and works well under stress.
Polycarbonate: Clear and tough.
Acrylic: Clear and resists scratches.
ABS: Good for general prototypes and costs less.
Best Materials for Functional Prototypes
You want your prototype to act like the real part. Pick materials that match your needs:
Use Aluminum or Steel for strength.
Choose PEEK or Ultem for high heat.
Try ABS or Nylon for low cost and easy machining.
Pick Polycarbonate or Acrylic for clear parts.
Think about what your prototype must do. Does it need to be strong, light, or resist heat?
How to Choose the Right CNC Prototype Material
You should look at these points when picking a material:
Factor | What to Consider |
|---|---|
Performance | Does your part need strength or heat resistance? |
Cost | Will the material fit your budget? |
Project Needs | Is the prototype for testing or for looks? |
Tip: If you need help picking the best material, you can ask experts at LKprototype’s CNC prototype machining services. They can guide you to the right choice for your project.
DESIGN GUIDELINES FOR CNC PROTOTYPE PARTS
Design for Manufacturability (DFM)
When you design a CNC prototype part, you want it to be simple to make and work well. Here are some tips to help your part turn out right the first time:
Set geometric tolerances so you know how much the shape can change.
Show what surface finish you want for the right feel.
Choose machining plans that fit your part’s shape and material.
Think about which tool to use, how fast it cuts, and how quickly it moves for better results.
Make sure the tapping depth is deeper than the drilling depth so threads are strong.
Leave enough space in the wall for tapped holes to stop cracks.
Make different designs for prototype machining and for production casting.
Note: Let your manufacturer pick drill sizes and tap types. You only need to say what thread class and where it goes.

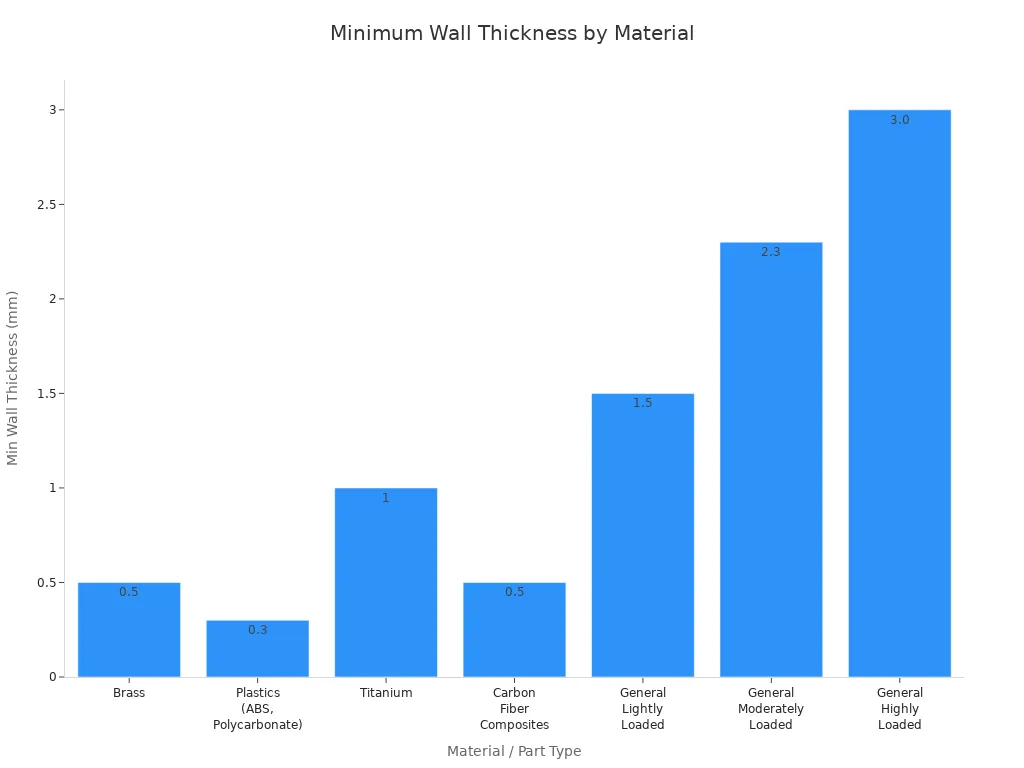

Wall Thickness Recommendations
Picking the right wall thickness helps your part stay strong and easy to machine. Use this table to help you decide:
Material | Minimum Wall Thickness | Maximum Wall Thickness |
|---|---|---|
Brass | 0.5 mm | 12 mm |
Plastics (ABS, Polycarbonate) | 0.3 mm | 8 mm |
Titanium | 1 mm | 20 mm |
Carbon Fiber Composites | 0.5 mm | 10 mm |
General (Light load) | 1.5 mm (0.06 in) | N/A |
General (Medium load) | 2.3 mm (0.09 in) | N/A |
General (High load) | 3.0 mm (0.12 in) | N/A |
Corner Radius and Internal Features
You can make CNC parts easier to machine by following these tips:
Use inside corner radii at least 130% of the cutting tool’s radius.
Make sharp corners with a radius at least half the tool diameter.
Make corner radii a bit bigger than the smallest size for smoother cuts.
Set vertical radii to one-third of the cavity depth for a better finish.
Tolerance Design Guidelines
Tolerances show how much a part can change from the design. Here are standard tolerances for CNC machining:
Machining Type | Tolerance |
|---|---|
Standard Prototype and Production | ± 0.005 in. (0.13 mm) |
Standard Precision | ± 0.002 in. (0.051 mm) |
Reamed Holes | ± 0.0005 in. (0.0127 mm) |
Feature Locations | ± 0.002 in. (0.051 mm) |
Reducing CNC Prototype Machining Costs Through Better Design
You can save money and still get good parts by following these steps:
Use tight tolerances only where you really need them.
Keep part shapes simple so they do not take long to make.
Use multi-axis machining to cut down on setups.
Pick materials that are easy to machine.
Design parts with symmetry and features that repeat.
Tip: If you want expert help with CNC design, check out LKprototype’s CNC prototype machining services. Their team can help you get the best results for your project.
CNC PROTOTYPE MACHINING COST, LEAD TIME AND TOLERANCE
CNC Prototype Lead Time Explained
You want your prototype fast. CNC machining can make parts quickly. The time depends on your design. Simple prototypes are ready in a few days. Complex parts take one or two weeks. Some shops can make urgent parts even faster.
Complexity | Lead Time |
|---|---|
Simple prototypes | A few days |
Complex parts | 1–2 weeks |
Expedited services | Available for urgent projects |
Most CNC prototypes ship in two to seven days. Lead time changes if your part is hard to make. Material and finishing steps also change the time.
What Affects CNC Prototype Machining Costs
Many things can change the price of your CNC prototype. You need to think about the material. Hard designs cost more. The number of parts matters too. The table below shows the main factors:
Factor | Description |
|---|---|
Material Selection | Plastics usually cost less than metals. |
Design Complexity | More complex shapes take longer and cost more. |
Machining Type | 3-axis machines cost less than 5-axis machines. |
Production Volume | Making more parts lowers the cost per part. |
Post-Processing | Extra finishing steps add to the price. |
Lead Time | Rush orders cost more. |
Labor Costs | Skilled work for complex parts increases expenses. |
Material, shape, machine type, and how many you make all change the price. Extra finishing steps and rush orders cost more. Skilled workers for tough parts also add to the price.

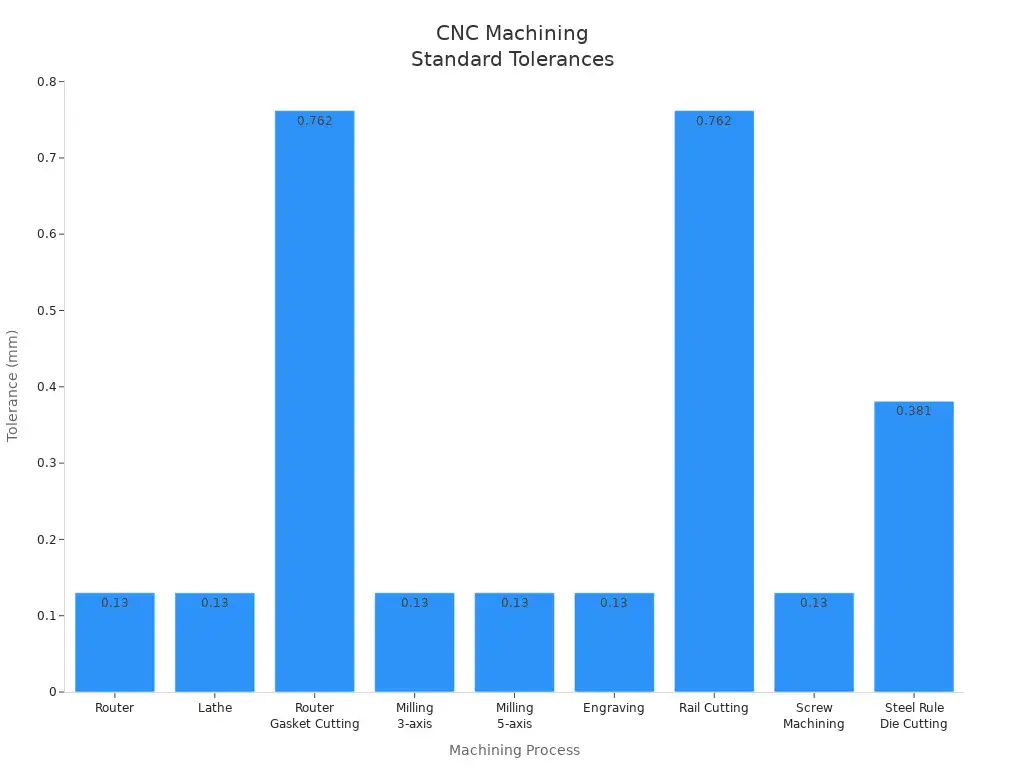

Standard and Precision CNC Tolerances
You need to know how close your part will match your design. CNC machining gives tight tolerances. Standard prototypes have a tolerance of ±0.005 inches (0.13 mm). Precision work can reach ±0.002 inches (0.051 mm). Special features like reamed holes can be even tighter. Always check what your project needs before picking a tolerance.
How to Reduce CNC Prototype Costs
You can save money on your CNC prototypes by following smart strategies:
Pick cheaper materials like aluminum or plastics such as ABS or POM.
Make parts in batches to spread setup costs.
Use 3-axis machining if you can.
Cut down on extra finishing steps.
Use software to avoid mistakes and downtime.
Make your design easy to machine.
Compare prices from different suppliers.
Work with shops that finish parts in-house.
Tip: If you want expert advice and fast service, you can try LKprototype’s CNC prototype machining services. Their team helps you get quality parts at the right price.
COMMON CNC PROTOTYPE MACHINING CHALLENGES
Design Complexity Issues
Sometimes, designs are too hard for CNC machines. Some shapes cannot be made as drawn. Inside corners that are too small for the tools cause problems. Blind pockets that are too deep can go past what tools can reach. Features needing many setups without a clear plan can lead to errors. You must check if your design fits what CNC machines can do.
Shapes that cannot be made as drawn
Inside corners smaller than tool size
Blind pockets too deep for tools
Features needing many setups without a plan
Material Selection Mistakes
Picking the wrong material can make your prototype fail. You might choose a metal or plastic that does not work for your project. Some materials are hard to machine or cost too much money. If your material cannot handle stress or heat, your part may break when tested. Always pick a material that matches your project’s needs.
Tolerance and Surface Finish Problems
You want your parts to match your CAD files. Sometimes, parts do not fit or look right because of tolerance or surface finish issues. If you set tolerances too tight, it costs more and can cause delays. Surface finishes that are not right can change how your prototype works. Missed deadlines and parts that do not match CAD files are common problems.
Solving CNC prototype machining challenges depends on two things: picking a partner with good skills and talking clearly from the start. This helps stop delays, keeps quality high, and builds trust with your manufacturer.
How to Avoid Common CNC Prototype Machining Problems
You can avoid mistakes by doing these steps:
Check your design to see if it can be machined.
Pick materials that fit your project and are easy to machine.
Set tolerances and surface finish that are realistic.
Tell your supplier exactly what you need.
If you want expert help and good results, you can use LKprototype’s CNC prototype machining services. Their team helps you fix problems and deliver quality prototypes on time.
INDUSTRY APPLICATIONS OF CNC PROTOTYPE MACHINING
CNC prototype machining is used in many industries. This process helps make parts that must be strong and work well. You can use CNC machining to test new parts or make a few for real use.
Here is a table that shows where CNC prototype machining is important:
Industry Sector | Applications |
|---|---|
Telecommunications | High tolerances and reliability for critical components. |
Automotive | Rapid production of parts like interior panels and gearboxes. |
Aerospace | Precision parts such as airfoils and landing gear components. |
Oil and Gas | Durable parts like valves and drill bits that require precision. |
Military and Defense | Components that meet stringent standards and require durability. |
Electronics | Small, precise components that need tight tolerances. |
Marine | Water-resistant parts for seagoing vessels, such as propellers and engine components. |
Firearms | Accurate components with in-process quality control. |
Optics | Complex geometries and lightweight materials for optical components. |
In the automotive industry, CNC machining makes gearboxes and panels fast. In aerospace, it makes airfoils and landing gear that must fit just right. Oil and gas companies use CNC machining for strong valves and drill bits.
Electronics need tiny parts that must be very exact. Marine parts, like propellers and engines, must not let water in. Military and defense need tough parts that follow strict rules. Optics companies use CNC machining for light and tricky shapes.
If you want to test your ideas or need parts for hard jobs, CNC prototype machining gives you the accuracy and trust you need.
You can get help for your project from LKprototype’s CNC prototype machining services. Their team helps you make prototypes that work well and meet your needs.
HOW TO CHOOSE A CNC PROTOTYPE MACHINING COMPANY
Picking the right CNC prototype machining company is important. You want a company that listens to you and gives you good parts on time. Here are some things to think about:
Technical Capabilities
See if the company uses new CNC machines. New machines help make parts more exact and faster. Ask if they can work with many materials and hard shapes. Companies with good skills use the best tools and speeds for your parts. This helps you get the parts you want.
Check if they have worked in your field before.
Make sure they know how to use your materials.
Ask if they can make parts with tight tolerances.
Manufacturing Capacity
You need a company that can make the number of parts you need. Some shops only make a few parts at a time. Others can make many parts if you need them. Ask what machines they have and how many parts they can make at once. A good company can change how many parts they make for you.
Capacity Type | What to Ask For |
|---|---|
Prototyping Only | Small runs, quick changes |
Low-Volume | 10–1000 parts, repeat orders |
High-Volume | Thousands of parts, fast scale |
Quality Certifications
Quality is important for every job. See if the company has certificates like ISO 9001. These show they follow rules to make good parts. Certified shops check their work and keep records. This helps you trust their parts.
Tip: Companies with certificates usually give better and more reliable parts.
Engineering Support
You might need help with your design or picking materials. Good companies have experts who can help you. They can tell you about tolerances, materials, and how to machine your part. This help can stop mistakes and give you better parts.
Ask if they look at your designs before making parts.
See if they help you pick the best material for your needs.
Lead Time and Communication
Getting your parts fast helps your project. Ask how long it takes to get your parts. Good companies tell you when your parts will be ready and let you know if things change. Good communication means you always know what is going on.
If you want a company you can trust, think about LKprototype’s CNC prototype machining services. Their team has new machines, can make many parts, checks quality, and gives expert help so you can do well.
FAQ
What Materials Can Be CNC Machined?
You can machine many types of metals and plastics with CNC. Common metals include aluminum, steel, stainless steel, and titanium. Popular plastics are ABS, polycarbonate, PEEK, and nylon. Each material has its own strengths. You should pick the one that fits your project best.
How Long Does CNC Prototype Machining Take?
Most CNC prototypes are ready in a few days. Simple parts may take only two or three days. Complex parts can take up to two weeks. If you need your parts faster, some shops offer rush services.
How Much Does CNC Prototype Machining Cost?
The cost depends on the material, part shape, and how many you need. Simple plastic parts cost less than complex metal ones. Making more parts at once can lower the price per part. You can ask for a quote to know the exact cost.
What Files Are Required for CNC Prototype Machining?
You need to provide a 3D CAD file, usually in STEP or IGES format. This file shows the exact shape of your part. Some shops also accept STL files. Always check with your supplier to see what they need.
Is CNC Better Than 3D Printing for Prototypes?
CNC machining gives you stronger and more accurate parts. You can use real production materials. 3D printing is faster for simple shapes and costs less for some plastics. If you need tough, precise prototypes, CNC is often the better choice.
Can CNC Prototype Parts Be Used for End-Use Products?
Yes, you can use CNC prototype parts as end-use products. They have high strength and tight tolerances. Many industries use CNC parts for both testing and real-world use.
What Is the Difference Between CNC Prototype Machining and Rapid Prototyping?
CNC prototype machining is a type of rapid prototyping. Rapid prototyping includes many methods, like 3D printing and casting. CNC uses cutting tools to shape real materials. It is best when you need strong, accurate parts.
Need expert help? Try LKprototype’s CNC prototype machining services for fast, reliable prototypes.
CNC prototype machining helps you work fast and get accurate parts. You can also test with real materials for your project. First, make a good CAD design. Then, pick the best material for your part. It is smart to work with people who know CNC well. Always think about what your part needs before picking a process.
If you want help from experts and quick results, try LKprototype’s CNC prototype machining services.
Check your design carefully
Choose the right material
Team up with a skilled CNC company
Making good choices helps you build better products.
