Multi Setup CNC Machining Explained: Accuracy, Datum Control & Best Practices

When dealing with cnc machining multiple setups, you encounter unique challenges that can impact accuracy. Each setup in cnc machining multiple setups introduces risks that may affect precision. Maintaining strict datum control is crucial for high precision cnc machining multiple setups, as it ensures your reference points remain consistent throughout every setup. By minimizing setup errors in cnc machining multiple setups, you achieve greater precision and reliability. Advanced strategies, such as selecting the right machine and optimizing tooling, help maintain stable axis control and reduce mistakes during cnc machining multiple setups. The table below illustrates how various control methods influence precision in cnc machining multiple setups:

Measurement system analysis (MSA) provides statistical confidence in your inspection tools for cnc machining multiple setups. It helps identify root causes of failures and checks for errors in parts, gauges, environments, or operators. By focusing on process planning and datum strategies in cnc machining multiple setups, you enhance both accuracy and productivity.

Key Takeaways

• Keep datum control strict to make sure reference points stay the same in every setup. This helps make things more accurate.

• Plan each machining step with care. This helps lower setup mistakes and makes the work more exact.

• Use advanced tooling and fixtures to hold parts steady during machining. This lowers the chance of parts bending or changing shape.

• Add in-process inspections to find mistakes early. This helps keep the quality high during the whole process.

• Make your setup more efficient by keeping tools and steps organized. This saves time and helps make things more accurate.

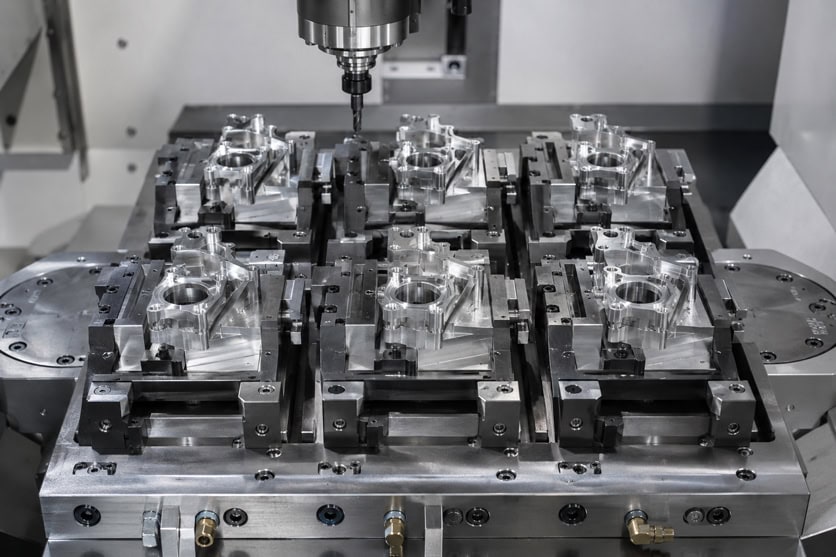

OVERVIEW OF MULTI SETUP CNC MACHINING

WHAT IS MULTI SETUP CNC MACHINING

Sometimes, you need to work on parts from different sides. Multi setup CNC machining means you move the part many times while making it. Each time you change the part’s position, you make a new setup. This way, you can reach places that one setup cannot. CNC machines help control how the tools move and cut. Multi-axis CNC machining gives you more choices, so you can make tricky shapes and deep holes.

WHY MULTIPLE SETUPS ARE REQUIRED IN CNC MACHINING

Some parts have features on many sides or inside channels. One setup cannot reach every spot. You must move the part to work on all areas. Sometimes, you need new tools or change how the part sits to keep things accurate. Multi-axis CNC machines help, but some parts still need more than one setup. You make fewer mistakes by planning each setup and keeping the datum the same.

Tip: Always mark your reference points before you start. This helps you stay accurate when you change setups.

APPLICATIONS OF MULTI SETUP MACHINING

Multi setup CNC machining is used in many industries. Aerospace companies use it for turbine blades because they need strong and complex shapes. Medical device makers use it for custom implants that fit each person. Automotive engineers use it for engine blocks and powertrain parts, reaching inside channels with many setups. Defense projects need strong materials and exact shapes for missile parts. Electronics makers create heatsinks and enclosures with tiny, accurate features. Robotics companies build custom joints and end-effectors for light and smart designs.

You use multi-axis CNC machining to fix hard problems in these fields. You make things better and faster by planning each setup and keeping your work neat.

ACCURACY CHALLENGES IN MULTI SETUP CNC MACHINING

SOURCES OF SETUP ERRORS

When you use cnc machining multiple setups, you face many problems. Every time you move a part, mistakes can happen. The main setup errors come from:

• Geometric errors, like when the axes move wrong or are not in the right place.

• Joint positioning errors, which happen if the axes move the wrong way or stop in the wrong spot.

• Errors from the X, Y, and Z translation axes, and also from the A, B, and C rotation axes.

These mistakes can add up and make your work less accurate. You need to check your machine and setups often to keep things working well.

MACHINE ACCURACY AND POSITIONING VARIATION

Machine positioning can change each time you set up a part. When you move a part, it might not line up perfectly. Small shifts can turn into big problems if you need tight tolerances. Multi-axis cnc machines help by needing fewer setups. Fewer setups mean fewer chances for mistakes. If you move the part less, you keep better accuracy. This helps you meet high tolerance cnc machining standards.

TOLERANCE STACK UP IN MULTIPLE SETUPS

Tolerance stack up means small mistakes from each setup add together. You might not see a tiny error at first, but after many setups, these mistakes can make your part wrong. You should plan your steps to control tolerances. Always measure after each setup to find mistakes early. This keeps your parts accurate and within the right limits.

REPOSITIONING ERRORS AND MISALIGNMENT

Repositioning errors happen when you move a part and it does not line up the same way. Even a small shift can hurt your accuracy. You can use special fixtures or pins to help line things up. Probing systems help check positions before you start cutting. Good habits and careful work help you keep your parts precise and within tolerance.

TYPICAL MULTI SETUP CNC MACHINING SCENARIOS

MULTI SIDE MACHINING OPERATIONS

Sometimes, you need to work on all sides of a part. Multi side machining operations help you reach every surface without moving the part a lot. You use special tools or rotary tables to turn the part around. This way, you get many good things:

• You finish more work in one setup, so jobs are faster.

• You get better accuracy because you do not move the part much.

• You can make lots of parts quickly and make fewer mistakes.

You will also notice these good things in your shop:

1. You work faster because you can make hard parts in one setup.

2. You make inside features more exact.

3. You save money and time by skipping extra steps.

Tip: Use multi-axis cnc machines to do fewer setups and keep your work easy.

COMPLEX GEOMETRY AND DEEP FEATURE MACHINING

Some parts have shapes that are hard to reach. You need cnc machines with more axes to get to deep holes or tough angles. Multi setup cnc machining lets you move the part to reach these spots. You can use long tools or special holders to get inside. Always check your work after each step. This helps you keep your part right and stops mistakes from adding up.

HIGH PRECISION PARTS REQUIRING MULTIPLE SETUPS

Sometimes, you need to make parts that fit together just right. High precision parts often need cnc machining multiple setups. You must keep your reference points the same every time. Use probing systems to check your part before you cut. This helps you keep tight tolerances. Good planning and strong fixtures help your parts meet the best standards. You get better results when you control each step in the process.

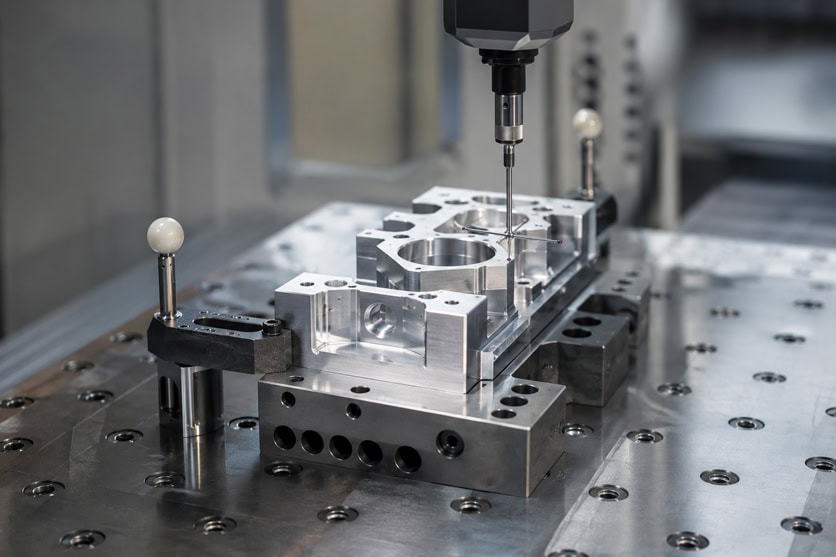

DATUM CONTROL FOR HIGH PRECISION CNC MACHINING

SELECTING PRIMARY SECONDARY AND TERTIARY DATUMS

You must pick your datums with care for high precision cnc machining. The right datums help you keep things accurate in every setup. Use the table below to help you choose:

When you pick the right primary, secondary, and tertiary datums, your parts turn out more accurate. It also makes checking your work easier. This step is very important for tight tolerances and high tolerance cnc machining.

MAINTAINING DATUM CONSISTENCY BETWEEN SETUPS

Keeping the same datum for all setups is important for high precision cnc machining. You make fewer mistakes and keep your work accurate this way. Here are some ways this helps you:

• You use geometric dimensioning and tolerancing (GD&T) so everyone knows how to hold and check the part.

• You stop errors from building up in the assembly, which is important for cnc machining multiple setups.

• In 4-axis cnc machining, you machine all features from the same datum. This helps keep things even and lined up.

• You lower the chance of mistakes by always using the same spot as your reference.

• You get better results and more accurate parts.

Tip: Always set your work-piece coordinate system to match your chosen datum. This keeps your process steady and your results good.

DATUM REFERENCE STRATEGIES FOR ACCURACY CONTROL

You can use different ways to make your cnc machining more accurate:

• Modular fixturing systems help you set up parts faster and make them more exact. For example, a German car company made engine blocks 15% better with this method.

• Precision measurement tools, like CMMs, help you check if things line up and look right. Studies show these tools can cut mistakes by 20%.

• Automation, like robotic arms, can line up parts within 5 micrometers. This is great for electronics and other jobs that need cnc precision machining techniques.

When you use these ideas, you keep your tolerances tight and your work turns out better. You also make sure your setups help you get the best accuracy possible.

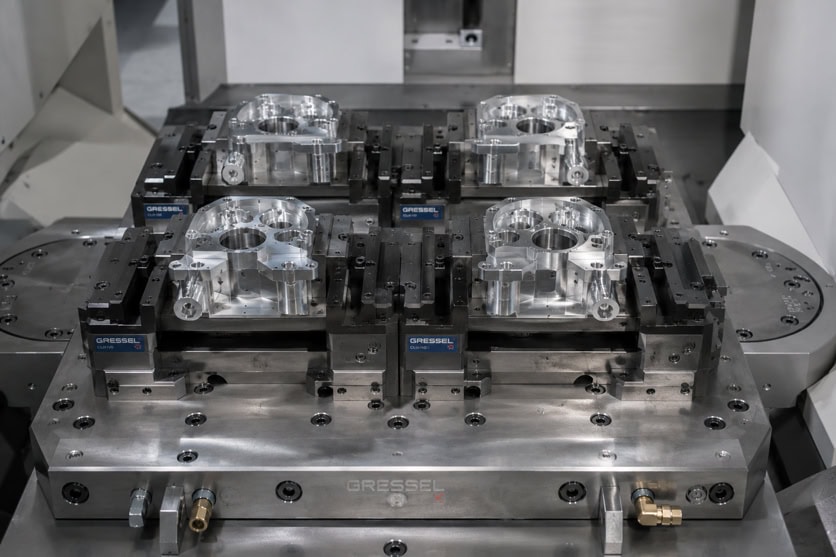

FIXTURE AND WORKHOLDING STRATEGIES FOR MULTI SETUP MACHINING

FIXTURE REPEATABILITY AND POSITIONING ACCURACY

You need fixtures that help you set up parts the same way each time. Good fixture systems keep parts in the same place, even after you take them out and put them back. Some advanced systems, like Nextas Tech zero-point clamping, move parts less than 0.003 mm. The BDS positioning datum series can repeat positions with less than 3 microns of error. If you use these systems with clean surfaces and good temperature control, you get very high accuracy. This helps your cnc machining results stay steady and reliable.

• Nextas Tech zero-point clamping systems: repeatability < 0.003 mm

• BDS positioning datum series: repeatability < 3 microns

• Clean surfaces and thermal control keep performance steady

MODULAR FIXTURES AND PRECISION LOCATING SYSTEMS

Modular fixtures help you set up parts faster and more accurately. For example, a German car company used modular bases with precision pins for engine blocks. This made their setup time 25% shorter and their part accuracy 15% better. Modular fixtures let you switch parts quickly and keep everything lined up. Good fixtures do more than just hold parts—they help you find and clamp them in the right spot. This is important for tricky shapes. Always machine your main datums first and protect them during the process. This keeps all your cnc operations connected and accurate.

MINIMIZING PART DISTORTION DURING CLAMPING

You want to stop parts from bending or changing shape when you clamp them. The table below shows ways to keep your parts safe during cnc machining:

You can also use these tips: Use soft jaws for a better fit. Try vacuum workholding for even support. Do not clamp too hard or too soft.

If you follow these steps, your parts will stay accurate and strong through every setup.

HOW TO REDUCE SETUP ERRORS IN CNC MACHINING

PROCESS PLANNING AND SETUP SEQUENCING

You can make fewer mistakes in cnc machining by planning each step. Start by cutting the material in layers. Let the part rest for 24 hours so it can settle. This helps the material relax before you finish important features. To keep parts steady, use ways to stop vibration. You can slow down the spindle, use gentle milling, or change how deep you cut. These steps help protect your parts and make the process more stable.

ALIGNMENT VERIFICATION METHODS

You need to check if things line up right during every setup. AI in machining can help pick the best spots for locators. One study showed AI made alignment 25% faster and made surfaces 15% smoother for titanium parts. Checking during the process helps you find problems early. One shop used a probe to find a 0.03-mm shift after turning a part 90 degrees. This saved them $10,000 in extra work. Some systems use sensors to fix misalignment while milling. These ways help keep your machining correct.

• AI in machining helps pick locator spots and makes surfaces smoother.

• Checking during the process finds shifts and stops big mistakes.

• Sensor systems fix misalignment while you work.

USING PROBING SYSTEMS AND INSPECTION TOOLS

Probing systems and inspection tools are very important in cnc machining. How stiff the whole setup is affects how precise you can be. Measurement System Analysis (MSA) helps you find mistakes before they get worse. You can match software and hardware, like digital twins and in-machine probes, to stop errors. CNC inspection systems check important features by themselves. Probing on the machine makes a closed loop for checking and cutting. Automatic tool wear fixes stop bad parts from being made.

• Probing systems check features and keep work accurate.

• Automatic fixes stop mistakes from tool wear.

IMPROVING CNC MACHINE STABILITY

You need to keep your cnc machine steady to avoid setup mistakes. Clean surfaces and the right temperature help keep things stable. You can use ways to stop vibration and modular fixtures to hold parts tight. Steady machines make accurate parts and lower the chance of errors.

Tip: Always check if your machine is steady before you start a new setup. This helps keep your results good.

MULTI SETUP MACHINING ACCURACY CONTROL METHODS

PRECISION TOOLPATH STRATEGIES

You can make your parts more accurate by picking the right toolpath. The toolpath is the path the cutting tool follows to shape your part. Using smart cnc toolpath strategies helps you avoid mistakes and keeps your work precise. For example, adaptive clearing changes the tool’s path as you remove more or less material. Trochoidal milling moves the tool in circles, so it stays cutting and does not wear out fast. Contour toolpaths follow the part’s outline for better results. The table below shows what each strategy does and how it helps:

You can also use high-speed machining, more than one tool, and AI to pick the best toolpath. If you use the wrong toolpath or push too hard, the tool might bend. This can make holes or shapes the wrong size. Always choose a toolpath that fits your part to get the best results.

TEMPERATURE AND THERMAL STABILITY CONTROL

Heat can change how accurate cnc machining is. Machines get hot when they run for a long time. This heat can make parts and machines get bigger, which causes mistakes. This is called thermal drift. To keep things accurate, you need to control the temperature and keep things steady. Many shops use rooms that stay at the same temperature, within about one degree. This stops parts from changing size because of heat. If you see parts getting bigger or smaller in different batches, check if the temperature is changing. Keeping everything cool and steady helps you make better and more accurate parts.

QUALITY CONTROL AND FINAL INSPECTION

You need good quality checks and inspections for multi setup cnc machining. First, look at your design to make sure sizes and limits are right. Then, check the first part you make to see if it matches your plan. While making more parts, check them as you go to catch mistakes early. When you finish, do a final check to see if all sizes and surfaces are correct. Always write down your results. This helps you find where problems started if something goes wrong. Good checks and inspections help your parts meet high standards every time.

Tip: Checking your work at every step helps you find problems early and keeps your customers happy.

BEST PRACTICES FOR MULTI SETUP CNC MACHINING

OPTIMIZING SETUP EFFICIENCY

You can help your cnc shop work better by following easy steps. These steps save time and make your work more exact. Try these ideas to make your setup faster:

1. Check and write down how your machine and job look now.

2. Find out what takes time, like cleaning or picking tools.

3. Put cleaning things and tools close by to save time.

4. Group parts that are alike so you do not have to change setups a lot.

5. Set your machine using clear steps.

6. Write down and use the same steps every time.

Tip: When you keep your process neat, your work-piece coordinate system stays the same and your work gets more accurate.

REDUCING CYCLE TIME WITHOUT LOSING ACCURACY

You want to finish jobs quickly, but you still need high precision. Cnc process optimization can help you do both. The table below shows ways to save time and keep good quality:

You can also try these cnc precision machining tips:

• Use 4-axis cnc machining to do fewer setups.

• Make your steps the same each time to keep quality high.

• Check and write down how long setups take so you can get better.

COMMUNICATING TOLERANCE REQUIREMENTS WITH SUPPLIERS

Talking clearly helps you get the best results in high precision cnc machining. You need to tell your suppliers what you want for tolerances and quality. The table below shows what you should do and what you should not do:

Note: When you use clear drawings and GD&T, your supplier knows what you need for accuracy and checking. This helps your toolpath and machining stay correct.

MULTI SETUP MACHINING STRATEGIES COMPARISON

MANUAL VS AUTOMATED FIXTURING

You can pick manual or automated fixturing for cnc machining. Manual fixturing means you use your hands and skills. You put the part in place and hold it tight yourself. This way can be different each time because people work in their own ways. Automated fixturing uses special machines to clamp parts very exactly. These machines give you the same results every time. Automated fixturing is best when you need to work fast or make many parts. After you set up the toolpath, the machine works by itself. You do not need to use guides by hand. Fixtures hold the part steady, so you get better repeatability. How you design the fixture is very important. Good fixtures help you set up parts more accurately, especially with automated cnc machining.

3 AXIS VS 5 AXIS MULTI SETUP MACHINING

You can use 3-axis or 5-axis machines for multi-axis cnc machining. 3-axis cnc machines are good for easy shapes. They can only reach flat sides that face up or down. This makes it hard to make tricky parts. You often need to move the part many times to finish it. 5-axis cnc machines can reach the part from many directions. You can make hard curves and deep spots in one setup. This saves time and makes the surface look better. You also get better accuracy because you do not move the part again. The table below shows how they are different:

ACCURACY AND COST COMPARISON TABLE

You need to look at accuracy and cost when you pick a way to machine. 3-axis machining is best for simple parts like plates and brackets. You need to move the part many times, which can cause mistakes to add up. 5-axis machining is better for hard shapes like impellers and medical parts. You can finish these parts in one setup, so they are more exact. The table below shows how they compare:

Note: You can save time and money if you use multi-axis cnc machines for hard parts. You also make fewer mistakes and get better accuracy.

FAQ

WHAT IS MULTI SETUP CNC MACHINING

You use multi setup cnc machining when you need to work on a part from different sides or angles. You move the part and set it up again to reach new areas. This process helps you make complex shapes and deep features. Multi-axis cnc machines let you do more in one setup, but some parts still need several setups. You improve quality by planning each step and checking your work with inspection tools.

HOW DO YOU MAINTAIN ACCURACY BETWEEN SETUPS

You keep accuracy high by using the same reference points, called datums, for every setup. You mark these points before you start machining. You use strong fixtures to hold the part steady. You check alignment with inspection probes after each move. You write down your steps and follow them each time. These actions help you keep quality and avoid mistakes.

Tip: Always use inspection tools to check your part after every setup. This keeps your accuracy and quality at the best level.

WHAT CAUSES POSITIONING ERRORS IN CNC MACHINING

You can see positioning errors when the part does not line up the same way after you move it. These errors come from dirty surfaces, loose fixtures, or changes in temperature. You may also see errors if you do not use the right datum or if the machine moves wrong. You can stop many errors by cleaning, using good fixtures, and checking with inspection tools. This helps you keep quality in your cnc work.

HOW CAN SETUP ERRORS BE REDUCED

You reduce setup errors by planning your machining steps. You use inspection systems to check your part often. You keep your work area clean and control the temperature. You use strong, repeatable fixtures. You write down your process and follow it every time. These steps help you keep quality high and make sure your parts pass final inspection.

You get better cnc machining results by paying attention to accuracy and keeping datums strong. The table below shows how fewer setups, smart datum choices, repeatable fixtures, and checking with probes help you stay precise.

• True position between holes on different faces is important.

• Perpendicularity between datums made in different clampings keeps parts square.

• Profile continuity across blended surfaces makes quality better.

• Angular relationships between ports or sealing planes help parts fit.

When you follow these best practices, your parts turn out more accurate and you work faster.
