Design for Manufacturability (DFM): Principles, Guidelines and Best Practices

You want your design to go from idea to product easily. Design for manufacturability helps make products simple and cheaper to build. Many companies have problems like getting teams to work together. They also need to train workers or pick the best software. You can fix these problems by using DFM principles. DFM can lower manufacturing costs by up to 40%. It can also make lead times shorter by as much as 60%. When you use DFM, you get better quality, faster speed, and lower cost.

Key Takeaways

• Design for manufacturability (DFM) makes making products easier. It can lower costs by up to 40%. It can also make things faster by up to 60%.

• Checking designs early helps find problems before making things. This saves time and money. It also makes the product better.

• Using fewer parts and standard components helps a lot. It makes building things faster. It also lowers mistakes.

• Picking the right materials and tolerances is very important. Do not use very strict rules if you do not need to. This helps keep costs low.

• Working with manufacturing teams from the start is smart. It helps make better designs. It also means fewer problems when making products.

WHAT IS DESIGN FOR MANUFACTURABILITY (DFM)

DFM MEANING AND CORE OBJECTIVES

Design for manufacturability means making products easy to build. It also helps make them cheaper to produce. Engineering groups say DFM is about designing things so they cost less and are easier to make. You have to think about what materials you use. You also need to check how exact the sizes must be. Sometimes, you need extra steps like finishing.

When you use DFM principles, you try to reach some main goals:

• Make manufacturing easier and lower production costs

• Keep products sustainable

• Stop problems early in the design stage

• Add manufacturing needs into the design

• Cut costs and make products better

• Lower harm to the environment

These principles help you make smart choices from the beginning.

WHY DFM MATTERS IN PRODUCT DEVELOPMENT

Most big choices about a product happen during design. Early design affects most of a product’s impact on the environment. If you find problems with manufacturability and sustainability early, you avoid expensive changes later. This way, you get better products faster. You also save money by making good decisions early.

Tip: If you think about manufacturability early, your project will do better.

HOW DFM REDUCES COST, RISK, AND PRODUCTION ISSUES

Design for manufacturability helps you find ways to spend less money. It does not lower quality. You can make production and shipping faster. This makes your process run smoother. Picking the right materials can save even more money. If you use fewer parts, you spend less and assembly is easier. Making your process simple helps you avoid mistakes and delays.

DFM tools help you see problems while you design. These tools give tips to fix issues before they cost a lot. Using DFM lowers risks and keeps your project moving forward.

CORE DESIGN FOR MANUFACTURABILITY PRINCIPLES

DESIGN SIMPLIFICATION

Making your design simple helps manufacturing. Using fewer unique parts lowers costs. Production gets faster when you use the same part more. The price for each part drops if you make more of them. Simple designs mean fewer mistakes happen during assembly. You need skill to make a good product with less parts. This way, you can save money when making things.

• Remove features you do not need.

• Use fewer parts.

• Stay away from shapes that are hard to make.

Tip: Simple designs help you make more products and spend less.

STANDARDIZATION OF PARTS AND COMPONENTS

Using standard parts makes manufacturing easier. You can use the same shapes and sizes. Standard parts are easy to fix and replace. They also make inventory simpler and faster.

• Use the same parts for different products.

• Pick parts that are easy to find.

• Make inventory easier to manage.

MATERIAL SELECTION FOR MANUFACTURABILITY

The material you pick affects how easy it is to make things. Choose materials that work well with your process. Make sure they are safe. Strong materials help products last longer. Using green materials helps the planet.

• Pick materials that cost less.

• Make sure materials work with your process.

• Think about comfort and rules.

ASSEMBLY OPTIMIZATION

Making assembly better saves time and stops mistakes. Use fewer parts and make them symmetrical. Parts that fit themselves and are easy to place help workers go faster.

1. Use fewer unique parts.

2. Make similar parts hard to mix up.

3. Add features that make handling easy.

QUALITY CONTROL INTEGRATION

You must add quality rules to your design. This stops problems later. Designs that are easy to check help make better products.

MODULARITY AND DESIGN REUSE

Modular design lets you use parts again in other products. This makes development faster and production easier. It also makes products stronger and easier to fix.

These dfm principles help you make products that are easy to build. They also help you spend less money and make things more reliable. You can make manufacturing better by using these rules from the start.

MANUFACTURING CONSTRAINTS ENGINEERS MUST CONSIDER

When you design something, you need to think about manufacturing limits. These limits change how easy it is to make your part. They also affect how much it costs.

CNC MACHINING LIMITATIONS

CNC machining is used a lot to make parts. But it has some limits you should know:

• Sharp inside corners are tough to make.

• Tools can bend and cause mistakes.

• Complex curves are hard for machines.

• Axis alignment is important for accuracy.

• Some materials are harder to machine.

If you forget these limits, you might have problems making your part. This can slow down your project.

TOOL ACCESSIBILITY AND FEATURE DESIGN

How tools reach your part changes what features you can add. The table below shows how tool access affects your design:

TOLERANCE AND COST TRADE-OFFS

Tight tolerances make parts cost more. You need to balance how exact your part is with your budget. Tighter tolerances need special machines and more checks. Costs go up fast if you want tolerances tighter than ±0.13 mm (±0.005"). Sometimes, costs can be three to ten times higher for very precise parts.

• Tolerance choices change cost and lead time a lot.

• Tight tolerances need special equipment.

• More quality checks are needed.

• Special steps must be used.

SURFACE FINISH REQUIREMENTS

Surface finish changes how your part works and costs. A super smooth finish is not always best. Sometimes, rough surfaces help things stick better. Standard finishes work for most parts and do not need extra steps. If you want a special finish, you need more work, special tools, and more checks. This makes manufacturing take longer and cost more.

PROCESS SELECTION CONSIDERATIONS

You need to pick the right process for your design. Think about these things:

• Material selection: Pick materials that fit your needs and work well with your process.

• Manufacturing process compatibility: Make sure your design matches the process you want to use.

• Simplicity and standardization: Use fewer parts and standard pieces to save time and avoid mistakes.

• Ease of assembly: Design parts that are easy to put together.

If you think about these limits early, you will avoid problems and make better products.

DFM GUIDELINES AND BEST PRACTICES

USE ESTABLISHED MANUFACTURING DESIGN RULES

You should always use rules for design for manufacturability. These rules help you make products that are easy to build. They also help you spend less money. Most of a product’s cost comes from design choices. If you use the right rules, you can save money and make better products. Some important guidelines are:

• Make your design simple by using fewer parts.

• Use standard components to save time and money.

• Think about your manufacturing process when designing.

• Make assembly easy and quick.

• Support quality by making designs that are easy to check.

When you use these rules, you can cut costs by up to 40%. You can also make lead times shorter by up to 60%.

CONDUCT DESIGN REVIEWS EARLY

You should check your design early in the process. Early reviews help you find problems before production starts. Fixing issues now costs less than fixing them later. Early reviews can lower manufacturing costs by 20% to 50%. You also avoid delays and expensive changes.

Tip: Review your design early to save money and time.

LEVERAGE DFM SOFTWARE AND SIMULATION TOOLS

DFM software and simulation tools help you find problems before production. These tools let you test your design and see how it works. You can check if your design fits the manufacturing process. This step helps you avoid delays and keeps your project moving. When you use these tools, your product is high quality and easy to build.

COLLABORATE WITH MANUFACTURING TEAMS

You should work with manufacturing teams from the start. This teamwork helps you find problems early. It also helps you make products that are easy to build. When you work together, you can save money and reduce waste. You also make the process smoother and make sure your design fits the manufacturing process.

• Make product development easier.

• Find problems early.

• Lower production costs.

• Improve efficiency.

OPTIMIZE TOLERANCES AND SPECIFICATIONS

You need to set tolerances that are not too strict or too loose. If tolerances are too tight, costs go up and production slows down. The table below shows how tighter tolerances need more parts and extra work:

Set the loosest tolerances that still work for your needs. This step saves money and keeps your design efficient.

DFM CHECKLIST FOR PRODUCT DESIGN ENGINEERS

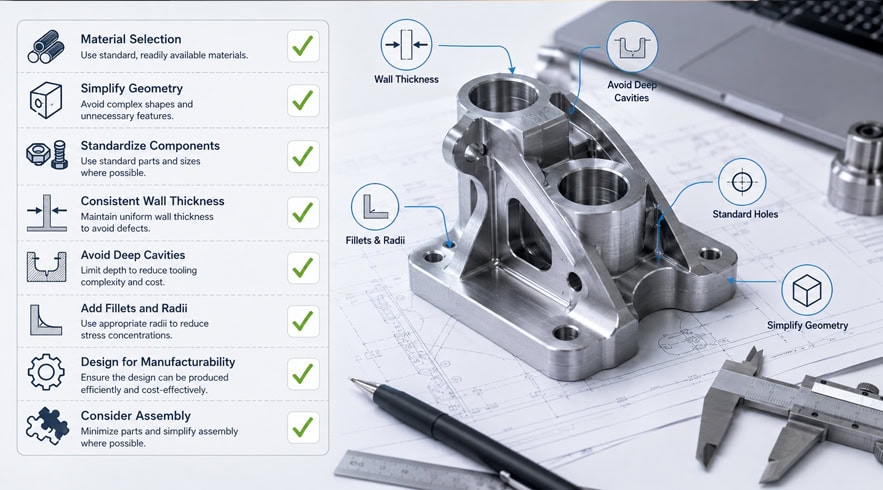

A checklist helps you see if your design is ready to make. You can use this list to check your work and stop mistakes. Each step looks at important things that make building your product easier.

PART GEOMETRY REVIEW CHECKLIST

You need to look at the shape and features of your part. This helps you find problems before you start making it.

• Make sure the part name matches your files.

• Give each part a number that stays the same.

• Write down what your product does.

• Say where your product will be used, like hot or wet places.

• Check that all important features can be reached in two or less setups for CNC machining.

• Look at inside corners and make sure they are big enough for normal tools.

• For injection molding, keep wall thickness the same and add draft angles of at least 1°.

• For sheet metal, use bend radii that are as big as or bigger than the material thickness.

Tip: If you check the shape early, you can stop expensive changes later.

MATERIAL AND PROCESS SELECTION CHECKLIST

Picking the right material and process is very important for manufacturability. You need to match your design with the best choices.

• Pick the material type, like metal, polymer, or composite.

• Write down the exact grade and who sells it.

• Check if you can get the material and how long it takes.

• Make sure the material works with your process.

• Check how strong and hard the material is.

• Make sure it can handle the heat and chemicals where it will be used.

• Try to use materials that can be recycled or come from renewable sources.

TOLERANCE OPTIMIZATION CHECKLIST

Setting tolerances changes cost and quality. You need to balance how exact you need to be with what is possible in manufacturing.

• Do not use tighter tolerances than you need.

• Make sure your tolerances work with normal manufacturing steps.

PRODUCTION READINESS CHECKLIST

You must check that your design is ready to be made. This step makes sure manufacturing goes well.

• Guess how many you will make each year.

• List any rules or standards you need, like UL or CE.

• Make sure all details are clear.

• Look at assembly steps and keep them simple.

• Check that all parts are easy to find and buy.

Note: A full checklist helps you make a design that is easy to build and meets all the rules.

BENEFITS OF DESIGN FOR MANUFACTURABILITY

REDUCING MANUFACTURING COSTS

Smart design choices help you spend less money. If you change a machined part to sand casting, you can save a lot each year. One engineer saved $57,000 by picking a new process. Making corners bigger lets you use larger tools. This makes work faster and cuts costs by 17%. Taking away features you do not need, like a web in a die-cast part, means you use fewer cores. This lowers tooling costs and overhead. These examples show how design for manufacturability helps you save money and makes production easier.

IMPROVING PRODUCT QUALITY

Good design rules help you make better products. When you design for manufacturing, you get fewer defects and higher quality. You also see fewer warranty claims. Using fewer parts means there are fewer places for things to break. This makes your product stronger and more reliable.

• Optimized designs mean fewer defects and better quality.

• Fewer parts mean fewer places for failure and more reliability.

SHORTENING TIME TO MARKET

Design for manufacturability helps you get products to customers faster. Simple designs are easier to build and test. You find and fix problems early, so you avoid delays. Using standard parts and clear rules speeds up every step. This lets you launch your product before your competitors.

Tip: Plan early and use simple designs to reach the market quickly.

INCREASING MANUFACTURING EFFICIENCY

Smart design makes your factory run better. Standard parts and simple shapes help workers assemble products faster. Machines make fewer mistakes. You waste less material and time. The whole process becomes smoother and easier to predict. This means you get more products and use resources better.

You see big improvements when you focus on manufacturability from the start.

APPLYING DFM TO CNC MACHINING AND RAPID PROTOTYPING

DESIGNING PARTS FOR CNC MACHINABILITY

You can make CNC machining simple by using DFM steps. Start with basic shapes that are not hard to cut. Do not use sharp inside corners because tools cannot reach them well. Pick hole sizes that match common drill bits. Make sure tools can get to all features easily. If you use fewer setups, you save time and money. Keep walls thick enough so parts do not bend or break. Think about how the process will work when you design. This helps you stop mistakes and delays.

Tip: Add radii to inside corners. This helps tools cut faster and keeps parts strong.

DFM FOR RAPID PROTOTYPING PROJECTS

Rapid prototyping helps you test ideas fast. DFM makes prototypes easy to build and change. Pick materials that are simple to shape and fit your needs. Use easy features so machines can make parts quickly. If you use standard sizes, you can change your design later without big problems. Check if your design works with the prototyping process. This helps you see if your product will work in real life.

• Pick materials that are easy to machine or print.

• Use standard features and sizes.

• Make parts simple to put together.

TRANSITIONING FROM PROTOTYPE TO PRODUCTION

You must change your design when you move to production. Review your part to see if it is easy to make. Use materials that are easy to find and buy. Check if your design matches the process for making many parts. Make features simple so machines can work fast. Set tolerances that are not too tight or hard to make. This keeps costs low and makes production simple. Work with your team to fix problems before making lots of parts.

Note: Good planning helps you turn prototypes into products that are easy to make and sell.

REAL-WORLD DESIGN FOR MANUFACTURABILITY EXAMPLES

ELECTRONICS PRODUCT DESIGN EXAMPLE

You can see the power of DFM in electronics. Imagine you want to design a new remote control. You start by choosing standard buttons and a simple case shape. You use a single circuit board instead of many small ones. This makes assembly faster and lowers mistakes. You pick materials that are easy to mold and safe to use. You also make sure the battery compartment is easy to open. These choices help you build the remote control quickly and keep costs low.

Tip: When you use standard parts in your design, you make repairs and upgrades easier.

AUTOMOTIVE COMPONENT DESIGN EXAMPLE

You can use DFM when you design car parts. For example, you want to create a new car door handle. You choose a shape that machines can cut with simple tools. You use the same handle for both left and right doors. This reduces the number of parts you need. You pick a strong plastic that works well with your process. You also make the handle easy to attach to the door. These steps help you save money and make assembly faster.

CNC MACHINED PART DESIGN EXAMPLE

You can use DFM to design a metal bracket for a machine. You avoid sharp inside corners because tools cannot reach them well. You pick hole sizes that match common drill bits. You keep the wall thickness even. You make sure all features are easy for the machine to reach. These choices help you cut down on machining time and lower costs.

LESSONS LEARNED FROM SUCCESSFUL DFM IMPLEMENTATION

You learn many things from real design for manufacturing examples. You see that simple designs work best. You find that using standard parts saves time and money. You learn that working with your team early helps you avoid mistakes. You also see that checking your design often leads to better products. When you follow these lessons, you make products that are easy to build and sell.

COMMON DFM MISTAKES TO AVOID

When you make a new design, mistakes can happen. These mistakes can make it hard to build your product. If you know about these problems, you can stop them. This helps you make better products.

OVERLY COMPLEX PART DESIGNS

Some people think complex designs look cool. But complicated shapes are hard to make. Machines have trouble with sharp corners and deep holes. Odd shapes slow down the process. Using special parts or extra details wastes time and money. Simple shapes help you build parts faster. They also keep costs down.

Tip: Try to use fewer features or standard shapes in your design.

UNNECESSARILY TIGHT TOLERANCES

You might want your parts to fit just right. But if tolerances are too tight, costs go up. Production also slows down. You may need special machines and more checks. Most products work fine with normal tolerances. Only use tight tolerances if your design really needs them.

POOR MATERIAL SELECTION

Picking the wrong material can cause big trouble. Hard-to-machine materials slow down production. If you cannot get the material, you have to wait. Some materials do not work with your process. Always check if your material fits your design. Make sure it is easy to buy and use. Think about how strong, safe, and cheap it is.

• Pick materials that fit your design.

• Make sure materials are easy to find and use.

LACK OF MANUFACTURING INPUT DURING DESIGN

If you do not talk to manufacturing teams early, you miss good advice. You might forget steps for assembly. You could also miss draft angles for molded parts. If you wait too long to check costs, you may be surprised. When you ask for help early, you find problems sooner. You can fix them before they get expensive.

Note: Working with your team early helps you avoid problems. It also helps you make products that are easy to build.

You can stop these mistakes by checking your design often. Use standard parts and work with your team. This helps you make products that are simple, strong, and ready to build.

DESIGN FOR MANUFACTURABILITY VS RELATED ENGINEERING METHODS

When you work on a product, you may hear about different engineering methods. Each method helps you improve your design in a special way. You need to know how design for manufacturability compares to other methods. This helps you choose the right approach for your project.

DFM VS DESIGN FOR ASSEMBLY (DFA)

You use design for manufacturability to make your product easy and cost-effective to build. You focus on how each part fits the manufacturing process. Design for assembly helps you make products that are simple to put together. You look at how parts connect and how workers or machines will assemble them.

You often use both methods together. When you combine them, your design becomes easier to build and assemble.

DFM VS DESIGN FOR RELIABILITY (DFR)

Design for manufacturability helps you lower costs and avoid production problems. Design for reliability helps you make sure your product works well for a long time. You test how your design handles stress, heat, or wear. You want your product to last and not break easily.

• DFM asks: Can you make this part easily?

• DFR asks: Will this part keep working over time?

You need both methods for a strong product. Good design means your product is easy to make and lasts a long time.

DFM VS DESIGN FOR TESTABILITY (DFT)

You use design for manufacturability to make building your product simple. Design for testability helps you check if your product works as planned. You add features that make it easy to test each part. You might include test points or clear labels.

Tip: If you think about testability early, you can find problems before your product reaches customers.

When you use all these methods, your design becomes better. You save money, build faster, and deliver products that work well.

FAQ

WHAT IS DESIGN FOR MANUFACTURABILITY

Design for manufacturability helps make products easy to build. It makes sure your design fits how things are made. You try to keep parts simple and reliable. You fix problems before making the product.

WHY IS DFM IMPORTANT IN ENGINEERING

Using design for manufacturability makes your product better. You stop mistakes and waste. You save money and time. Your design works well with how things are made. Your team builds products faster.

Tip: Think about manufacturability early. This stops problems later.

WHAT ARE THE MAIN DFM PRINCIPLES

You use important steps to make your design work. These steps are design simplification, standardization, smart material selection, assembly optimization, quality control, and modularity. They help you build and fix your product easily.

HOW DOES DFM REDUCE MANUFACTURING COSTS

You spend less by using simple designs and standard parts. You pick materials that work with how things are made. You do not use tight tolerances unless needed. You fix problems before making the product. You use fewer parts and make assembly simple.

WHAT IS A DFM CHECKLIST

A checklist helps you review your design. You check part shape, material, tolerances, and if it is ready to make. You make sure your design fits how things are made and avoids problems.

HOW IS DFM APPLIED IN CNC MACHINING

You use design for manufacturability in CNC machining by picking basic shapes and avoiding sharp corners. You choose hole sizes that match common tools. You make features easy for machines to reach. You set tolerances that are not too strict. You check your design with manufacturing teams to fix problems early.

Note: Planning ahead helps you make parts that are easy to machine and cost less.

You have learned how DFM principles help you create products that are easy to build, cost less, and work better. Start using these steps early in your design process to avoid problems and save time. Try to review your work often and talk with your team. If you want to learn more, check out guides from industry groups or take a short online course.
