Design for manufacturing principles help you create products that are simple to build. They also make assembly easier. By applying these principles early in the process, you can save money. Many engineering projects demonstrate impressive results.
Description | Percentage |
|---|---|
Average total cost savings | 50% |
Typical reduction in manufacturing costs | 15-40% |
You also enhance product quality. For instance, a medical device company reduced errors by 60% after implementing these design for manufacturing principles. When you consider real-world production, you encounter fewer issues, leading to a smoother process.
Key Takeaways
Begin with Design for Manufacturability (DFM) to make building things easier and cheaper. This method can lower total costs by up to 50%.
Pick fewer and standard parts to help with assembly and stop mistakes. This makes things faster to build and improves quality.
Pick materials carefully by looking at their properties and how they work in the process. This stops expensive mistakes and makes the product work better.
Work early with manufacturing teams to find problems before they happen. This teamwork helps make better designs and smoother production.
Check and improve your designs often by using DFM tools. This helps find mistakes early and makes the product better.
WHAT IS DESIGN FOR MANUFACTURABILITY (DFM)
DEFINITION AND CORE CONCEPT OF DFM
Design for manufacturability means making products that are easy to build. You use special rules to help you make choices. When you use design for manufacturing, you think about how each part will be made. You try to make shapes and features simple. You pick materials that work well with machines. You plan steps for assembly that save time.
Tip: If you start with design for manufacturing, you stop problems before they happen. Your product will fit the tools and machines in the factory.
HOW DFM IMPACTS PRODUCT DESIGN AND PRODUCTION
You see big changes when you use design for manufacturing. Your product is easier to put together. You spend less money on parts and work. You make fewer mistakes when building things. You follow rules that help you avoid tricky shapes. You pick parts that fit together without extra work. You make choices that help you build things faster.
Here is how design for manufacturing helps your process:
You spend less to make things.
You make your product better.
You finish faster.
You waste less and fix fewer mistakes.
DIFFERENCE BETWEEN DFM AND TRADITIONAL PRODUCT DESIGN
Design for manufacturing starts by thinking about how to build things. You use rules to make every step easy. Traditional product design thinks first about how the product works. You think about building it later. This can cause problems. You might have to change the design after you test it. You might have to wait longer and pay more.
Approach | Focus First | Manufacturability Considered |
|---|---|---|
Design for Manufacturing | Manufacturing | From the Start |
Traditional Product Design | Functionality | After Design |
When you use design for manufacturing, your products fit the factory. You do not get surprises. You save time and money.
WHY DESIGN FOR MANUFACTURABILITY MATTERS IN ENGINEERING
REDUCING MANUFACTURING COSTS AND COMPLEXITY
Design for manufacturability helps you spend less money. It also makes your job easier. You make smart choices when you design things. Here are some ways you can save money and make things simpler:
You use fewer parts. This makes building easier and costs less.
You pick standard parts. This saves money and makes things less confusing.
You design parts that do more than one thing. You need fewer pieces.
You make parts simple to build. This means fewer mistakes and less confusion.
You use modular designs. You can put things together and fix them quickly. This saves money.
IMPROVING PRODUCTION EFFICIENCY AND QUALITY
You get better results when you plan for manufacturability early. You find problems before they slow you down. This means you waste less and get better products. The table below shows how much you can improve:
Improvement Aspect | Percentage Improvement |
|---|---|
Manufacturing Cost Reduction | 15-40% |
Lead Time Reduction | 25-60% |
You see these improvements in real projects. For example, redesigning connector pins with these rules saves up to 30% on costs. You also get better efficiency and more consistent quality. Design for manufacturability helps you find hidden problems. You make your process faster and your product better.
MINIMIZING PRODUCTION ERRORS AND REWORK
You want to stop mistakes and extra work. Design for manufacturability helps you do this. You plan for the tools and machines you will use. You make sure your design fits the process. This lets you catch errors before they happen. You do not waste time fixing problems. You keep costs low and quality high. You finish your work faster and with less stress.
CORE DESIGN FOR MANUFACTURABILITY PRINCIPLES
DESIGN SIMPLIFICATION FOR MANUFACTURING EFFICIENCY
You can make manufacturing easier by using design for manufacturing principles that focus on making things simple. If you take away features you do not need, products are easier to build. This helps you make fewer mistakes and spend less money. Try not to use complicated shapes unless they are needed for how the product works. Change tricky curves to straight lines or standard curves. Use bigger parts that are easy to machine instead of lots of tiny features. These rules help you build things easily and cut down the steps in making products.
Here are some usual ways to help and what they do:
Design Strategy | Impact on Manufacturing Efficiency |
|---|---|
Simplify geometry | Fewer steps and tool changes, saves money |
Use generous internal radii | Makes machining faster |
Design for access | Stops slow feeds and extra tools, saves money |
Minimize special features | Less need for expensive extra work |
Uniform wall thickness in injection molding | Cooling is quicker, which saves money |
Internal corner radii ≥ 3× depth in CNC machining | Lets you use standard tools, makes machining faster |
Tip: When you make designs simple, modular design is easier to use. This helps you build things faster and makes assembly easier.
STANDARDIZATION OF PARTS AND COMPONENTS
Standardization is one of the most important design for manufacturing rules. Using standard parts helps you spend less and finish faster. Ready-made parts stop delays and lower supply-chain risks. Car makers use the same screws and connectors in many cars. This lowers buying costs and makes fixing easier. These rules also make modular design work better.
Standard parts make building easier.
You do not need to find custom parts.
Modular design is easier to grow.
Building and putting together parts is simpler.
When you use standard parts, your team works faster and better.
MATERIAL SELECTION BASED ON MANUFACTURING CAPABILITY
The materials you pick change every step in making things. Good design for manufacturing rules say you should match materials with the right process. Material traits like strength, flexibility, heat resistance, and water resistance matter. Processing costs are important too. If you choose a material that is hard to machine, you spend more and work slower. Always check if your material choice fits modular design and is easy to build.
Material traits change how you make things.
Processing costs affect your spending.
Design rules should match the material you use.
Picking the right material makes products better and cheaper.
What you can do depends on the material you pick.
Note: The material you choose can make your product good or bad. Always think about how it affects making and putting together your product.
DESIGNING FOR ASSEMBLY EFFICIENCY
Design for assembly is a big part of design for manufacturing rules. Try to use fewer parts and combine jobs when you can. Parts that fit themselves and one-way assembly make things faster. Do not use extra fasteners if you do not need them. Modular design helps you build and fix products quickly. These rules make building easier and cut down assembly time.
Fewer parts means less time putting things together.
Combined jobs means fewer steps.
Modular design helps you fix and change things fast.
Parts that fit themselves make products better and more consistent.
You can use teams from different areas to check your assembly steps. Take apart products to find problems and use assembly rules to measure how you do. This way, you get better quality and spend less.
INTEGRATING QUALITY CONTROL EARLY IN DESIGN
Always think about quality from the start. Adding quality checks to your design for manufacturing rules helps you stop problems later. Set quality goals when you design. Pick materials and ways to build that meet safety and quality rules. Check your design to see if it is easy to test and look for places where it might fail. Modular design helps you test parts separately.
Quality goals stop problems in the future.
Materials and ways to build change product quality.
Early quality checks mean fewer mistakes and happier customers.
Modular design makes checking and testing easier.
Remember: If you plan for quality early, you save time and money. Your products will meet standards and work well in real life.
MANUFACTURING CONSTRAINTS IN PRODUCT DESIGN
UNDERSTANDING CNC AND MACHINING LIMITATIONS
When you design something, you need to know what CNC machines can do. These machines have limits on size and shape. They also cannot cut every material. Thin walls might bend or break. Small details are hard for machines to make. Some shapes, like deep holes or undercuts, need special tools. If your design blocks the tool, it takes longer to make. This also costs more money. The way the surface looks is important too. Making it smoother takes more time and money.
Here are some common CNC and machining limits:
Size and shape limits
Picking the right material
Size of features
Undercuts and overhangs
Tolerances
Surface finish
TOLERANCE DESIGN AND COST TRADE-OFFS
Tolerances tell the factory how close each part must be to your drawing. Tight tolerances help parts fit better, but they cost more. You might need special machines or extra checks. If you want very tight tolerances, the cost can double or triple. Sometimes, only a few places can make these parts. This can slow down your project. If parts do not pass inspection, you may have more waste.
Standard tolerances (±.010″ to ±.030″) keep costs low.
Tighter tolerances (±.005″) can double or triple costs.
Very tight tolerances (±.001″) may increase costs by ten times.
Tip: Only use tight tolerances when you really need them for safety or function.
TOOL ACCESSIBILITY AND GEOMETRY LIMITATIONS
Tool access changes how you design each part. If tools cannot reach a spot, it takes more time and money. Complicated shapes or bad datum choices make checking parts harder. You might need more setups or special tools. If you pick datums that are easy to reach, the factory can measure and build parts faster and better.
Challenge Area | Impact on Lead Time | Impact on Cost | Prevention Strategy |
|---|---|---|---|
Bad datum structure | Longer setup and checks | Harder to measure | Pick stable, easy-to-reach datums |
Hard inspection | More programming needed | More work and tools | Make geometric controls simpler |
SURFACE FINISH AND PRODUCTION CONSIDERATIONS
Surface finish changes how your product looks and works. A very smooth finish can make gaskets slip or not stick. Sometimes, a little roughness helps parts seal better. If you want a super-smooth finish, it takes more time and money. You might need extra steps or special tools. Think about what your product really needs, not just what looks nice.
Note: Choose a surface finish that fits your product’s real needs. This saves money and helps your product work well.
Constraint Type | Description |
|---|---|
Material Yield | Balancing how well it works with cost and what you can get. |
Processing Costs | Money spent on the way you make the product. |
Tolerance Specifications | How close sizes must be, which can make parts easy or hard to make. |
Assembly Efficiency | How easy it is to put parts together, which changes time and cost. |
Scrap Minimization | Designing to make less waste during production. |
Setup Time Optimization | Making machine setup faster to save time. |
Cutting Time Efficiency | How fast you can cut parts, based on shape and material. |
Quality Control Cost Management | Keeping inspection costs low without losing quality. |
Common Design Mistakes | Tight tolerances and tricky shapes can make building harder. |

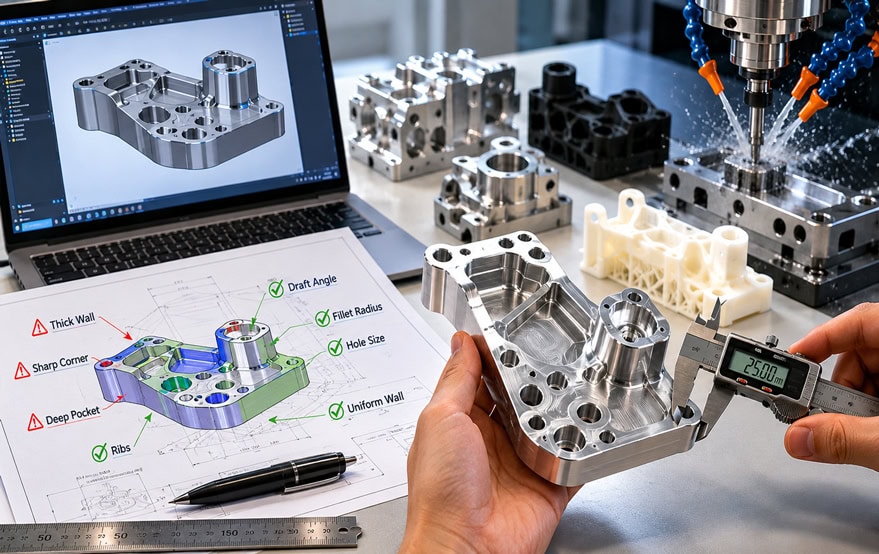

DFM IN CNC MACHINING AND RAPID PROTOTYPING
HOW DFM AFFECTS CNC MACHINING COST AND LEAD TIME
If you use design for manufacturability in CNC machining, you can spend less money and finish faster. You pick shapes, tolerances, and materials early. This stops expensive mistakes and waiting. Hard shapes or sharp corners need more time and special tools. This makes things cost more and take longer. Simple designs with normal features help you go from prototype to production quickly. You also get better parts and make fewer errors.
DFM helps your design fit what machines can do.
Simple shapes and normal tolerances save money.
Fewer setups and tool changes make things faster.
Tip: If you use DFM early, you stop problems that slow your project.
DESIGN RULES FOR PROTOTYPE TO PRODUCTION TRANSITION
Going from prototype to production needs good planning. You should follow rules that make assembly simple and stop mistakes. Work with suppliers to find slow spots in early builds. Make last changes to keep quality high and lock in the design. Use alignment features and think about how tolerances add up so parts fit right.
Key Design Rule | Description |
|---|---|
Design for Manufacturability | Choices change speed, reliability, and cost. |
Work with Suppliers | Find and fix slow spots early. |
Simplification of Design | Use snap fits and bigger draft angles for easy assembly. |
Final Tweaks | Lock in changes for steady, mistake-free production. |
You can use what you learn from prototypes to make your design better. This helps you fix problems before you start making lots of parts. You get your product out faster and have fewer mistakes.
OPTIMIZING PARTS FOR LOW-VOLUME MANUFACTURING
You can make parts better for low-volume manufacturing by following some steps. Design parts with the same shapes to use material well and make less waste. Pick standard thicknesses to save money. Keep part sizes smart for how they work and use material. Use normal cutting methods to make less scrap. Design for standard tools to set up faster. Simple shapes make cutting and programming quicker. Set inspection rules that match what the part does to control quality costs.
Nest parts to use material well.
Pick standard thicknesses for easy buying.
Simple shapes mean less waste and faster work.
Use standard tools to cut setup and cutting time.
Additive manufacturing lets you make hard shapes fast in small amounts. You can try new ideas and start production sooner. When you use DFM with additive manufacturing, you get more ways to make prototypes and small batches.
Note: Good DFM choices help you spend less, waste less, and get products to market faster.
DFM CHECKLIST FOR PRODUCT DESIGN ENGINEERS
GEOMETRY AND FEATURE SIMPLIFICATION CHECKLIST
You can make your design easier to build by checking shapes and features. Try to take away shapes that do not help the product work. Keep the wall thickness the same everywhere. Add draft angles so parts come out of molds easily. Do not use sharp corners because they make machining harder. Make features simple so machines can build them without problems.
Take out shapes and features you do not need
Add draft angles for easy molding
Make features simple for machines
Tip: Simple shapes mean fewer mistakes and faster production.
MATERIAL AND PROCESS SELECTION CHECKLIST
Picking the right material and process helps you make good products for less money. Match the material to the way you will build the part. Think about how hard your design is to make. Check if the material is right for the product. Look at how many parts you need to make. Watch your budget and how fast you need the product. Make sure the process can meet quality and tolerance needs.
Factor | Description |
|---|---|
Product Design and Complexity | Hard designs may need special ways to build. |
Material Selection | Pick materials that work with your process. |
Production Volume | Small batches work well with 3D printing. |
Cost Constraints | Keeping costs low helps you make money. |
Lead Time | Faster ways help you get prototypes sooner. |
Quality and Tolerance Requirements | Good quality makes customers happy. |
TOLERANCE AND COST OPTIMIZATION CHECKLIST
You can save money and make parts fit better by checking tolerances and costs. Give each part the right tolerance for how it works. Use normal machining limits to keep costs down. Pick standard parts to save money on buying. Look at materials and processes early to keep costs low and quality high. Use modular tools and family molds to make more parts at once. Design for assembly to make building faster and with fewer mistakes.
Give parts the right tolerance
Use normal machining limits
Pick standard parts
Check materials and processes early
Use modular tools and family molds
Design for easy assembly
PRODUCTION READINESS VALIDATION CHECKLIST
Before you start making lots of parts, check if your design is ready. Make sure the shapes are simple. Check that the material and process fit the product. Review tolerances and costs. Test how you will put parts together. Make sure quality checks are in place. Ask your team to look at the design. Use their ideas to fix problems. If you follow this checklist, you can build products that are easy to make and work well for customers.
Note: A good checklist helps you find mistakes early and keeps your project moving.
DESIGN FOR MANUFACTURABILITY VS RELATED PRINCIPLES
DFM VS DESIGN FOR ASSEMBLY (DFA)
People talk about design for manufacturability and design for assembly a lot. Both help you make better products, but they are not the same. Design for manufacturability helps you make things that are easy and cheap to build. You think about what materials to use and how to make each part. You also check tolerances and work with engineers early to stop problems. Design for assembly helps you put parts together fast and with fewer mistakes. You use fewer parts and make sure they fit well. You design them so they line up easily. You want simple steps that you can repeat when putting things together. Design for manufacturability makes sure you can build each part. Design for assembly makes sure you can put those parts together without trouble. If you use both, you save time and money.
DFM VS DESIGN FOR RELIABILITY (DFR)
Design for manufacturability and design for reliability work together, but they are not the same. Design for manufacturability helps you make parts that are easy to build. Design for reliability helps you make products that last a long time and work well. You use design for reliability to check if your product can handle stress, heat, and wear. You test how long parts last and how they work in real life. Reliability means your product keeps working for years. You need to think about both design for manufacturability and design for reliability. This helps you avoid weak spots and failures. If you only think about making things easy to build, you might miss problems that hurt reliability. When you use design for reliability, you check materials and test parts. You also plan for your product to last a long time. This helps your customers trust your product.
DFM VS DESIGN FOR TESTABILITY (DFT)
Design for manufacturability and design for testability both help you make better products, but they focus on different things. Design for manufacturability helps you build parts easily and for less money. Design for testability helps you check if your product works the way it should.
Principle | Focus Area | Key Benefits | Best Practices |
|---|---|---|---|
Design for Manufacturability | Making products easy to build | Lower costs, faster production | Simple shapes, standard parts, easy assembly |
Design for Testability | Making products easy to test | Faster defect detection, better quality | Add test points, use modular parts, plan for inspection |
You use design for testability to add things that make testing easy. You might add test points or design parts so you can check them fast. This helps you find problems early and make your product more reliable.
HOW THESE PRINCIPLES WORK TOGETHER IN ENGINEERING
You get the best results when you use design for manufacturability, design for assembly, design for reliability, and design for testability together. Each one helps you in a different way. You pick the right materials to make things last and easy to build. You ask engineers and production teams for ideas to find problems early. You add features that help you test and check your product. This makes your product more reliable. You work with different teams to make sure your design works in real life. When you use all these principles, you make products that are easy to build, easy to put together, last a long time, and are simple to test. Working together helps you make high-quality products that last.
MODERN TRENDS IN DESIGN FOR MANUFACTURABILITY
DIGITAL MANUFACTURING AND CAD-DRIVEN DFM ANALYSIS
Manufacturing is changing a lot because of digital tools. CAD systems now talk to smart factories and IoT devices. This lets you get feedback from the factory right away. You can find problems early and fix them quickly. Digital twins let you make virtual models of your product. You can test ideas and see how things work before building anything. Digital twins also help you check costs and if your design is good for the environment. Teams share data and work together better. This helps you make choices fast and get products out sooner.
CAD connects with smart factories and IoT.
Real-time feedback makes production better.
Digital twins let you test and improve designs.
AUTOMATION AND AI IN DESIGN OPTIMIZATION
Automation and AI are changing how you design things. AI-powered software helps you finish designs faster. You can cut design time by 40%. This means you finish your design two months earlier. Digital twins let you see how your product will be made. You can find ways to make it better before you start building. If you use DFM analysis early, you can fix problems before making tools. AI helps you change designs fast and avoid expensive mistakes.
Tip: Start DFM analysis early to get the most from automation and AI.
SUSTAINABLE AND ECO-FRIENDLY PRODUCT DESIGN
Sustainability is important when you design products. You pick materials that use less and do less harm. You make products that last longer and use less energy. Modular designs let you fix and upgrade things instead of throwing them away. You plan for recycling and safe disposal when the product is done.
Aspect | Benefit |
|---|---|
Material Selection | Lowers harm to the environment and saves rare resources. |
Energy Efficiency | Cuts carbon emissions and saves money by using less energy. |
Durability and Longevity | Uses fewer resources and makes less waste by lasting longer. |
Modular and Repairable Design | Makes repairs and upgrades easy, helping the environment. |
End-of-Life Considerations | Helps recycling and safe disposal to keep waste out of landfills. |
Using materials wisely saves money and cuts waste.
More people want eco-friendly products, so demand goes up.
Being green helps your brand stand out.
Investors like companies that care about the environment.
Showing you care about sustainability builds brand loyalty.
SUPPLY CHAIN AND MATERIAL AVAILABILITY CONSTRAINTS
You need to think about supply chain limits when you design. If you cannot get materials, production can be delayed. Pick materials that are easy to find and work with your process. Plan for changes in supply and have backup choices. Use local suppliers to get parts faster and help the environment. Keep your design flexible so you can switch materials if needed.
Note: Good supply chain planning helps you avoid delays and keeps production on track.
COMMON MISTAKES IN PRODUCT DESIGN FOR MANUFACTURING
OVERCOMPLICATED GEOMETRY DESIGNS
Some people think fancy shapes make products special. But complicated shapes often cost more and take longer to make. Machines have trouble with sharp corners and deep holes. Tiny details are hard for machines too. Simple shapes help you build things faster and make fewer mistakes. If you keep your design simple, you spend less money and avoid problems.
Tip: Pick normal shapes and skip extra curves or angles. This makes building easier and helps you get better results.
IGNORING TOOL AND MACHINE LIMITATIONS
You should know what tools and machines can do. If you forget their limits, you might have delays and pay more. Some machines cannot reach small spaces or cut tough materials. Always check the size, depth, and if tools can get to each spot. When you plan for machine limits, you stop problems before they start.
Machine Limitation | Common Issue | Solution |
|---|---|---|
Tool reach | Missed cuts | Design open access |
Material hardness | Tool wear | Choose machinable materials |
Feature size | Poor finish | Use standard sizes |
POOR TOLERANCE STACK-UP MANAGEMENT
You need to pick tolerances carefully. Using tight tolerances everywhere wastes money. Loose tolerances can make parts not fit together. Bad stack-up management causes mistakes and extra work. You should balance how close parts need to be with cost and how things work. Always check how tolerances add up across all parts.
Note: Only use tight tolerances where they really matter. This saves money and helps parts fit together.
LACK OF MANUFACTURING COLLABORATION
You should talk to the manufacturing team early. If you work alone, you might miss good advice. Manufacturing experts can help you find problems and better ways to build. Working together makes your product better and faster to make. You also avoid expensive changes later.
Show your design to the production team.
Ask for ideas before you finish.
Work together to fix problems.
Working together helps you make smarter designs and smoother production. You get better products when you listen and learn from others.
HOW TO IMPLEMENT DFM IN REAL PROJECTS
EARLY COLLABORATION BETWEEN DESIGN AND MANUFACTURING TEAMS
You should start working with your manufacturing team as soon as you begin your design. When you share ideas early, you find problems before they grow. You can ask questions and get advice from people who know the machines and tools. This teamwork helps you make better choices and avoid mistakes. If you talk often, you build trust and learn from each other. You set the stage for continuous improvement because everyone works toward the same goal.
Tip: Invite your manufacturing team to design meetings. Their feedback can save you time and money.
ITERATIVE DESIGN REVIEW AND FEEDBACK LOOP
You need to check your design many times. After each review, you should ask for feedback from your team. You can use their ideas to make your design better. This process helps you spot errors and fix them early. Each review gives you a chance to improve. You should keep track of changes and lessons learned. This habit leads to continuous improvement. Over time, your products get better and easier to make.
Review your design often
Ask for feedback from different teams
Make changes based on what you learn
Record lessons for future projects
USING DFM ANALYSIS TOOLS AND SOFTWARE
You can use special tools to check your design for manufacturing. These tools help you find problems that are hard to see. You can test if your design fits the machines and if parts will work together. Many programs give you reports and show you where to improve. When you use these tools, you support continuous improvement. You learn what works and what does not. This makes your next project even better.
Tool Type | What It Does |
|---|---|
CAD Plugins | Check design rules |
Simulation Tools | Test how parts fit and work |
Cost Estimators | Predict costs and savings |
Note: Using the right tools helps you catch mistakes early and keeps your project on track.
FAQ
WHAT IS DFM IN PRODUCT DESIGN
Design for manufacturability (DFM) means you design products so factories can make them easily. You think about how machines will build each part. You choose shapes and materials that work well with the tools. You plan for simple steps. This helps you reach high quality and avoid problems during production.
WHY IS DFM IMPORTANT IN MANUFACTURING
DFM helps you save money and time. You make products that are easy to build. You also improve quality because you find and fix problems early. When you use DFM, you get fewer mistakes and less waste. Your products work better and last longer. Customers trust your brand when you focus on quality.
WHAT ARE EXAMPLES OF DFM PRINCIPLES
You can follow many rules to make your design better for manufacturing. Here are some examples:
Use simple shapes and features.
Pick standard parts and materials.
Keep wall thickness even.
Avoid sharp corners.
Plan for easy assembly.
Tip: These rules help you reach better quality and faster production.
HOW DOES DFM REDUCE COSTS IN CNC MACHINING
DFM helps you lower costs in CNC machining by making smart choices. You use shapes that machines can cut quickly. You avoid features that need special tools. You pick normal tolerances. This means you spend less time and money. You also get better quality because machines make fewer errors.
DFM Action | Cost Impact | Quality Impact |
|---|---|---|
Simple geometry | Lower cost | Higher quality |
Standard tolerances | Less rework | Consistent quality |
Fewer setups | Faster production | Fewer mistakes |
WHAT IS THE DIFFERENCE BETWEEN DFM AND DFA
DFM and DFA are both important. DFM helps you design parts that are easy to make. DFA helps you design parts that are easy to put together. You use DFM to reach high quality in each part. You use DFA to make sure the final product goes together without trouble. When you use both, you get better quality and lower costs.
Design for manufacturability helps you create products that are easy to build, cost less, and work better. You can use DFM checklists to catch mistakes early. Work with your team to share ideas and solve problems. Stay updated on new tools and trends in manufacturing.
Tip: Make DFM part of your daily routine. You will see better results and improve your designs every time.
