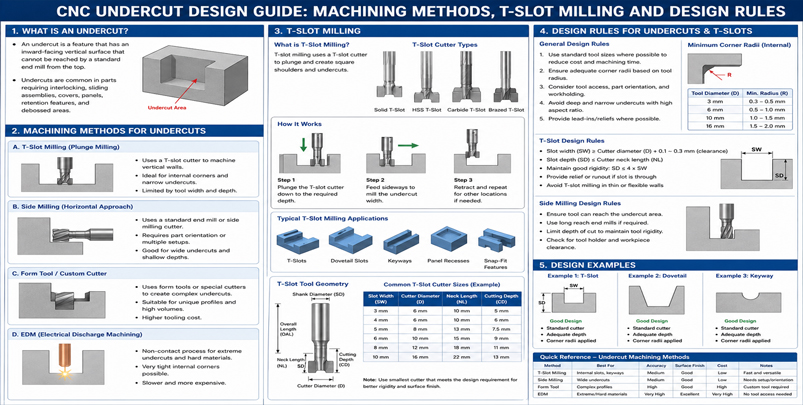

CNC Undercut Design Guide: Machining Methods, T-Slot Milling and Design Rules

You can face special problems when you design and machine undercut features for CNC machining undercuts. Picking the right way affects CNC machining time, tool cost, and total production cost, as shown below:

You need to follow certain CNC machining undercuts design rules. This helps you avoid weak tools, slow speeds, and high costs. Good CNC machining steps help you make quality undercut parts. They also help you have efficient CNC production.

Key Takeaways

• Pick the right tool for undercuts to get better results and save money. Standard tools cost less but may not work well for tricky shapes.

• Plan your design well so tools can reach all areas. Simple shapes and good sizes make machining easier and more likely to work.

• Use more than one setup to save time and make parts more accurate. Fewer setups mean better parts and fewer mistakes.

• Choose materials that fit what your machines can handle. Hard materials can make tools wear out fast, so make sure your tools are strong enough.

• Check quality often while you machine the part. Regular checks help find problems early and keep the part good.

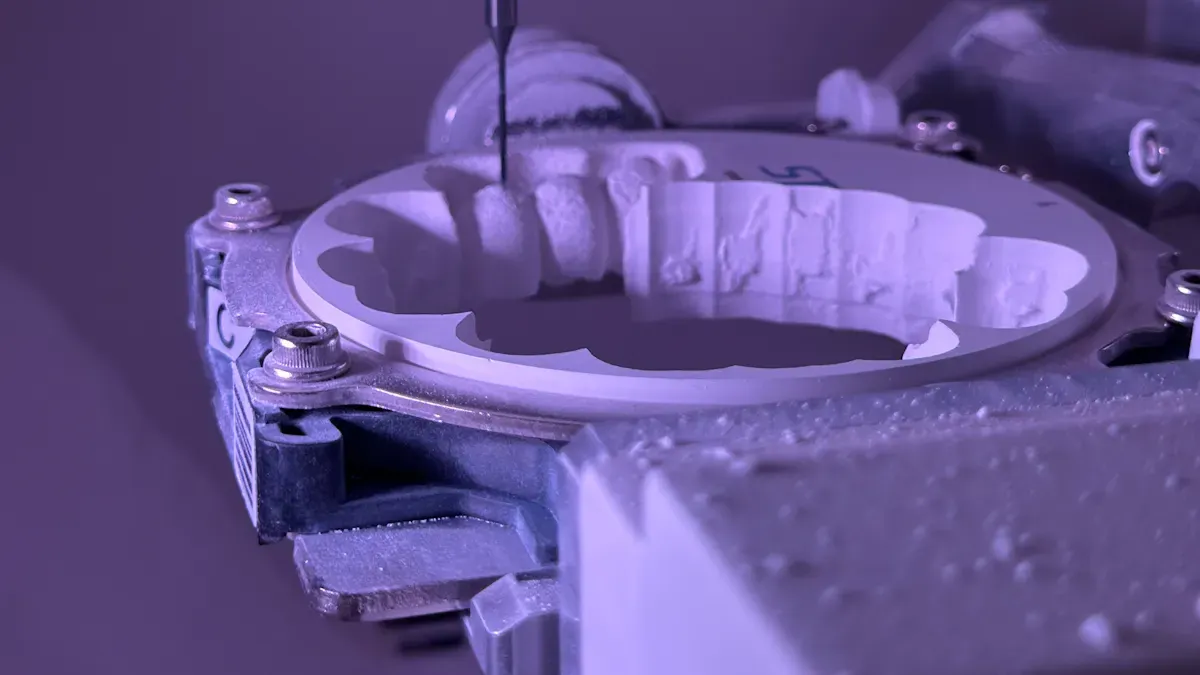

WHAT ARE CNC MACHINING UNDERCUTS? QUICK OVERVIEW

CNC MACHINING UNDERCUTS DEFINITION

CNC machining undercuts are found in parts with special shapes or grooves. An undercut is a shape you cannot make with a straight tool path. You need special tools or setups to reach these hidden spots.

Here is how you make an undercut in cnc machining undercuts, following the rules for making things:

1. First, you design the part and add undercut features to the digital model.

2. Next, you pick the right tool for the undercut, based on its type and where it is.

3. Then, you set up and hold the part in the cnc machine to keep it accurate.

4. After that, you use the cnc machine to cut away material and make the undercut.

5. You check the part to see if the undercut matches what you want.

6. Sometimes, you need extra steps to finish the part for its final use.

WHY UNDERCUT DESIGN MATTERS IN CNC MACHINING

You need to think carefully about undercut design in cnc machining undercuts. The way you design undercut features changes how good your part is and how it works.

• Undercuts let you add hard shapes that normal machining cannot make. This makes your part work better.

• You must plan the shape of each feature so your tools can reach them. This helps you get better results when machining.

• The material you pick for your part changes how fast tools wear out and how smooth the surface is.

• It is hard to get tight fits with undercuts. You need tight fits for parts that must go together or handle stress.

Tip: Good undercut design in cnc machining undercuts helps you stop tool problems and avoid expensive mistakes.

COMMON APPLICATIONS OF UNDERCUT FEATURES

You find undercut features in many fields that need strong and precise parts.

• Aerospace uses undercut grooves and slots to make things light and strong.

• Automotive uses undercut features for engine parts and brackets that need to fit tightly.

• Medical devices use undercut features in implants and tools to make them safe and last longer.

You see undercut machining used in these areas because undercut features give you more ways to design and make better parts.

TYPES OF CNC MACHINING UNDERCUTS

COMMON UNDERCUT FEATURES IN MACHINED PARTS

There are many undercut types in cnc machined parts. Each one has its own shape and job. The table below lists the most common undercut features you might use:

Knowing these undercut types helps you choose the best one for your cnc project.

T-SLOT UNDERCUTS AND INDUSTRIAL APPLICATIONS

The t-slot undercut is used in many industries. It helps you mount, hold, or move parts fast. Here are some ways people use the t-slot undercut:

• Modular assembly systems in automation and robotics use t-slot undercuts for flexible setups.

• Woodworking jigs and fixtures need t-slot undercuts for precise clamping and easy changes.

• Automotive and aerospace fields use t-slot undercuts in tooling and test rigs for high accuracy.

• DIY and maker projects use t-slot undercuts for creative and low-cost solutions.

The t-slot undercut gives you lots of ways to build and change machines or tools.

INTERNAL UNDERCUTS AND COMPLEX GEOMETRIES

Making an internal undercut can be hard, especially with tricky shapes. These undercuts often hide deep inside or behind angled walls. Here are some problems you might face:

• It is hard to reach with tools when surfaces are deep or slanted.

• Keeping the right size and shape is tough because mistakes can add up.

• You need special tools and setups, which makes things more complicated.

You have to plan your cnc machining steps well to make a good internal undercut.

COMPARISON OF DIFFERENT UNDERCUT TYPES

You should look at the undercut types before you start machining. An external undercut is easier to make because you can reach it with normal tools. An internal undercut needs special cutters and setups. The dovetail undercut gives a strong and tight fit, but it is harder to make than a keyway undercut. The t-slot undercut is good for mounting, but you need the right tool to get the shape right. Each undercut type has its own job and way to machine it. You must pick the undercut that fits your part and the cnc machine’s skills.

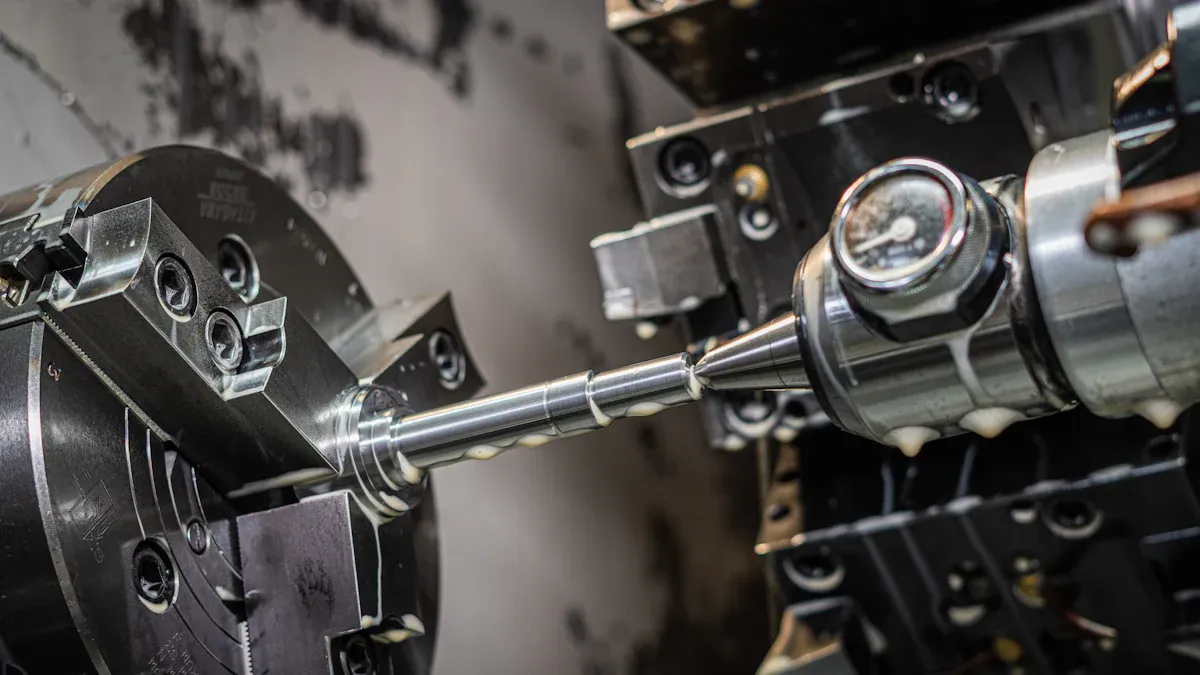

UNDERCUT MACHINING METHODS AND TECHNIQUES

STANDARD TOOLS VS SPECIALIZED UNDERCUT CUTTERS

You can pick standard tools or special undercut cutters. Standard tools are cheaper and easy to get. Special undercut cutters, like slotting or lollipop cutters, make tricky shapes. They give you better accuracy for undercuts. You might need special CAM software for these cutters. Custom tools cost more and take longer to make. They also need special angles. The table below shows how they are different:

Note: Slotting and lollipop cutters help with undercuts, but some CAM programs do not work well with them.

T-SLOT MACHINING PROCESS AND TOOLPATH

A t-slot cutter is used to make a t-slot undercut. First, use a standard end mill to cut the main slot. Then, switch to the t-slot cutter for the undercut shape. Plan your toolpath so the tool does not hit the part. Setting up the cnc machine right helps stop tool breaks. Check if the tool can reach and if the slot is deep enough before starting.

MULTI-SETUP MACHINING STRATEGIES

Multi-setup strategies make undercut machining easier. Using undercut tools means you need fewer setups. This lets you reach hard undercut spots in one go. Fewer setups lower the chance of mistakes. You get better results and save time on your cnc work.

• Undercut tools help you finish more in one setup.

• Fewer setups make your work faster and more accurate.

UNDERCUT MACHINING METHODS COMPARISON

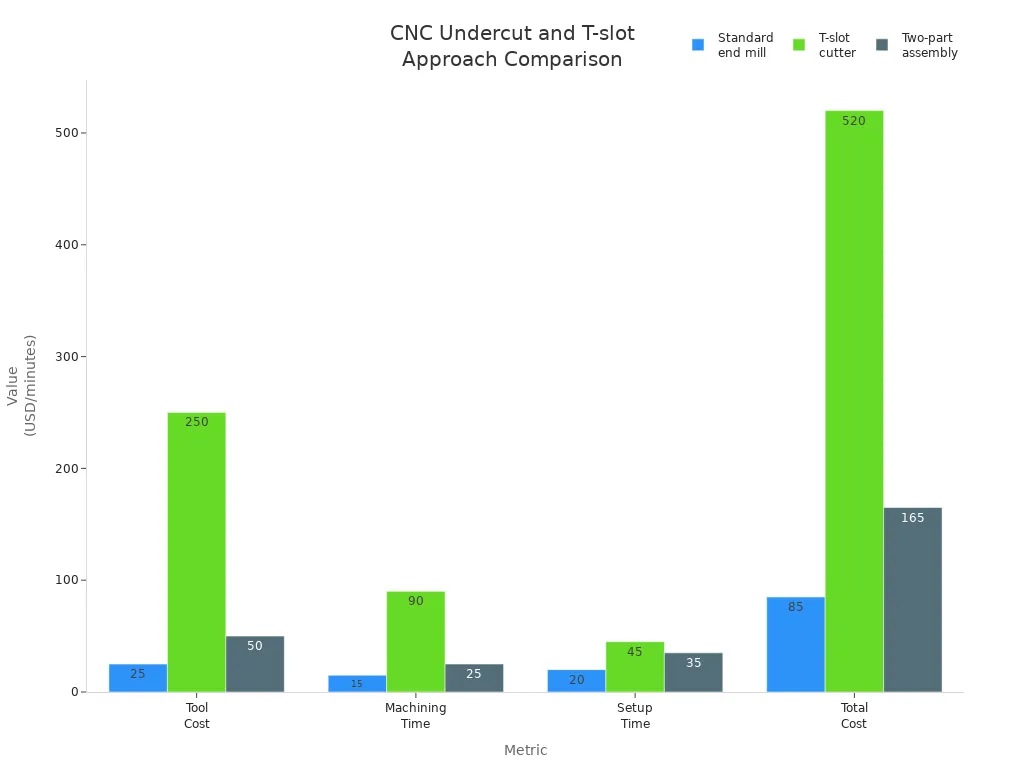

You can compare undercut machining by looking at finish and accuracy. CNC undercut machining gives a smooth finish and close sizes. Manual machining depends on how good the worker is. EDM undercut machining gives very fine sizes and high accuracy. The table below shows the differences:

Engineers use profilometers to check how rough the surface is and see if the undercut is good.

CNC UNDERCUT DESIGN GUIDELINES

MINIMUM FEATURE SIZE AND TOOL ACCESS RULES

You must follow size and access rules for undercuts. If you do not, your tool might break. Your part might not turn out well. The table below shows the smallest sizes and rules for common undercut types:

Always check if your tool can reach the undercut. This helps you stop tool crashes. It also helps you make good undercuts.

DEPTH AND WIDTH DESIGN LIMITATIONS

You need to keep undercut depth and width safe for cnc undercut machining. Here are some things to remember:

• Make cavities with a good depth-to-width ratio. This stops the tool from bending and helps chips come out.

• You get the best results at depths up to three times the tool’s diameter.

• Keep undercuts shallow for better parts.

• Only put undercuts where the tool can reach.

• Most cnc tools work at depths of 3 to 4 times their diameter. Cavities deeper than six times the tool’s diameter are too deep. The deepest you should go is four times the width.

If you use these rules, your undercuts will be better. Your tools will last longer.

MATERIAL SELECTION AND CLEARANCE REQUIREMENTS

The material you pick changes how you machine undercuts. You need to choose materials that fit your tool and part. Here are some tips:

• The material you use makes undercut machining easier or harder.

• Hard materials like hardened steel or ceramic can break your tool or damage your part.

• Pick a tool that can handle the material and still make good undercuts.

You also need to leave enough space for the tool to move and cut the undercut shape.

DESIGN FOR MANUFACTURABILITY (DFM) FOR UNDERCUTS

You can make undercut machining easier by following DFM rules. Try these ideas:

• Split the part into more pieces if the undercut is hard to reach. This makes cnc undercut machining easier.

• Remove undercuts if you can. Make features straight to avoid tricky undercut shapes.

• If you need undercuts, keep them simple and easy for the tool to reach.

Tip: Good DFM rules help you save money and make better parts in cnc undercut machining.

CHALLENGES IN CNC MACHINING UNDERCUTS

TOOL ACCESS LIMITATIONS AND DEFLECTION

When you make cnc undercut features, you can have tool access problems. Sometimes, the cutting tool is long and thin. This can make the tool bend and not cut straight. Your part might not look smooth or be the right size. Chips can get stuck in small spaces and block the tool. It is hard to hold the part in place, and there may not be enough room for the tool. The toolholder can bump into the part or shake while cutting. Some special tools do not fit all machines. You might use the wrong tool, and it can wear out fast. Long tools and rough cuts can make the tool shake more. Coolant might not reach the cutting spot, so the tool gets hot. You cannot always see the tool, so mistakes can happen.

• Tool bends if it is too long

• Chips get stuck in small places

• Hard to hold the part right

• Toolholder can hit or shake

• Special tools may not fit

• Coolant does not always reach

• Hard to see where the tool is

CHIP EVACUATION AND COOLING ISSUES

Getting chips out is very important in cnc undercut machining. If chips stay near the tool, they can get cut again. This can scratch the part and make it hot. Too much heat can wear out the tool and change the part’s size. When chips pile up in deep spots, the tool can get stuck. This makes the part uneven and gives you more work.

Tip: Always check if chips move out and coolant gets to the tool when you plan undercut machining.

PROGRAMMING COMPLEXITY IN CNC OPERATIONS

Programming cnc machines for undercut features is not easy. You need to think about how the tool will reach the part and remove material. First, look at the part and find the undercut shape. Then, pick the best tool for the job. Next, plan how the tool will move without hitting anything. You must watch the machine to keep the size right. After you finish, check the undercut to see if it matches the design.

1. Look at the part for undercut shapes.

2. Pick the best tool for cutting.

3. Plan the tool’s path to cut safely.

4. Watch the machine for good results.

5. Check the undercut when done.

COST IMPACT OF COMPLEX UNDERCUT FEATURES

Hard undercut shapes can make cnc machining cost more. You may need special tools that are expensive and wear out fast. Fancy machines can also cost more money. You need skilled workers to run these machines, so labor costs go up. You might waste more material when making undercuts, so you pay more for materials.

• Tools cost more money

• Machines are more expensive

• Workers cost more to hire

• More material gets wasted

You should always think about if the undercut is worth the extra cost and work in cnc machining.

SOLUTIONS AND BEST PRACTICES FOR UNDERCUT MACHINING

OPTIMIZING TOOL SELECTION AND CUTTING STRATEGY

You can make undercut machining better by picking the right tool. Plan your cuts before you start. Lollipop, T-slot, and dovetail cutters help you get good results. Multi-axis cnc machines let you reach hard spots and work on tricky parts. Toolpath simulations show how the tool will move. This helps you stop crashes and saves time.

• Pick special cutters for each undercut shape.

• Use multi-axis cnc machines for better reach.

• Try toolpath simulations before you begin.

REDUCING MACHINING TIME AND COST

You can save time and money by making smart design choices. Add rounded corners to vertical edges. Keep cavities shallow and make walls thicker. These changes let you use bigger tools and fewer passes. Use the same hole sizes and corner shapes to cut down on tool changes.

• Add rounded corners.

• Keep cavities from being too deep.

• Make walls thicker for strong parts.

IMPROVING PART QUALITY AND ACCURACY

You get better undercut parts by picking the right tool for the job. Good chip removal keeps the part cool and smooth. Use strong air or coolant to blow chips away. Hold your part with special clamps or jigs to keep it still. Check your work with laser scanners or CMMs to make sure sizes are right.

Tip: Watch the machine as it works to see if the tool is wearing out and keep quality high.

ENGINEERING RECOMMENDATIONS FOR COMPLEX FEATURES

When you design tricky features, make sure the tool can reach every spot. If it cannot, make the shape simpler or split the part into pieces. Pick materials that can handle the stress of undercut machining. Use standard tool sizes to save money and time. Do not make features too deep so the tool does not bend.

• Think about how the tool will cut each feature.

• Plan for tool access and how parts fit together.

• Pick materials that work well for undercut machining.

You can make good undercuts by following these best practices.

INSPECTION AND QUALITY CONTROL FOR UNDERCUT FEATURES

MEASURING INTERNAL UNDERCUT FEATURES

You must check inside undercut features to make sure cnc parts are right. Regular calipers and micrometers cannot reach these hidden spots. Instead, you can use special tools like coordinate measuring machines (CMMs), optical scanners, or borescopes. These tools let you see the size and shape of undercuts without hurting the part. Sometimes, you need custom gauges for odd shapes. Always match your measurements to the original cnc design to find mistakes early. Good checking helps you catch problems before they ruin the final part.

ENSURING CONSISTENT MACHINING QUALITY

You can keep cnc undercut features the same by using some best steps:

1. Work with experts who know about undercut machining.

2. Remove undercuts if you can to make cnc easier.

3. Use standard cutting tools instead of custom ones.

4. Make undercuts shallow so they are easier to cut.

5. Pick standard sizes that fit common tools.

6. Watch undercut depth closely.

7. Pick the right tool for each job.

8. Hold the workpiece tight during cnc machining.

9. Use good cutting tools for better results.

10. Plan your cuts for tool access and order.

Quality control steps help you keep cnc machining correct and steady. You can use inline inspection and special measuring tools to check undercut features as you go. These steps make the surface better and help your process work faster.

FEEDBACK LOOP FOR DESIGN OPTIMIZATION

You can make cnc undercut designs better by using feedback between checking and design. If you talk with manufacturing partners early, you get fast feedback on your part’s shape and details. This teamwork helps you find problems before cnc machining starts. You can change your design to make undercuts easier to machine. Knowing when to use regular checks or special checks helps you balance quality, cost, and time. This way, you can make good choices and create parts that fit both design and making needs.

QUICK REFERENCE TABLE: CNC UNDERCUT MACHINING PARAMETERS

UNDERCUT TYPE VS MACHINING METHOD

You can use different cnc machining ways for each undercut type. Picking the right way helps you get better results. The table below lists common undercut types, tools you need, and things to watch out for.

Tip: Always pick a tool that matches the undercut type. This makes cnc machining safer and faster.

TOOL SELECTION AND LIMITATIONS

You need to choose the best tool for each cnc undercut. Some tools work better for certain shapes. Other tools might not fit or go deep enough. Here are some things to remember:

• Tapered end mills are good for angled undercuts.

• Thread mills and taps make strong threads.

• Spherical end mills help you get smooth, round undercuts.

• Keyway cutters keep slots straight and the right size.

• Groove cutters make O-ring grooves just right.

If you use the wrong tool, your part can get damaged or take longer to make. Always check the tool’s size and shape before you start.

DESIGN LIMITS FOR DIFFERENT MATERIALS

Different materials change how you do cnc machining. Harder materials need stronger tools and can wear them out faster. Some materials bend or change shape when they get hot. The table below shows what to think about when you design undercuts for different materials.

Note: Always test your design with the material you picked before full cnc machining. This helps you find problems early.

FAQ

WHAT IS AN UNDERCUT IN CNC MACHINING

You see an undercut in cnc milling when a groove or recess sits below the main surface. This feature cannot be made with a straight cut. You must use special machining steps to reach these hidden shapes. Undercuts help you create parts that fit together or lock in place. You often find them in mechanical parts, molds, and fixtures.

Note: Undercuts make your parts more functional. You need to plan for them early in your design.

HOW ARE INTERNAL UNDERCUTS MACHINED

You machine internal undercuts by using special tools and careful setups. First, you select a tool that fits the shape of the undercut. Next, you secure the part in the cnc machine. You program the machine to move the tool along a path that reaches inside the part. Sometimes, you use multi-axis machining to get better access. You check the finished part with measuring devices to make sure the undercut matches your design.

WHAT TOOLS ARE USED FOR UNDERCUT MACHINING

You use many tools for undercut machining. Some common tools include lollipop cutters, T-slot cutters, and dovetail cutters. Each tool has a unique shape that lets you reach under surfaces or inside grooves. You pick the tool based on the size and shape of the undercut. You must check if the tool fits your cnc machine and if it can handle the material. You can see a list of tools for undercut machining in the table below:

WHEN SHOULD I USE T-SLOT MACHINING

You use T-slot machining when you need slots for mounting or sliding parts. T-slot features help you build adjustable fixtures and modular assemblies. You find T-slots in machine tables, jigs, and robotics. You choose T-slot machining if you want strong connections and easy adjustments. You must use the right tool and plan the machining steps to get a clean slot.

Tip: T-slot machining gives you flexibility in your designs. You can change setups quickly and keep your parts secure.

You can make undercuts and T-slots better if you follow simple rules. Pick the right tools and keep shapes easy so machining is not hard. Always check if your tool can reach and if your part is the right size before you begin.

• Use standard sizes when you can

• Think about how chips will come out and how to keep things cool

• Try your design with real materials to see if it works

Remember: Smart design helps you get good parts and spend less money. For more help, look at CNC machining guides or ask skilled machinists.
