When you design bosses for CNC machining, ensure that tools can access all necessary areas. It's important to maintain optimal wall thickness when you design bosses for CNC machining, as this strengthens parts and simplifies manufacturing. Applying good design for manufacturability principles when you design bosses for CNC machining reduces waste and speeds up the machining process, making your parts more cost-effective. By following CNC machining DFM guidelines as you design bosses, you achieve higher quality parts and streamline the manufacturing workflow. Focusing on the DFM process while you design bosses for CNC machining improves production efficiency and consistently delivers excellent results. Review the table below to understand how key factors impact cost, quality, and lead time in CNC machining:
Factor | Impact on Cost | Impact on Quality | Impact on Lead Time |
|---|---|---|---|
Material Selection | Directly affects cost because of material prices and how easy it is to get | Changes how strong and good the part is | Can change how fast you can machine, depending on the material |
Design for Manufacturability (DFM) | Cuts down waste and machining time, so costs go down | Makes the product better by using smart designs | Makes production smoother, so lead time is shorter |
Communication with Suppliers | Makes the project work better, which can lower costs | Makes sure the part is made the right way | Helps deliver on time by setting clear deadlines |
Key Takeaways
Make bosses with the right wall thickness. This helps parts stay strong and makes them easier to make.
Use DFM guidelines to make less waste. This also saves money and helps things get made faster.
Make sure tools can reach every feature. This stops delays and makes parts better.
Pick simple shapes and use common sizes. This makes machining easier and helps stop mistakes.
Choose the right materials for the job. This keeps parts strong, saves money, and makes machining easier.
Role of Bosses and Reinforcement in CNC Machining
Functional Purpose of Bosses
Bosses are important in cnc machining. They help parts work better and fit together. Bosses have several main jobs:
They make certain spots stronger and tougher.
You can use them to attach screws or bolts. This makes it easy to put parts together or take them apart.
Bosses connect pipes or hoses. This helps move liquids in machines.
They hold electrical connectors and parts safely.
Think about these jobs when you design parts. This helps you make parts that cost less and work well.
Structural Role of Reinforcement Features
Reinforcement features like ribs and gussets are very useful. They make parts stronger and help them last longer. Here is how reinforcement features help:
Ribs make parts stiff and spread out stress. This keeps parts from bending or breaking.
They make parts strong but not heavy. You can use less material and still have good performance.
Ribs stop parts from changing shape. They help parts last through many uses.
Adding the right reinforcement features makes production faster. It also makes parts more dependable.
Impact on Strength and Machinability
Designing bosses and reinforcement features the right way is important. It affects how strong parts are and how easy they are to make. If you follow dfm guidelines, parts are easier to machine and less likely to break. Good design avoids thin walls and sharp corners. These can cause problems when making parts. You save time and material, so costs go down. The dfm process helps you keep parts strong and shapes simple. This makes manufacturing easier. You get strong, high-quality parts ready for cnc machining.
CNC Machining DFM Principles
Key DFM Best Practices
You can make parts easier to build by using dfm principles. Try to use simple shapes when you design for machining. Make sure tools can reach all the places they need to. The table below gives some helpful dfm tips for boss and reinforcement design:
Principle | Description |
|---|---|
Size and Tolerances | Make bosses the right size so they are strong and give good support. |
Consistent Heights | Keep boss heights the same so material is removed evenly and parts are more accurate. |
Avoid Sharp Edges | Add fillets or chamfers to lower stress and stop parts from breaking. |
Tool Access | Make sure tools can get to every feature to save time and money. |
Alignment with Machine Axes | Line up bosses with cnc machine axes so machining is faster and easier. |
Distance from Edges | Put bosses away from edges to stop tools from bending and to make surfaces look better. |
Tip: Use these dfm rules when you design parts. This helps you avoid mistakes and makes your parts better.
Tolerance Application in Boss Design
You should pick the right tolerances when you design bosses. If tolerances are too tight, it takes longer and costs more to make parts. Use normal tolerances unless you need very high accuracy. Always check tolerances during dfm reviews and dfm analysis. This helps you keep parts good and not too expensive.
Material Selection for Machined Parts
Picking the right material changes how you make parts and how good they are. The table below shows some common materials for cnc machining:
Material | Advantages | Limitations | Best For |
|---|---|---|---|
Steel | Very strong, does not wear out fast, can be heat-treated | Heavy, can rust, costs more | Machinery, automotive |
Aluminum | Light, does not rust, easy to machine | Not as strong | Aerospace, electronics |
Copper | Great for carrying electricity and heat | Soft, costs more, can turn green | Electrical, heat exchangers |
Brass | Easy to machine, carries electricity well | Not as strong, may have lead | Plumbing, decorative |
Titanium | Strong, light, does not rust | Very expensive, hard to machine | Aerospace, medical |
You can get more help with picking materials and dfm analysis from CNC machining services.
Surface Finish and Toolpath Considerations
Surface finish changes how good parts look and work. Pick a finish that fits what your part needs to do. The table below lists some common ways to finish surfaces:
Surface Finish Technique | Benefits | Applications |
|---|---|---|
Polishing | Makes parts smooth and strong | High-performance parts |
Anodizing | Protects parts and adds color | Aluminum components |
Powder Coating | Makes parts tough and weatherproof | Outdoor uses |
Electroplating | Makes parts hard and look nice | Decorative, functional |
Abrasive Blasting | Gives parts a better texture | Many materials |
Laser Ablation | Changes parts with high accuracy | High-tech uses |
Electrochemical Finishing | Stops parts from rusting | Specialized parts |
When you design for machining, think about how toolpaths change the surface finish. Smooth toolpaths make fewer marks and parts look better. Always remember to include surface finish needs in your dfm reviews and designing for manufacturability steps.

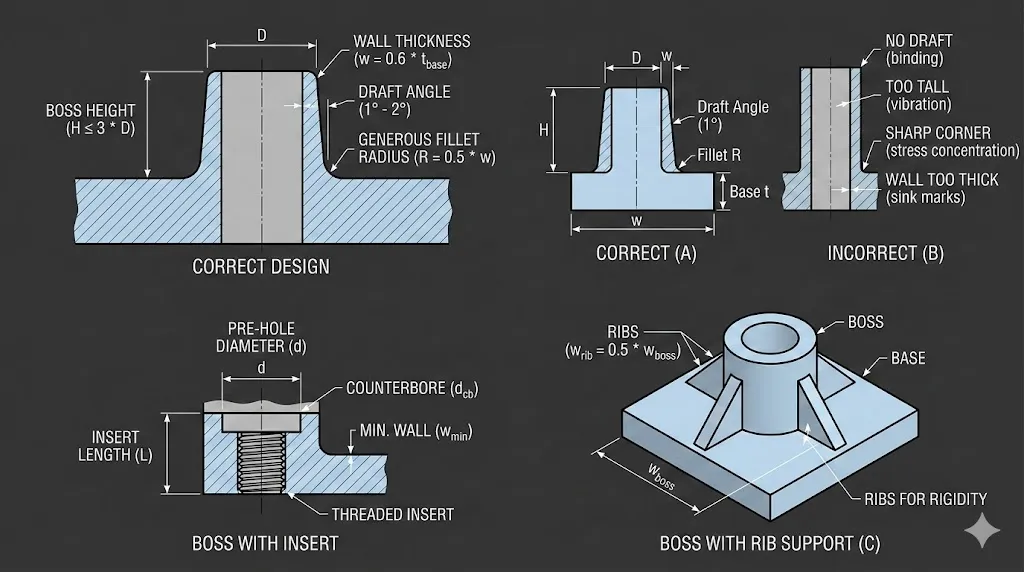

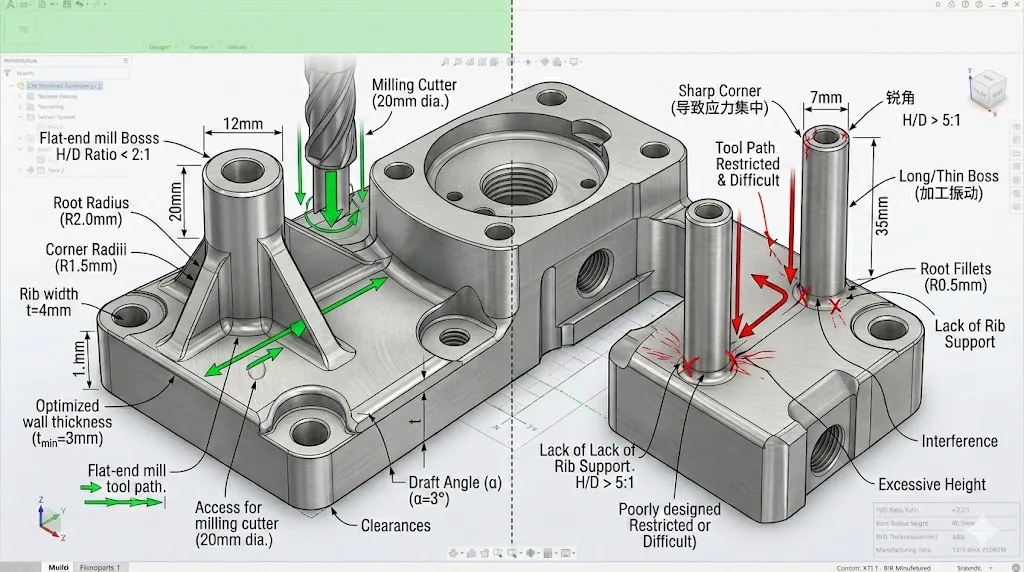

Design Bosses for CNC Machining Guidelines
Recommended Boss Diameter and Height Ratios
When you design bosses cnc machining, you should keep the diameter and height in balance. If you make bosses too tall or too thin, they can break during the manufacturing process. A good rule is to keep the boss height less than three times its diameter. This helps you avoid weak spots and makes the part easier to machine. You can use these design guidelines for common features to make your parts stronger and more reliable.
Wall Thickness and Fillet Radius Recommendations
Wall thickness and fillet radius play a big role in manufacturability. If you make walls too thin, they can bend or break. If you make them too thick, you waste material and increase costs. Use the table below to help you choose the right values:
Aspect | Recommendation |
|---|---|
Wall Thickness of Bosses | 40% to 60% of the nominal wall thickness of the part |
Radius at Base of Boss | 25% to 50% of the wall thickness |
Minimum Radius at Base | 0.25 to 0.5 times the nominal wall thickness |
Minimum Radius | 0.015 inches (0.381 mm) |
You should always add a fillet at the base of each boss. This reduces stress and helps the boss last longer.
Boss Placement and Minimum Spacing Rules
You need to place bosses with enough space between them. If you put bosses too close, the tool cannot reach them easily. This can cause problems during machining. Try to keep at least twice the wall thickness between bosses. This spacing helps you avoid tool collisions and makes the dfm process smoother.
Tool Accessibility and End Mill Clearance
Optimizing your part for cnc machining means you must think about tool access. You want to make sure tools can reach every boss without hitting other features. Here are some tips:
Check if the cutter can reach the edge in a straight line.
Widen entrances or move ribs to make tool paths simpler.
Split complex shapes into simpler parts if needed.
Note: Internal corners and deep pockets can be hard to reach. They may need special tools, which increases costs.
When you follow these guidelines, you make manufacturing easier and improve part quality. Optimizing part design for cnc machining helps you save time and money during the manufacturing process.
Reinforcement Geometry Design for Machining
Rib Design Best Practices
You can make parts stronger by using rib design rules. Ribs help support thin walls and make parts lighter. When you add ribs, keep their size and shape within the right limits. This stops weak spots and makes cnc machining easier.
Rib Thickness and Height Ratios
Rib thickness should be less than 60% of the wall thickness. Rib height should not be more than three times the wall thickness. Use big curves at the base to lower stress and help with making the part. The table below shows the best rib design numbers:
Design Parameter | Recommended Value |
|---|---|
Rib Height | ≤ 3X nominal wall thickness |
Rib Thickness | ≤ 60% of nominal wall thickness |
Rib Radii | 0.5 - 1X nominal wall thickness |
Rib Spacing | 2 - 3X nominal wall thickness |
Rib Draft Angle | ≥ 0.5 degrees per side |
Avoiding Thin or Fragile Reinforcement Walls
Thin or weak walls can break when you machine them. Do not make ribs too thin or too tall. Add curves at the rib base to spread out stress. This helps your parts last longer and makes them easier to make.
Gusset Geometry for Structural Stability
Gussets make corners and joints stronger. Keep gussets short and thick for better support. Put them where you need extra strength. Use smooth changes between gussets and walls. This stops stress points and helps with making the part.
Avoiding Deep Pockets and Sharp Internal Corners
Deep pockets and sharp corners are hard to machine:
Tools cannot reach deep spots easily.
Small tools are slower and make work take longer.
Tool direction changes can cause chips to get stuck and hurt the finish.
Sharp corners make it hard to hold the part in place.
Hard shapes may need special tools, which cost more.
Use bigger curves and shallow pockets to make cnc easier and save money.
Balancing Strength and Machining Simplicity
You can make parts strong and easy to machine by doing these things:
Make cnc steps better to save time and money.
Pick materials that are easy to cut but still strong.
Use simple setups to need fewer tool changes.
If you use these dfm tips, your parts will be strong, simple, and ready to make.
Common CNC Machining Design Mistakes
Undersized or Oversized Bosses
If bosses are too small, they can break. Small bosses may not hold fasteners well. If bosses are too big, you waste material. Large bosses also make parts heavy. Both mistakes can cause problems when making parts. Always check boss sizes with the right ratios. The table below shows what can go wrong if you make these mistakes:
Mistake Description | Consequence |
|---|---|
Poor fixturing and clamping of parts | Parts may not fit right or look good. You might have to throw them away. |
Ignoring material properties | Some designs are too hard to make or cannot be made at all. |
Over-specifying tolerances | This makes parts cost more and harder to make. |
Poor Feature Placement Affecting Tool Access
If you put features in hard spots, tools cannot reach them. This makes cnc machining slower and less exact. You might see tool marks or rough spots on the part. Leave enough space between bosses and other features. Good placement helps make parts easier and lowers mistakes.
Overly Complex Reinforcement Structures
You may think more ribs or gussets make parts stronger. Too many features make parts hard to machine. Over-designing can raise costs and take more time. Simple reinforcement is easier to make and check. Only add what the part really needs.
Ignoring Machining Constraints in CAD Design
If you forget about machining limits in CAD, parts may be impossible to make. Here are some problems you might see:
Sharp inside corners and deep pockets wear out tools and make rough surfaces.
Some tool sizes cannot make certain shapes.
Not thinking about tolerances can slow down work and cost more.
Always check your design for dfm before making it. This helps you avoid mistakes and get better cnc parts.
Cost and Efficiency Optimization in CNC Boss Design
Reducing Machining Time Through Smart Geometry
You can make cnc machining faster by using smart designs. Simple shapes help tools move quickly and cut better. Here are some ways to save time when you design parts:
Use inside corners with radii that fit common end mills.
Make wall thickness the same all over your part.
Add ribs where they stop bending.
Put datums on flat, open spots for easy checking.
Pick tolerances that match what your part needs.
Tip: Using smart shapes helps you make parts faster and spend less money.
Standardizing Boss Dimensions Across Parts
If you use the same boss sizes on many parts, it helps a lot. Standard boss sizes let you use the same tools and setups. This lowers mistakes and helps you finish jobs faster. It also makes checking parts for quality easier. Using the same sizes makes manufacturing simple and keeps things running well.
Minimizing Tool Changes and Setup Complexity
You can make machining faster by planning for fewer tool changes. If holes and features are the same size, you do not need to switch tools much. Simple setups mean you spend less time getting ready. You get more time making parts. You also make fewer mistakes. Good planning helps you use cnc machines better.
Choosing Materials for Efficient Machining
Picking the right material helps your part work well and be easy to make. Some materials are easier to cut and shape than others. The table below shows materials that work well for boss and reinforcement features:
Material | Advantages | Limitations | Best For |
|---|---|---|---|
Aluminium | Light, strong for its weight, easy to machine | Not as hard, not good for high-wear spots | Airplane parts, car parts, prototypes |
Stainless Steel | Very strong, does not rust easily | Heavy, harder to machine | Surgical tools, food equipment |
Copper | Best for carrying electricity and heat | Soft, can bend easily | Electrical connectors, heat sinks |
Engineering Plastics | Light, resists chemicals, keeps its shape well | Not as strong as metals, can change shape | Electronics cases, medical device parts |
You should always pick a material that fits what your part needs. This helps you balance how well it works, how much it costs, and how easy it is to machine.
Machining Part Design Checklist
Boss Design Essentials
When you design bosses for cnc machining, check a few things. This checklist helps you make strong parts that are easy to build:
Keep pocket and cavity depth less than four times the width. Do not make deep, skinny pockets.
Use drill sizes that are common for holes. Make hole depth between four and ten times the hole’s diameter.
Pick thread sizes that are standard. Leave some space at the bottom of blind holes with no threads.
Use a normal tolerance of ±0.13mm unless you need more.
Choose materials that are simple to machine and work for your part.
Use engraved text with easy-to-read fonts and thick lines.
Tip: If you follow these steps, you will avoid mistakes and make better parts.
Reinforcement Geometry Dos and Donts
You can make parts stronger and easier to machine by following these tips:
✅ Do This | ❌ Don’t Do This |
|---|---|
Add ribs that are thick enough | Do not use thin or weak walls |
Use big curves at corners | Do not add sharp inside corners |
Give ribs and bosses enough space | Do not put features too close |
Make gussets short and thick | Do not make deep, skinny slots |
Quick CNC DFM Verification Steps
Before you finish your design, check these things for better dfm:
Make sure tools can reach every surface without trouble.
Do not use sharp inside corners. Use curves to help tools and make surfaces smoother.
Keep wall thickness the same to stop shaking and bending.
Use hole and thread sizes that are common for easy making.
Only use tight tolerances if you really need them.
Final Design Review Before Production
Always check your cnc part before you make it. Look for these things:
Take out skinny features and thin slots that are hard to machine.
Change sharp corners to curves so tools can reach them.
Keep thread lengths short enough to be useful.
Do not use features smaller than 1mm.
Make sure every feature can be reached by a tool.
Note: Careful checking helps you avoid mistakes and makes cnc machining faster and better.
You now know that cnc machining dfm makes parts stronger and easier to build. These dfm tips help you find ways to save money and make the cnc process go better. Always look over your design and check if it is easy to make before starting. Make sure your design has strong features and is simple to machine. Talk to machinists early so you can pick the best ideas. If you use these cnc machining dfm rules, you will get better parts and spend less.
FAQ
What is a boss in cnc part design?
A boss is a raised feature on a part. You use it to add strength or to provide a place for fasteners. Bosses help you connect parts during manufacturing.
How do ribs improve part strength?
Ribs add support to thin walls. You use ribs to spread out force and stop bending. This makes your part stronger without adding much weight.
Why should you avoid sharp internal corners in machining?
Sharp corners are hard for tools to reach. You get better results if you use rounded corners. This helps you avoid tool wear and makes manufacturing easier.
What is the best way to check if your design is easy to machine?
You should review your part for tool access. Make sure every feature can be reached by a cutter. Simple shapes and good spacing help you avoid machining problems.
Can material choice affect cnc part quality?
Yes. The material you pick changes how easy it is to cut and how strong your part will be. Always match your material to your design needs and manufacturing process.
