HOW MUCH DOES A CNC PROTOTYPE COST? A PRACTICAL COST BREAKDOWN

CNC prototype cost is a structure, not a single number. Two questions decide everything downstream: what must this prototype actually validate, and which cost group does each line item sit in.

The same part can quote very differently across shops because each shop makes its own assumptions about setups, tolerances and inspection scope, and those assumptions, not the part's geometry alone, move the price. This guide gives you a reading frame you can apply to any CNC prototype quote: which costs are one-off, which recur per batch, which recur per part, and which requirements you can trim for a prototype stage without invalidating the test.

Key Takeaways

• The validation goal sets the requirement set: preserve every characteristic that can affect the intended decision and relax only characteristics irrelevant to that test.
• CNC prototype cost splits into three groups, non-recurring engineering, batch-level setup, and recurring per-part cost, and the group a line item sits in tells you whether quantity will dilute it.
• Setup count and quantity dilution explain most of the surprise in a CNC prototype quote, because the fixed charge does not shrink, only each part's share of it does.

How much does a CNC prototype cost? — quick answer

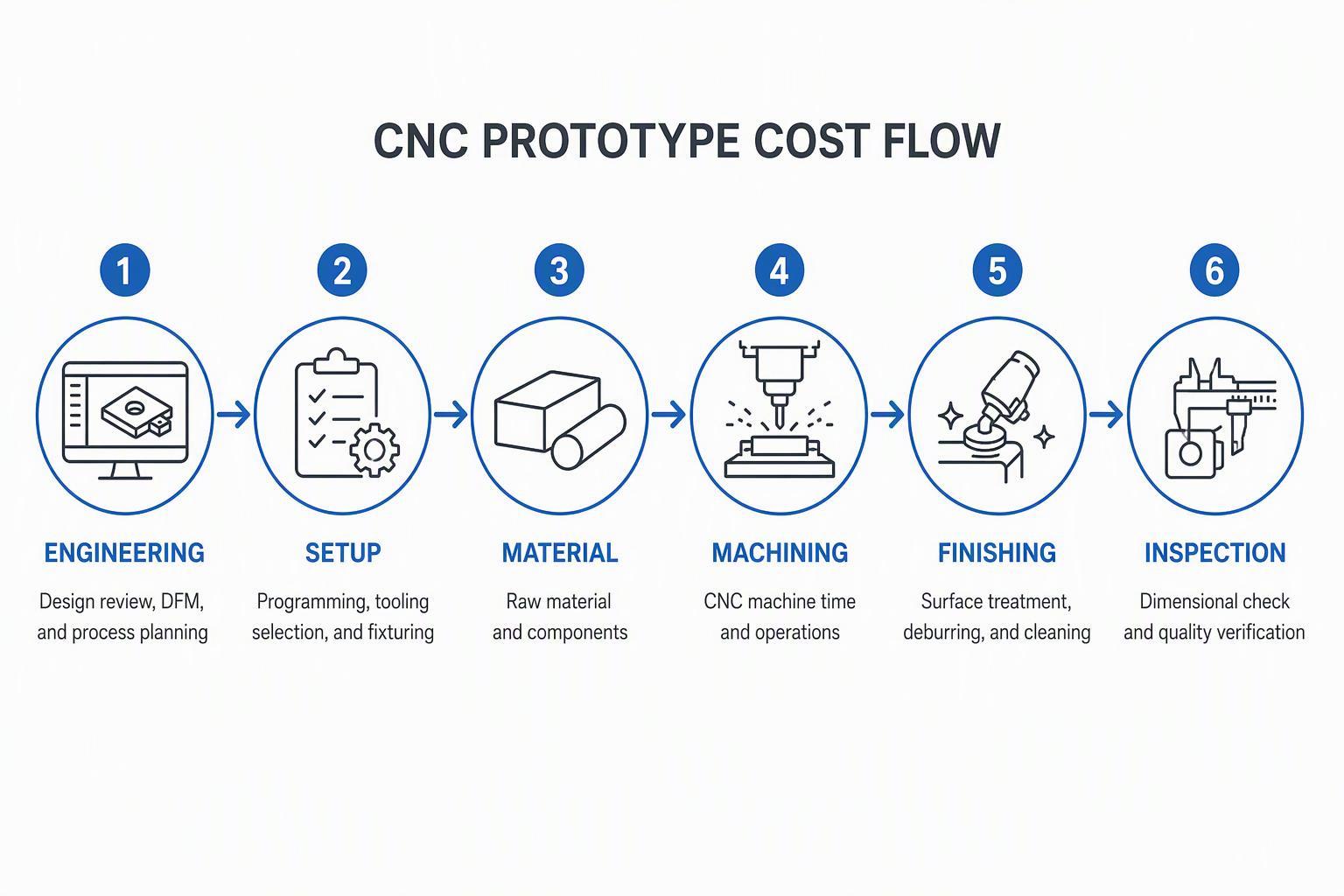

CNC prototype cost depends on nine things you can name on almost any quote: engineering and CAM programming, setup and workholding, material, machining time, tooling, tolerance requirements, finishing, inspection and documentation, and quantity and delivery requirements. A one-off CNC prototype cost often looks high per piece because the same fixed work, engineering, setup and inspection, is spread across just one or two parts. Because very-low-volume builds carry a larger share of that fixed work per unit, the price per part usually drops as quantity rises. There's no universal market price, so read any CNC prototype cost estimate through these drivers rather than a headline range.

What must this CNC prototype actually validate, and how does that change what I should pay for?

The qualification of a prototype is what sets its cost, because the test you intend to run defines which characteristics must be held and which can be relaxed. The working rule is to preserve every characteristic that can affect the intended decision and relax only characteristics irrelevant to that test.

What can be relaxed: non-functional tolerances, cosmetic finish, appearance and color, a cheaper machinable material for fit-form-assembly checks, non-certified stock for early geometry checks, production-only manufacturing details, and reduced inspection scope. What cannot: mating features, bearing bores, seal grooves, alignment datums, interfaces, load paths, and anything affecting sealing, friction, wear, optical performance, corrosion, electrical contact, heat transfer or cleaning. Material pedigree must never be dropped when the prototype is evidence for certification, safety, fatigue, pressure, thermal, chemical or customer acceptance.

Two things matter for prototype cost here. The first is the split between a general tolerance class and the handful of individually toleranced features that actually carry the function. A general class is a band, not a single value, so every untoleranced dimension gets a default band while your critical features get an explicit one. State a general class such as "ISO 2768-m" in the title block and reserve tight, individually toleranced callouts for the features the prototype must prove.

The second is how much a tight callout costs to verify. A tighter tolerance does not only mean slower cutting; it pulls the measurement chain with it, because the part has to be measured to a fraction of the band it has to hold. On a prototype, that shows up as more setups, slower processing, tighter process control and longer inspection, not as extra cutting alone.

Standards evolve. ISO 2768-2:1989, which covered general geometrical tolerances, has been withdrawn and its scope is now handled by ISO 22081:2021, and ISO 2768-1:1989 is itself being replaced by a newer edition. Rather than tracking edition history, follow the current drawing standard, the customer specification and the contractual requirements that apply to your project. When design intent is stated clearly, a feature becomes inspectable and the shop stops guessing.

If the validation goal is fit and form only, a different process may carry the part for less; see prototype manufacturing process selection before you commit the drawing to a machining route.

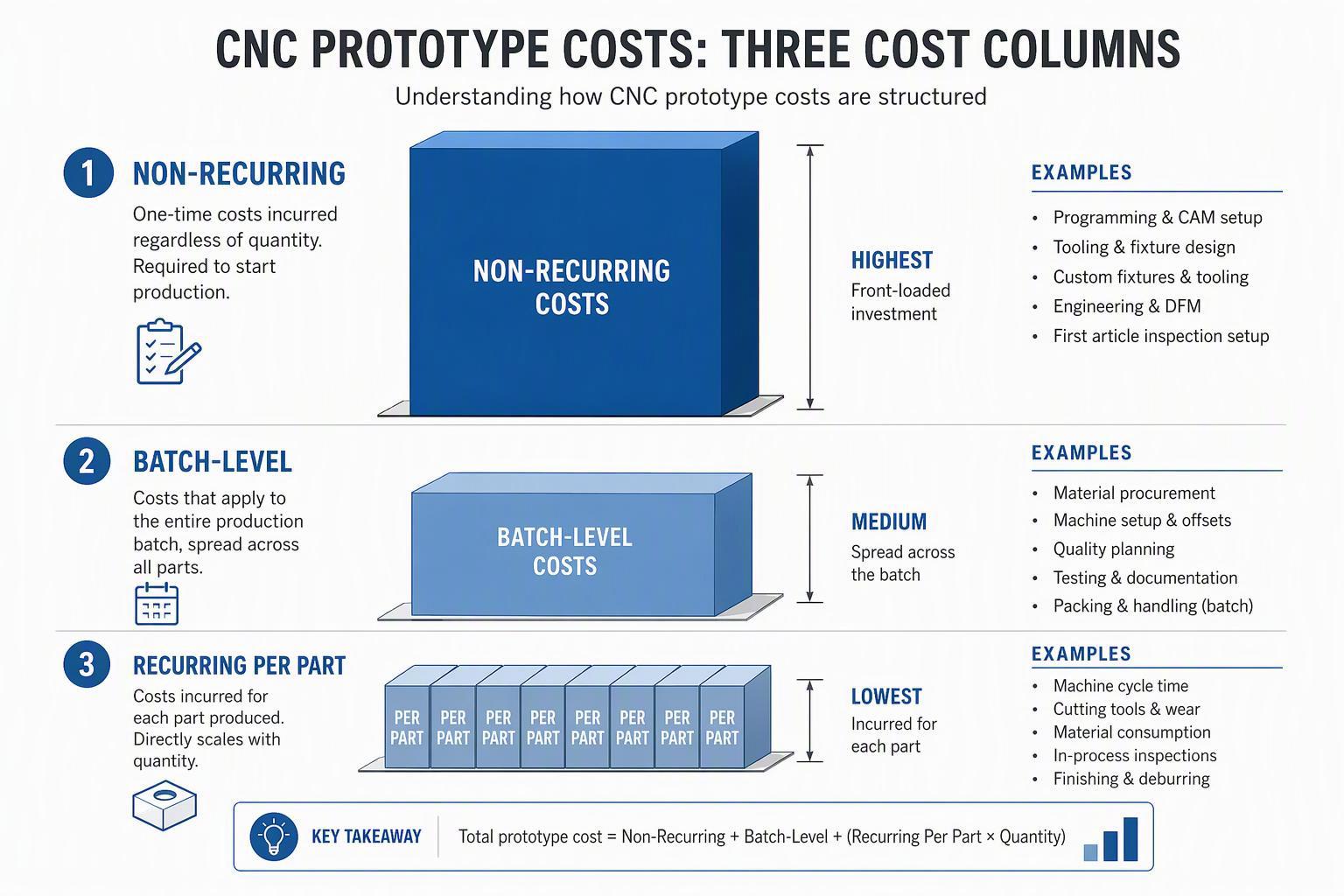

What are the line items in a CNC prototype quote, and which are one-time, batch-level, or recurring per part?

A CNC prototype quote is best read as three cost groups: non-recurring engineering, batch-level cost, and recurring per-part cost. The non-recurring group (also called NRE) typically carries drawing and CAD review, process planning, CAM programming and toolpaths, fixture or soft-jaw design, special tooling and gauges, first-article prove-out and the initial inspection package. The batch-level group typically carries machine setup and changeover, fixture installation, alignment and verification, tool loading and offset setting, material staging, first-piece approval, outside-process minimum charges, batch inspection and documentation, and packaging setup. The recurring group carries what each part consumes, including material with saw kerf and scrap, spindle and cutting time, operator handling, tool wear and consumables, deburring and normal finishing, and in-process inspection.

The group a line item sits in is not universal, and it is not fixed by quantity. Fixture design or fabrication is typically non-recurring for a specific design, while fixture installation, alignment, verification and maintenance may recur at batch level. Raising quantity changes the allocation per part, not the underlying cost category: a fixed charge still belongs to its group, it is simply divided across more pieces. That arithmetic is the whole CNC prototype machining cost breakdown in one line: recurring cost per part, plus fixed charges divided by quantity.

This structure is a frame for interrogating a CNC prototype quote, not a price benchmark. The same part quoted by two shops can differ by a large multiple because each shop assumed different setups, tolerances and inspection scope, and the quote rarely states those assumptions. Use the groups to ask better questions, not to predict a specific number.

What each cost component does to a prototype price

Why does the same drawing swing so much in price? Because each component behaves differently at low quantity.

An illustrative example, not an industry benchmark

The numbers below are a hypothetical build used only to show how the groups behave. They are not LKprototype pricing, and they are not market averages.

Illustrative example: a bracket with one machined pocket, a three-axis route, two setups, three toleranced features, standard finish.

The fixed engineering, setup and inspection charges stay flat across all three rows; only the recurring cost is multiplied by quantity. That is why a one-off CNC prototype cost looks steep and a low-volume CNC prototype cost per unit falls fast at first, then flattens as the recurring cost takes over.

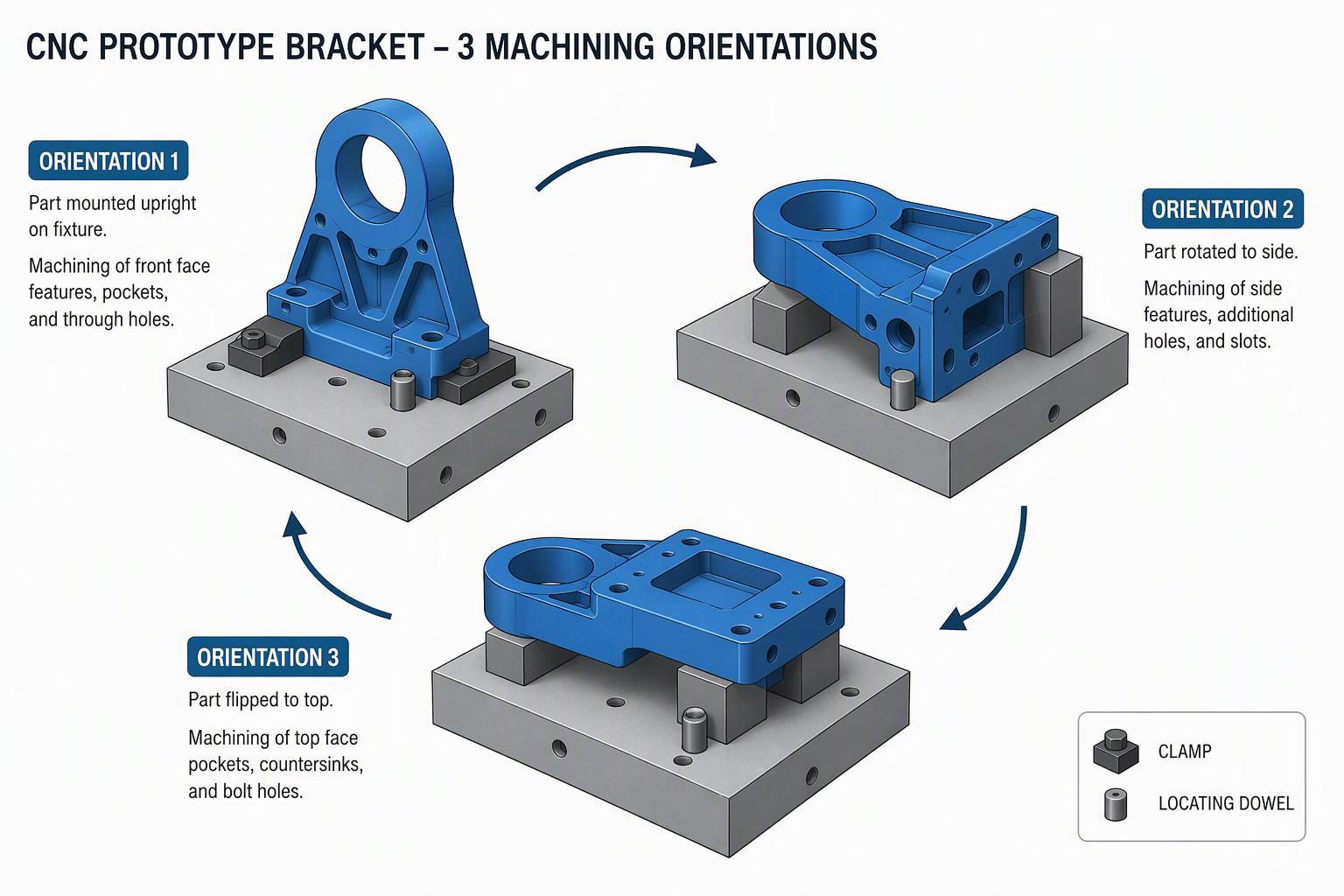

How do setup and workholding drive CNC prototype cost, and how many setups does my part really need?

Setup count can be a major cost driver at prototype quantities, particularly for multi-face parts with demanding datum relationships or inspection requirements. Every additional orientation adds fixturing, a work offset to set, probing, prove-out and first-article checking, so each orientation is real work on the floor rather than a programming detail. That is the simplest reason two quotes for the same geometry diverge: one shop planned three setups and the other planned five.

How many setups your part needs follows from which faces carry toleranced features, not from how many faces exist. A part with features on five faces but only two toleranced datums may need two orientations. A part with features on three faces that must all hold position to one another may need three or more orientations, plus a fixture to hold the relationship. The practical consequence: a tolerance stack across two datums is a setup-count question before it is a machining question.

Workholding design behaves a lot like tooling. A soft-jaw set or dedicated fixture is engineered once for a specific design, then installed, aligned and verified per batch, which is why fixture work can sit in both the non-recurring and batch-level groups. Before any of this reaches a price, the shop is screening the route on tolerance capability, surface finish and shape complexity, and that screening decides whether your feature set is a two-setup job or a five-setup one.

Key Takeaway: A cheaper route can invalidate the test it was meant to serve, and a repeat prototype is not automatically cheaper than the first one. Cut setups only where the tolerance stack still proves what the prototype has to prove.

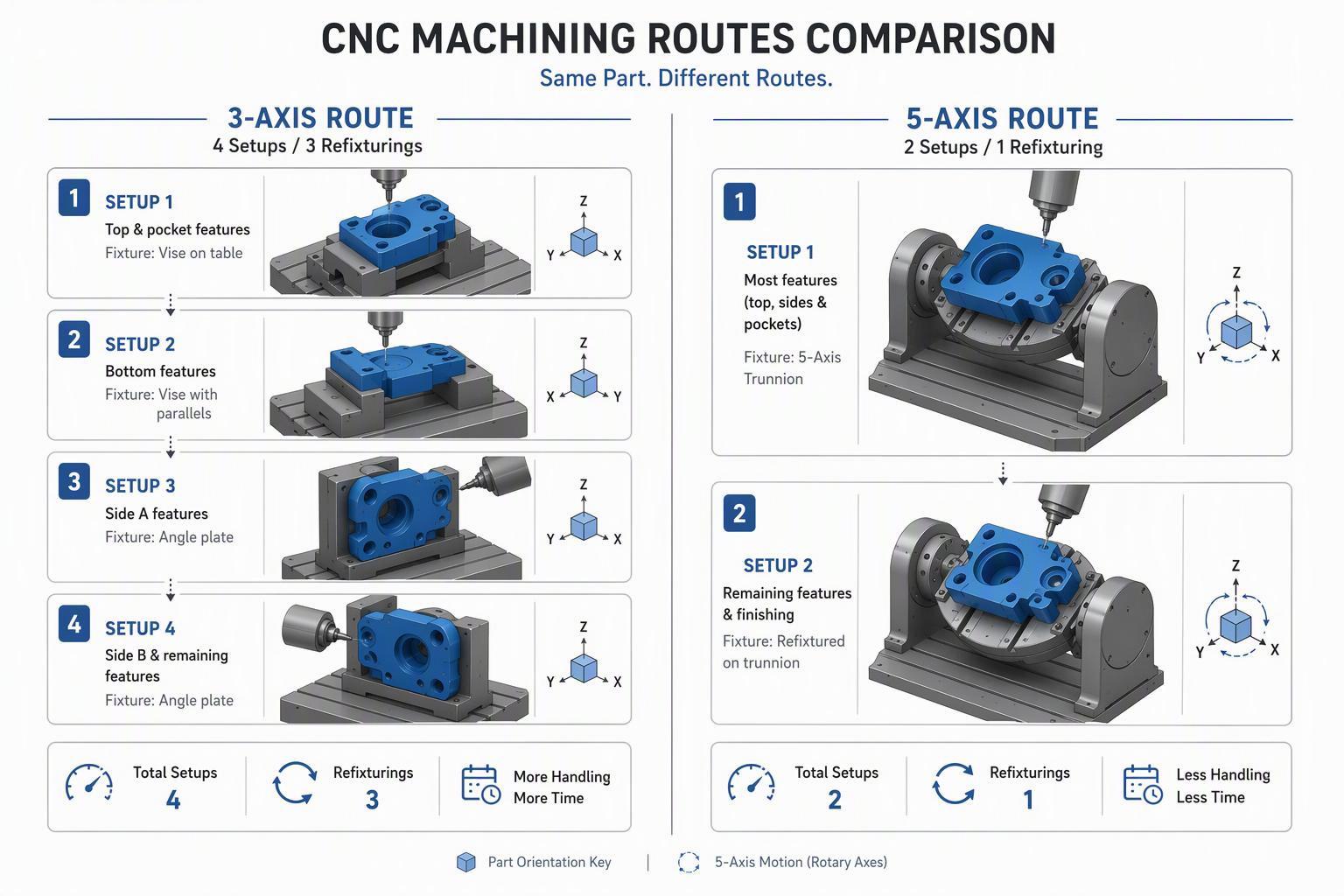

How does machining time and process route — 3-axis with multiple setups versus 5-axis with fewer setups — change cost?

Route choice is a screening decision before it is a price decision: first confirm the route can hold the geometry and tolerance at all, then compare cost at the quantity you actually need.

A higher machine hourly rate does not automatically mean a higher prototype cost. A 5-axis strategy can cut the number of physical refixturings and datum transfers, which shortens setup and reduces stack-up error, but it can also demand longer simultaneous CAM programming and a higher hourly rate. A simpler 3-axis route with more setups can still be the cheaper total for prismatic parts with forgiving tolerances. Two jobs on the same geometry can go opposite ways.

The lowest total-cost route depends on six things, not on the machine category: geometry, tolerance relationships, programming effort, setup strategy, machining time and quantity. Judge a route on the total, and ask the shop how many setups and how much programming each option carries.

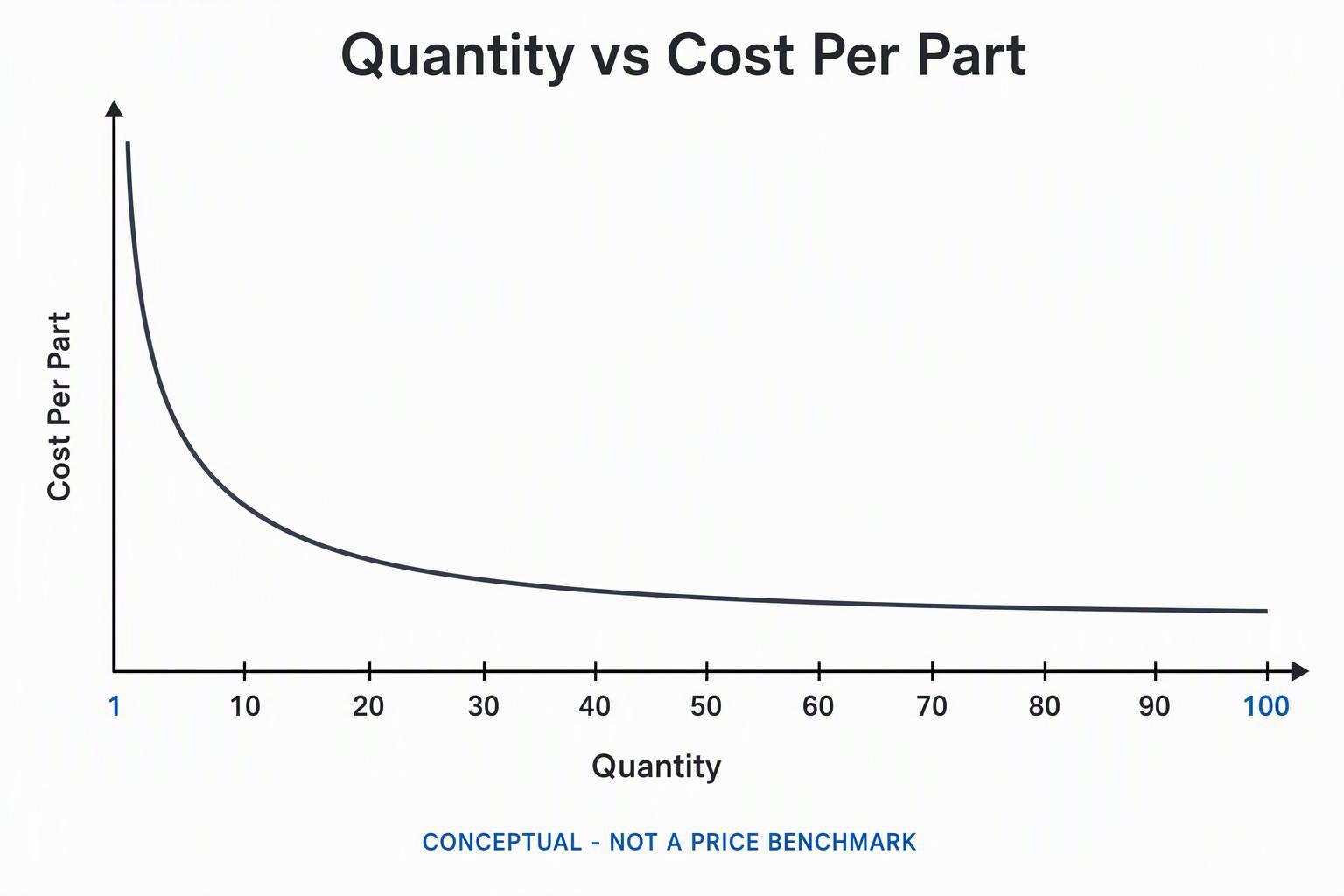

How does quantity change CNC prototype cost per part, and where does the curve flatten?

Cost per part is the recurring cost plus the non-recurring and batch-level charge divided by quantity: the fixed charge does not shrink, only each part's share of it does. A $400 setup-and-programing charge is $400 per part at quantity 1, $40 per part at quantity 10 and $4 per part at quantity 100. That is the entire mechanism behind a CNC prototype cost estimate, and it is why the illustrative table above shows unit cost falling fast at first.

Where the curve flattens is not universal, and that is the part most buyers get wrong. The bend point moves higher when setup, inspection or fixture cost is large, and lower when machining time and material dominate, so a hard-to-machine material flattens the curve earlier because the recurring cutting cost is high. A part whose cost sits mostly in a fixture and a first-article package keeps falling for a long time; a part whose cost sits mostly in spindle time stops falling almost immediately.

It also helps to separate three different numbers that buyers often blend into one.

The first number is what you sign off on a purchase order. The second is what your finance team compares across suppliers. The third is what actually decides whether a project stays on budget, because three iterations at one-off pricing can cost more than ten units at a settled design. If you need the unit-price math in more depth, our guide to CNC machining price per part breaks the fixed and variable components down further.

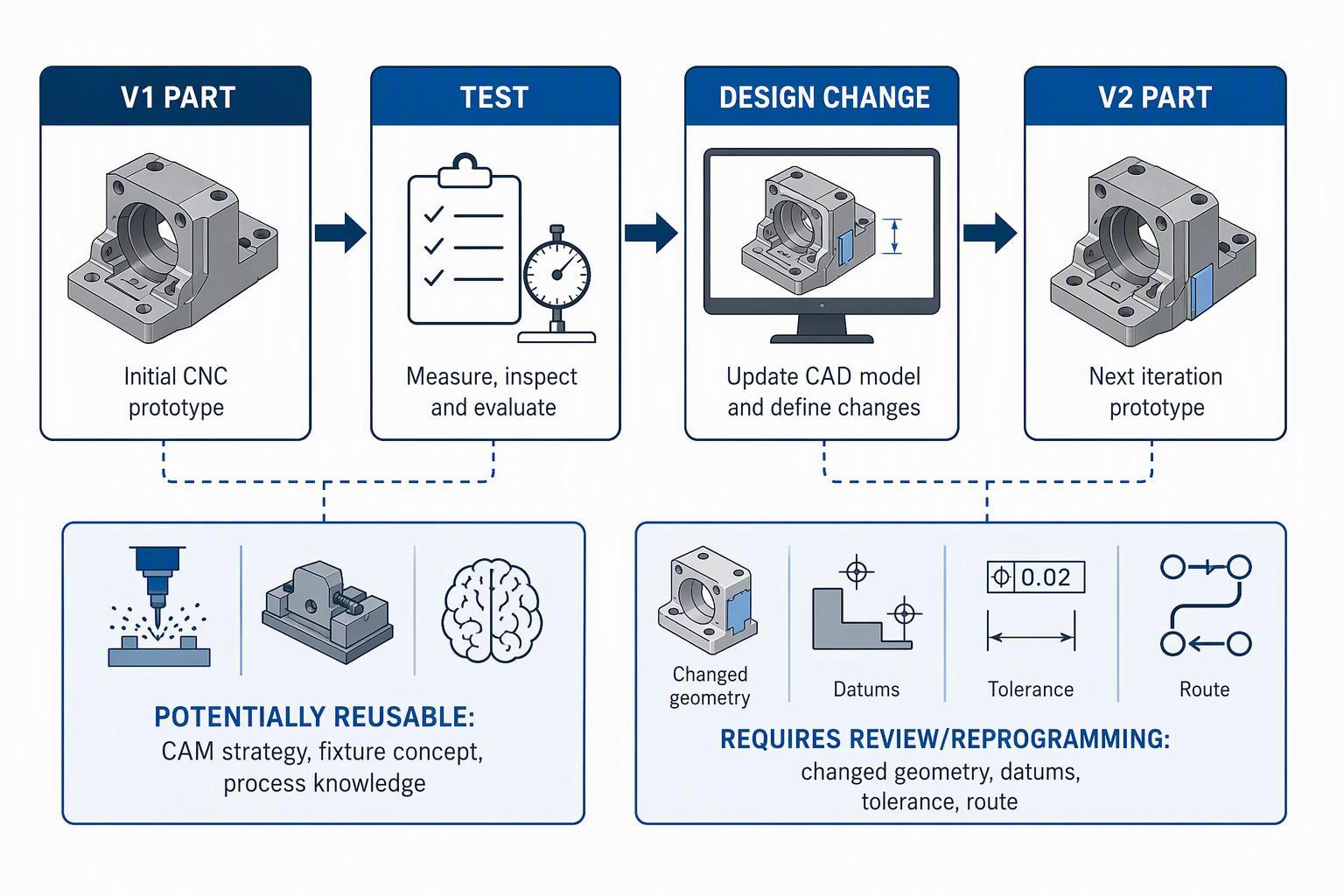

Why is a revised or repeat CNC prototype not automatically cheaper than the first one?

A revised prototype is not automatically cheaper than the first one, because the change may reopen work the first quote already covered. The amount that gets reused depends on what changed, so read the three cases separately.

First prototype. This build typically carries new engineering review, fresh CAM, setup planning, tooling decisions and validation, and it carries the full non-recurring group plus a batch-level charge for a single part.

Revised prototype. Some earlier work may be reusable, but changes to critical geometry, material, datums, tolerances, the process route or inspection requirements can each force new programming, new setup planning or fresh verification. A small cosmetic change may reuse almost everything; a change to a mating datum may reuse almost nothing.

Repeat build with no design change. Here CAM, fixture concepts and process knowledge may sometimes be carried over, while machine preparation, setup, first-piece verification and other batch-level work may still recur because a machine has to be re-prepped and a first piece has to be checked.

So a repeat prototype is not automatically cheaper, and it is not automatically the same price either. Ask the shop which specific items it reused and which it re-quoted, then judge whether the change you are making is worth the requalification it triggers.

Where formal first-article inspection applies, it raises that bar further. AS9102 is the aerospace First Article Inspection standard, and where aerospace, customer, contractual or regulatory requirements call for formal FAI, a design or process change may require full or partial requalification depending on the applicable requirement. For most commercial prototypes no formal FAI is required at all, and a simple dimensional report is enough. Either way, inspection and retained quality records should match the contractual, customer, regulatory and industry requirements that apply to the prototype, no more and no less.

What can I estimate myself before requesting a CNC prototype quote, and how do I reduce cost without invalidating the test?

You can estimate the shape of CNC prototype cost before you ask for it by sorting your own requirements into the three groups and counting your setups. On the buyer side, list what you define: the validation goal, material grade and pedigree, critical tolerances and datums, finish and cosmetic requirements, quantity including spares, and documentation scope. On the shop side, list what the shop has to validate: machinability of the geometry and material, the setup and workholding plan, tooling selection and availability, the inspection method and probing strategy, process capability against your tolerances, and any outside-process minimums and lead time. That split alone is the whole CNC machining prototype cost breakdown in miniature, and it is what lets you read any CNC prototype quote instead of just accepting a total. For the individual cost drivers behind each line, see our breakdown of CNC machining cost factors.

The way to reduce CNC prototype cost without invalidating the test is to relax only what the validation goal already permits. Non-functional tolerances, cosmetic finish, appearance and color, a cheaper machinable material for fit-form-assembly checks, non-certified stock for early geometry checks, production-only manufacturing details and reduced inspection scope can usually be relaxed. Mating features, bearing bores, seal grooves, alignment datums, interfaces, load paths and anything affecting sealing, friction, wear, optical performance, corrosion, electrical contact, heat transfer or cleaning usually cannot, and material pedigree stays fixed wherever certification, safety, fatigue, pressure, thermal, chemical or customer-acceptance evidence depends on it. A simple decision rule covers most of it: does the requirement affect what the prototype must validate? If yes, keep it. If no, review whether it can be simplified.

Tolerance can be a major hidden cost driver when it requires additional setups, slower processing, tighter process control or more demanding inspection. Tightening a callout does not only slow the cut; it pulls the whole measurement chain with it, because the part has to be measured to a fraction of the band it must hold. The practical buying principle is to specify the tolerance required by function and validation, not the tightest tolerance that appears technically possible.

Key Takeaway: Choose the tighter route when the feature has to prove the function, choose the relaxed route when it does not, and if neither fits, reconsider the process rather than the tolerance.

The self-selection summary is short. If your prototype must prove fit, form and assembly only, relax finish, color, non-functional tolerances and inspection scope, use a machinable material and accept a general tolerance class. If it must prove function under load, sealing, wear or thermal conditions, keep the mating features, seal grooves, load paths and material pedigree, and pay for the inspection that proves them. If it must support certification or customer acceptance, keep the documentation package and expect the non-recurring group to return on every design change. Before you send the RFQ, make sure you can tell which line items are genuinely part-specific and which are shop overhead.

What to send for an accurate CNC prototype quote

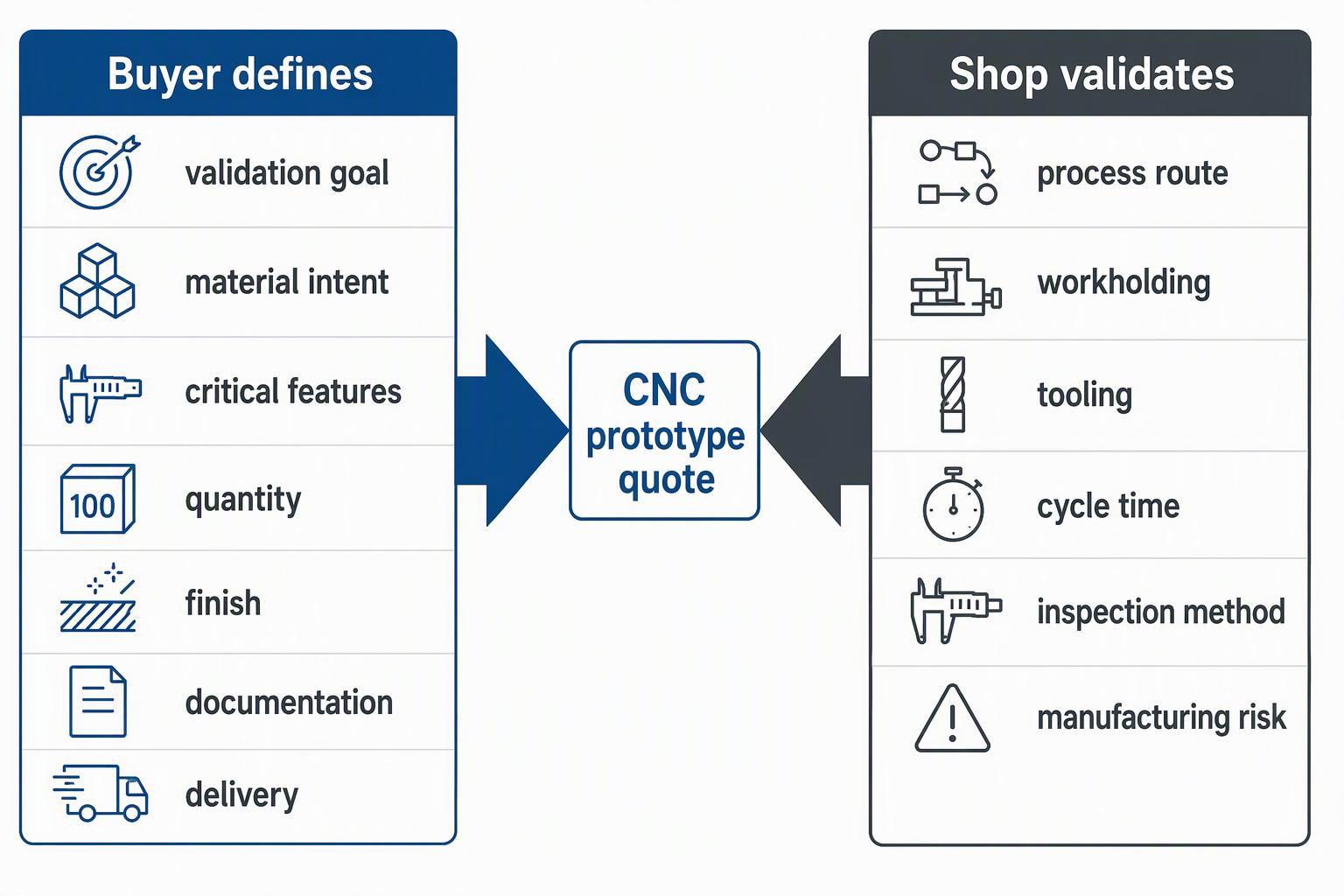

The fastest way to get a CNC prototype quote you can actually compare is to send the same package to every supplier. Include the 3D CAD model, a 2D drawing where tolerances or GD&T matter, the correct revision, the material and any approved substitute, the quantity including spares, the critical tolerances and datums, the required finish, the inspection and documentation requirements, the prototype validation objective, and your target delivery date. The validation objective matters most because it tells the shop which requirements are load-bearing and which it can quote loosely. Our CNC machining quote guide walks through each item and how it changes the estimate.

How we apply this at LKprototype, the publisher of this guide. Our engineers review the part before production, covering the CAD model, the drawing, the material, the quantity, the critical requirements, the setup and process route, the finish, the inspection scope and the delivery window. That is the same review this guide asks you to prepare for, and it does not decide what your prototype must validate: you still sort your own requirements into the three cost groups and count your setups, with any supplier, ours included. When you are ready, request a CNC machining quote or see our CNC machining services for prototype and production parts.

Frequently Asked Questions

How much does a CNC prototype cost?

There is no universal number. CNC prototype cost is built from engineering and CAM, setup and workholding, material, machining time, tooling, tolerance requirements, finishing, inspection and documentation, plus quantity and delivery. At very low volume, a single part absorbs the full fixed share of engineering, setup and inspection, which is why the One-off prototype pricing is often higher per piece because non-recurring and batch-level work is allocated across very few parts.

Why is one CNC prototype so expensive?

Because the fixed work does not divide. Engineering, CAM, setup and inspection are largely the same whether you make one part or ten, so at quantity one the entire non-recurring and batch-level charge lands on a single piece. You are paying for a program, a setup and a proven first piece, not just for a lump of metal.

What affects CNC prototype cost the most?

There is no universal single biggest cost driver. At prototype quantities, setup, programming, machining time, material, tolerance, inspection, finishing, and the required validation scope can each dominate depending on the part.If material-dependent behavior is not part of the validation objective, an approved substitute material may sometimes reduce cost.

Does CNC prototype cost decrease with quantity?

Yes, per part, and the mechanism is simple dilution. Fixed charges do not shrink, so the same setup and programming cost divided by five or ten parts falls sharply, while the recurring material and machining cost multiplies. The curve flattens once the recurring cost dominates the per-part figure.

Is 5-axis machining always more expensive for prototypes?

No. A 5-axis route can cut physical refixturings and datum transfers, which saves setup and reduces stack-up error, even with a higher hourly rate. A 3-axis route with more setups can still be cheaper for prismatic parts with forgiving tolerances. The lowest total depends on geometry, tolerance relationships, programming effort, setup strategy, machining time and quantity.

Should a prototype use final production material?

Only when the validation depends on it. If the prototype must prove strength, wear, sealing, thermal behavior or certification, use the production grade and keep its pedigree. If it only proves fit, form and assembly, a cheaper machinable grade usually carries the test for less.

Do prototypes need final production tolerances?

No. Prototypes should hold the tolerances the validation depends on and relax the rest. Tightening a non-critical dimension adds process control and inspection cost without proving anything new, so specify the tolerance required by function, not the tightest one that looks possible.

Is the second CNC prototype cheaper than the first?

Not automatically. A repeat build with no design change may reuse CAM, fixture concepts and process knowledge, but machine preparation, setup and first-piece verification often recur. A revised prototype can reopen engineering and verification if it changes critical geometry, material, datums, tolerance or the route. Ask which items were reused and which were re-quoted.

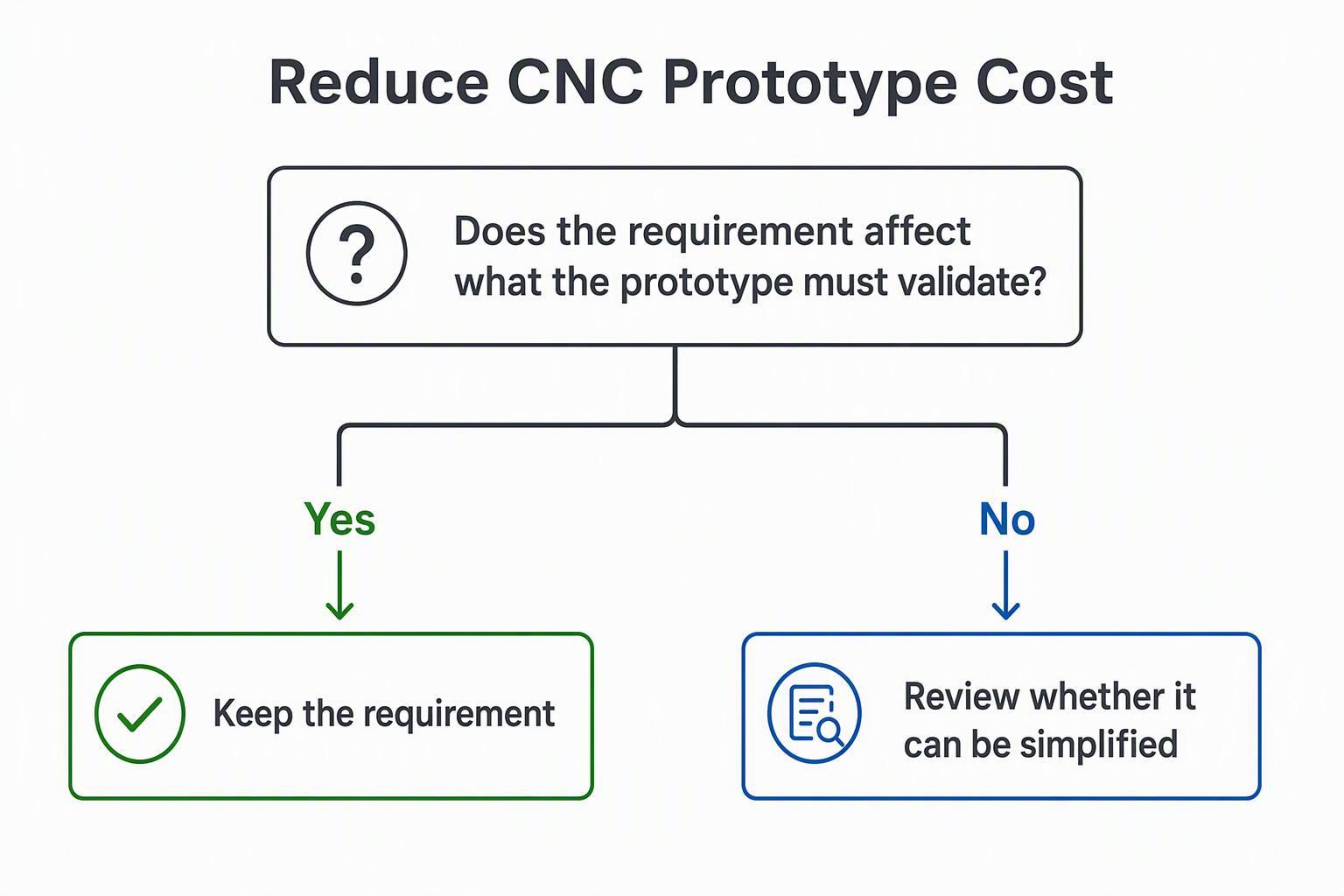

How can CNC prototype cost be reduced without invalidating the test?

Ask one question of every requirement: does it affect what the prototype must validate? If yes, keep it. If no, review whether it can be simplified. Relax cosmetic finish, non-functional tolerances and inspection scope, use a machinable material, accept a general tolerance class, and cut setups only where the tolerance stack still proves what the prototype has to prove.

What files are needed for an accurate CNC prototype quote?

Send the 3D CAD model, a 2D drawing where tolerances or GD&T matter, the correct revision, the material, the quantity including spares, the critical tolerances and datums, the finish, the inspection and documentation requirements, the validation objective and the target delivery date. The same package to every supplier is what makes the quotes comparable.

Conclusion

A CNC prototype quote is a structure you can read, and the reading frame is the same every time: what the prototype must validate, which cost group each line item sits in, how many setups the toleranced features force, and how much of the fixed charge your quantity dilutes. The validation goal sets the requirement set, the group split tells you what quantity will and will not fix, and setup count plus quantity dilution explain most of the surprise in a CNC prototype cost estimate. Tolerance can be a major hidden cost driver once it forces extra setups, slower processing or heavier inspection, and the safest saving is relaxing the characteristics your test does not depend on.

Before you send the next request, sort your own requirements into the three cost groups, count your setups, and mark every characteristic as either test-critical or relaxable. That preparation is what turns a quote into a comparison, and it is also what makes choosing a CNC machining supplier for prototype parts a decision you can defend, because you are comparing suppliers on the same requirement set rather than on four different interpretations of your part. If your route is still open, our guide to rapid prototype machining covers how fast-turnaround prototypes are planned and delivered.
