You need a fast, accurate CNC machining quote for your manufacturing project. You must submit a complete request for a quote package on your first try.
Your starting package requires six important technical items:
3D model
2D drawing
Specific material grade
Total order quantity
Surface finish specification
Target delivery date
Missing technical details force shop estimators to add price buffers for safety. Incomplete requests cause repeated manufacturing review delays. Providing full technical data speeds up the machine shop evaluation time. You remove costly pricing guesses, secure firm contract terms quickly, and smooth out your entire quote request process today.
Key Takeaways
Share both 3D models and 2D drawings so project planners have all the information they need.
State exact material types and surface textures to avoid costly pricing estimates.
Only use strict measurement limits on important parts because these tight rules will increase your making costs.
Buy higher part amounts to split constant preparation costs and reduce single item rates.
Make sure the update letters match on every blueprint to prevent expensive shop errors.
QUICK ANSWER: WHAT DO YOU NEED FOR AN ACCURATE CNC MACHINING QUOTE?
THE MINIMUM INFORMATION REQUIRED FOR A CNC MACHINING QUOTE
To get a binding cnc machining quote from a precision machine shop, you must share six main technical details. Send a 3D STEP file for CAM toolpath programming and a clear 2D PDF drawing that sets basic shop tolerance limits of ±0.1 mm.
Data Requirement | Essential Input Detail |
|---|---|
CAD Files | 3D STEP file and matching 2D PDF drawing |
Material Specification | Exact alloy grade and temper like 6061-T6 |
Surface Finish | Specific standard like MIL-A-8625 Anodize |
Make sure your package clearly lists the exact material grade, like 6061-T6 aluminum or 316L stainless steel under ASTM A276. You should also include exact order quantities, reasonable delivery dates, and finish details like Anodize Type II, Class 2, black per MIL-A-8625 for your precision machining order.
WHY COMPLETE RFQ INFORMATION IMPROVES QUOTE ACCURACY
Full technical information keeps suppliers from adding extra safety fees to cover pricing risks. Labeling every file in your rfq package with a standard pattern like [PartNumber]_[Revision]_[Date] stops version confusion during engineering checks.
Marking only 3–5 important dimensions with GD&T controls prevents extra shop expenses and long machining delays. Providing clear quality rules, such as FAIR, CMM inspection reports, or AS9120D certifications, helps suppliers figure out true production costs for your quote request without guessing.
CNC MACHINING QUOTE VS. CNC MACHINING RFQ
An RFQ is the full technical documentation package that you gather and send to potential manufacturing suppliers. This package mainly serves to show shop estimators your part shape, key tolerances, surface needs, and timeline goals.
A custom machining quote is the official price offer sent back by the machine shop. The vendor reviews your technical papers, calculates the needed machine setup time, and provides a final price quote with set delivery dates.
ESSENTIAL FILES FOR YOUR CNC MACHINING QUOTE
3D CAD MODEL FORMATS FOR CNC QUOTING
You must share valid design files so estimators can study shape and program tool paths. Machine shops load solid models into CAM software to figure out how long a job will take.
Format | Geometry Preservation | Compatibility | Recommendation |
|---|---|---|---|
STEP | Full solid geometry | All CAM systems | Most preferred |
IGES | Surface and wireframe | Most CAM systems | Recommended |
X_T | Full solid geometry | Most CAM systems | Acceptable |
SAT | Full solid geometry | Most CAM systems | Acceptable |
PRT, SLDPRT | Full solid + metadata | Native software | Not recommended |
Original design files usually need conversion first. Sharing neutral CAD formats saves time during early checks.
2D ENGINEERING DRAWINGS AND PDF REQUIREMENTS
A 2d drawing outlines specific requirements that a 3D model fails to show clearly. Always attach full blueprints together with your digital parts.
A main title block displaying part identity, chosen metal, surface treatments, and basic size rules.
A 3D view showing an easy, high-level picture of your item.
Front, top, and side views detailing major lengths and widths.
Cutaway section views named A-A that reveal hidden inside features.
Zoomed-in detail views that focus closely on difficult shapes.
Extra notes about edge cleaning, surface roughness Ra 3.2 μm, and screw threads.
This key information lets inspectors double-check real measurements accurately.
REVISION CONTROL AND FILE CONSISTENCY
Check that all revision numbers match across every file before you hit send. Identical file names stop costly shop mistakes from happening later.
Clear and steady labeling keeps everyone on the same page. Make sure the version letter on your 3d model matches the print on your 2d drawing.
WHEN STEP, IGES, PARASOLID, OR OTHER CAD FORMATS ARE NEEDED
Open options like STEP (.stp), IGES (.igs), or Parasolid (.x_t) guarantee system compatibility across different programs. Estimators use these simple files to check tool reach and tricky shapes.
Tight-fitting hardware like bearing seats or plugs always needs technical drawings. You must send both models and drawings together so inspectors know what to measure.
WHY CAD MODELS AND DRAWINGS MUST MATCH
Operators run cutting tools using your digital model. They use paper prints to check final part quality.
Mismatches between prints and digital parts pause your job instantly. You get a fast, correct machining estimate when both files show identical details.
MATERIAL AND SURFACE FINISH REQUIREMENTS
MATERIAL GRADE, ALLOY, AND TEMPER
You need to name the precise metal type for your technical build. Machinists want the full label to buy the right factory supply. For instance, requesting basic aluminum creates total guesswork during cost estimates.
Listing aluminum 6061-T6 gives the machine shop clear hardness details. Picking a popular metal keeps your raw supply bills lower.

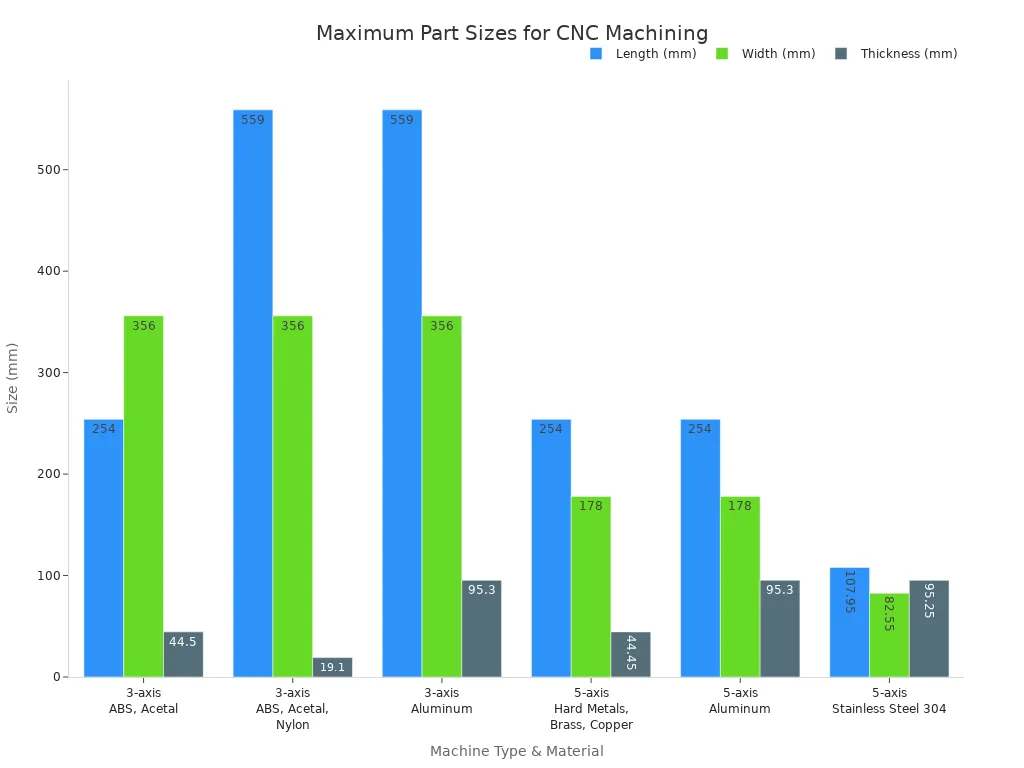

RAW MATERIAL SIZE AND STOCK REQUIREMENTS
Your part design dictates the correct metal bar thickness. Standard bar sizes like 0.5 inches cut down tool passes and trim expenses.
Design Thickness: Normal metal stock sizes avoid unnecessary cutting passes.
Material Selection: Easy-to-find metals speed up raw supply purchasing.
Net Shape Options: Molded bars cut down wasted metal on big production orders.
SURFACE FINISH AND ROUGHNESS SPECIFICATIONS
Your part drawing needs to show exact smoothness targets. CNC shops deliver a standard unpolished surface of Ra 3.2 μm.
Unless otherwise specified on the drawing, many machine shops will default to an as-machined finish around Ra 3.2 µm (or 125 µin).
Smoother surfaces take slower tool passes or extra sanding steps. Common surface quality choices feature:
Ra 3.2 µm: Low-cost surface that leaves light tool lines.
Ra 1.6 µm: Clean surface made for close-fitting parts.
Ra 0.8 µm: High-quality surface meant for shaft seats.
Ra 0.4 µm: Extra-smooth surface that needs precision grinding work.
ANODIZING, PLATING, HEAT TREATMENT, AND OTHER SECONDARY PROCESSES
Extra treatments add special steps after normal tool cutting stops. You may pick anodizing services or passivation processes to shield raw metal parts.
Baking steps change metal strength using targeted temperature changes. Heat-treating tasks such as annealing raise full manufacturing timelines and worker hours.
HOW MATERIAL AND FINISH AFFECT CNC MACHINING PRICE
Base metal choices instantly establish your main job expenses. Stronger alloys boost cutter wear and lengthen overall shop hours.
Secondary processes such as anodizing and heat treatment are explicitly identified as cost drivers. Each additional step introduces extra time, labor, and potentially outsourced work, which directly raises the machining price and extends lead times.
Including extra finishing choices bumps up your final invoice total. You can review custom coating costs and check heat treat guidelines to trim down your ultimate order total.
TOLERANCES, GD&T, AND QUALITY REQUIREMENTS
GENERAL TOLERANCES AND ISO 2768 REQUIREMENTS
A 2D print uses general shop rules to set basic size limits. Many precision machine shops use ISO 2768 standards if your engineering blueprint omits specific measurements. These overall rules guide shops to price basic shapes correctly without extra cutting work.
CRITICAL DIMENSIONS AND TIGHT TOLERANCES
Limit close measurement details to areas that affect part fit or movement. Demanding tighter sizes than standard shop rules drives up machining expenses quickly.
Tolerance Level | Cost Multiplier |
|---|---|
±0.030 in (Rough) | 1x (Baseline) |
±0.005 in (Standard) | ~2x |
±0.001 in (Precision) | ~4x |
±0.0001 in (Ultra-Precision) | ~24x |
GD&T DATUMS AND FEATURE CONTROL REQUIREMENTS
Add geometric dimensioning and tolerancing on key fitting spots to explain your part plan. Datums mark clear baseline points for lining up parts during tool setups. Feature control boxes show allowable shape changes without adding tight rules on simple areas.
Fundamentally, GD&T is a control system... it enables engineers to control, and even reduce, part cost. In most machined components, cost is dictated by how tightly the part must be controlled and how clearly those controls are communicated.
INSPECTION, CMM, AND CERTIFICATION REQUIREMENTS
Select correct testing methods to protect total part quality for custom builds. Detailed inspection routines add work hours throughout machine shop production runs.
Inspection Method | Typical Application | Added Cost Factor |
|---|---|---|
CMM Inspection | Complex geometries, tight tolerances | Moderate (~5-10%) |
FAI per AS9102 | Comprehensive process validation | High (~15-25% of first-order cost) |
Asking for a coordinate measuring machine report confirms tricky shapes. Adding first article inspection files verifies that total setup steps follow correct standards.
HOW TOLERANCES AND QUALITY REQUIREMENTS AFFECT CNC QUOTES
Strict size limits directly raise full machine time and tool costs. Unneeded tight rules force operators to cut slower and run extra checks. You lower project bids by keeping strict limits away from simple surfaces.
QUANTITY, DELIVERY, AND ORDER REQUIREMENTS
QUANTITY, ORDER VOLUME, AND EAU
You need to list your exact part count and yearly needs in your first request. Machine shops use these numbers to pick the right production tools. Larger orders let shop owners divide setup costs among many items.
PROTOTYPE, LOW-VOLUME, AND PRODUCTION QUOTE REQUIREMENTS
Early prototype builds help you test new product designs quickly. Suppliers build unique jigs when making small part batches. You might pick a vacuum casting service for making short runs of soft plastic components.
Cost Comparison (CNC Machining) | Prototype (1-5 units) | Production (100+ units) | Price Premium |
|---|---|---|---|
Simple 3-axis part (few holes/pockets) | ~3x higher per unit | Baseline | 3x |
Complex 5-axis part (internal features, thin walls, multiple setups) | ~5-8x higher per unit | Baseline | 5-8x |
Typical aluminum part (per-part cost) | $50–$300 | $5–$30 | 3–5x |
REQUIRED DELIVERY DATE AND SHIPPING DESTINATION
Your needed timeline helps the factory plan its weekly work schedules. Sharing your final shipping address early brings clear freight costs. Shops balance daily machine hours around your target arrival times.
PACKAGING, LABELING, AND SPECIAL DELIVERY REQUIREMENTS
Fragile items often need special foam boxes or protective wraps. Always write special tags, barcodes, or clean storage needs inside your main request. Clear shipping notes prevent broken parts while goods travel to you.
HOW QUANTITY AND DELIVERY REQUIREMENTS AFFECT CNC PRICING
Order sizes and needed dates control your final piece price. Fast delivery requests mean extra shop hours and reserved machines. Giving shops normal turnaround times and larger orders saves you real money. Providing good details brings back fair prices from your custom builder.
WHAT FACTORS AFFECT CNC MACHINING COST AND PRICE?
PART GEOMETRY AND MACHINING COMPLEXITY
A part design controls how hard it is to build. Thin walls and deep holes shake cutting tools during precision machining.
Depth-to-Width Ratio | Risk Level | Cost Impact Mechanism |
|---|---|---|
Up to 3:1 | Low | Standard tooling, minimal cost increase |
3:1 to 5:1 | Medium | Reduced feed rates, longer cycle times |
> 5:1 | High | Specialized tools, severe deflection |
Minimum Wall Thickness: > 0.8mm for metals, > 1.5mm for plastics.
MACHINE TYPE, NUMBER OF AXES, AND SETUPS
Using multi-axis machines means workers move parts by hand less often. Five-axis tools handle tricky shapes, but they cost more per hour than basic 3-axis mills.
You save money when you cut down on extra part moves. Keeping shapes on main sides keeps your job easy.
MACHINING TIME, MATERIAL REMOVAL, AND TOOLPATH COMPLEXITY
Total job time shows how long it takes to cut away extra raw material. Smart CAM software helps direct cutting tools along tricky lines.
Slower tool speeds keep small cutters from breaking inside tight slots. Longer cutting times make machine use cost more money.
SPECIAL TOOLS, FIXTURES, AND CUSTOM TOOLING
Normal end mills help keep total tool costs cheap. Special curved corners force shops to buy custom cutters for your order.
Using custom workholding clamps holds odd shapes safely. These custom fixtures add extra initial costs to small part batches.
MATERIAL COST AND MATERIAL WASTE
Picking raw material changes your starting costs right away. Easy-to-cut metals let tools run at faster speeds.
Cutting off big metal chunks creates a lot of scrap. Choosing raw stock close to final shape lowers wasted material.
SURFACE FINISHING AND SECONDARY OPERATIONS
Extra surface finishing steps make parts look better and last longer. Adding plating processes adds more labor time to shop schedules.
Anodizing and bead blasting need extra care from workers. Every added surface treatment directly raises your total price.
INSPECTION, QUALITY CONTROL, AND DOCUMENTATION
Careful quality testing needs special coordinate measuring equipment. First article checks add extra review time before items ship out.
Asking for full paperwork increases the work for quality teams. Inspectors must check tight sizes by hand on hard parts.
SUPPLIER CAPACITY, PROCESS ROUTING, AND PRODUCTION SCHEDULING
Available shop equipment changes how fast your job gets done. Rush orders force factories to save machine space just for you.
Using smart manufacturing routing speeds up total factory work. Good design choices bring down the cost for each part.
COMMON MISTAKES THAT DELAY OR DISTORT CNC MACHINING QUOTES
UNSPECIFIED THREADS, HOLES, RADII, AND CHAMFERS
Forgetting shape details inside your CAD geometry definitions forces estimators to guess cutting settings. Leaving out key feature requirements raises overall production expenses.
Feature Type | Cost Impact if Unspecified | Recommended Specification |
|---|---|---|
Thread entries | Sharp burrs damage mating threads during assembly, leading to costly rework | Always chamfer threaded holes and external threads |
Internal corners | Sharp 0 mm radius requires expensive EDM or hand-filing | Specify minimum 0.5 mm (shallow) or 1–3 mm (deep) radius |
Chamfers / holes | Non-standard angles or unique radii require additional tool changes, increasing setup cost | Use standard 45° chamfers; limit internal radii to 1–2 per part |
MISSING OR CONFLICTING TOLERANCE INFORMATION
Estimators face real trouble when design files miss clear size boundaries. Machine shops apply default limits like ±0.1 mm, but critical features need explicit bounds.
Conflicting numbers interrupt smooth factory work. Keep one main tolerance standard across your drawing using standard tolerance specifications.
CAD MODEL AND 2D DRAWING DISCREPANCIES
Mismatched measurements on digital models and printed pages stall your quote request. CAM programmers build toolpaths from solid models, while inspectors check paper prints.
Fix shape differences before sending files using careful drawing reconciliation. Matching shapes yields fast, accurate prices for custom parts.
UNSPECIFIED MATERIAL CONDITION OR SURFACE FINISH
Asking for plain aluminum creates confusion for your vendor. Always name exact material grades and tempers like 6061-T6 using standard material selection guides.
Vague finish instructions lead to incorrect price estimates. Name your target surface roughness early to avoid unexpected extra charges.
CHANGING REQUIREMENTS AFTER THE QUOTE IS ISSUED
Changing part features mid-quote cancels earlier price calculations. Shops must rebuild tool paths and setup steps for every updated design version.
Lock in design details before submitting your request. This preserves project timelines and controls total production costs.
USING IMAGES, STL FILES, OR INCOMPLETE DATA FOR A PRECISION QUOTE
Pictures and STL meshes lack clear vector points needed for accurate machining work. Standard CAM programs cannot build correct toolpaths from triangle mesh outlines.
Send solid STEP or Parasolid files instead. These CAD formats support direct measurement checks for quick order processing.
HOW TO GET A MORE ACCURATE CNC MACHINING QUOTE
PREPARE A COMPLETE CNC MACHINING RFQ PACKAGE
Sending complete data builds a strong start for your project. Machine shops return price estimates within 24 hours when you share clean files.
Category | Key Details to Include |
|---|---|
Part Identification | Part Name/Number, Application context. |
Technical Documentation | 3D CAD files (STEP/IGES), 2D Drawings (PDF) with GD&T and tolerances. |
Material Specification | Specific grade (e.g., Aluminum 6061-T6, SS316L), compliance certificates (MTC 3.1, RoHS). |
Tolerances & Finishes | Marked critical tolerances (e.g., ±0.01 mm), surface roughness (Ra), secondary operations (anodizing). |
Quantity & Timeline | Order quantity, Estimated Annual Usage (EAU), delivery date. |
Quality & Inspection | Inspection reports (CMM), First Article Inspection (FAI), shipping incoterms. |
Missing details force suppliers to add extra cost buffers. This risk fee inflates your pricing by 15–20% on basic orders. Partnering with a skilled CNC machining service helps make custom parts and streamlines your rfq submissions.
SEPARATE CRITICAL REQUIREMENTS FROM GENERAL REQUIREMENTS
You must separate exact fits from non-critical dimensions. Mark tight tolerances like ±0.01 mm clearly on your 2D blueprints.
Setting strict rules everywhere raises production expenses. Marking visual A-surfaces directs shop inspection focus to the spots that matter most.
REQUEST PRICING AT MULTIPLE QUANTITY LEVELS
You should ask for price breaks across different order volumes. Sharing your exact current count helps vendors choose the best tools for the job.
Listing your estimated yearly usage unlocks better unit pricing. Suppliers spread fixed setup fees across larger production runs.
ASK SUPPLIERS TO STATE ASSUMPTIONS AND EXCLUSIONS
You need clear and honest price estimates from every vendor. Ask shop estimators to list their exact metal stock assumptions during your quote review.
This step stops surprise fees after manufacturing starts. Clear communication reveals helpful DFM insights before anyone cuts metal.
COMPARE CNC MACHINING QUOTES ON THE SAME SPECIFICATION
You get an accurate cnc quote by reviewing offers using identical rules. Keep every supplier focused on the same design files and material papers.
Steady guidelines eliminate confusing price differences between shops. You land a reliable cnc machining quote and protect your project budget.
FAQS
WHAT INFORMATION SHOULD I PROVIDE FOR A CNC MACHINING QUOTE?
Send a 3D CAD model, part amounts, and target arrival dates. Full details help shops check your custom job correctly.
WHAT CAD FILE FORMAT IS BEST FOR A CNC MACHINING QUOTE?
STEP files work best on all shop computer systems. Simple solid models keep exact shape features clean during review. Read more about CAD file conversions to help your quoting process move faster today.
DO I NEED A 2D DRAWING FOR A CNC MACHINING QUOTE?
Yes, you need a 2D print to show threads, key limits, and surface goals. Paper prints clear up checking needs for precise work.
HOW DOES MATERIAL AFFECT CNC MACHINING PRICE?
Your metal choice sets raw stock costs and tool wear speeds. Harder metals slow cutting work, while easy metals cut shop hours. Check our machining material selection guide to lower your raw supply costs today.
HOW DO TOLERANCES AFFECT CNC MACHINING COST?
Tight size limits need special cutting tools, extra checks, and slow machine speeds. Loose limits on basic areas keep making costs lower.
WHY DO CNC MACHINING QUOTES DIFFER BETWEEN SUPPLIERS?
Shops use different machines, overhead rates, and setup steps. Local pay rates and tool options also change your final price.
HOW CAN I GET A FASTER CNC MACHINING QUOTE?
Sharing full technical data speeds up price checks. Shops give a fast, correct quote when you send clean STEP files and prints.
Context | Condition / Note | |
|---|---|---|
Standard jobs | Within 24 hours | Complete RFQ submissions |
Quick turn work | Down to 1 hour | Variable shop demand |
Try our fast CNC quoting service to begin your new project today.
HOW CAN I COMPARE CNC MACHINING QUOTES ACCURATELY?
Check shop offers against the exact same project rules. Make sure each bid includes matching metal grades, limits, finishes, and testing papers. Read our machining cost breakdown tips to check vendor offers easily.
CONCLUSION: PREPARE A COMPLETE RFQ FOR A MORE ACCURATE CNC MACHINING QUOTE
You secure the lowest per-part pricing and avoid costly manufacturing delays when you prepare a complete technical documentation package before contacting precision suppliers. Reviewing your digital design files prior to submission eliminates extra risk pricing buffers from shop estimators. Ensure your initial package contains a clean 3D STEP file alongside a matching 2D PDF drawing with explicit title block details. Verify your exact material callouts, such as aluminum 6061-T6 or 316L stainless steel, so vendors source correct raw stock without guessing.
Clear engineering documentation protects your timeline during active manufacturing. Including exact surface roughness targets like Ra 3.2 µm and standard secondary treatments like anodizing simplifies initial shop routing. Specifying total order counts, target delivery dates, and critical geometric tolerances allows machine operators to select optimal tooling setups and fixture designs. Providing complete specification parameters upfront eliminates guessing, protects quality standards, and directly reduces your overall part costs.
Audit your submission package quickly using this final pre-submission checklist:
Match revision letters across your 3D CAD models and 2D engineering blueprints.
Identify critical fit dimensions, thread specifications, and internal corner radii clearly.
Specify exact material grades, heat treatment needs, and protective finish standards.
State your required part quantity, estimated annual usage, and final shipping destination.
Careful preparation guarantees accurate pricing and faster production lead times for your custom mechanical components. You eliminate extra communication cycles and technical review pauses when suppliers receive complete specifications on the first attempt. Gather your technical files today to streamline your next quote request. Auditing your data package upfront ensures machine shops return a binding cnc machining quote without unnecessary delay. Upload your verified engineering drawings and solid CAD models to receive a fast, competitive price offer and start your precision project today.
You secure a lower price and shorten your production timeline by reviewing your request package before submission. Clear technical drawings, exact material choices, and target order volumes give shop estimators exact details.
Follow this simple RFQ review process:
Include complete 3D CAD models, matching 2D blueprints, exact material callouts, and finish specifications.
Collaborate directly with engineering teams to confirm machine choices and workholding methods.
Verify vendor quality management certifications like ISO 9001 or IATF 16949.
Auditing your technical package upfront prevents expensive manufacturing delays for your precision parts. Submit your verified files today to receive a fast, binding quote.
