Bridge Tooling vs Production Tooling: A Complete Guide for Low-Volume Manufacturing

You may ask which tooling method is best for your project when you have a small budget or not much time. For most low-volume manufacturing, bridge tooling usually gives you more choices and works faster. But, production tooling is needed when you make more parts or need parts to be very exact. Many manufacturers find it hard to balance how long things take, how much they cost, and how good the parts are. Knowing these trade-offs helps you make better choices for your needs.

Key Takeaways

• Bridge tooling works well for making a small number of parts. It lets you make parts fast and change designs easily. You do not spend a lot of money.

• Production tooling is good when you need many parts. It lasts a long time and keeps the quality the same. It is used for big orders that last for years.

• Use bridge tooling to test your parts or sell early. Change to production tooling when you need lots of parts that are all the same.

• Think about how long it takes to get your tools. Bridge tooling takes 2 to 6 weeks. Production tooling takes 12 to 20 weeks. This can change when your project finishes.

• Look at how hard your parts are to make, how many you need, and your money plan. This helps you pick the best tooling for your goals.

WHAT IS BRIDGE TOOLING?

BRIDGE TOOLING DEFINED

Bridge tooling helps you make real parts fast before you buy big production tools. It uses rapid injection molding. This way, you get parts that look and feel like your final product. You can make thousands of these parts while waiting for your main tools. Bridge tooling makes it easy to go from a prototype to full manufacturing.

HOW BRIDGE TOOLING FITS BETWEEN PROTOTYPING AND PRODUCTION

Bridge tooling is the step between prototype tooling and production tooling. First, you use prototypes to try out your ideas. When you need more parts for tests or early sales, you use bridge tooling. This gives you time to fix your design and solve problems. You do not have to wait for costly production tools. Bridge tooling lets you change things without spending a lot or waiting long.

RAPID BRIDGE TOOLING FOR LOW-VOLUME MANUFACTURING

Rapid bridge tooling gives you parts very quickly. The wait time is usually 2-6 weeks. Most of the time, it takes 4-8 weeks from design to first parts. This is much faster than production tooling, which takes 12-20 weeks. Softer tool materials like aluminum or P20 steel make things go faster. You can use rapid injection tooling to make low-volume parts for tests, selling, or special orders.

Tip: Rapid bridge tooling helps you get parts fast and saves money when you need them soon.

WHEN TO USE BRIDGE TOOLING

You should use bridge tooling in many cases. The table below shows some examples:

Bridge tooling also helps you avoid waiting, follow rules, or test the market before spending a lot.

WHAT IS PRODUCTION TOOLING?

PRODUCTION TOOLING DEFINED

You use production tooling when you need lots of parts that are the same. Production tooling uses special machines, molds, dies, jigs, and fixtures. These tools help shape, form, or put together products with great accuracy. This makes your work faster and your parts more alike.

COMMON MATERIALS USED IN PRODUCTION TOOLING

Picking the right material for your tools is important. The material you pick changes how long your tools last and how well they work. Here are some common materials:

These materials help your tools last longer and keep your parts looking nice.

HIGH-VOLUME MANUFACTURING APPLICATIONS

Production tooling is best when you need to make many parts. You can use it for small, medium, or big jobs. The table below shows how many parts you can make with each type:

Pick your tools based on how many parts you need. For small jobs, softer tools work. For big jobs, you need strong, machine-made tools.

WHEN TO USE PRODUCTION TOOLING

You need production tooling when you want to make lots of parts for a long time. Bridge tooling is good for testing or fixing early problems, but it cannot do big jobs forever. If you plan to make many parts for years, you should use production tooling. This gives you steady quality and helps your business grow.

Note: If you only need a few parts or want to test your idea, bridge tooling is better. For big orders and long-term work, production tooling is the best choice.

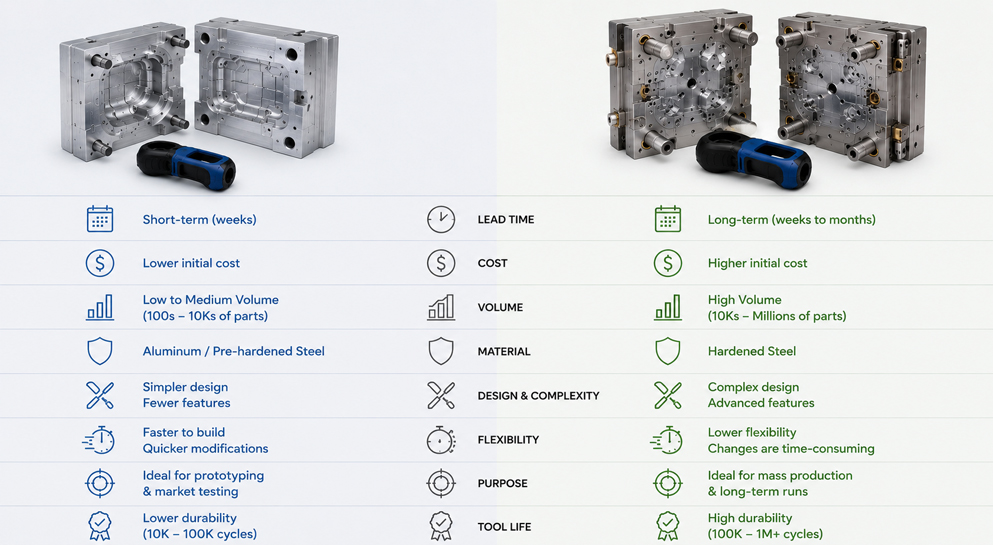

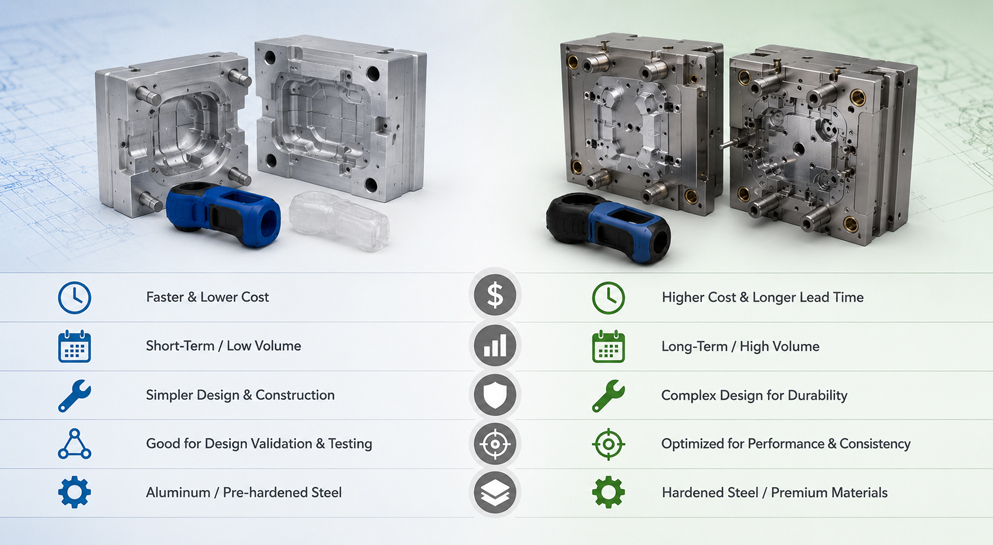

BRIDGE TOOLING VS PRODUCTION TOOLING: KEY DIFFERENCES

You want to save money on your project. Bridge tooling costs less at first. Production tooling costs more at the start but lasts longer. The table below shows how they are different:

Bridge tooling is cheaper if you need to change your design. Production tooling is better if your design will not change.

LEAD TIME COMPARISON

Sometimes you need parts quickly. Bridge tooling can be ready in 3 to 6 weeks. Production tooling takes much longer, about 8 to 16 weeks or more.

Bridge tooling helps you get parts fast or start testing sooner.

TOOL LIFE AND DURABILITY

Think about how long your tools will last. Bridge tooling is softer and does not last as long. It is good for short-term use. Production tooling is harder and lasts for years.

• Bridge tooling is good when you need more parts than prototypes.

• Production tooling is strong and can last for a million shots or more if you take care of it.

PRODUCTION VOLUME CAPABILITIES

Bridge tooling works well for making a small or medium number of parts. You can use it for thousands of parts. Production tooling is best for making lots of parts. It can handle big orders and keeps working for a long time.

PART QUALITY AND CONSISTENCY

You want your parts to look and work the same every time. Bridge tooling gives good quality for medium runs, but the parts may change if you use it too long. Production tooling makes parts that are very exact and always the same.

TOOLING MATERIAL OPTIONS

You can pick from many tooling materials. Bridge tooling often uses soft materials like aluminum. This makes it fast and cheap, but it does not last long. Production tooling uses hard materials like H13 steel, so it lasts longer.

The material you choose changes cost, how long it lasts, and part quality. Pick the best one for your project and how many parts you need.

BRIDGE MOLD TOOLING FOR INJECTION MOLDING

HOW BRIDGE MOLDS WORK

Bridge mold tooling helps you make real parts quickly before you invest in full production tools. You use materials like aluminum or soft steel to create molds that work well for short or medium runs. These molds let you produce parts in weeks instead of months. You can keep costs low, sometimes as little as one cent per part. Bridge molds fit best when you want to test your product or fill small orders. This type of tooling gives you flexibility and lets you change your design if needed.

• You can use bridge molds for short runs.

• The process works well for changing schedules.

• You save time and money by making only what you need.

BENEFITS FOR LOW-VOLUME PRODUCTION

Bridge mold tooling gives you many advantages when you need a small number of parts. You can get production-quality parts fast and at a lower cost. This method uses less durable materials, so you do not have to wait long or spend a lot. You can test your product, get feedback from the market, and make changes before you start full production.

Some key benefits include:

• Cost-effectiveness

• Fast production speed

• Easy design changes

• Good for testing and feedback

Tip: Rapid injection tooling helps you get parts quickly and lets you see how your product works in real life.

COMMON INDUSTRIES USING BRIDGE TOOLING

Many industries use bridge tooling to meet their needs for low-volume parts. You will find this tooling in:

• Automotive

• Aerospace

• Medical

• Consumer electronics

• Defense

These fields often need quick changes and small batches, so bridge tooling fits well.

LIMITATIONS OF BRIDGE MOLD TOOLING

Bridge mold tooling has some limits you should know. The molds do not last as long as full production tools. You may not get advanced features, such as complex cooling channels. If you use hard resins, you might see higher maintenance costs.

• Lower durability than production tooling

• Fewer advanced features

• More upkeep with tough materials

You should think about these limits when you plan your manufacturing process.

ADVANTAGES AND DISADVANTAGES OF EACH TOOLING APPROACH

BRIDGE TOOLING PROS

Bridge tooling is good when you want to make more parts. It helps you test your product in the market. You can try out different designs fast. You can also sell a small batch or get money from pre-sales before buying bigger tools. The table below shows the main good points:

Tip: Bridge tooling gives you choices and helps you save money if you are not ready for full production.

BRIDGE TOOLING CONS

Bridge tooling uses soft materials like aluminum. These tools do not last as long as hard steel ones. If you make too many parts, the tools can wear out. The surface and part quality can get worse after many uses. You may also have trouble with complex shapes or special features.

• Tools do not last long because they are soft

• Not as strong as hard steel tools

• Fewer special features

• Quality can drop if you make lots of parts

PRODUCTION TOOLING PROS

Production tooling is best when you need many parts that are all the same. The tools are strong and hard. They can last for thousands or even millions of uses. These tools use special features and machines to make work faster and easier. The table below shows the main good things:

You also get very exact tools, so your parts are always good. Machines and hard steel molds help you fill big orders with less work.

PRODUCTION TOOLING CONS

There are some hard parts about production tooling. You have to pay a lot at the start for hard materials and tricky designs. You also wait longer for your tools to be made. Special features like cooling channels make things more complicated. The table below explains these problems:

Note: Production tooling costs a lot at first, but it is worth it if you need many strong parts and top quality.

CHOOSING THE RIGHT TOOLING FOR YOUR PROJECT

EVALUATING PRODUCTION VOLUME

You should think about how many parts you need. If you want to make 500 to 1000 units, this is an important step. Your choice of tooling can change how much you spend and how your parts turn out. Think about how your material will work. Think about how fast you need your parts. You should also think if you will need more parts later. Think about what you want your parts to look like. This will help you pick bridge tooling or production tooling.

ANALYZING TIMELINE REQUIREMENTS

Your schedule is important when you pick tooling. Bridge tooling lets you make products faster and change things quickly. This is helpful for car and electronics companies. If you need parts soon, bridge tooling helps you not fall behind. Production tooling takes more time to make but is good for big jobs.

• Bridge tooling helps you keep up with new trends.

• Production tooling is best for making lots of parts for a long time.

BALANCING TOOLING COST AND ROI

You want your project to be worth the money you spend. You should use Design for Manufacturability (DFM) to help. DFM makes your design simple. This lowers how hard your tools are to make and how much they cost. It helps you save money on each part. You get more value from your project.

Tip: Simple designs cost less and make your tools last longer.

CONSIDERING PART COMPLEXITY

The shape and details of your parts can change your tooling choice. If your parts are tricky, you may need CNC machining or vacuum casting. These ways can make bridge tooling a better pick than production tooling. You can save money and time if you choose the right way for your part.

MATERIAL COMPATIBILITY CONSIDERATIONS

You need to match your tooling material to your process and what your parts need. The table below shows what to check:

If you pick the right materials, your tools will work better. Your parts will also do what you want for your project.

TRANSITIONING FROM PROTOTYPE TO PRODUCTION

FROM RAPID PROTOTYPING TO BRIDGE TOOLING

You start with prototypes to test your ideas. These early models help you see what works and what does not. When you need more parts or want to check your design in real-world use, you move to bridge tooling. This step lets you make real parts fast. You can use these parts for more testing, early sales, or showing your product to others. Bridge tooling gives you a way to make changes without spending too much or waiting too long.

Tip: Use bridge tooling when you want to move from a few prototypes to hundreds or thousands of real parts.

FROM BRIDGE TOOLING TO PRODUCTION TOOLING

After you finish testing and make your final design, you may need to make many parts. Production tooling helps you do this. You switch from bridge tooling to production tooling when you want high volume and long tool life. Production tooling costs more at first, but it gives you strong tools that last for years. You get the same part every time, which is important for big orders.

REDUCING RISK DURING SCALE-UP

Scaling up can feel risky. You want to avoid mistakes that cost time or money. Bridge tooling helps you lower this risk. You can test your design, check for problems, and fix them before you spend on production tooling. This step-by-step approach keeps your project on track.

• Test your design with bridge tooling.

• Fix any issues before moving to production tooling.

• Save money by avoiding costly errors.

VALIDATING DESIGN BEFORE FULL PRODUCTION

You need to make sure your design works before you start full production. Bridge tooling lets you do this. You can make real parts, test them, and get feedback. If you find problems, you can change your design. This process helps you feel confident before you invest in production tooling.

Note: Validating your design with bridge tooling helps you avoid costly mistakes later.

REAL-WORLD TOOLING APPLICATION EXAMPLES

RAPID PROTOTYPING PROJECT EXAMPLE

You can use bridge tooling to turn your ideas into real parts quickly. Imagine you design a new phone case. You want to test how it feels and fits. You use rapid prototyping to make a few samples. Bridge tooling helps you create dozens of cases for testing. You get feedback from friends and customers. You change your design if needed. This process saves you time and money.

Tip: Bridge tooling lets you test your product before you spend more on production.

SHORT-RUN INJECTION MOLDING EXAMPLE

Suppose you need 2,000 parts for a special event. You choose short-run injection molding. You use bridge tooling to make the molds. You get your parts in a few weeks. The parts look and work like final products. You avoid high costs and long waits. You can change the mold if you want to improve the part.

AUTOMOTIVE LOW-VOLUME PRODUCTION CASE

You work in the automotive industry. You need custom parts for a new car model. Bridge tooling helps you make small batches for testing and early sales. You can change the design if you find problems. Later, you switch to production tooling for larger orders. This step-by-step approach reduces risk and helps you launch your product faster.

CONSUMER PRODUCT LAUNCH CASE

You plan to launch a new kitchen gadget. You use bridge tooling to make the first 5,000 units. You sell these units to early customers. You collect feedback and improve your design. When demand grows, you invest in production tooling. You produce more units with higher quality and consistency.

Note: Bridge tooling gives you flexibility. Production tooling supports growth and long-term success.

TOOLING COST, LEAD TIME, AND VOLUME COMPARISON TABLE

BRIDGE TOOLING VS PRODUCTION TOOLING COMPARISON MATRIX

You need to compare bridge tooling and production tooling before you start your project. The table below shows the main differences. You can use this as a quick guide to help you choose the best option.

Tip: Use bridge tooling if you want to test your design or need parts quickly. Choose production tooling if you want high quality and long tool life.

ESTIMATED TOOL LIFE BY TOOL TYPE

You should know how long your tooling will last. Tool life depends on the material. Soft tools wear out faster. Hard tools last much longer. The table below gives you a simple estimate.

Soft tools work well for short runs. Hard tools give you more parts and better quality over time.

RECOMMENDED TOOLING STRATEGY BY PRODUCTION VOLUME

You can pick the right tooling based on how many parts you need. Here is a simple guide:

• For 1 to 10,000 parts: Use bridge tooling with soft materials.

• For 10,000 to 100,000 parts: Start with bridge tooling, then move to production tooling.

• For over 100,000 parts: Use production tooling with hard steel.

Note: You should always match your tooling choice to your project goals, cost limits, and quality needs.

COMMON MISTAKES WHEN SELECTING TOOLING

CHOOSING PRODUCTION TOOLING TOO EARLY

Some people want to use production tooling right away. This can cost a lot at the start, especially for small jobs. If you pick hard materials and tricky molds before your design is ready, you might waste money. It is better to use soft tooling first for testing and changes. If you move to hard tooling too soon, you might get stuck with a design that needs fixing. Many companies pay more and wait longer when they skip bridge tooling.

Tip: Start with soft tooling to test your design. Only switch to hard production tooling when you know you need lots of parts and steady quality.

UNDERESTIMATING FUTURE VOLUME DEMAND

You may think your project will stay small. But if more people want your product, soft tooling can wear out fast. You might have to wait and pay more to get hard tooling later. Companies often have trouble with custom orders and making changes. This can make things take longer and cost more if not planned well. Always think about growing bigger. Pick tooling that can handle more parts if needed.

• Soft tooling is good for small batches.

• Hard tooling is better for big orders and long-term use.

IGNORING TOOL MAINTENANCE REQUIREMENTS

Tooling needs care to last a long time. If you do not take care of soft molds, they can break quickly. Hard molds also need regular checks to keep parts good. Many people forget to do upkeep, which can stop work and cost more. You should plan to check and fix both soft and hard tooling. This helps your production run without problems.

SELECTING THE WRONG TOOL MATERIAL

The material you pick changes how much you pay and how good your parts are. If you choose a material that is hard to shape, it costs more and takes longer. Soft materials like aluminum are good for bridge tooling but do not last for big jobs. Hard materials like steel cost more but last longer. Sometimes companies add extra looks that are not needed. This can make tools take longer and cost more. You should pick your tooling material based on what you need and how much you can spend.

Note: Always check if the material is easy to get. If not, you might have to wait longer and your parts may not be as good.

FAQ

WHAT IS THE DIFFERENCE BETWEEN BRIDGE TOOLING AND PRODUCTION TOOLING?

You might wonder how these two types are different. Bridge tooling helps you make parts fast for tests or small batches. The tools use softer materials, so they do not last long. Production tooling uses harder materials and special designs. You get parts that are always the same and very good quality. Production tooling is best for big orders and when you need parts for a long time. Bridge tooling is good if you want to change things or need parts quickly.

Note: Bridge tooling is best for small jobs. Production tooling is better for making lots of parts.

HOW MANY PARTS CAN A BRIDGE TOOL PRODUCE?

A bridge tool can make about 2,000 to 10,000 parts. The number depends on what material you use and how hard your part is to make. Softer materials like aluminum wear out sooner. If you need more parts, you should use production tooling. Always think about your project goals before you pick your tooling.

IS BRIDGE TOOLING SUITABLE FOR INJECTION MOLDING?

Bridge tooling works well for injection molding. You can use it to make real parts for tests, early sales, or special orders. The parts look and feel like the final ones. You get them fast and can change your design if you need to. Many companies use bridge tooling for injection molding when they want to be flexible.

WHEN SHOULD A COMPANY SWITCH TO PRODUCTION TOOLING?

You should use production tooling when you need many parts that are always the same. If your project gets bigger and you need more parts, production tooling is the best choice. These tools last longer and make parts faster. Companies often switch to production tooling after testing and fixing their design.

Tip: Pick your tooling based on what your project needs now and later.

You should pick bridge tooling if you need a small number of parts or are between steps. Production tooling is better for making lots of parts over a long time. Think about what your project needs before you make a choice.

• Check how much each option costs and how long it takes.

• Think about how good the parts are and how many you need.

• Talk to people who know about tooling or ask for prices.

Remember: Picking the right tooling makes your project go well.
