Prototype Manufacturing Process Selection: CNC, 3D Printing, Vacuum Casting, or Injection Molding?

Choosing the right prototype manufacturing methods is one of the most consequential early decisions a product team makes. Get it right and you answer the next engineering question quickly and cost-effectively. Get it wrong and you spend time and budget proving something you did not need to prove — or worse, validating a part that no longer resembles what will actually be manufactured.

This guide walks through how to select CNC machining, industrial 3D printing, vacuum casting, or rapid injection molding for a given project, and it explains the prototype process selection logic behind each recommendation. It is not a catalog of each method. It is a decision framework built around what your prototype needs to prove.

Quick Answer: How Do You Choose a Prototype Manufacturing Process?

The right prototype manufacturing process depends primarily on the prototype's validation goal, quantity, material requirements, tolerance, surface finish, geometry, lead time, tooling investment, and total program cost. There is no single "best" method. You choose the process that most efficiently answers the specific engineering question at the current stage of development.

Below is the reasoning behind that answer.

The Five Key Questions to Ask Before Choosing a Process

Ask these five questions before you settle on any process. Each one maps to a selection lever that will be explained in depth later in this guide.

1. What are you trying to validate? A visual part, a working part, a production-representative part, or a manufacturability early warning all point to different methods.

2. How many parts do you need? Tooling-free processes shine at one-offs; tooled processes become economical as volume grows.

3. What material must the part represent? Real metal, engineering plastic, production thermoplastic, or a production-like polyurethane each have natural process homes.

4. What tolerance and surface finish are required? Some methods hold tighter dimensions and smoother finishes than others.

5. How fast do you need it, and how much tooling investment can you justify? Lead time and NRE (non-recurring engineering) cost act as filters.

Choose Based on Validation Goals, Not Process Popularity

A common mistake is defaulting to whatever method the team used last time. The process should follow the validation goal, not the other way around. If the part needs to prove that a machined metal bracket withstands load at a tight interface, no amount of popular enthusiasm for 3D printing changes the fact that a subtractive, real-metal process is a better fit.

Conversely, if the team is still reshaping the geometry daily, committing to tooling or a long machining program too early is wasteful. Match the method to the risk you are trying to retire.

Prototype Manufacturing Process Selection at a Glance

The quantity bands above are planning examples, not universal thresholds. The right crossover depends on geometry, tooling cost, material, and supplier capability. You can explore the full set of prototype manufacturing services LKprototype offers as you read through the trade-offs below.

What Should a Prototype Manufacturing Process Prove?

A prototype is a tool for reducing uncertainty. Before choosing a method, define precisely which uncertainty you are removing. Different validation goals make very different demands on a process.

Form, Fit, Function, and Appearance

• Form asks whether the shape, proportion, and ergonomics feel right in the hand or against other parts.

• Fit checks interfaces, clearances, and assembly relationships between mating components.

• Function tests whether the part works under expected loads, motion, or inputs.

• Appearance evaluates color, texture, finish, and overall visual quality against the intended production product.

A visual study part rarely needs the strength of a real engineering material; a load-bearing test part often does. Clarifying which of these a specific prototype targets keeps the process choice honest.

Material and Mechanical Performance

If the question is about material behavior — stiffness, creep, impact, heat resistance, or fatigue — the process must produce a part close to the target material. A machined engineering plastic behaves differently under load than a thin-walled molded representation of the same polymer family, and neither behaves exactly like a printed analog.

Dimensional Accuracy and Assembly

Some prototypes exist to confirm that tolerances stack correctly across an assembly. When interfaces must locate precisely and repeatedly, dimensional control becomes the dominant selection criterion, often pulling the choice toward subtractive or tooled methods over freeform additive ones.

Production-Intent Process and Risk Validation

Late-stage prototypes exist to prove that the design and its intended process are compatible. Validating draft, wall thickness, material flow, and repeatability requires a process that resembles production — at which point tooling and molding behavior enter the decision.

Prototype Process Selection Criteria

Translate your validation goal into concrete criteria before contacting any supplier. These six factors drive nearly every process decision.

Quantity and Expected Production Volume

Volume changes which costs matter. At low quantity the absence of tooling dominates; at higher quantity, per-part cost and repeatability dominate. The economical crossover is unique to each part.

Material and Mechanical Requirements

If the prototype must survive real loading or represent a specific production grade, restrict the candidate list to processes that can run that material. If color or surface are the only real requirement, appearance-driven processes come into play.

Tolerance and Surface Finish

Write down the tolerance and finish you actually need, based on the interface function — not the tightest number a process claims. Over-specifying tolerance forces an expensive process unnecessarily, while under-specifying it produces misleading validation.

Lead Time and Development Schedule

Milestone gates often dictate process choice. If a design review is in a week and the geometry is still moving, a quick-turn tooling-free method beats a longer tooled one. If the schedule is set for a production-validation build, the added lead time of tooling may be acceptable.

Tooling Investment and Unit Cost

Separate one-time tooling or setup (NRE) from recurring per-part cost. A method with no tooling looks cheap per part but may carry a high finished-part cost; a tooled method spreads its upfront investment across many parts.

Part Geometry and Design Complexity

Deep internal channels, undercuts, hollow sections, and organic surfaces favor additive build-up. Block-like, structural, or tightly toleranced geometry favors subtractive machining. Design for manufacturability should be reviewed before the process is locked.

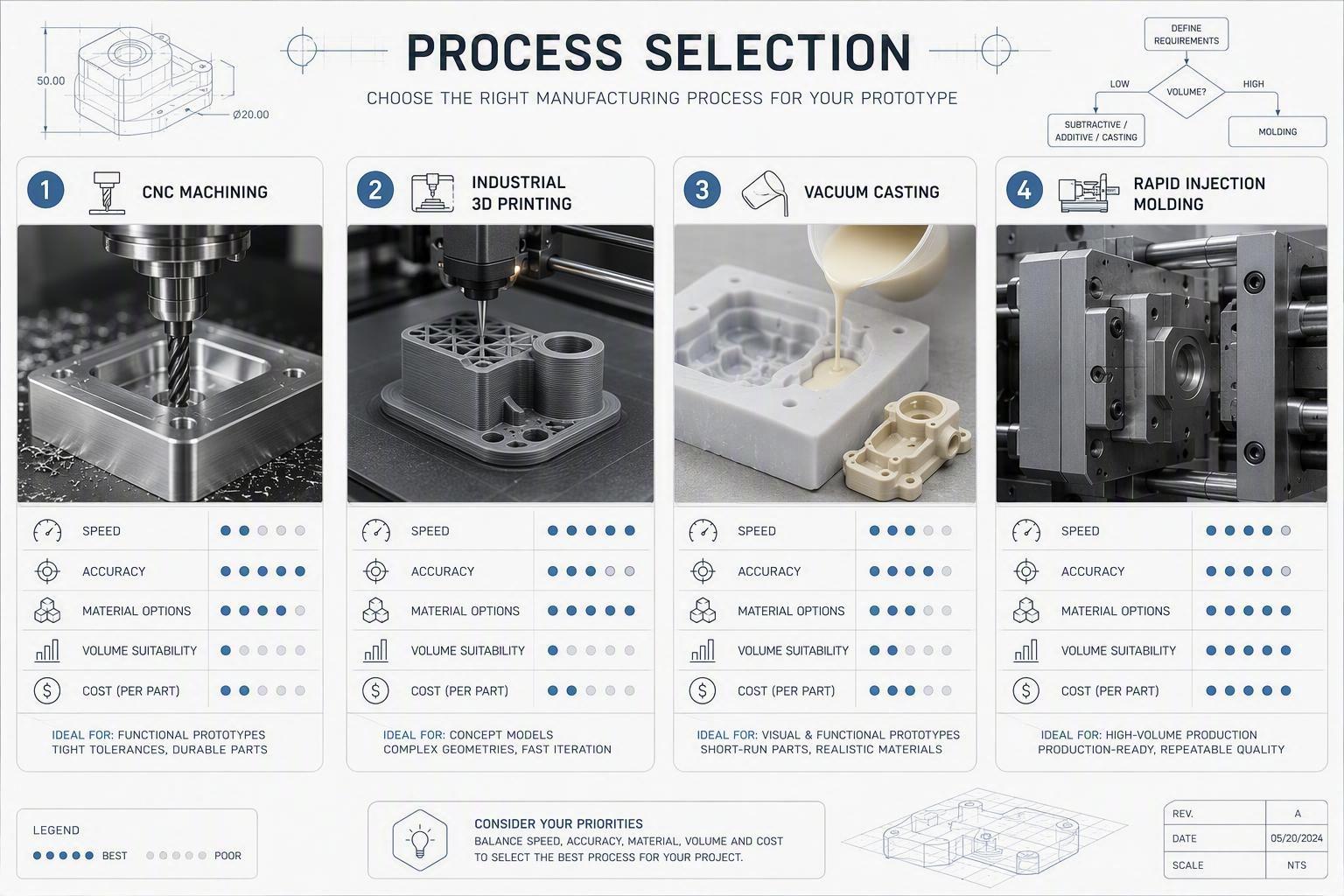

Prototype Manufacturing Process Comparison

Rather than treat each process as an isolated encyclopedia entry, compare them side by side on the criteria that matter for selection.

CNC Machining

CNC machining cuts parts from solid metal or plastic stock by removing material. It is the preferred route when a prototype must be a functional part with real material behavior and tight dimensions.

Industrial 3D Printing

Industrial 3D printing builds parts layer by layer from a digital file with no tooling. It is often the fastest way to iterate geometry and to produce internal or organic features that machining and molding cannot reach.

Vacuum Casting

Vacuum casting pours liquid polyurethane into a soft silicone mold made from a master pattern. It bridges the gap between one-off parts and tooled plastic production, producing small batches with production-like surfaces.

Rapid Injection Molding

Rapid injection molding uses a mold to inject thermoplastic into production-intent parts. It introduces tooling but rewards that investment with repeatable, material-faithful parts — often for bridge or pilot volumes.

When Other Manufacturing Processes May Fit Better

The four methods above dominate most prototyping, but they are not the whole picture. Sheet metal fabrication suits enclosures and structural frames. Metal additive processes (such as SLM/DMLS) suit complex metal geometries that machining cannot reach. Low-volume production from hard tooling suits higher, sustained volumes.

CNC Machining: Precision and Material Realism

CNC machining earns its place when the question can only be answered with a real metal or engineering-plastic part machined to a controlled dimension. It is subtractive: a rotating tool removes material from a block, so the part inherits the bulk properties of that stock material.

When CNC Machining Is the Right Choice

Choose machining when you need functional parts with tight dimensional requirements, threaded or machined features, and structural integrity — the cases where a real engineering grade matters. Because CNC uses solid stock, it also suits flat, blocky, and structural geometries well.

If your goal is real material behavior under load or heat, or the part must locate precisely in an assembly, machining is often a stronger candidate than a printed analog. For a treatment of tight dimensions and functional surfaces, see CNC machining for functional prototypes.

CNC Material and Tolerance Considerations

CNC runs a wide range of metals and engineering plastics, from aluminum alloys to PEEK and PTFE. Tolerances can be held very tight with drawing control; dimensional results depend on material, geometry, setup, and machine stiffness. Surface finish is controllable through tooling, feeds, and finishing passes.

In practice, machining shops commonly apply a general-tolerance standard such as ISO 2768 to the dimensions that are not individually called out on a drawing, while critical features carry explicit tolerances. ISO 2768-1 defines four classes (fine, medium, coarse, and very coarse); for machined prototypes the medium class is a common default for routine geometry, with fine or explicit GD&T used where a fit or interface cannot slip. Industry references typically place standard CNC-machined feature tolerances around ±0.10 to ±0.13 mm for general features, with tighter control achievable on critical dimensions when the design calls for it. Naming the standard on the title block (for example, "ISO 2768-m") removes ambiguity about every dimension that has no separate tolerance.

The practical rule is to tolerance only what the interface needs, and let the general standard cover the rest. Over-flagging every dimension inflates cost without improving validation, while leaving genuinely critical fits to a coarse default invites misleading test results. Explicitly toleranced features are also what a CMM inspection report should confirm before you trust the prototype.

CNC DFM and DFA Considerations

Because machining removes material with a cutting tool, access matters. Deep blind pockets, sharp internal corners, and some undercuts can be difficult or slow. Reviewing tool reach and feature orientation before quoting reduces surprises. Deep or intricate internal geometry may push you toward additive or a different approach.

CNC Cost and Volume Economics

Machining carries setup and programming cost per part, with cost scaling strongly with complexity and material removal. It is economical at low to moderate quantity where real material and tolerance justify it, but per-part cost does not drop as steeply as molding as volume grows.

For a view of how geometry and features influence machining cost, see CNC machining for precision prototype parts.

3D Printing: Speed and Geometry Freedom

Industrial 3D printing is best understood as a family of additive processes, not a single method. Its shared advantage is speed to first part without tooling, plus freedom to build geometry that would be impossible or uneconomical by other routes.

When 3D Printing Is the Right Choice

Choose 3D printing when you are iterating rapidly, exploring organic or internal geometry, or need one-off and very small quantities quickly. Because there is no tooling, the marginal cost of a design change is low, which keeps early development fast and flexible.

SLA, SLS, and Other AM Processes

• SLA (stereolithography) cures liquid resin layer by layer, giving smooth surfaces and fine detail — strong for visual and master-pattern work.

• SLS (selective laser sintering) fuses plastic powder, producing durable nylon parts good for early functional checks.

• Other industrial processes add metal capability (SLM/DMLS) or higher throughput.

These processes differ meaningfully in material and surface behavior, so treat them separately rather than as interchangeable "3D printing." Layer resolution is a feature of the build; dimensional accuracy is a separate property driven by machine, material, orientation, geometry, process settings, and post-processing. Do not assume a fine layer equals a tightly accurate part.

3D Printing DFM and DFA Considerations

Additive removes many traditional constraints, but introduces its own: support structures, print orientation, anisotropic strength, and surface steps. Designing for build orientation and support removal improves both strength and finish.

3D Printing Cost and Batch Economics

There is no tooling, so the first-part cost is dominated by machine time, material, and setup. Per-part cost is comparatively flat for small batches. As volume climbs and repeatability matters, a tooled or machined route usually becomes the better unit-cost answer.

Vacuum Casting: Production-Like Plastics in Small Batches

Vacuum casting is frequently the best answer when a team needs a small batch of parts that look and feel close to molded plastic — without the cost of hard tooling. It creates a soft silicone mold from a master pattern and casts liquid polyurethane into it under vacuum.

When Vacuum Casting Is the Right Choice

Choose vacuum casting when you need vacuum casting for low-volume polyurethane prototypes: multiple cosmetic parts, softer or flexible variants, or production-like plastic surfaces that 3D printing cannot match at that quantity. It is a common choice for customer demos, user trials, and pre-production appearance validation.

Do not treat vacuum casting as a wholesale substitute for injection molding. It reproduces appearance and many properties well, but it uses polyurethane rather than true production thermoplastics, and its tooling has a finite life.

Polyurethane Material and Finish Options

The value of vacuum casting comes from the breadth of polyurethane grades available. Suppliers can mix hardnesses, colors, and finishes to approximate ABS, PP, and other common-looking plastics. This flexibility makes it easy to produce several variants or a small color set from one mold.

Vacuum Casting DFM and DFA Considerations

The master pattern (often CNC-machined or SLA-printed) defines every cast part's quality, so the master must be accurate and well-finished. Silicone mold geometry, gating, and draft affect demolding and consistency. For the details of the casting workflow, see the urethane casting service overview.

Vacuum Casting Cost and Volume Economics

Cost centers on creating the master and silicone tooling, then each cast part is relatively inexpensive. This makes the method particularly economical for moderate batches of several to a few hundred cosmetic parts, where the silicone tooling cost is offset by many low-cost casts.

Rapid Injection Molding: Bridge to Production

Rapid injection molding is the choice when the prototype must represent production-intent thermoplastic behavior and repeatability. It introduces a real mold, but that investment pays off for pilot and bridge volumes where functional fidelity and consistency matter most.

When Rapid Injection Molding Is the Right Choice

Choose rapid injection molding when you need to validate draft, gates, walls, and material flow the way production will experience them, or when you are producing bridge parts to keep the line running ahead of full tooling. It suits DVT/PVT-stage builds where parts must match the eventual production process.

Production-Intent Material and Process Validation

Because you inject the actual production thermoplastic grade into a real (if quickly built) mold, you get parts that behave like production parts in material and process terms. This is what makes the method valuable — thermal, flow, and mechanical behavior are representative rather than approximated.

Draft, Gates, Walls, and Warpage Considerations

Molding introduces constraints additive and machining do not impose. Parts need draft to eject, wall thickness to fill evenly, gating to control flow, and cooling considerations that influence warpage. These factors must be designed in before tool cutting, since re-cutting a mold to fix a flow or warpage problem is expensive and slow.

Tooling Cost and Economical Volume

Rapid injection molding carries tooling, mold design, and setup costs. Whether it is economical depends on part geometry, tooling cost, material, and expected volume — not on a fixed threshold. As the required quantity and production-intent fidelity rise, the amortized tooling quickly becomes the most cost-effective route.

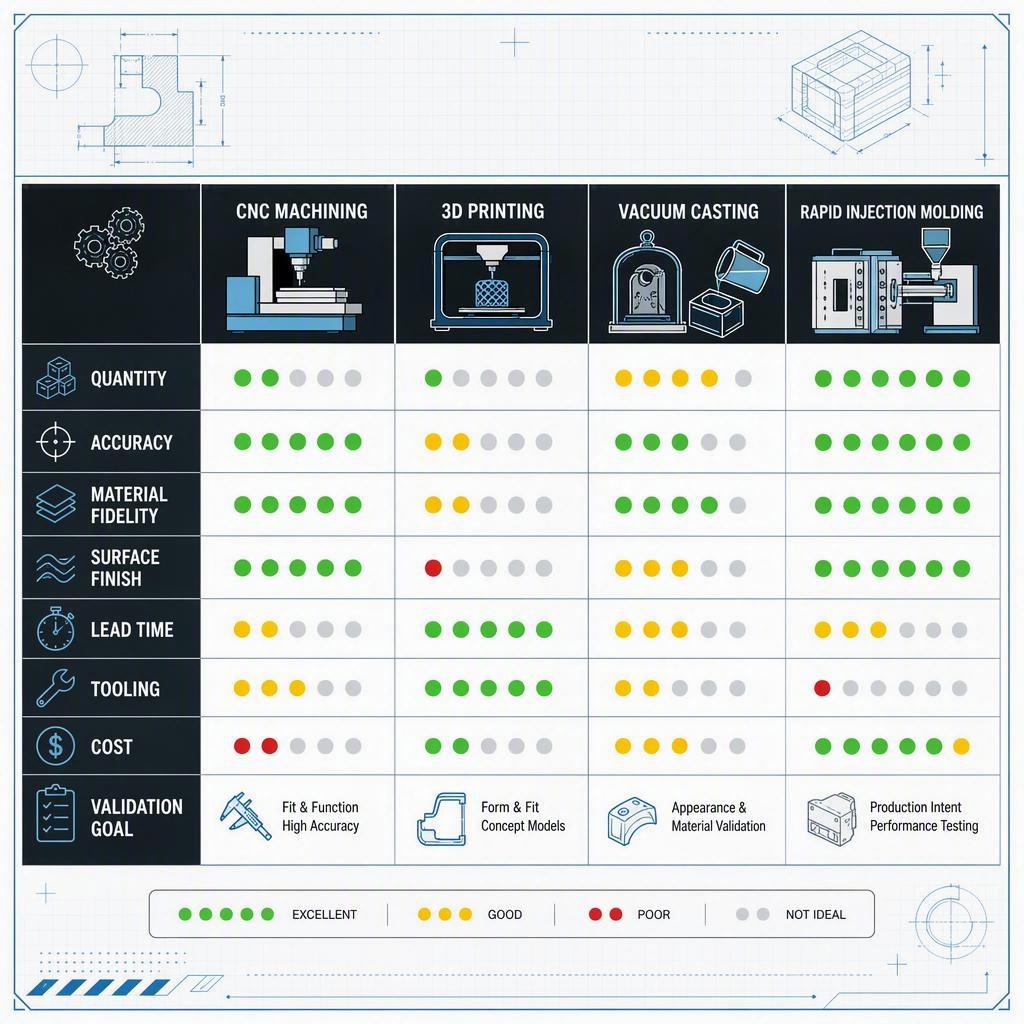

Prototype Process Decision Matrix

The matrix below compresses the four-way comparison into a fast reference. Use it to shortlist, then confirm the choice against your specific geometry, material, and budget.

Best Process for Fastest Iteration

If the design is still changing and you need parts quickly with no tooling commitment, industrial 3D printing is usually the fastest path. Its low change cost makes it ideal while the geometry is in flux.

Best Process for Tight Tolerances

When interfaces must locate precisely or a functional dimension cannot slip, CNC machining holds the tightest control for real materials. Its dimensional stability is a core reason engineers pick it for precision work.

Best Process for Real Material Performance

For parts that must behave like the real metal or engineering plastic under load, heat, or fatigue, CNC machining in the actual stock material is hard to beat. Printed or cast parts can only approximate bulk material behavior.

Best Process for Cosmetic Validation

When the goal is production-like appearance — smooth surface, color, and finish — rather than function, vacuum casting produces small batches that closely mimic molded plastic.

Best Process for Low-Volume Production

For parts in the tens to low hundreds needing functional material plus a molded-like look, vacuum casting balances cost and fidelity at small scale.

Best Process for Production-Intent Parts

When you must validate production-intent thermoplastics, repeatability, and molding behavior — as at DVT or PVT — rapid injection molding is the only one of the four that represents the true production process.

How Quantity Changes the Best Prototype Process

Quantity is a powerful selection lever, so it deserves its own treatment. The ranges that follow are planning illustrations, not industry rules.

One to Five Prototype Parts

At this quantity there is usually no reason to build tooling. 3D printing or CNC machining of a handful of parts delivers the few pieces needed to evaluate form, fit, or first function without tooling cost.

Small Batches of Ten to Fifty Parts

As the count reaches several dozen — user trials, small cosmetic sets, or functional iteration across variants — vacuum casting becomes attractive when parts need a molded-like appearance, and CNC remains strong for functional metal or precision plastic.

Low-Volume Runs of Fifty to Five Hundred

In this band the trade-off tilts toward processes with low per-part cost. If the parts are cosmetic plastics, vacuum casting scales well; if production-intent thermoplastics and repeatability matter, rapid injection molding often justifies its tooling by now.

Higher Volume and Bridge Production

Beyond a few hundred production-intent parts, rapid injection molding (or eventually hard-tooled injection molding) usually wins on per-part cost and consistency, supporting bridge runs while full production tooling is completed.

Why Volume Thresholds Are Not Absolute

These bands are starting points. The true crossover for a given part depends on geometry complexity, tooling cost, material grade, finishing requirements, and supplier capability. Two parts that look similar can have very different economic crossover points.

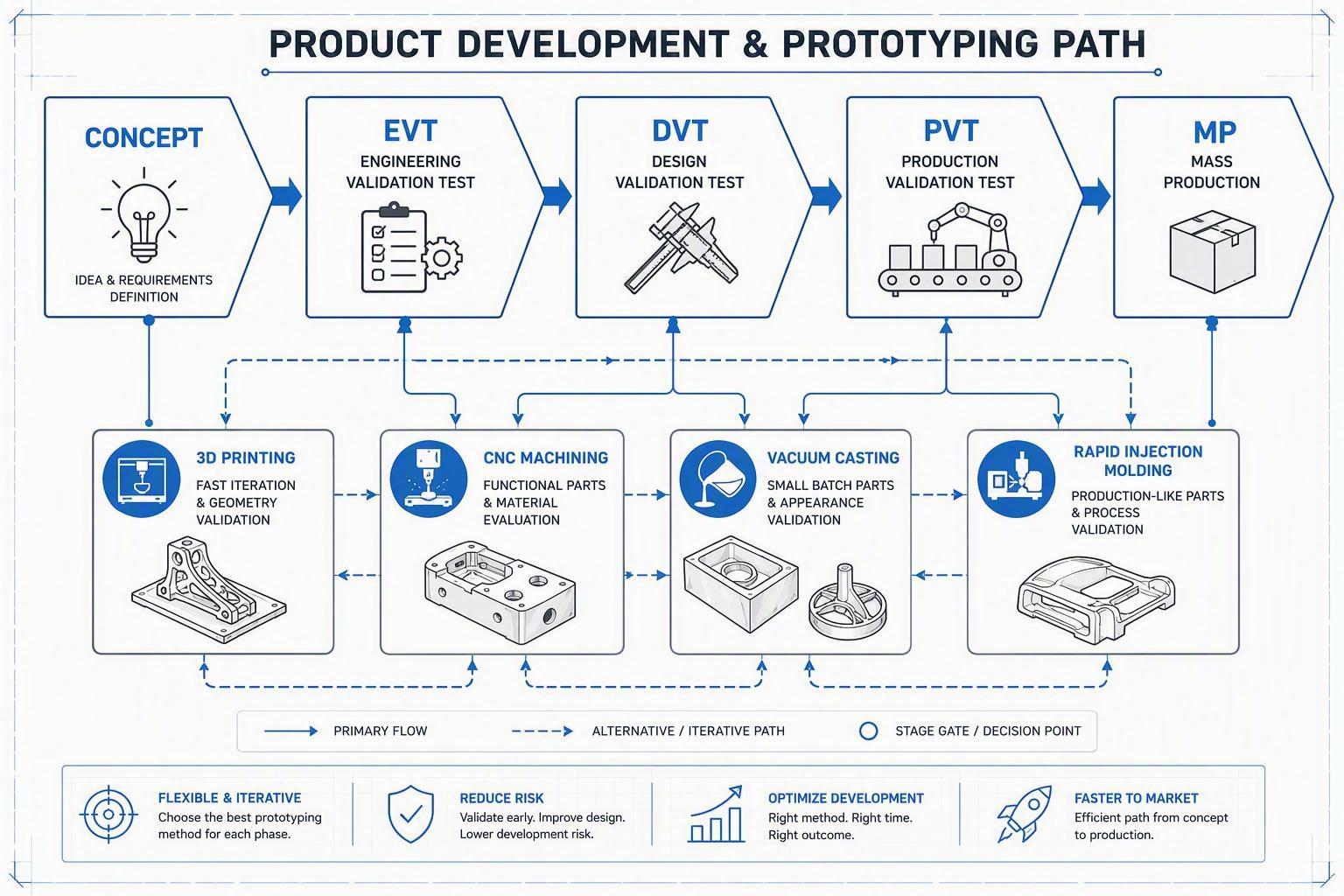

How NPI Stage Changes Process Selection

New Product Introduction (NPI) moves a product through Concept, EVT, DVT, and PVT. Each stage asks a different question, so the prototype manufacturing process often should change as the validation objective changes.

Concept: Fast Iteration and Geometry Learning

At Concept the goal is learning about geometry and ergonomics quickly. Low tooling and fast turnaround matter more than production fidelity, so 3D printing or quick machining dominates.

EVT: Function, Fit, and Interface Validation

Engineering Validation Test checks whether the design works in function, fit, and interfaces. Here real material and tolerance begin to matter, pulling many teams toward CNC machining or to durable printed engineering plastics.

DVT: Material, Appearance, and Performance Validation

Design Validation Test confirms material, appearance, assembly, and performance against the product specification. Vacuum casting and rapid injection molding become relevant as parts must represent production material and finish.

PVT: Production-Intent Process and Quality Validation

Production Validation Test proves the manufacturing process and quality are ready. Rapid injection molding — the production-representative method among the four — and associated inspection dominate this stage.

Why Prototype Process Selection Can Change During NPI

Process switching during NPI is not a sign of indecision; it is the natural consequence of the validation objective maturing. Few projects need every stage of the ladder, but most move at least once.

When a Product Should Move From 3D Printing to CNC

Move from printing to machining when function and tolerance overtake iteration speed — when the part must carry load, hold a thread, or locate in an assembly at a controlled dimension. For organic internal geometry that machining cannot reach, review CNC machining for complex geometries before assuming machining is impossible.

Move from printing to machining when function and tolerance overtake iteration speed — when the part must carry load, hold a thread, or locate in an assembly at a controlled dimension. For organic internal geometry that machining cannot reach, review CNC machining for complex geometries before assuming machining is impossible.

A project we handled at LKprototype illustrates the move in practice. A client had iterated a structural housing as a 3D-printed part through concept, but when they moved to functional testing the printed build fell short in exactly the three ways a printed analog often does: the wall section deflected under load because the part lacked stiffness, the geometry changed slightly between builds (visible deformation that also weakened later handling), and the parts would not hold the drawing tolerance the mating interfaces required. Printing was fast for geometry exploration, but it could not answer the tolerance question the project now had to prove. We switched the housing to CNC machining, where dimensional control comes from a rigid subtractive process on solid stock, and the machined run held the required tolerances and passed the load checks that had failed on the printed parts. Where the same design later needed a small cosmetic set for customer demos, vacuum casting — from a CNC-machined master — reproduced the molded-like finish while keeping the dimensional accuracy they now depended on. The lesson matched what this guide recommends: the move was not a rejection of 3D printing; it was a change in what the prototype had to prove.

When a Product Should Move to Vacuum Casting

Move to vacuum casting when a small batch of parts must look and feel like molded plastic for demos or trials — a fidelity that printing cannot deliver consistently at that quantity.

When Rapid Injection Molding Becomes Justified

Rapid injection molding becomes justified when the team must validate production-intent material and process, when repeatability across many parts matters, or when bridge parts are needed before full production tooling. At that point tooling investment is a deliberate, value-bearing step.

Why One Product May Use Multiple Prototype Processes

A single product commonly uses several processes across its development — printed for early geometry, machined for functional EVT parts, vacuum-cast for appearance demos, and injected for PVT. Choosing the process that best answers the next validation question at each stage is the correct, efficient approach.

Total Cost of Validation: Beyond Unit Price

Engineers who optimize only per-part price frequently end up spending more overall. The metric that matters is the total cost of validation — the full cost of reliably answering the current engineering question.

Tooling, Setup, and Engineering Costs

Include one-time tooling or mold cost, setup, and the engineering time spent programming, reviewing DFM, and managing the build. These NRE costs are real even if they are not visible in a per-part figure.

Part Cost, Finishing, and Inspection

Recurring part cost is only the beginning. Add secondary operations such as surface finishing, plus the dimensional inspection needed to trust the result. Inspection is not optional when a prototype will guide a design or tooling decision.

Cost of Design Changes and Rework

Early process choices raise or lower the cost of the changes that will inevitably come. A tooling-free process makes your next design revision affordable; a prematurely tooled one turns each change into a costly mold rework.

Cost of Validation Failure and Delay

The most expensive outcome is a prototype that fails to answer the question it was meant to answer, forcing a re-run that slips the schedule. Choose a process whose output you can actually validate with confidence to avoid this hidden cost.

How to Compare Total Program Cost

Lay out each candidate process as tooling plus engineer hours plus part cost plus finishing plus inspection plus expected rework and delay risk over the whole program. The least expensive individual prototype is not always the least expensive way to answer the next engineering question — often the opposite is true.

DFM, DFA, Quality, and Traceability

Process selection is incomplete without a design-for-manufacturability review and a clear quality plan. Both protect the value of the prototype and the speed of the program.

Design for Manufacturability Before Quoting

Send the design through a DFM review before committing to a process or supplier. Geometry, draft, tolerances, and features that are costly or impossible on one process may be routine on another. Catching this before quoting avoids expensive rework.

Design for Assembly and Interface Validation

When the prototype feeds an assembly, verify that interface conditions — clearances, alignment features, and fastening — can actually be produced and inspected at the chosen tolerance. This closes the loop between design and manufacturing intent.

Inspection Data and Dimensional Verification

Trustworthy prototypes are backed by measured results. Dimensional inspection, CMM measurement where appropriate, and inspection reports give the team confidence in what the part actually proves — and warning when a deviation might invalidate a test.

Quality Documentation and Traceability

For NPI work entering regulated or quality-sensitive programs, material documentation, traceability, revision control, and inspection records matter. They create an auditable link between the tested prototype and the design revision it represents.

Supplier Capability and Engineering Feedback

A supplier that offers engineering feedback, DFM input, and material guidance adds value beyond converting a CAD file to a part. Their input helps you select not just a process but a robust one for your geometry and goal.

How LKprototype Supports Prototype Process Selection

Engineers rarely need a single process. They need a partner who can help select the right one for each validation stage and deliver it without losing quality or schedule.

Engineering Review and DFM Feedback

LKprototype supports process selection through engineering review, DFM feedback, and material recommendations before any build begins. This front-end work helps match the process to the validation goal rather than forcing a default. The engineering team routinely translates drawing notes such as ISO 2768 classes and explicit GD&T into a concrete inspection plan, so the tolerance you specify is the tolerance that is measured and reported.

CNC Machining for Precision Prototype Parts

For functional metal and engineering-plastic prototypes with tight dimensions, LKprototype's CNC machining and parts machining run a broad material range, supported by dimensional inspection, CMM verification where appropriate, and ISO 9001 quality practices. Drawings are interpreted against general-tolerance standards such as ISO 2768 plus explicit feature tolerances, and the recorded inspection data is what the customer receives — so the dimensional claim is verifiable rather than assumed.

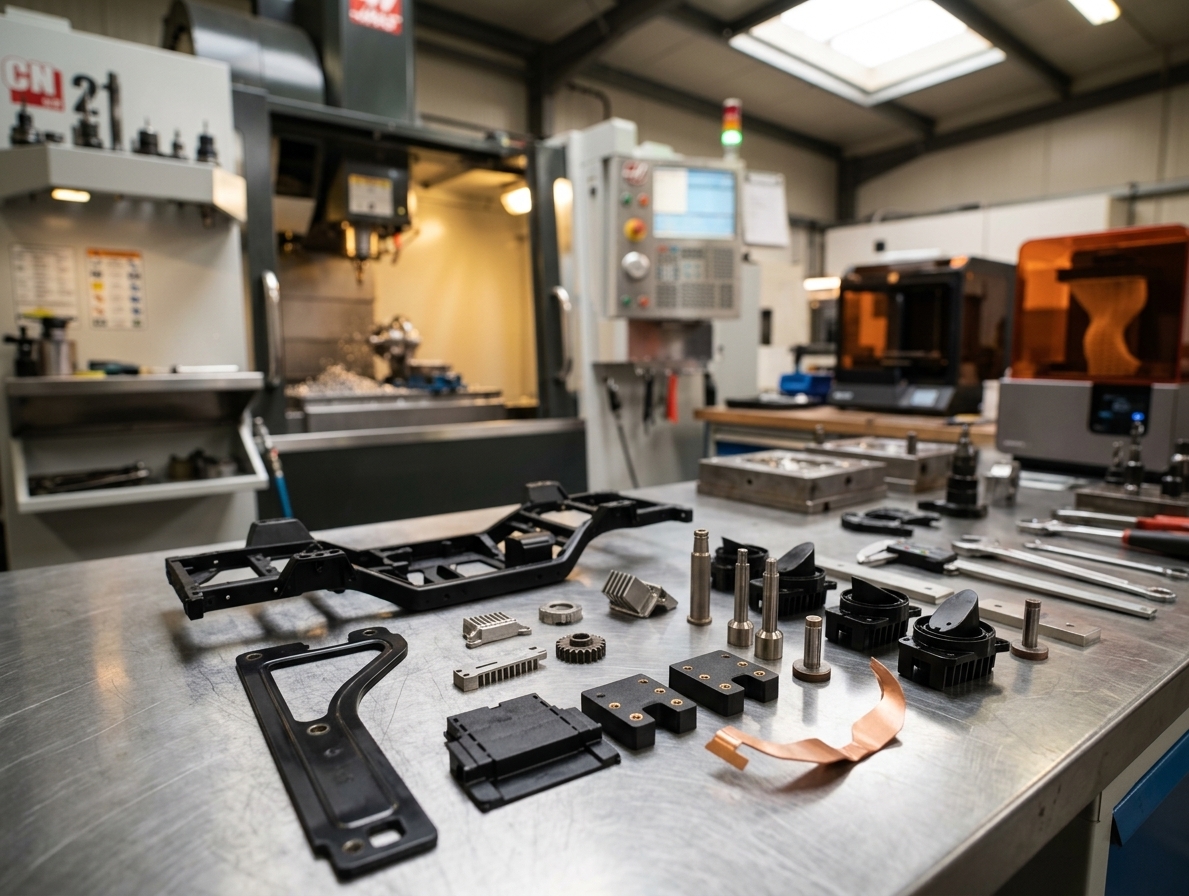

Vacuum Casting for Low-Volume Polyurethane Parts

When a small batch of production-like polyurethane parts is the goal, LKprototype's vacuum casting and urethane casting capability covers master modeling, silicone tooling, and multiple finishes for cosmetic validation.

Integrated Prototyping and Quality Support

Because LKprototype brings several manufacturing processes and inspection together, teams can move a product from printed iteration to machined EVT parts to cast or injected builds while keeping quality documentation and traceability consistent across stages.

Prototype Manufacturing Process Selection FAQs

What Is the Best Prototype Manufacturing Process?

There is no universally best prototype manufacturing process. The best process depends on your validation goal, quantity, material, tolerance, surface finish, geometry, lead time, tooling budget, and total program cost. CNC machining is often strong for functional precision parts, 3D printing for fast iteration and complex geometry, vacuum casting for low-volume production-like plastics, and rapid injection molding for production-intent thermoplastics.

How Do You Choose a Prototype Manufacturing Process?

Start by defining what the prototype must prove, then filter by quantity, material, tolerance, and finish. Ask what you are validating, how many parts you need, what material it must represent, and how fast you need it. Match each validation goal to the process that answers it most efficiently, and account for the total cost of validation rather than per-part price alone.

Which Process Is Best for Functional Prototypes?

CNC machining is often the strongest choice when a functional prototype needs real metal or engineering-plastic behavior and tight dimensional control, while SLS or other additive processes can be better for durable polymer parts and complex geometries. The correct choice depends on material, load, tolerance, geometry, and test conditions.

Which Process Is Best for Visual Prototypes?

For production-like appearance in small batches, vacuum casting is often the best choice because it reproduces smooth, molded-like polyurethane surfaces with color control. For a single high-detail visual model, SLA 3D printing is a fast, low-tooling alternative. Choose based on quantity and how closely the look must match the eventual molded product.

Which Process Is Best for Metal Prototypes?

CNC machining is the standard choice for metal prototypes because it uses real metal and holds tight tolerances for structural or load-bearing parts. For complex metal geometry that machining cannot reach, metal additive processes such as SLM/DMLS may be considered, though they differ in material behavior and finish.

Which Process Is Best for Plastic Prototypes?

For fast early plastic iteration, 3D printing is quickest. For a small batch of production-like plastic appearance, vacuum casting is strong. For a precision or functional engineering-plastic part, CNC machining is better. For production-intent thermoplastics with repeatability, rapid injection molding applies. The answer follows the validation goal.

Which Process Is Best for Small-Batch Prototypes?

For small batches with production-like plastic appearance, vacuum casting is typically the best fit because it produces many cosmetic parts cost-effectively from one silicone mold. If the small batch must be functional in real metal or engineering plastic, CNC machining remains strong. Choose based on function versus appearance.

When Should You Use Vacuum Casting Instead of 3D Printing?

Use vacuum casting instead of 3D printing when you need multiple parts with a smooth, production-like molded finish that printing cannot match at that quantity, or when you need a small color or hardness set. If you are still iterating a single part rapidly, 3D printing is faster and needs no tooling.

When Should You Use Injection Molding for Prototypes?

Use injection molding for prototypes when you must validate production-intent thermoplastic behavior, repeatability, mold-friendliness, or when you need bridge parts ahead of production. Rapid injection molding justifies its tooling when volume or production-fidelity requirements overcome the added tooling cost and longer lead time.

Can One Product Use Multiple Prototype Processes?

Yes. A product commonly uses several processes across NPI — printed geometry models, machined functional parts at EVT, vacuum-cast appearance parts for demos, and injection-molded parts at DVT or PVT. The guiding principle is to choose the process that best answers the next validation question at each stage.

Conclusion: Choose the Process That Best Answers the Next Validation Question

There is no single best prototype manufacturing process. The correct process depends on the next engineering question the prototype needs to answer — not on habit, fashion, or a supplier's default.

• Industrial 3D printing serves fast iteration and complex geometry with no tooling.

• CNC machining serves precision, real material behavior, and dimensional control.

• Vacuum casting serves low-volume, production-like polyurethane parts.

• Rapid injection molding serves production-intent thermoplastics and bridge production.

The process may, and often should, change as the product moves from Concept through EVT, DVT, and PVT. Selecting the method that answers each stage's validation question — and weighing the total cost of validation rather than unit price alone — keeps a program fast, accurate, and economical.

When you are ready to move, submit your CAD or drawings for engineering review. A DFM feedback pass and an open discussion of tolerances, materials, and volume will turn an abstract selection problem into a concrete, efficient build plan.
