You can achieve clear parts and save money by selecting the right transparent urethane resin for clear resin prototyping. Some excellent options include Accura® 60, Somos® BioClear, Crystal Clear™ Series, and PolyForm. Each resin offers its own unique advantages:
Accura® 60 produces clear parts that perform effectively.
Somos® BioClear is ideal for medical applications.
Crystal Clear™ Series is exceptionally transparent and blocks UV light.
PolyForm is durable and reasonably priced.
Additional steps, such as polishing after printing, enhance the clarity of the parts even further.
Key Takeaways
Pick the best transparent urethane resin to get clear parts and save money. Choices like Accura® 60 and Smooth-On Crystal Clear Series give great clarity.
Think about optical clarity, durability, and cost when picking resins. This helps your prototypes fit your design and not cost too much.
Use vacuum degassing and mix the resin the right way to stop air bubbles. This is very important for making smooth, clear parts.
Sanding and polishing after making the part can make it clearer. These steps help your prototypes look shiny and like glass.
Always test a small amount before making a lot. This lets you find problems early and makes sure the final product is what you want.

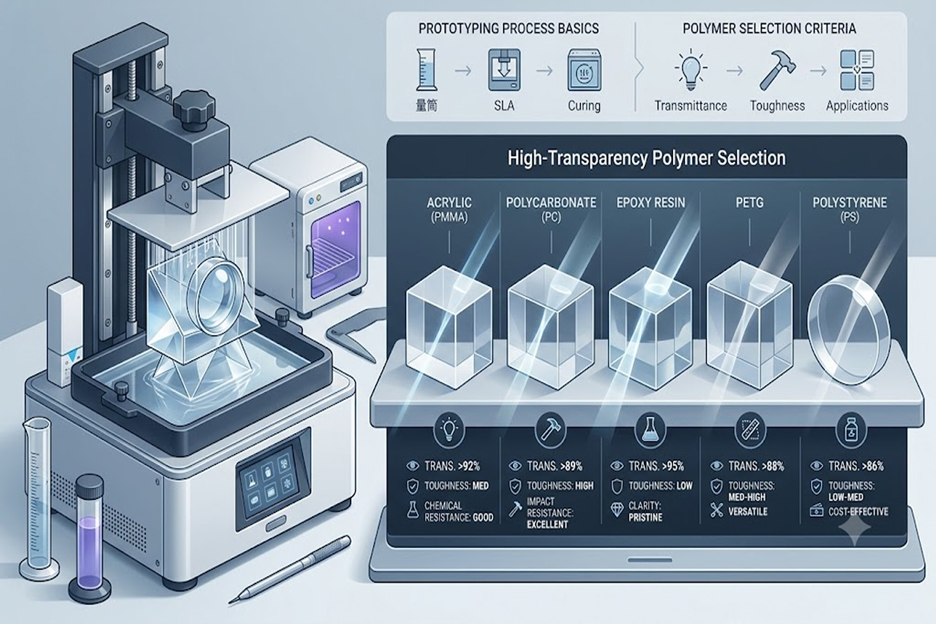

CLEAR RESIN PROTOTYPING BASICS AND HIGH-TRANSPARENCY POLYMER SELECTION
WHAT IS INDUSTRIAL CLEAR RESIN PROTOTYPING AND VACUUM CASTING
Clear resin prototyping lets you make plastic parts you can see through. These parts are used for testing, design, and showing ideas. Companies like CreateProto use this to make parts that look like the real thing. You can check if pieces fit together or show customers what the final item will be.
Vacuum casting is a common way to make clear prototypes. Here’s how it works:
First, you make a master model. This is often made with a 3D printer or polished acrylic.
Next, you pour silicone around the master to form a mold.
When the silicone hardens, you take out the master. Then, you add channels for resin and air.
You pour urethane resin into the mold. The mold goes under vacuum to cure. This removes bubbles and makes the part smooth and clear.
This method gives you good, clear parts fast. It also costs less than old ways of making things.
WHY OPTICAL CLARITY AND COST MATTER FOR LOW-VOLUME PLASTIC PARTS
If you only need a few parts, they must look and work well. Clear resin prototyping makes parts you can see through easily. This matters for things like car lights, medical tools, and electronics.
Material | Clarity | Durability | Affordability |
|---|---|---|---|
Urethane Resin | High | High | Moderate |
Axson PX-5210 | Excellent | High | Moderate |
Axson PX-527 | High | Moderate | High |
Clear parts help you see inside and improve your design. They also make your product look better. In medical and car industries, you must follow strict rules. These rules affect how clear and costly the parts are.
KEY CRITERIA FOR SELECTING TRANSPARENT URETHANE RESINS
When picking a resin for clear resin prototyping, think about:
How clear and bubble-free the part will be.
The price of the resin and casting.
How strong the part needs to be.
If the resin follows safety and environmental rules.
If the resin can be recycled or is eco-friendly.
Tip: Choosing the right resin saves money and helps your project turn out well.
TOP TRANSPARENT URETHANE RESINS COMPARED FOR OPTICAL CLEAR PROTOTYPES
SMOOTH-ON CRYSTAL CLEAR SERIES FOR OPTICAL CLARITY AND UV RESISTANCE
You can pick the Smooth-On Crystal Clear Series for glass-like parts. This resin makes parts look very clear, not cloudy. It is simple to mix and pour because it is thin. The finished parts are tough and do not break fast. They also do not get damaged by sunlight. This helps them last longer outside. People use this resin for art, special effects, and clear covers. The Smooth-On Crystal Clear Series has been trusted for over 25 years. It is a good choice when you need clear and strong prototypes.
Water-clear finish
Low viscosity for easy mixing
UV resistant and not brittle
Used in many industries for decades
BJB ENTERPRISES HIGH-TRANSPARENCY POLYURETHANE CASTING SYSTEMS
BJB Enterprises makes Poly-Optic® 14-Series and 17-Series resins. These are good if you want parts that are almost invisible. The resins keep parts clear and do not turn yellow in the sun. Many engineers use them for lenses, light guides, and display models. These resins cost more because they are high quality. You get great results for your money.
High optical clarity for see-through parts
UV resistance for outdoor use
Premium quality for demanding projects
INNOVATIVE POLYMERS POLYURETHANE RESINS COST AND DURABILITY COMPARISON
When you look at top clear urethane resins, think about how they last. Some resins can turn yellow and crack if left in the sun. Tests show some coatings can turn yellow in just one week of strong sunlight. Over time, brown spots and cracks can show up. You need to pick a resin that fits your project. If your part will be outside or under bright lights, pick one with strong UV resistance. This will help your clear parts stay clear and strong.
Tip: Always check how a resin handles UV light before you choose it for your prototype.

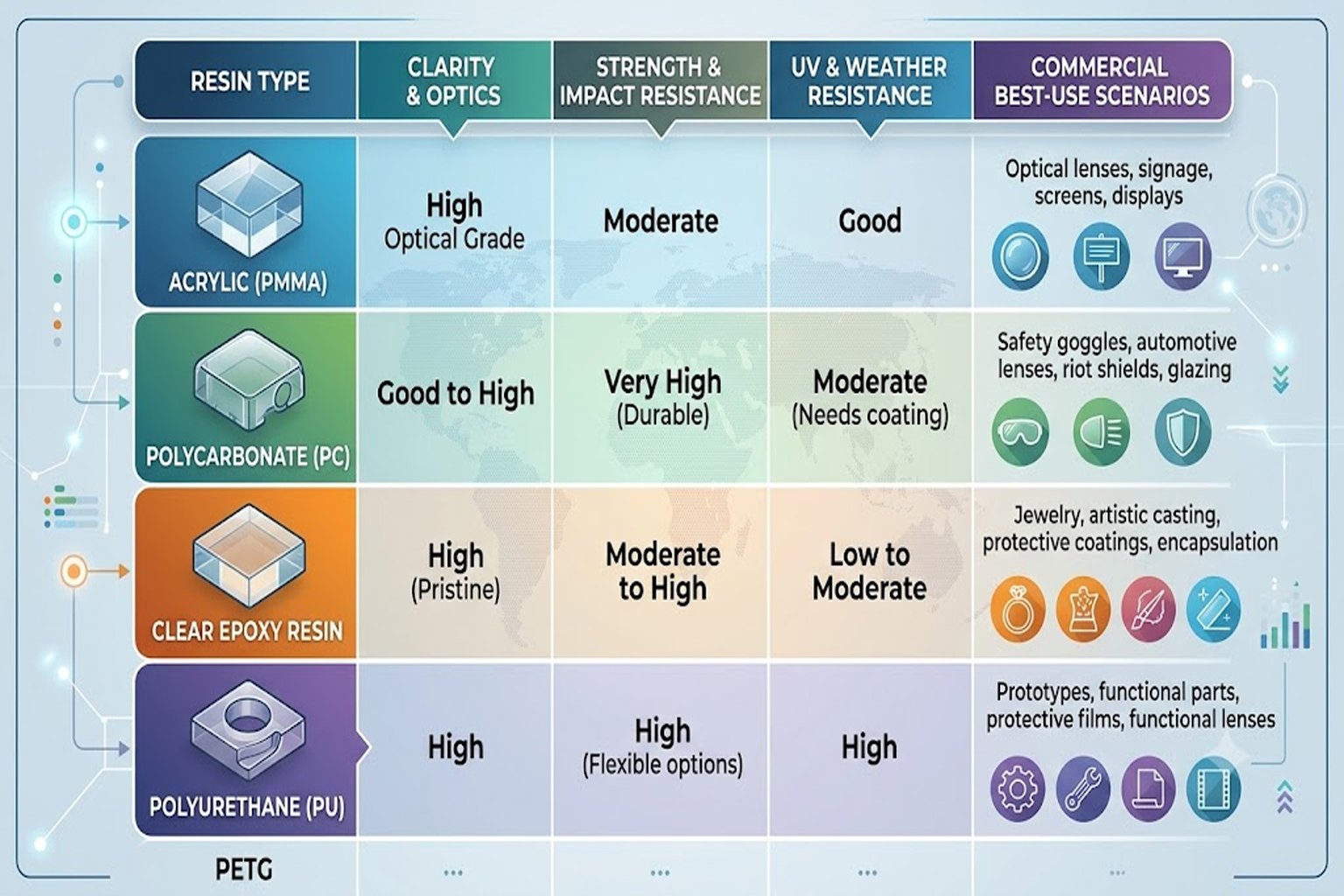

TRANSPARENT RESIN COMPARISON TABLE AND COMMERCIAL BEST-USE SCENARIOS
OPTICAL CLARITY VS SHORE HARDNESS PERFORMANCE DATA TABLE
You might wonder how these resins are different. The table shows how hard each resin is and how clear it looks. Shore hardness tells you if a resin feels soft or hard. Optical clarity means you can see through the part.
Material | Shore Hardness | Optical Clarity |
|---|---|---|
Axson PX 522 HT | 87D | Transparent |
Axson PX 521 HT | 87D | Transparent |
AXSON UPX 5210 | 83D | Transparent |
Axson PX 225 | 80D | Transparent |
Hei-Cast 8744, 8744LP | 82D | Colorless |
Hei-Cast 8751 | 85D | Colorless |
Hei-Cast 8752 | 85D | Colorless |

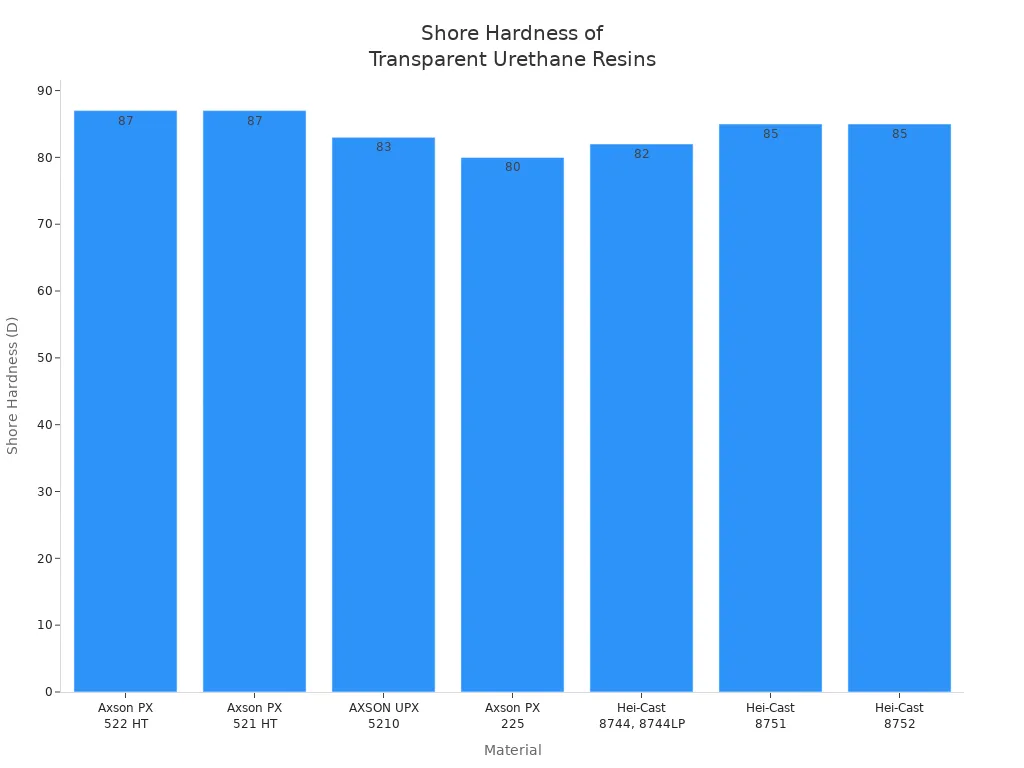

You can check the Shore hardness in this chart:
PROTOTYPING COST COMPARISON AND LEAD TIME ANALYSIS FOR FACTORIES
When picking a resin, think about price and how fast you get parts. For example:
Smooth-On Crystal Clear 202 costs between $65.00 and $310.00 for each unit.
BJB Enterprises and Innovative Polymers have similar resins, but prices change with order size and shipping.
Factories can finish clear resin parts in a few days if they have the right tools. Some resins cure faster, so you get parts sooner. If you need lots of parts quickly, ask your supplier about lead times before you order.
APPLICATION RECOMMENDATIONS FOR AUTOMOTIVE LIGHT GUIDES AND LENSES
These resins work for many uses. Car light guides and lenses need to be clear and strong. Axson PX 522 HT and Hei-Cast 8751 are good for these because they stay clear and do not turn yellow. If you want parts that bend more, try resins like AFP3200. It is also flexible and tough. Always pick the resin that fits your project best.
Tip: Make a small batch first. This lets you check if the parts are clear, hard, and fit your needs.
MAXIMIZING CLARITY AND COST-EFFICIENCY IN URETHANE CASTING FACTORIES
VACUUM DEGASSING AND BUBBLE-FREE HANDLING AND MIXING TIPS
You want your clear parts to look great. Air bubbles can make them cloudy. To stop bubbles, try these steps:
Preheat resins to 40˚C. This keeps them from getting hard and helps you mix better.
Use the double-cup mixing method. This stops streaks from forming.
Pour resin from one spot. This keeps bubbles from showing up.
Put the gate low and the vent high. This lets resin move easily and air leave.
Use a vacuum casting machine. This gives you good results every time.
You can mix with less air by using a static-mixing nozzle. Warm the material to make it thinner. Pour slowly and from a low spot to push air out. Vent the mold so air can get out. Use vibration or degassing to clear bubbles.
Vacuum degassing is a smart step. Put the resin in a vacuum chamber until all gases are gone. This makes your parts as clear as possible.
POST-PROCESSING POLISHING TECHNIQUES FOR OPTICAL GRADE TRANSPARENCY
After casting, you need to polish your parts to make them very clear. Different ways work for different shapes:
Technique | Best For | Notes |
|---|---|---|
UV-resistant clear coat | Complex shapes, display models, LED diffusers, art prints | Fast and works well, may make parts a bit thicker. |
Sanding and polishing | Simple windows, flat faces, prisms, lens shapes | Can make parts very clear, takes work, may remove some material. |
Resin coating or dipping | Flat or almost flat surfaces needing high clarity | Can fix scratches and lines, may change size or fine details. |
Take off support structures carefully. Use sharp tools so parts do not break. Clean and wash parts to get rid of uncured resin. Pick the right solvent. Make sure post-curing keeps parts strong.
AVOIDING COMMON PITFALLS LIKE YELLOWING AND DEFECTS IN QC TESTING
Yellowing and defects can hurt your clear resin parts. You can stop these problems by using easy steps:
Cause of Yellowing | Prevention Strategy |
|---|---|
UV Exposure | Use UV stabilizers |
Heat and High Temperatures | Keep resin cool |
Oxidation and Air Exposure | Limit air during storage |
Mixing Mistakes | Measure hardener carefully |
Pigments and Additives | Use the right amount of colorants |
Store resins in a dry place. Keep containers closed and under dry nitrogen. Stay away from sunlight and moisture. Check shelf life and use resins before they expire.
Tip: Always test a small batch first. This helps you find problems before making lots of parts.
You can get great results in clear resin prototyping by picking resins like Smooth-On Crystal Clear Series or BJB Enterprises Poly-Optic. These resins make parts that are very clear and are a good deal. You should choose the resin that fits your project and how hard your design is.
Urethane molding is good for making test parts and small batches. Things like clips or hinges on your part can change which resin you need. How well the part works tells you if urethane molding is enough or if you need injection molding.
To get the clearest parts and best value, do these things:
Sand the surface to help more light pass through.
Polish the part to make it look like glass.
Add a clear coat to protect and make it look nice.
Dip or coat the part with resin to seal and make it even clearer.
These tips can help your prototypes look better and work better.
FAQ
What is the clearest urethane resin for prototypes?
You get the best clarity with Smooth-On Crystal Clear Series or BJB Poly-Optic resins. These resins look almost like glass. They work well for lenses, light guides, and display models.
How do you stop bubbles in clear resin parts?
You should always use vacuum degassing. Pour resin slowly and mix gently. Warm the resin before pouring. These steps help you avoid bubbles and get smooth, clear parts.
Can you paint or dye clear urethane resin?
Yes, you can add transparent dyes before casting. You can also paint the finished part with special paints. Always test a small area first to see the result.
How long do clear resin prototypes last?
Clear resin parts last for years indoors. Sunlight and heat can cause yellowing. For outdoor use, pick UV-resistant resins and store parts away from direct sun.
Which clear resin is best for car light guides?
You should use Axson PX 522 HT or Hei-Cast 8751. These resins stay clear and resist yellowing. They work well for automotive lenses and light guides.
