Key Takeaway: Trapped air in silicone molds is a primary cause of voids, surface pinholes, and incomplete fills in polyurethane vacuum casting. Effective silicone mold venting design often employs an application-dependent "Pour Low, Vent High" strategy, placing distributed micro-vent channels (with typical starting depths of 0.025 mm – 0.050 mm, depending on resin viscosity, mold durometer, and geometry) at highest points, blind pockets, and last-fill areas to facilitate air evacuation while minimizing resin flash.

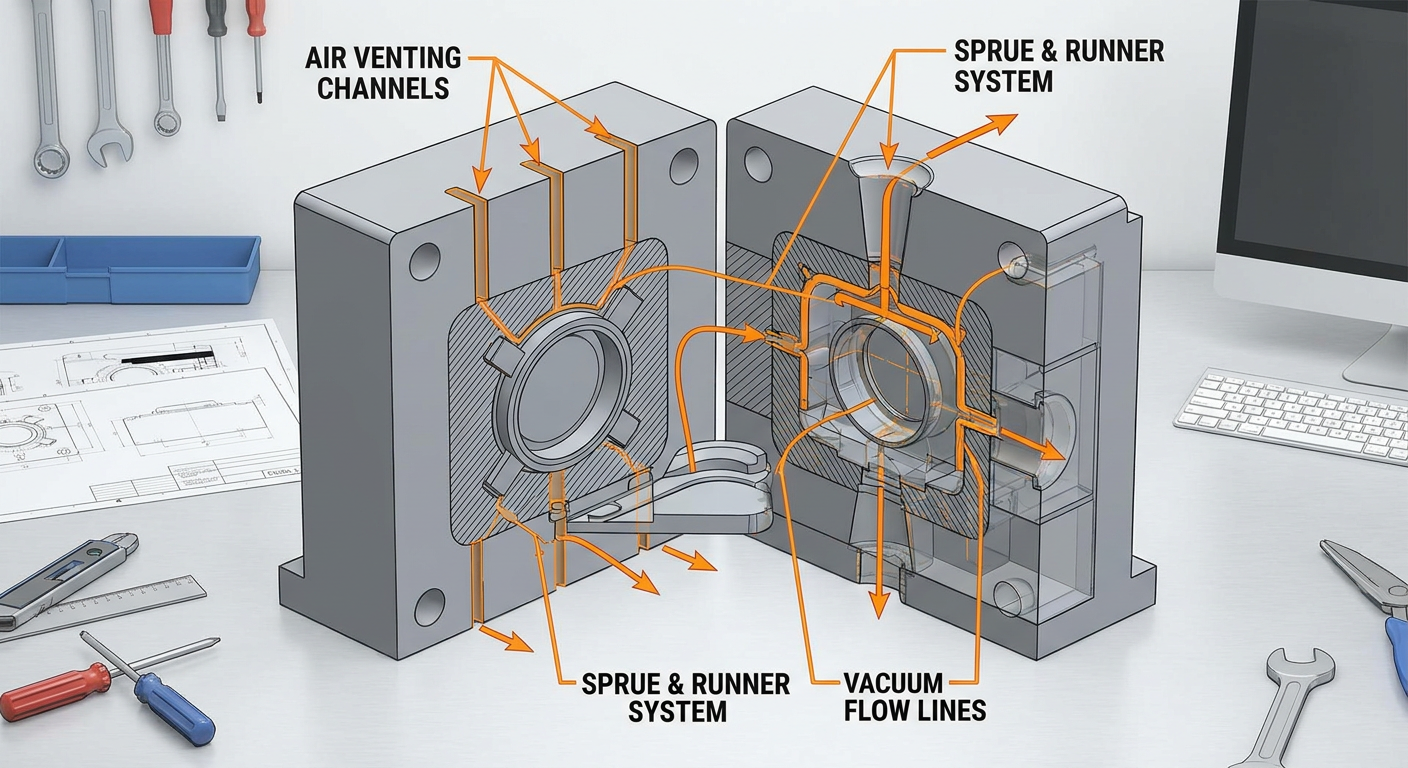

What Is Silicone Mold Venting?
Silicone mold venting is the technique of engineering micro-slots, razor slits, or tubular channels into a silicone mold cavity to allow displaced air to escape as liquid resin enters.
Why Is Venting Important?
Venting is essential because air trapped inside an unvented or poorly vented mold cavity creates pneumatic resistance. This air displacement barrier leads to cosmetic pitting, internal structural voids, or short-shot defects that can cause parts to fail quality inspection.
Scope Note: This guide focuses primarily on silicone molds used for polyurethane/urethane vacuum casting, although many venting principles also apply to other silicone-mold casting processes.
Even inside a high-vacuum chamber, pouring liquid polyurethane or epoxy resin into a silicone mold can result in trapped air pockets if the cavity lacks an engineered evacuation path. As liquid resin enters the cavity, displaced air becomes compressed against high points, internal corners, deep ribs, and blind undercuts. Without strategically positioned silicone mold vents, these trapped air pockets impair surface finish and part density.
Mastering silicone mold venting requires balancing fluid dynamics, air displacement rate, and part geometry during the Design for Manufacturability (DFM) phase. This technical guide outlines the mechanics of air entrapment, practical starting dimensions for vent channels, a step-by-step DFM mold vent placement workflow, and a practical troubleshooting approach to reduce air bubbles in silicone casting.
The Mechanics of Air Trapping in Vacuum Casting
What Causes Trapped Air in Silicone Molds?
Trapped air in silicone molds occurs when advancing liquid resin surrounds a pocket of air in a local high point, blind cavity, or converging flow front, sealing the exit before air can fully displace.
Can Vacuum Casting Eliminate the Need for Mold Vents?
No. While vacuum casting operates in a sealed chamber evacuated to approximately 28–29 inHg gauge vacuum under standard atmospheric conditions, drawing a vacuum removes atmospheric air from the chamber but does not guarantee complete air evacuation from complex, enclosed mold cavities. Physical silicone mold vents remain necessary to provide a defined path for displaced cavity air as the liquid resin front advances.
Incoming Resin Flow → Displaces Cavity Air → Air Encounters High Peak / Blind Pocket → Resin Seals Path → Trapped Air Defect
When liquid polyurethane flows through the main sprue, it fills the mold cavity from the lowest point upward. As the fluid level rises, air inside the cavity must evacuate at a rate matching the volumetric resin flow. Deep cavities, blind core pins, narrow ribs, and undercuts are particularly vulnerable because narrow flow channels allow the resin front to join together and cap off the opening before air bleeds out.
As resin encapsulates the isolated pocket, compressed air creates a pneumatic barrier against the flexible silicone wall. This produces three primary types of silicone casting defects:
Surface Pinholes ("Champagne Bubbles"): Microscopic air bubbles trapped along cosmetic surfaces.
Internal Voids: Larger air pockets within thick wall sections that compromise mechanical strength.
Short Shots (Incomplete Fills): Severe air entrapment where air pressure prevents liquid resin from reaching thin ribs or distant mold features.
Diagnosing Venting vs. Mixing Issues
In standard engineering practice, technicians distinguish between venting defects and mixing/degassing errors:
Venting Defect: Bubbles or voids appear consistently at the exact same physical location across multiple castings—typically at geometric high points, rib tips, or last-fill areas.
Mixing or Degassing Defect: Micro-bubbles are randomly distributed throughout the bulk volume of the part. This indicates inadequate pre-pour resin degassing or air introduced during mixing rather than poor mold vent placement.

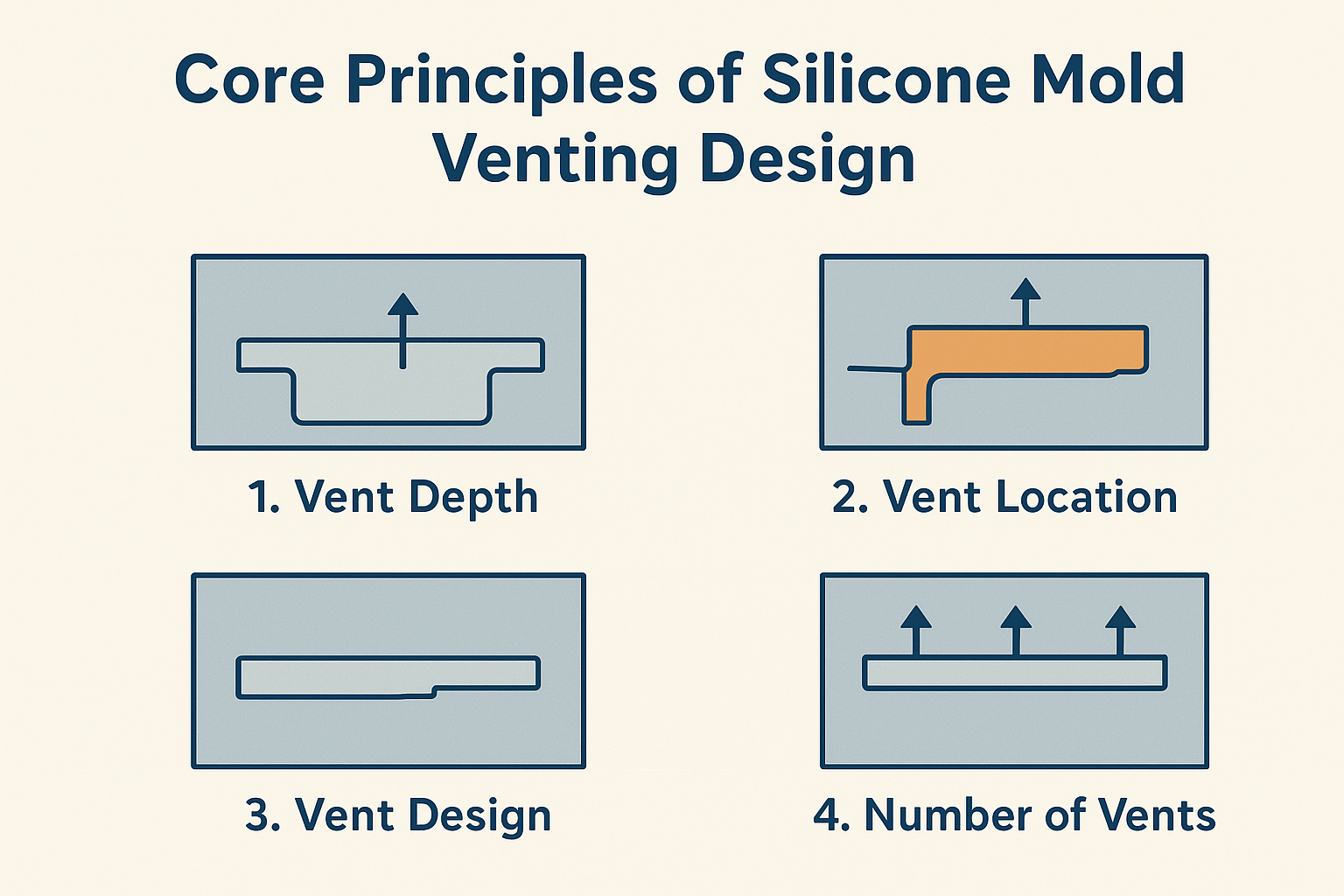

Core Principles of Silicone Mold Venting Design
Where Should Silicone Mold Vents Be Placed?
Silicone mold vents should be positioned at the highest vertical elevation of the part in its casting orientation, at the tips of internal ribs, inside blind pockets, along parting lines, and at last-fill areas where resin fronts converge.
Before adding vents, experienced tooling engineers inspect the CAD orientation to map out predicted flow paths from the main sprue.
[Vent / Overflow Header] (Highest Point)
▲ (Rising Air Displacement)
Mold Cavity (Rising Resin Level)
▲ Sprue / Main Gate (Lowest Point)
1. "Pour Low, Vent High"
A widely used baseline concept for silicone mold vent design is the "Pour Low, Vent High" approach, where the main sprue is positioned at a lower point of the mold cavity and vents are located at opposing high points. Inflow from lower points allows resin to rise steadily, sweeping air upward ahead of the fluid front toward high-point vents rather than trapping air pockets through turbulent splashing.
Engineering Note: While "Pour Low, Vent High" serves as a practical rule of thumb, optimal gate and vent placement is strictly application-dependent. It must be customized based on part orientation, mold geometry, resin viscosity, flow path length, and specific last-fill areas.
2. Multi-Point Distributed Venting
For complex part geometries, relying on a single top vent is rarely sufficient. Distributing several smaller silicone mold vents across isolated peaks and internal ribs is significantly more effective than making a single vent larger.
Engineering Note: Toolmakers avoid simply enlarging a vent channel because oversized vents allow liquid resin to flush out prematurely. This leads to heavy flash, added manual trimming, dimensional distortion, and increased risk of tearing flexible silicone during demolding.
3. Venting Last-Fill Zones
A last-fill area is any cavity region where liquid resin arrives last due to wall thickness variations, geometry obstructions, or distance from the sprue. Common last-fill areas include:
Upper margins of thin vertical walls
Deep blind pockets and core pin recesses
Intersecting flow fronts (weld lines)
Outer perimeter edges furthest from the sprue
Each identified last-fill area should be evaluated for dedicated venting, with a micro-vent or slit added where air entrapment is likely.
4. Overflow Headers and Risers
For cosmetic or structural features where residual micro-bubbles cling to silicone walls, toolmakers attach vents to an overflow header (or riser stem). An overflow header acts as a sacrificial reservoir situated above the part boundary. As resin fills the cavity, it carries expanding air bubbles into the riser. Once cured, the riser stem is trimmed and finished.
Vent Channel Sizing and Geometry Guidelines
Designing effective silicone mold venting channels requires balancing air evacuation against resin containment. The channel must provide sufficient cross-sectional area for displaced air to escape while remaining narrow enough to restrict liquid polyurethane and minimize flash.
Parting Line Vent Geometry
Cavity Depth: 0.025–0.050 mm (Typical) ──► Mold Exterior
Silicone Mold Top Half ◄ Vent Slot ► Silicone Mold Bottom Half
Recommended vent dimensions vary depending on resin viscosity, mold durometer, and cavity geometry:
Venting Technique | Recommended Dimensions | Ideal Cavity Location | Primary Application & Risk Profile |
|---|---|---|---|
Micro-Slot Vents | Depth: 0.025 mm – 0.050 mmWidth: 1.5 mm – 3.0 mm | Parting lines, flat land surfaces | Low-to-medium viscosity polyurethanes; significantly reduces flash risk when properly sized. |
Razor Slits (Parting Line) | Depth: Self-sealing (0 mm static)Length: 5.0 mm – 10.0 mm | Along flexible mold split lines | Standard vacuum casting; flexes open under pressure differential, seals as pressure equalizes. |
Tubular Vents (Brass Tubes) | Inside Diameter: 1.0 mm – 2.5 mmOutside Diameter: 1.5 mm – 3.0 mm | Isolated bosses, deep pockets, internal ribs | High-aspect-ratio features; requires post-cure riser stem trimming. |
Overflow Headers (Risers) | Diameter: 3.0 mm – 6.0 mmHeight: 10.0 mm – 15.0 mm | Topmost geometric peaks | Cosmetic or critical optical parts; traps residual air above functional surfaces. |
As discussed in LKprototype's guide on vacuum casting gate and vent design best practices, cutting micro-slot channels between 0.025 mm and 0.050 mm deep serves as a practical starting baseline for standard polyurethane resins, utilizing liquid surface tension to prevent excessive resin weeping. However, exact vent dimensions must be validated through trial casting for high-viscosity or filled formulations.
Step-by-Step DFM Workflow for Vent Placement
Implementing an effective silicone mold venting design spans digital CAD analysis, master pattern preparation, and physical mold finishing.
Step 1: CAD Orientation and Flow Path Review
Before surrounding the master pattern in RTV silicone, evaluate the 3D CAD model in its proposed casting orientation:
Identify the lowest geometric feature for main sprue attachment.
Map out local high points, internal ribs, bosses, and blind pockets.
Evaluate wall thickness variations. Thinner features offer higher flow resistance, shifting predicted last-fill areas.
Engineers conducting a step-by-step vacuum casting DFM review establish part orientation early to optimize sprue feed paths and vent access before 3D printing master patterns.
Step 2: Master Pattern Sprue and Vent Attachment
When producing master patterns via SLA/SLS 3D printing or high-precision CNC machining, physical vent leads can be attached directly to designated high points:
Attach rigid plastic or fine wire rods (typically 1.0 mm to 2.0 mm diameter) at designated peaks.
Route vent rods upward toward the perimeter frame of the mold box.
Ensure vent leads maintain a continuous upward angle without sagging or loops where resin could trap air.
Step 3: Physical Silicone Mold Venting
Once RTV silicone cures around the master pattern and is cut along the parting line, additional manual vents can be added:
Sharp Brass Tubing Method: As outlined in Smooth-On's silicone mold venting guide, sharpen the inner rim of a thin-walled brass tube. Twist the tube through the silicone from high-point cavities outward to punch clean cylindrical vent paths.
Razor Slit Method: Use a scalp knife to create micro-slits along the two-part silicone mold parting line design. These slits flex open under the pressure differential during casting and close when the pressure difference decreases.
Step 1: Orient CAD Model ► Step 2: Add Vent Leads to Master ► Step 3: Pour & Cure Silicone ► Step 4: Punch/Cut Vents along Parting Line
Step 4: Vacuum Degassing and Pressure Calibration
Mold vents operate alongside controlled chamber pressure cycles:
Pre-Pour Silicone Degassing: Vacuum-degas liquid platinum-cure silicone at approximately 28–29 inHg gauge vacuum under standard atmospheric conditions after mixing to strip entrained air.
Vacuum Chamber Pour: The resin mixing, degassing, and pouring sequence depends on the resin manufacturer's instructions and the specific vacuum-casting equipment setup. Regardless of the specific equipment protocol, effective mold venting still provides a defined path for displaced cavity air as the liquid level climbs.
Chamber Venting Cycle: Reintroduce atmospheric pressure to the chamber post-pour. Pressure-cycle effects depend on the resin system, bubble size, and process conditions; pressure cycling should not be treated as a substitute for proper mold venting or resin degassing.
Diagnostic Matrix: Troubleshooting Venting-Related Casting Defects
How Do You Fix Air Traps and Casting Defects?
To fix air traps and casting defects, inspect defect locations on cured parts. Localized air voids at high points or rib tips indicate poor venting that requires adding risers or razor slits, while widespread micro-bubbles require improving pre-pour resin vacuum degassing.
Inspecting physical castings provides direct clues for diagnosing silicone mold vent design issues:
Visual Defect | Root Cause Analysis | Corrective Venting Action |
|---|---|---|
Large Rounded Voids at High Points | Air unable to escape topmost geometry as fluid rises. | Add an overflow riser (3.0 mm ID) at the highest peak of the void area. |
Incomplete Ribs / Short Shots | Air trapped in thin blind slots creating a pneumatic stop. | Punch a 1.0 mm tubular vent at the rib terminus or cut a razor slit along the parting line. |
Cluster of Surface Pinholes | Micro-bubbles clinging to silicone wall texture during pour. | Increase micro-vent count; apply a thin brushed resin face coat prior to bulk pouring. |
Heavy Resin Flash / Excess Trimming | Vent channel cut too deep or wide for the specific resin viscosity. | Adjust vent depth toward a validated starting range (e.g., 0.025 mm – 0.050 mm) or switch to razor-cut self-sealing slits. |
Part Distortion Near Vents | Local pressure differential deforming soft silicone at vent exit. | Support vent exits with rigid sleeves or refine parting line alignment. |
For complex geometries featuring internal cavities, specialized methods are required when handling undercuts in silicone molds to ensure secondary air channels do not tear flexible silicone cores during demolding.
Advanced DFM Considerations for Rapid Tooling
While foundational venting rules address common air trapping issues, precision prototyping requires tailored DFM evaluation:
Resin Viscosity Matching: Water-thin resins (e.g., clear acrylic-like polyurethanes) typically require shallow slot vents (0.025 mm) to prevent weeping, whereas filled or elastomeric resins require larger vents (1.0 mm – 2.0 mm) due to higher flow resistance.
Parting Line Synchronization: Aligning mold split lines with critical geometric peaks allows vents to be cut directly along parting surfaces, avoiding deep punching through bulk silicone.
Trial Validation & DFM Consultation: Partnering with experienced manufacturing engineers ensures sprue locations, vent channels, and wall thickness transitions are validated prior to production runs.
By incorporating structured silicone mold venting design principles into your rapid prototyping workflow, you can minimize air traps, reduce post-processing cleanup, and achieve consistent, production-grade polyurethane castings. For expert engineering support and rapid turnaround on your next prototype run, explore LKprototype vacuum casting services.
