Urethane Casting Small Batch Production: Low Volume Manufacturing Guide

You can use urethane casting small batch production to make good parts. It does not cost as much as old ways. Urethane casting gives you quick results. You can test your designs fast. It works well for making a small number of parts. You can pick from many materials. You can also make shapes that are hard to make. This process is a step between testing and making lots of parts. It is great for trying out ideas and making real parts.

Key Takeaways

• Urethane casting is a cheap way to make small groups of parts. It works well for prototypes and custom designs.

• This process lets you finish parts quickly. You can test and get feedback on designs faster.

• Silicone molds in urethane casting lower tooling costs. They let you change designs easily without spending much money.

• Urethane casting can be used for many things. It works for consumer products, car parts, and medical devices. It gives good quality results.

• When moving from small batches to big production, use urethane casting first. It helps improve designs before paying for expensive methods.

URETHANE CASTING SMALL BATCH OVERVIEW

WHAT IS URETHANE CASTING

Urethane casting helps you make parts fast and at a low cost. It is good for making prototypes and small numbers of parts. First, you need to make a master pattern. After that, you use the pattern to make a silicone mold. Then, you pour liquid urethane resin into the mold. The resin gets hard and turns into a strong part. Urethane casting lets you try out new ideas. You can make parts with lots of details. This is helpful before you start making many parts. Some people call this vacuum casting. That is because a vacuum can pull out air bubbles and make the part better.

WHAT IS SMALL BATCH AND LOW VOLUME MANUFACTURING

Small batch and low-volume manufacturing means you only make a few parts. You do not have to buy big machines or spend a lot of money. This way, you save time and money. You can also change your design if you want. Here is a table that shows what low-volume batches are like:

Low-volume batches are great when you want to test new products or make custom things.

WHEN TO USE URETHANE CASTING FOR SMALL BATCH PRODUCTION

Pick urethane casting small batch production if you need parts quickly and want to save money. Vacuum casting is useful for many things:

• Prototypes for market testing

• Personalized items

• Medical devices made to fit a person

• Custom medical devices like prostheses and orthoses

• Car parts such as dashboard panels and light covers

• Electronics like cases and controllers

• Special edition products for customers

• Extra parts for science tools and sports gear

Vacuum casting lets you make small batches that are high quality. Many industries use this method. You get strong and detailed parts without waiting a long time or paying a lot for molds.

PRODUCTION VOLUME RANGE FOR URETHANE CASTING

TYPICAL SMALL BATCH QUANTITY (10 TO 500 PARTS)

You can use urethane casting small batch production when you need only a few parts. Most projects use this method for making between 10 and 100 units. Some jobs go up to 500 parts, but the process works best for lower numbers. You save money because you do not need expensive molds. You also get your parts faster. Here are some reasons why this method fits small batch manufacturing:

• You pay less for tooling.

• You get parts in days or weeks, not months.

• You can change your design easily.

LOW VOLUME VS MASS PRODUCTION COMPARISON

You need to know how urethane casting compares to mass production. Urethane casting works well for low volumes. Injection molding fits high volumes. Look at this table to see the differences:

Urethane casting gives you a fast turnaround. You can test your product and get feedback quickly. Mass production takes longer and costs more at the start.

WHEN TO SCALE FROM PROTOTYPE TO PRODUCTION

You should scale up when you see signs that your product is ready. Look for these indicators:

• You sell out often or demand grows.

• Customers give positive feedback and order again.

• You have enough money to support bigger production.

• Your small batch runs show high quality and little waste.

• Your suppliers can handle more parts without delays.

• Your product meets industry rules and standards.

Tip: Watch your sales and customer feedback. These help you decide when to move from urethane casting small batch to larger production.

ADVANTAGES AND LIMITATIONS OF SMALL BATCH URETHANE CASTING

BENEFITS OF LOW TOOLING COST AND FLEXIBILITY

You can save money with urethane casting small batch projects. You do not need to buy expensive tools. Urethane casting uses silicone molds. These molds cost much less than metal molds. This makes it easier to start new projects or test ideas. You can change your design without spending a lot more money. If you want a new version, you just need a new mold. This flexibility helps you fix problems early. You can also try different shapes or features.

Here are some reasons why low tooling cost and flexibility matter:

• You can check your design faster.

• You can test your product with real users.

• You spend less money if you need to make changes.

• You find design problems sooner.

• You can move to other methods like injection molding more easily.

Tip: Lower setup costs mean you take less risk when you launch a new product.

FAST LEAD TIMES FOR RAPID PRODUCTION

Urethane casting gives you quick results. You can get your parts in days or weeks. You do not have to wait months. This speed helps you bring your product to market faster. You can also respond to customer feedback quickly. If you need to make changes, you do not wait long. Urethane casting works well for low-volume runs. You can make just what you need.

Here is a table that shows the main advantages and limitations:

LIMITATIONS IN LARGE SCALE PRODUCTION

Urethane casting has some limits when you want to make many parts. The process works best for small batches. If you try to make thousands of parts, the molds wear out. You will need to replace them. This adds time and cost. Urethane casting also needs skilled workers. This can slow things down. You cannot use as many materials as with other methods. The size of your part is limited by the mold and oven. You may need extra steps like trimming or sanding after casting. Urethane casting is not the best choice for mass production. It is great for low-volume and custom runs.

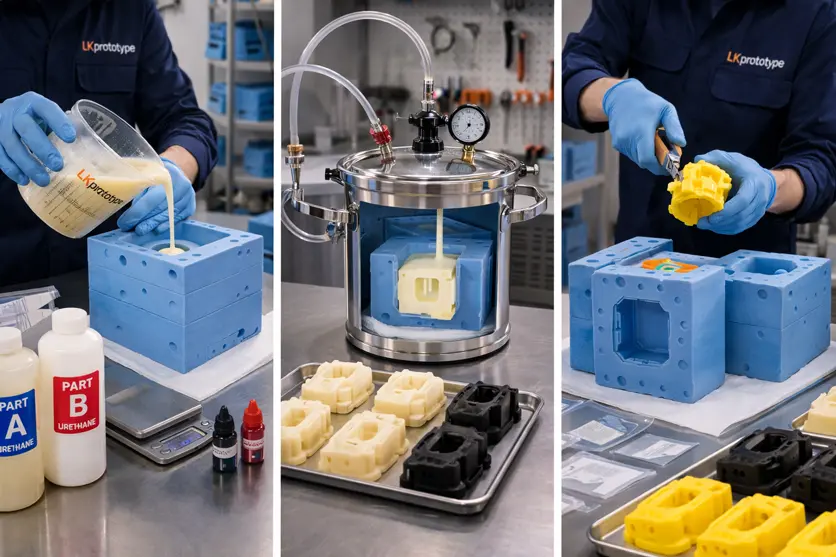

URETHANE CASTING PROCESS FOR LOW VOLUME PRODUCTION

MASTER MODEL CREATION

You begin by making a master model. This model is the template for your parts. You can use 3D printing like SLA or SLS. CNC machining is another option. The master model must be very accurate. Every detail shows in your final parts. Many people pick 3D printing because it is fast. It is also very precise. CNC-milled patterns are good if you want a classic method.

Tip: If your master model is high quality, your vacuum casting parts will look and work better.

SILICONE MOLD MAKING

After making the master model, you make a silicone mold. Put the master model in a box. Pour silicone rubber around it in two steps. This makes two halves of the mold. Silicone copies every detail. Your custom molded urethane parts will match the master model. Make sure the model is secure. This stops silicone from leaking where you do not want it. When the silicone is hard, take out the master model. Now the mold is ready for vacuum casting.

CASTING AND CURING PROCESS

Mix the polyurethane resin before pouring. Degassing removes bubbles. This makes the surface smooth. Pour the resin into the silicone mold using vacuum casting. The vacuum pulls out air. It helps the resin fill every space. Cure the resin in a pressurized oven. Temperature and pressure are important. If you do not cure long enough, your parts may not be strong. Most castings cure at room temperature first. Then they spend 4–8 hours at 150–160°F. Let the casting cool before you touch it.

Note: Small changes in temperature can change how your low-volume vacuum casting parts work.

FINISHING AND POST PROCESSING

After curing, take the parts out of the mold. Trim gates, vents, and flash with hand tools or machines. Drill or mill holes if you need them. Surface finishing, painting, or testing helps your vacuum casting parts meet your needs. These steps make your custom molded urethane parts ready to use. You can make low-volume batches with great quality and detail.

• Trimming and sanding

• Drilling or CNC milling

• Painting or surface finishing

Callout: Finishing steps help your casting look good and work well.

MATERIAL OPTIONS FOR SMALL BATCH URETHANE CASTING

TYPES OF POLYURETHANE MATERIALS

You can pick from different polyurethane materials for your small-batch urethane casting projects. Each type has special features and suits different uses. Here is a table to compare them:

Choosing the right material helps you make precise parts. It makes sure your project needs are met.

SELECTING MATERIALS BASED ON APPLICATION

Pick your material based on what your part needs to do. Think about these points:

• What the part must handle, like energy, tearing, or weight

• Environment, such as heat, moisture, UV light, or chemicals

• Looks, durability, and how much it costs

Flexible urethanes stretch a lot and resist tearing. They also dampen vibrations and work from -40°F to 200°F. Many specialty urethanes resist oils, greases, and mild solvents. Match the material to your low-volume needs.

Tip: Always choose a material that matches how your part will be used in real life.

MECHANICAL AND VISUAL PROPERTIES

Urethane casting makes parts with high detail and accuracy. You can see tiny features and smooth surfaces. Here are some benefits:

• Parts with fine details and good quality

• Great color and looks without extra work

• Better surface finish than injection molding or 3D printing

• Many hardness levels and textures

• Strong enough for many uses

• Can imitate both hard and soft materials

Urethane casting is perfect for small runs that need precision and a professional look. Your parts will be strong and attractive.

DESIGN GUIDELINES FOR SMALL BATCH PRODUCTION

DESIGN FOR LOW VOLUME MANUFACTURING

You need to follow some best practices when you design parts for urethane casting. These steps help you get strong, accurate, and easy-to-make parts:

• Keep your tolerances around ±0.015” or ±0.003 per inch. This helps your parts fit together well.

• Use a minimum wall thickness of 0.040” (1mm) for most parts. Thinner walls can work for small pieces.

• Add a draft angle of 3–5 degrees. This makes it easier to remove parts from the mold and keeps the mold in good shape.

• Design ribs to make your part stiffer. Ribs should not be taller than three times their width.

• Use bosses with a base radius about 25% of the wall thickness. Bosses help you attach or join parts.

• Keep wall thickness uniform. This prevents defects and makes your parts more stable.

Tip: Even a small draft angle, like one degree, can help you remove parts from the mold and reduce warping.

WALL THICKNESS AND STRUCTURAL DESIGN

Wall thickness plays a big role in how your part turns out. If you keep the walls even, your parts will cure better and last longer. Look at this table to see how wall thickness affects quality:

You should keep wall thickness between 1.5mm and 3mm. This range gives you strong parts without problems like sink marks. Add ribs to make your part stronger without making it heavier. Ribs help spread out stress and keep your part from bending.

COMMON DESIGN MISTAKES TO AVOID

You can avoid many problems by watching out for these common mistakes:

• Mixing materials in the wrong ratio can cause weak or sticky parts.

• Not mixing well enough leads to poor curing and surface issues.

• Guessing the amount of resin can make you run out during pouring.

• Making walls too thick or too thin can cause warping or breakage.

• Skipping draft angles makes it hard to remove parts from the mold.

Note: Careful planning and following these guidelines will help you get the best results from your small batch urethane casting project.

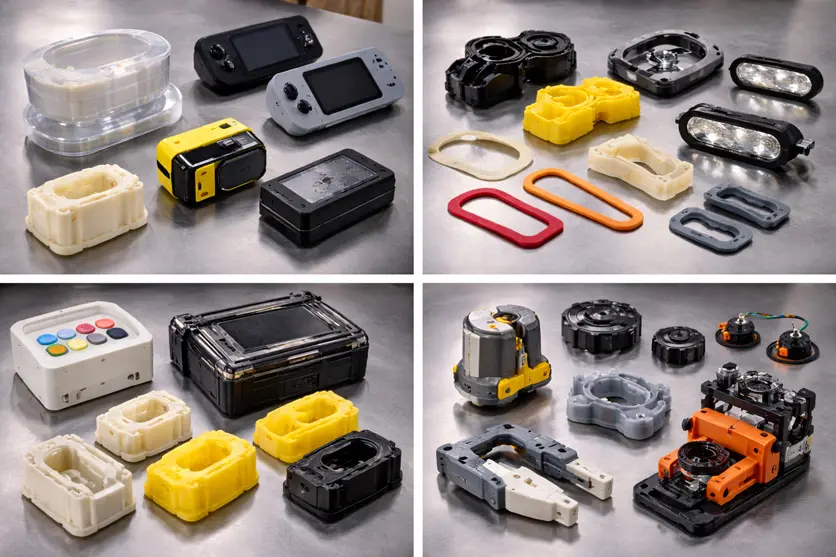

APPLICATIONS OF URETHANE CASTING IN SMALL BATCH PRODUCTION

CONSUMER PRODUCTS AND ELECTRONICS

Casting helps make many products and electronics. Vacuum casting lets you make parts for testing. You can get feedback from users. You can change your design fast. You can test new ideas before selling them. This process is good for items that must look nice. It also works for things that feel good in your hand.

Here is a table that shows common uses:

• Vacuum casting makes parts for testing with customers.

• You can change designs quickly for more tests or launches.

AUTOMOTIVE AND INDUSTRIAL PARTS

Vacuum casting helps make strong parts for cars and machines. You can use it to make prototypes and test models. It also works for spare parts. Many industries use casting for pilot production. They check designs before making lots of parts.

• You can make prototypes and models for cars and machines.

• Casting makes exhibition models and parts with different colors.

• You can test parts before making many.

• You can make spare parts with complex shapes.

Vacuum casting lets you check designs and make changes. It does not cost much. You can use it for small batches before bigger production.

MEDICAL AND ENGINEERING PROTOTYPES

Casting helps make medical devices and engineering prototypes. You can make custom parts for testing and fitting. It works for medical tools and prosthetics. You can make parts that fit a person or machine.

• You can make engineering prototypes for tests and design changes.

• Casting makes medical devices for user trials.

• You can make small batches for studies or pilot runs.

Tip: Casting lets you try new ideas and improve products. You can do this before making them in large numbers.

COST OF URETHANE CASTING SMALL BATCH PRODUCTION

TOOLING AND MOLD COST

You should know the costs before you start vacuum casting. First, you need a master pattern. You can make this with 3D printing or CNC machining. Next, you make silicone molds for casting. These molds copy all the details from the master pattern. The table below shows what you might pay for vacuum casting:

Tip: Using 3D printing for your master pattern can save money. This way works well for vacuum casting and keeps your costs down.

PER PART COST BASED ON QUANTITY

The cost for each part changes when you use vacuum casting. If you only make a few parts, each one costs more. This is because you pay for the mold and setup even if you make just one. If you make more parts, the cost for each part goes down. You spread the mold and setup costs over more pieces. Vacuum casting lets you get good parts without paying for mass production. You can use it for small batches and still get a good deal.

Note: Making more parts in each batch lowers the cost for each one. This makes vacuum casting a smart choice for small projects.

HOW TO OPTIMIZE LOW VOLUME PRODUCTION COST

There are ways to save money when you use vacuum casting for small batches:

• Make your process simple

• Manage your inventory well

• Use technology and machines to help

• Let other companies do jobs that are not your main work

• Always look for ways to get better

• Try to get good deals with suppliers

• Use value engineering

• Save energy when you can

• Try to make less waste

• Train workers to do more than one job

• Use standard and modular designs

• Spend money on research and new ideas

Vacuum casting gives you strong parts and less waste. You can make parts that last longer and keep your machines working. This helps you spend less on fixing or replacing things. Choosing vacuum casting helps you keep your business healthy. You can use it to make better parts and stop your machines from breaking down.

Callout: Good planning and better processes help you get the most out of vacuum casting for small batches.

URETHANE CASTING VS OTHER LOW VOLUME MANUFACTURING METHODS

When you need to make a small number of parts, you should compare different ways. You can look at how much each way costs, how fast you get your parts, and how good the parts are. This table shows how the methods are different:

URETHANE CASTING VS INJECTION MOLDING

Urethane casting is a good choice if you want parts quickly and do not want to spend a lot. Injection molding needs metal molds that cost a lot. You might wait weeks for the molds to be ready. With vacuum casting, you can get your parts in just a few days. You can also change your design without spending much more money. Urethane casting makes parts with fine details and strong shapes. Injection molding is better if you need thousands of parts, but it costs more at first. For small batches, vacuum casting saves you time and money.

Tip: Pick vacuum casting if you want to test your idea or make special parts before making a lot.

URETHANE CASTING VS CNC MACHINING

CNC machining cuts parts from a solid block. The parts are very exact, but the price goes up if you only need a few. Urethane casting lets you make many parts from one mold. The more you make, the less each part costs. Vacuum casting also gives you smooth surfaces and tricky shapes. CNC machining is best for metal parts or when you need very tight fits. For plastic parts and small batches, vacuum casting is usually faster and cheaper.

URETHANE CASTING VS 3D PRINTING

3D printing builds parts one layer at a time. You can make shapes that are hard to cut out. But the parts are not as strong as vacuum casting parts. Urethane casting gives you tougher parts that can handle more hits. The finish is also smoother. Vacuum casting is great when you want parts that look and feel like the real thing. You can use 3D printing to make the first model for casting. This makes the whole process even faster.

Note: Choose vacuum casting if you want strong, detailed, and nice-looking parts for small batches.

HOW TO CHOOSE A URETHANE CASTING MANUFACTURER

KEY CAPABILITIES AND EXPERIENCE

You need to pick a manufacturer who knows urethane casting well. Look for a company that has made many parts using casting. Check if they have worked with different shapes and sizes. Ask if they can handle both simple and complex projects. You want a team that understands how to make strong and detailed parts. Good experience means you get better results. A skilled manufacturer can help you avoid mistakes in custom part production.

Tip: Choose a manufacturer who can show you real examples of their urethane casting work.

QUESTIONS TO ASK SUPPLIERS

You should ask questions before you decide. Here are some important ones:

• How long have you done urethane casting?

• What types of casting projects have you finished?

• Can you make parts with special colors or finishes?

• How fast can you deliver small batches?

• What quality checks do you use for casting?

• Do you help with design changes if needed?

Write down the answers. Compare them with other suppliers. This helps you find the best fit for your project.

CUSTOM SMALL BATCH MANUFACTURING SERVICES

Many companies offer different services for urethane casting. Some only make simple parts. Others can help with design, mold making, and finishing. You should pick a supplier who can guide you from start to finish. Ask if they can make changes during the process. Good service means you get the parts you want. You also save time and money. Urethane casting works best when you have support at every step.

Note: The right partner makes urethane casting easy and helps you get the best results for your project.

SCALING FROM SMALL BATCH TO MASS PRODUCTION

BRIDGE PRODUCTION STRATEGY

You can use vacuum casting as a bridge between prototyping and mass production. This strategy helps you test your product in real-world conditions. You start with low-volume runs to check quality and gather feedback. You can make changes quickly if you see problems. Vacuum casting lets you produce parts that look and feel like final products. You avoid high costs and long waits for traditional tooling. Many companies use casting to fill the gap before switching to larger methods.

Tip: Bridge production gives you time to improve your design and build confidence before investing in mass production.

TRANSITION TO INJECTION MOLDING

When your demand grows, you may need to move from vacuum casting to injection molding. You can use casting to refine your design and fix issues. Once you see steady sales, you can invest in metal molds for injection molding. This method works best for thousands of parts. You get lower costs per unit and faster production. You can use your casting experience to make better molds and avoid mistakes. Vacuum casting helps you prepare for this step.

SUPPLY CHAIN AND QUALITY CONTROL

You must build a strong supply chain when you scale up. You can start with local suppliers for low-volume casting. As you grow, you may need global partners. You should set clear quality standards for every part. Vacuum casting gives you control over small batches. You can check each part for defects. When you switch to mass production, you must use strict quality checks. You can use your casting process to set benchmarks for quality.

Note: Good supply chain management and quality control help you deliver reliable products as you scale from casting to mass production.

GETTING STARTED WITH URETHANE CASTING SMALL BATCH PRODUCTION

PREPARING DESIGN FILES AND REQUIREMENTS

You begin by making clear design files for your project. Use CAD software to build 3D models of your parts. Your files should show all the details. This means wall thickness, draft angles, and special features. Save your files as STL or STEP formats. Write down what you want for your parts. List how many you need, the material, and any finishing you want.

Tip: Check your files for mistakes. Good files help you avoid problems when casting.

Here is a checklist for your design files:

• 3D CAD model (STL, STEP, or IGES)

• Wall thickness and draft angles

• Surface finish details

• Quantity needed

• Material choice

• Color or finishing requests

SELECTING A RELIABLE MANUFACTURER

You need to find a manufacturer who knows urethane casting. Look for companies with small batch experience. Ask them to show you samples of their work. Read reviews from other customers. Make sure they can handle your project size and needs.

Note: Good communication helps you fix problems quickly. A reliable manufacturer will help you at every step.

PROJECT TIMELINE AND EXPECTATIONS

Talk with your manufacturer to set your project timeline. Most urethane casting jobs take one to three weeks. The time depends on mold making, part shape, and finishing steps. Ask for a schedule before you start. Know when you will get samples and finished parts.

• Mold making: 2–5 days

• Casting and curing: 3–7 days

• Finishing: 2–5 days

Check in with your supplier to track progress. Clear timelines help you plan your product launch or tests.

Callout: Setting clear goals keeps your project moving and stops delays.

FAQ

WHAT IS SMALL BATCH PRODUCTION

Small batch production means you make a limited number of parts at one time. You do not need to set up a big factory or buy expensive machines. You can use vacuum casting or urethane casting to make these small runs. This method helps you test your ideas and get feedback before you make a lot of parts. You can change your design if you find a problem. Small batch production gives you more control and less risk.

HOW MANY PARTS IS LOW VOLUME MANUFACTURING

Low volume manufacturing usually means you make between 10 and 500 parts. You can use vacuum casting for this range. Urethane casting works well for these numbers because you do not need to spend much on molds. If you need only a few parts, you can use casting to save money and time. Many companies use low volume manufacturing to test products or fill small orders.

Note: If you need more than 500 parts, you may want to look at other methods.

IS URETHANE CASTING GOOD FOR SMALL BATCH PRODUCTION

Yes, urethane casting is a great choice for small batch production. You can make strong and detailed parts with vacuum casting. You do not have to wait long to get your parts. Urethane casting lets you try new designs and make changes quickly. Many industries use casting for prototypes, custom parts, and market tests.

HOW MUCH DOES SMALL BATCH PRODUCTION COST

The cost for small batch production depends on the number of parts, the size, and the material. Vacuum casting and urethane casting have lower setup costs than other methods. You pay for the master model, the silicone mold, and each part you make. If you make more parts, the cost for each one goes down. You can use casting to keep your budget low and still get high-quality parts.

Tip: Plan your project and talk to your supplier to get the best price for vacuum casting.

Urethane casting gives you fast, flexible, and affordable small batch production. You get strong parts with fine detail. You can test ideas before moving to mass production. This method works best for low volumes. Large runs may need other methods. Think about your project needs. Start by talking with a trusted manufacturer or doing more research.

Tip: Take the first step today. Urethane casting can help you bring your ideas to life.
