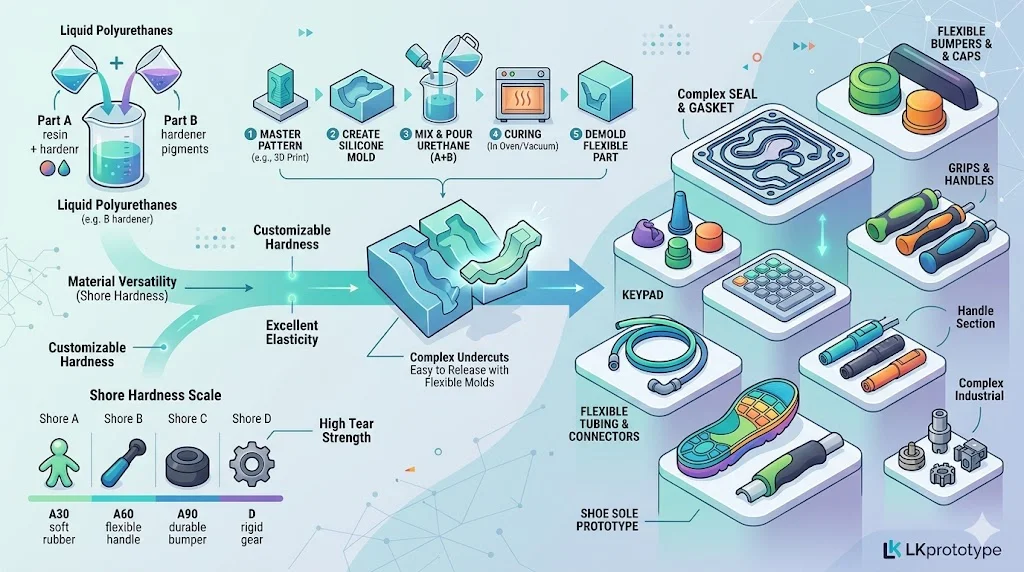

Urethane Casting Flexible Parts: Materials, Process & Rubber-Like Applications

Urethane casting flexible parts make soft shapes that feel like rubber. These parts have exact details. You use urethane casting to get good parts that bend and stretch. They can also take hits without breaking. The process lets you pour liquid urethane into molds. This makes flexible things fast. People pick urethane casting for small batches. It is used in cars, electronics, medical tools, machines, and airplanes. Flexible urethane materials are popular. They work for many jobs and stay strong for a long time.

Key Takeaways

• Urethane casting makes parts that bend like rubber. This process lets you make good parts fast. You do not need expensive metal molds.

• Pick the right urethane material for your part. Think about how flexible and strong it needs to be. Also, check if it can handle chemicals well.

• Silicone molds help you make small batches cheaply and quickly. This way is great for prototypes and testing new ideas. You do not spend a lot of money at first.

• You can change how flexible your parts are by picking the right Shore hardness. Lower numbers mean softer and bendier parts. Higher numbers make parts stronger and tougher.

• Always test your prototypes in real life. This helps you find the best materials and designs. You can make sure your parts work well before making many of them.

WHAT ARE URETHANE CASTING FLEXIBLE PARTS

WHAT IS FLEXIBLE URETHANE CASTING

Urethane casting helps you make parts that bend and stretch. These parts go back to their shape after you move them. The process makes soft things that feel like rubber. You use a master pattern to start. You can make this pattern with 3D printing or CNC machining. Then, you pour platinum silicone around the pattern. This forms a mold. When the mold is ready, you pour liquid polyurethane resin inside. The resin fills the mold and takes its shape. After the resin cures, you get flexible urethane castings. These look and feel like rubber.

Urethane casting uses soft silicone molds. You do not need hard metal molds like injection molding. This makes urethane casting good for small batches. It is also good for jobs that do not need many parts. You save money and time with this process. You get good parts fast. Urethane casting works better than 3D printing for soft parts. You do not need to do much work after making the part. You can make test parts and real parts without spending a lot on tools.

Tip: Urethane casting is fast and saves money for flexible parts.

DIFFERENCE BETWEEN FLEXIBLE AND RIGID URETHANE PARTS

You can pick flexible urethane castings or rigid ones. The main difference is the resin you use. Flexible parts use TDI-based resins. Rigid parts use MDI-based resins. Each type is good for different things.

Here is a table to show the differences:

You use flexible urethane castings for gaskets, bumpers, and seals. You use rigid ones for strong and steady parts. Flexible urethane castings can bounce and stretch. Rigid parts are strong and can take heat.

MATERIALS FOR URETHANE CASTING FLEXIBLE PARTS

TYPES OF FLEXIBLE URETHANE MATERIALS

There are many flexible materials you can use for urethane casting. Each one has its own special features. Some can stretch a lot before breaking. Others are good at not tearing or can handle heat well. The most common types are polyurethane, rubber-like resin, EPDM, silicone rubber, and thermoplastic elastomers (TPE). These materials help you make flexible parts for lots of different jobs.

Here is a table to show how much each material can stretch and how strong it is:

RUBBER LIKE URETHANE CASTING MATERIAL OPTIONS

Rubber-like materials are used in urethane casting to make soft and bendy parts. These materials feel a lot like real rubber. They are great for things like seals, gaskets, and grips that feel soft to touch. Some rubber-like urethane materials can stretch up to 600%. They do not tear or get holes easily. They also work in very cold or hot places, from -40°F to 200°F. Many of these materials do not get damaged by oils, greases, or mild solvents. You can use them for car bushings, shock absorbers, and flexible couplings.

CAST POLYURETHANE PROPERTIES AND PERFORMANCE

Cast polyurethane is known for being strong and lasting a long time. Parts made with it can last longer and work better than some rubber or plastic parts. Here are some important things to know:

• Abrasion resistance keeps your parts from wearing out fast.

• Chemical resistance helps your parts stay safe from oils and chemicals.

• Water resistance means your parts can be used in wet places.

• Temperature flexibility lets your parts work in hot or cold weather.

• You can make parts soft or hard by changing the formula.

• High load-bearing capacity means your parts can hold heavy things.

• High tensile strength keeps your parts from snapping.

• Tear resistance helps your parts last longer in tough jobs.

Tip: Cast polyurethane is a great choice because it is flexible, strong, and lasts a long time for many flexible part needs.

HOW TO SELECT THE RIGHT FLEXIBLE MATERIAL

Think about what you need your part to do. If you want a part that stretches a lot, pick a material that can stretch far. For parts that need to hold heavy things, choose one with high tensile strength. If your part will touch oils or chemicals, pick a material that does not get damaged by them. Always match the material’s features to what you need. Urethane casting lets you try different materials before you decide. This helps you get the best flexible parts for your job.

URETHANE CASTING PROCESS FOR FLEXIBLE PARTS

MASTER PATTERN AND SILICONE MOLD PREPARATION

To start, you make a master pattern. You can use 3D printing or CNC machining for this. The master pattern gives the part its shape and details. Next, pour silicone over the pattern to make a mold. The silicone mold copies every detail from the master. A good mold helps you get flexible parts that look great every time.

MIXING AND POURING FLEXIBLE POLYURETHANE

Mix the cast polyurethane resin with a curing agent. You must use the right amount of each. Mixing well makes the material smooth and even. If you do not mix enough, the part can have weak spots. After mixing, pour the liquid into the silicone mold. This step shapes the urethane casting and gives it the final look and feel.

Tip: Mix slowly and pour carefully. This helps you avoid bubbles and get the best results from your cast polyurethane.

VACUUM CASTING FOR DEFECT FREE ELASTOMER PARTS

Vacuum casting helps you make flexible parts without defects. Put the filled mold in a vacuum chamber. The vacuum pulls out air bubbles from the urethane. This step makes the parts smooth and strong. You can stop problems like bubbles, sink marks, warping, and cloudy surfaces by using the right steps.

CURING AND FINISHING FLEXIBLE URETHANE PARTS

After pouring, let the cast polyurethane cure. You can cure it at room temperature or use an oven to go faster. The time and heat you use change how the part turns out. When it is cured, take the part out of the mold. You might need to trim or finish the edges. Good finishing keeps your urethane casting looking nice and working well. Many engineers pick cast polyurethane because it works well and looks smooth. Urethane casting lets you make flexible parts that are high quality and repeatable.

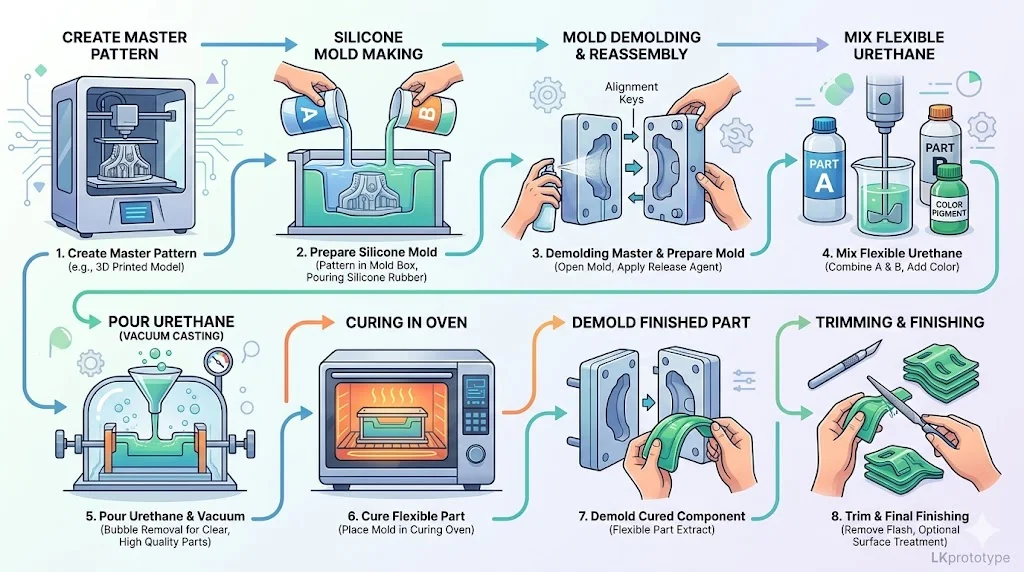

STEP BY STEP FLEXIBLE URETHANE CASTING PROCESS

DESIGN CONSIDERATIONS FOR FLEXIBLE PARTS

When you design flexible parts, you must think about many things. Good design helps your cast polyurethane parts stay strong and work well. You should talk to mold designers so your part fits in the mold. Always plan for venting to stop bubbles or empty spots. Pick the right tolerances so you do not waste money. Choose if you want a smooth or rough surface. Add features that make it easy to put parts together, like snap-fits. Use mold release agents so your part comes out of the mold easily. Plan for trimming or other steps after casting. Test your prototype before making lots of parts. Talk with urethane casting experts to learn the best ways to do things.

Here is a table to help you remember important design steps:

Tip: Use dowel pins for holes that go all the way through. Keep wall thickness the same everywhere. Add draft angles so parts come out of the mold easily.

SHORE HARDNESS SELECTION IN URETHANE CASTING

Shore hardness tells you how soft or hard your part is. Lower Shore hardness means your part is soft and bends easily. Higher Shore hardness means your part is harder and can hold more weight. You must pick the right Shore hardness for your job. If you need your part to bend, choose a lower value. For strong parts that hold weight, pick a higher value.

• Lower Shore hardness = more bending and absorbs hits.

• Higher Shore hardness = more strength and lasts longer.

CONTROLLING FLEXIBILITY AND ELASTICITY

You control flexibility and elasticity by picking the right material and Shore hardness. If you want your part to stretch and bounce back, use a soft material. For a stiff part, use a harder resin. Always test your part to see if it bends and goes back to shape. This helps you get the best results from your urethane casting.

SURFACE FINISHING FOR SOFT PARTS

Surface finishing makes your flexible parts look and feel better. After you take the part out of the mold, trim off extra material. You can sand or polish the surface to make it smooth. Sometimes, you add coatings for better grip or protection. Good finishing helps your urethane casting last longer and work better when used.

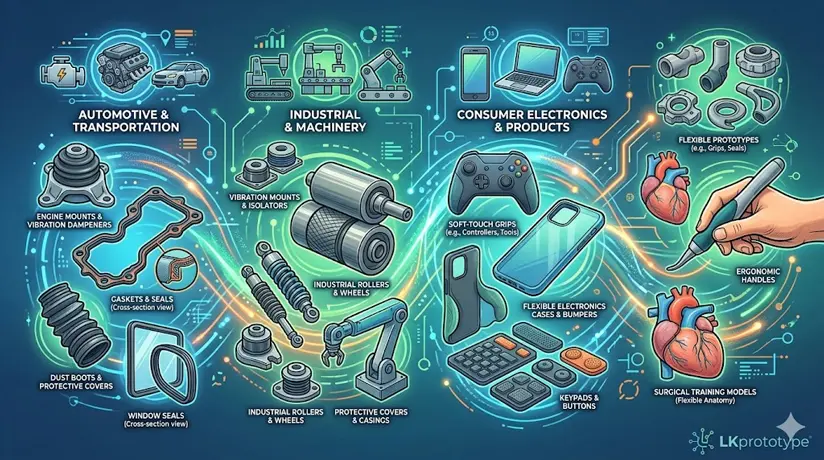

APPLICATIONS OF RUBBER LIKE URETHANE CASTING

INDUSTRIAL AND AUTOMOTIVE FLEXIBLE COMPONENTS

Cast polyurethane is used in many car and factory parts. These parts need to bend and stay strong. Urethane casting makes tough parts that last a long time. Some common uses are:

• Car bushings and mounts

• Shock absorbers and vibration isolators

• Flexible couplings and bellows

• Seals and gaskets

• Suspension bushings and control arm mounts

• Engine and transmission mounts

• Bump stops and jounce bumpers

• Rack and pinion bushings

• Steering column parts

• Interior trim and soft-touch surfaces

These urethane parts help make machines quieter. They also soak up bumps and help cars work better. Cast polyurethane is good for parts that must bend or take hits again and again.

CONSUMER PRODUCT AND ELECTRONICS APPLICATIONS

Cast polyurethane is also used in things people use every day. You can find these flexible parts in many products at home. They help make things safer and softer to touch. Some examples are:

• Soft-touch surfaces for consumer goods

• Protective phone cases and wearables

• Device housings for home appliances and TVs

Cast polyurethane is stretchy and does not tear easily. It also helps protect your devices from drops. These features help your electronics last longer and feel nice to use. If you want strong and easy-to-use products, cast polyurethane is a good pick.

REAL WORLD EXAMPLES OF FLEXIBLE PROTOTYPE PARTS

Cast polyurethane is great for making test parts before mass production. Engineers use these flexible parts to try out new ideas. For example, you can make a test car bushing or a soft kitchen tool grip. These prototypes let you check if the part fits and works well. You can see how your design acts in real life. If you need to change something, you can do it fast and get better results.

Tip: Try cast polyurethane for test parts. It helps you save time and money while checking your ideas.

ADVANTAGES OF URETHANE CASTING FLEXIBLE PARTS

BENEFITS OVER TRADITIONAL RUBBER AND SILICONE

You get many benefits when you choose urethane casting instead of traditional rubber or silicone. Urethane casting gives you high-quality parts with better detail and smoother surfaces. You can make parts that last longer and resist wear. Urethane parts often show better performance in tough jobs. They handle stretching, bending, and even strong impact without breaking. You can also change the formula to match your needs. This means you can get soft or hard parts from the same process.

Note: Urethane casting lets you make parts that look and feel just like production items. You do not need to wait for expensive metal molds.

COST ADVANTAGES FOR LOW VOLUME PRODUCTION

If you need only a small number of parts, urethane casting saves you money. You do not have to pay for hard tooling or big machines. Silicone molds cost less and you can use them many times. This makes urethane casting perfect for prototypes or short runs. You can test your ideas without spending too much. You get high-quality parts fast and at a lower price.

Here is a quick comparison:

FAST TURNAROUND FOR FLEXIBLE PROTOTYPES

You can move quickly from design to finished part with urethane casting. The process takes only a few days. You do not have to wait weeks for tools or molds. This speed helps you test and improve your designs faster. You can see how your part works and check its performance right away. If you need to change something, you can do it without delay. Fast turnaround means you can react to problems and get high-quality parts that meet your needs.

Tip: Use urethane casting when you want to see the real impact performance of your design in a short time.

LIMITATIONS OF FLEXIBLE URETHANE CASTING

DURABILITY AND LONG TERM PERFORMANCE

Flexible urethane parts are good for many jobs, but they do not last forever. After a while, you might see cracks or the part may not bend the same way. Sunlight and water can make the material weaker over time. Stretching the part again and again also makes it wear out. If you need a part to last for years, you should test it first. Some urethane parts can lose their shape or get sticky after being used a lot. It is smart to check your parts often if you want them to keep working well.

TEMPERATURE AND CHEMICAL RESISTANCE LIMITS

Flexible urethane parts cannot take very high heat. Most start to break down if they get hotter than 120 °C. If you use them near engines or ovens, they might melt or get weak. Strong acids or bases can also hurt urethane parts. Oils and mild solvents are usually safe, but you should always check what the material can handle. If your part needs to work in very hot places or with harsh chemicals, you may need a different material.

Note: Always make sure the material matches where you will use it. This helps you avoid problems and early failure.

WHEN NOT TO USE FLEXIBLE URETHANE CASTING

Sometimes, flexible urethane casting is not the best choice. If you need hundreds or thousands of parts fast, the slow curing time will slow you down. Urethane parts do not last long in very hot places. Humidity and air bubbles can also cause problems if you cannot control the air.

Here is a table to help you know when to pick something else:

Think about these limits before you choose urethane casting. Picking the right method will help your project work out better.

COST OF URETHANE CASTING FLEXIBLE PARTS

TOOLING AND SILICONE MOLD COSTS

When you start with urethane casting, you need a mold. Silicone molds are much cheaper than metal molds used in injection molding. You can expect to pay between $250 and $1,500 for a silicone mold. The price depends on how complex your part is and what materials you choose. Silicone molds are also faster to make. This helps you save both time and money, especially if you only need a small number of parts. If you compare this to injection molding, you will see that metal tools can cost tens of thousands of dollars. For most projects, silicone molds make urethane casting a smart choice for prototypes and low-volume runs.

Tip: Choose silicone molds if you want to keep your project affordable and move quickly from design to finished part.

MATERIAL AND PRODUCTION COST FACTORS

Several things affect how much you will pay for flexible urethane casting. You should think about these main factors:

• Material Selection: Softer or harder materials can change the price. Special features like extra flexibility may cost more.

• Design Complexity: Simple shapes cost less. If your part has lots of details, the mold will cost more.

• Production Volume: Making more parts can lower the cost per part. Small batches cost more for each piece.

• Mold Creation Expenses: The type of mold you pick, like silicone or metal, changes the total cost.

You can use this list to plan your budget and pick the best options for your project.

TYPICAL PRICE RANGE FOR FLEXIBLE PARTS

You might wonder how much you will spend on flexible urethane parts. Here is a quick look at the typical price range:

Most small projects use silicone molds and cost much less than injection molding. You can get high-quality flexible parts without spending a lot. If you need only a few parts, urethane casting gives you the best value.

Note: Always ask for a quote based on your design and how many parts you need. Prices can change with each project.

COMPARING URETHANE CASTING WITH OTHER METHODS

RUBBER MOLDING VS URETHANE CASTING FLEXIBLE PARTS

You can pick rubber molding or urethane casting for flexible parts. Rubber molding uses a lot of heat and pressure. It needs metal molds, which are expensive and slow to make. This method is best if you need many parts fast. You can get thousands of parts quickly with rubber molding. Urethane casting uses silicone molds instead. These molds are cheaper and faster to make. Urethane casting is good for small batches and testing new ideas. You can change your design easily. The parts have smooth surfaces and fine details.

Tip: Use rubber molding for lots of parts. Pick urethane casting for testing and small batches.

3D PRINTING VS FLEXIBLE POLYURETHANE CASTING

You can use 3D printing or urethane casting to make flexible test parts. 3D printing makes parts in just a few hours. You can try out ideas quickly. You do not need any molds for this method. You can make up to 100 parts, but the quality goes down if you make too many. Urethane casting starts with a 3D printed master part. You make a silicone mold from this master. Each mold can make about 20 parts. Urethane casting gives you smoother parts and better quality for small or medium amounts.

Here is a table to help you compare:

Note: Try 3D printing for fast tests. Use urethane casting if you want better parts and more of them.

WHEN TO CHOOSE ELASTOMER PROTOTYPE CASTING

Pick elastomer prototype casting if you need flexible parts that feel like rubber. This way is great for trying out new designs. You can change shapes and features without spending a lot. Urethane casting works well if you need up to a few hundred parts. The parts look and feel like real products. If you want to see if your part fits or works, elastomer casting gives you real results.

• Use elastomer casting for:

  • Flexible seals and gaskets

  • Soft-touch grips

  • Vibration dampers

  • Automotive bushings

Tip: Elastomer prototype casting helps you turn your idea into a real part fast and without spending too much.

TIPS FOR IMPROVING FLEXIBLE URETHANE PART QUALITY

HOW TO CONTROL SHORE HARDNESS ACCURATELY

You can control Shore hardness by following a few clear steps. Start by thinking about what your part needs to do. This helps you choose the right hardness range. Next, find a real-world object that feels like what you want. Compare your sample to this object. Look at how your part will touch or move with other parts. This step helps you pick the best material. Always talk to your manufacturing partner. They can give you advice about which polyurethane resin works best for your project.

1. Define the primary function of your part.

2. Find a real-world object for comparison.

3. Consider the mating parts and how they interact.

4. Consult your manufacturing partner for expert advice.

Tip: Testing samples with different Shore hardness values helps you see what works best before making many parts.

HOW TO AVOID DEFECTS IN SOFT CASTING

Defects can lower the quality of your flexible urethane parts. You can avoid bubbles by mixing the resin slowly and pouring it carefully. Use a vacuum chamber to pull out trapped air. Keep your molds clean and dry. Always measure your materials with care. If you see cloudy spots or rough edges, check your mold for dirt or damage. Store your materials in a cool, dry place to keep them fresh.

• Mix resin slowly to reduce bubbles.

• Use a vacuum chamber for bubble-free parts.

• Clean molds before every use.

• Measure materials with care.

• Store materials in a dry, cool area.

BEST PRACTICES FOR FLEXIBLE PART DESIGN

Good design makes your flexible urethane parts last longer and work better. Keep wall thickness even to stop weak spots. Add draft angles so parts come out of the mold easily. Use rounded corners instead of sharp ones. Plan for trimming or finishing after casting. Test your design with a prototype before making many parts. These steps help you with improving flexibility and getting the best results.

Note: Simple changes in design can make a big difference in part quality and performance.

FAQ

WHAT IS THE BEST MATERIAL FOR FLEXIBLE URETHANE CASTING

You have many choices for flexible urethane casting. Polyurethane is the most popular. It gives you a good mix of stretch, strength, and durability. If you want a part that feels like rubber, pick a rubber-like polyurethane. Some brands offer special formulas for extra softness or toughness. Silicone-based urethanes work well if you need high heat resistance. Always match the material to your part’s job.

Tip: Ask your supplier for samples. Test them to see which one fits your needs best.

HOW FLEXIBLE CAN URETHANE CASTING BE

Urethane casting can make very flexible parts. Some materials stretch up to 600% before breaking. You can choose soft grades that bend and twist easily. Shore A 30 feels like a rubber band. Shore A 90 feels much firmer, like a car tire. You control flexibility by picking the right Shore hardness.

IS URETHANE BETTER THAN RUBBER FOR PROTOTYPES

Urethane works better than rubber for most prototypes. You get parts faster and at a lower cost. Urethane casting gives you smooth surfaces and sharp details. You can change the design easily. Rubber molding takes longer and costs more for small batches. Urethane also lets you test different hardness levels without new molds.

Note: Use urethane for quick tests and design changes. Pick rubber only for very high-volume runs.

HOW LONG DO FLEXIBLE URETHANE PARTS LAST

Flexible urethane parts last a long time if you use them right. Most parts work well for months or even years. Sunlight, heat, and chemicals can make them wear out faster. If you use them indoors and keep them clean, they stay strong longer. Always check your parts for cracks or changes in feel.

• Store parts away from sunlight.

• Keep them dry and clean.

• Replace them if you see damage.

CONCLUSION

You now know how urethane casting helps you make flexible parts that look and feel like rubber. This process gives you many choices for materials, so you can match the right one to your project. You learned how to pick between soft and hard urethane, and how to control the flexibility of your parts. The steps are simple: design your part, make a master pattern, create a silicone mold, pour the urethane, and finish the part. Each step lets you keep control over the quality.

Urethane casting works best when you need small batches or prototypes. You do not need to spend a lot on tools or wait for weeks. You can test your ideas fast and make changes without much cost. The parts you make have smooth surfaces and fine details. They work well in cars, electronics, and many other products.

Tip: Always test your flexible parts in real-world conditions before making many of them. This helps you find the best material and design for your needs.

Here is a quick checklist to help you get started:

• Decide what your part needs to do (stretch, bend, hold weight).

• Choose the right urethane material and Shore hardness.

• Work with experts to design your mold and part.

• Test a prototype before making more parts.

• Check your parts for quality and fit.

If you want strong, flexible parts for your next project, urethane casting gives you a smart and cost-effective way to get there. Reach out to a casting expert or supplier to discuss your design and see samples. You can turn your idea into a real, working part in just a few days.

You now understand how urethane casting lets you create flexible parts with many material choices. This process gives you strong, rubber-like parts for many uses. You get fast results and save money on small batches. If you want to start, talk to a casting expert or request samples. Test your design and see how flexible urethane parts can help your project succeed.

Tip: Make a checklist of your needs before you contact a supplier. This helps you get the best results.
