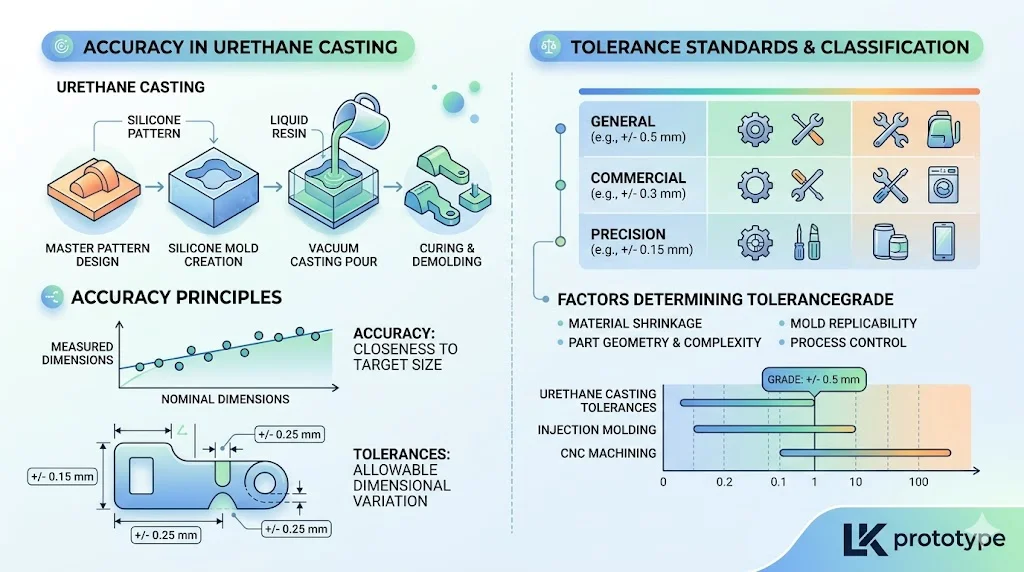

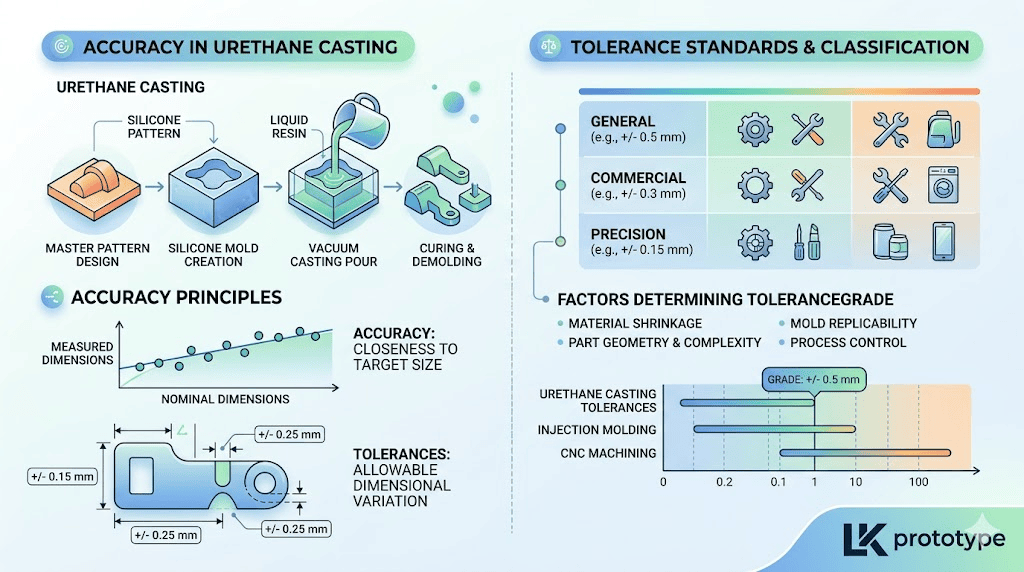

Urethane Casting Tolerances: Accuracy, Standards and Design Guide

When you use urethane casting, understanding urethane casting tolerances is essential. Tolerances can significantly impact how your part functions and fits. Even minor measurement variations can lead to substantial differences.

Here is a quick look at common polyurethane tolerance values:

Being knowledgeable about urethane casting tolerances helps you save money and work more efficiently. A solid design guide enables you to create accurate polyurethane parts. If you want your parts to turn out well, you need to understand polyurethane, design choices, and process controls. All of these factors influence your finished product.

• You can use this information to produce better polyurethane parts.

• You will recognize the importance of standards and clear design steps for every polyurethane project.

Key Takeaways

• Learn about urethane casting tolerances so parts fit right and work well.

• Follow a design guide to set clear size rules for your polyurethane parts.

• Keep the environment steady during casting to make parts more exact and have fewer mistakes.

• Work with skilled suppliers to get the best results and stop errors.

• Always check your parts after casting to make sure they meet the needed tolerances.

URETHANE CASTING TOLERANCES OVERVIEW

WHAT ARE URETHANE CASTING TOLERANCES

If you use polyurethane casting, you need to know about urethane casting tolerances. These tolerances tell you how much your part’s size can change. You want your parts to fit and work right, so you must know the limits for each measurement. Polyurethane casting uses silicone molds to turn liquid polyurethane into solid parts. This process can make detailed shapes, but small size changes can happen. Always check the rules for cast urethane tolerances before you start your project.

TYPICAL VACUUM CASTING TOLERANCES AND RANGES

Vacuum casting helps you make polyurethane parts with good accuracy. The table below shows common tolerances and sizes for polyurethane casting:

Use these guidelines when you plan your polyurethane casting project. They help you set good goals for your part’s size and shape.

URETHANE CASTING DIMENSIONAL ACCURACY EXPLAINED

You measure dimensional accuracy by checking the finished part against your original design. Many things affect how close your polyurethane part matches your drawing:

• Mold creation: The mold’s material and how complex it is can change the final size.

• Design complexity: More detailed designs may need more exact molds.

• Material selection: Different polyurethane types can shrink or grow in different ways.

Follow the guidelines for polyurethane casting to get the best results. When you know how tolerances and dimensions work, you can make better choices for your project. Polyurethane casting lets you be flexible, but you must plan well to get the accuracy you want.

STANDARD TOLERANCE VALUES IN URETHANE CASTING

GENERAL TOLERANCE RANGE (MM AND %)

Before you start, you should know the general tolerances for polyurethane casting. Polyurethane casting is flexible, but you need to follow rules to get the right size. Most small parts have a tolerance of ±0.3 mm if they are under 100 mm. Bigger parts use a percentage, usually ±0.3% of the size. These general tolerances help you set good goals for your part’s size. You can use these numbers to see if your part will fit and work right.

Tip: Always look at the rules for your polyurethane material. Some types shrink more, so your part size might change.

LINEAR AND ANGULAR TOLERANCES

You need to think about both linear and angular tolerances when you design your polyurethane casting parts. Linear tolerances control straight lines, and angular tolerances control the angles between surfaces. Most projects use linear tolerances like ±0.010” or ±0.003” for each inch. Angular tolerances are not always listed, so ask your supplier if you need exact angles.

This table helps you compare tolerances for different features. Polyurethane casting lets you make accurate parts, but you need to plan your sizes carefully.

TOLERANCE DIFFERENCES BASED ON PART SIZE

The size of your part changes what tolerances you can get with polyurethane casting. Small parts usually have tighter tolerances, like ±0.2 mm for wall thickness or holes. Bigger parts need wider tolerances because polyurethane can bend or shrink more. For parts over 500 mm, you might see tolerances of ±0.4% of the size. You should check the rules for each size to make sure your part will work.

• Small parts: tighter tolerances, less shrinkage

• Large parts: wider tolerances, more shrinkage

Polyurethane casting gives you many choices, but you need to match your design to the right tolerance range. Always measure your part after casting to make sure it is accurate.

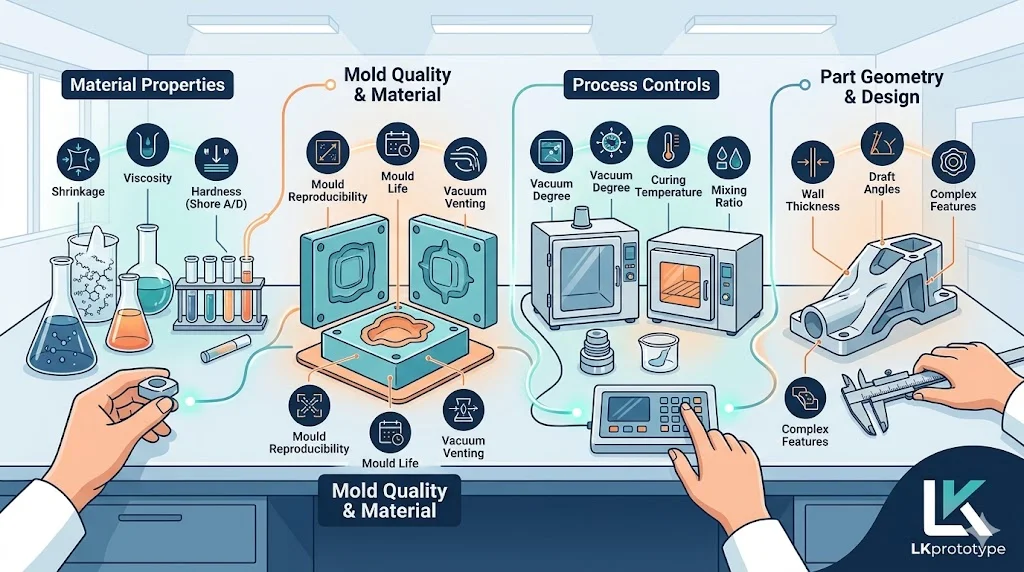

KEY FACTORS AFFECTING CASTING DIMENSIONAL ACCURACY

MATERIAL SHRINKAGE AND RESIN BEHAVIOR

You must watch material shrinkage and resin behavior closely. Polyurethane casting usually shrinks about two percent when curing. This shrinkage changes the final size of your part. Different resins can shrink in different ways. This affects the tolerances you get. If you ignore shrinkage, your parts may not turn out right. Always check which resin you use. Plan your design so it allows for some size change.

SILICONE MOLD QUALITY AND TOOLING PRECISION

Silicone mold quality and tooling precision are very important. If your mold is smooth and shaped well, your parts will fit your design. Bad mold quality can change the surface and size of your parts. Tooling precision helps capture every detail in your part. You should check molds for problems. Make sure the tooling matches what you need. A good mold lowers the chance of errors. It helps you get the same results every time.

PART GEOMETRY AND WALL THICKNESS

Part geometry and wall thickness affect how your casting turns out. Walls that are the same thickness cool and shrink evenly. This lowers the risk of warping. Walls with different thicknesses can cause stress inside the part. This can lead to errors in size. Large flat surfaces may bend or sag while curing. Features without support can change shape under their own weight. Try to keep walls at least 1 mm thick. Smaller parts can have walls as thin as 0.5 mm. Keeping wall thickness steady helps stop deformation and keeps variation low.

ENVIRONMENTAL CONDITIONS AND PROCESS CONTROL

Environmental conditions and process control matter a lot for tight tolerances. Room temperature and humidity change how resin flows and lasts. Mold temperature affects how resin moves and cures. Keeping temperature and pressure steady helps stop bubbles and makes surfaces better. Pouring speed and vacuum level help remove air and stop bubbles. Cure time and post-cure settings change how strong and stable your part is. You must control these things to avoid errors and make sure your parts meet your goals.

Tip: Always check your process settings and environment. Small changes can make a big difference in your polyurethane casting results.

TOLERANCE COMPARISON WITH OTHER MANUFACTURING METHODS

URETHANE CASTING VS CNC MACHINING

You may wonder how polyurethane casting and CNC machining are different. Polyurethane casting lets you make many shapes and sizes. CNC machining is very exact. CNC machining can make parts with tolerances like injection molding. Polyurethane casting tolerances change with the material, size, and shape of the part. CNC machining starts with a block of metal or plastic and cuts it into shape. This method gives you tight tolerances and parts that are the same every time. If you need parts with very close sizes, CNC machining is a good choice. Polyurethane casting is best for making a few parts or testing ideas.

Note: CNC machining can make parts with tolerances as close as ±0.002 inches. Polyurethane casting usually has tolerances around +0.015 inches.

URETHANE CASTING VS INJECTION MOLDING

Polyurethane casting and injection molding both use molds, but their tolerances are not the same. Injection molding gives you tighter tolerances. Polyurethane casting is easier if you want to change your design. The table below shows how their tolerances compare:

Injection molding can make parts with tolerances as close as +0.001 inches. Polyurethane casting is good for prototypes and custom parts. If you need very exact parts, injection molding is the better choice.

URETHANE CASTING VS 3D PRINTING

Polyurethane casting and 3D printing both help you make detailed shapes. Polyurethane casting gives you smoother surfaces and more stable sizes. 3D printing tolerances can be very different. You may get less exact parts with 3D printing, especially if the part is big. Polyurethane casting is better if you want the same results every time. If you need parts with steady measurements, pick polyurethane casting.

• Polyurethane casting tolerances are about +0.015 inches.

• 3D printing tolerances change with the printer and material.

• Polyurethane casting gives you better accuracy for most jobs.

You can use polyurethane casting for testing, small groups of parts, and special designs. It gives you choices and good tolerances for many uses.

IMPORTANCE OF TOLERANCES IN URETHANE CASTING

FIT AND FUNCTION IN ASSEMBLY PARTS

It is important to watch tolerances when using polyurethane casting. Tolerances help parts fit together the right way. If you do not use tolerances, parts might not fit. You could have mistakes or need to fix your work. Polyurethane casting lets you make many shapes, but you must set clear size limits. When you follow urethane casting tolerances, your parts work as planned. Parts need the right shape to work well. Bad tolerances can cause problems, especially where safety matters.

• Tolerances help parts fit and stop mistakes.

• They are needed for parts to work well.

• Bad tolerances can cause problems, especially in important jobs.

IMPACT ON PRODUCT PERFORMANCE

Polyurethane casting changes how your product works. If you control tolerances, your parts work better and last longer. Tight tolerances help parts move, seal, or connect as they should. You can stop leaks, jams, or weak spots. Polyurethane casting lets you make tricky shapes, but you must check each part’s size. When you manage tolerances, your product is stronger and more reliable. You also keep your design working as it should.

Tip: Always test your polyurethane parts in real life to make sure they work.

QUALITY CONTROL AND CONSISTENCY

Quality control is important in every polyurethane casting job. You want good parts every time. Tolerances help you check each part. If you set clear rules, you find mistakes early and fix them. Polyurethane casting gives you many options, but you must watch each step to keep quality high. When you control tolerances, people trust your work and you deliver parts that meet your needs.

INDUSTRY STANDARDS FOR URETHANE CASTING TOLERANCES

ASTM AND ISO TOLERANCE GUIDELINES

ASTM and ISO standards help guide your polyurethane casting work. These groups make rules for measuring and checking tolerances. ASTM standards help you check if your polyurethane parts are good. ISO guidelines show how to test and write down measurements. If you follow these rules, your parts will be better and more consistent. You also make sure your parts meet what the industry wants. Use these guidelines in your design to help your parts fit and work every time.

Tip: Always ask your supplier if they use ASTM or ISO standards for polyurethane casting tolerances.

MANUFACTURER TOLERANCE CHARTS

Manufacturers give charts that show what tolerances you can expect. These charts help you plan your design and set good goals. You will see numbers for wall thickness, hole size, and part size. Small parts usually have tighter tolerances. Bigger parts have wider tolerances. You can use these charts to compare suppliers and pick the best one. If you want good quality, check these charts before starting.

• Charts show the best tolerance for the first inch: 0.005 in (0.127 mm)

• Cumulative tolerance for each inch: 0.003 in (0.0762 mm)

• Tolerance values change with part size and how complex it is

CUSTOM TOLERANCE REQUIREMENTS

Sometimes you need special tolerances for your project. You should talk to your supplier about these needs before you start. Custom tolerances help you get the fit and function you want. Some parts need tight tolerances, while others can have more flexible ones. Talking clearly helps you get better quality and fewer mistakes.

If you set custom tolerances, your polyurethane parts will work better. You also make sure your design fits and works as you planned.

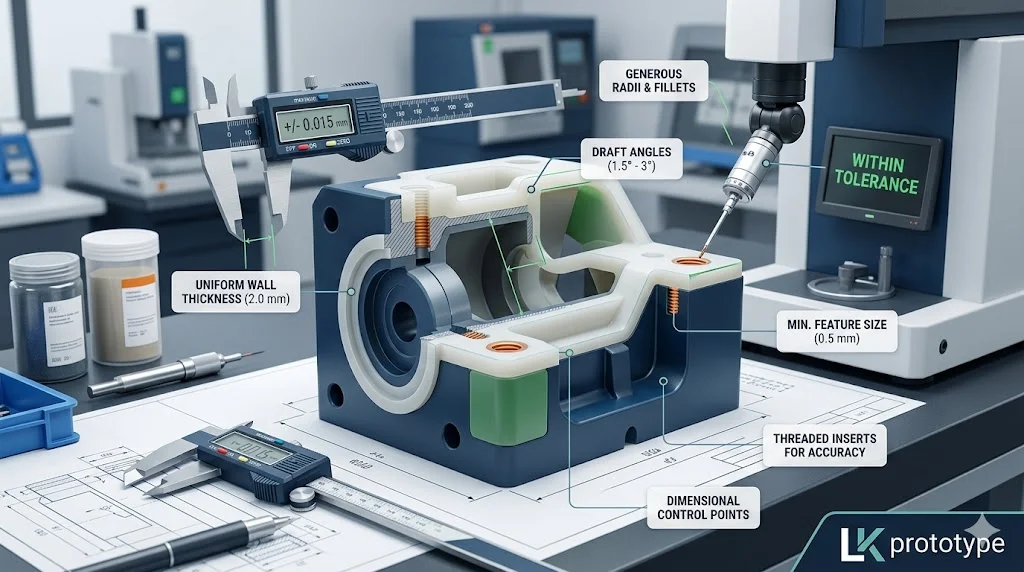

URETHANE CASTING DESIGN GUIDE FOR ACCURACY

WALL THICKNESS AND MINIMUM DESIGN LIMITS

You should follow design rules for urethane casted parts. Polyurethane casting works best with walls that are the same thickness. Try to make walls at least 0.75 mm thick so the mold fills well. For stronger parts, use walls that are 1.5 mm or thicker. Keeping wall thickness steady helps your part stay strong and stops warping. If walls are too thin, your part might break or have defects. Small polyurethane parts need walls at least 0.20 inches thick. Bigger parts should have walls at least 0.40 inches thick. Most projects use walls between 0.80 and 0.150 inches thick.

• Make wall thickness the same for good results.

• Do not change thickness suddenly to avoid problems.

• Use thicker walls for bigger polyurethane parts.

DRAFT ANGLES AND FILLET RADII

Draft angles help you take parts out of the mold easily. Add a draft angle of 1 to 2 degrees to all vertical sides. This makes the casting process easier. Fillet radii make corners rounded and lower stress. Rounded corners help polyurethane flow better. They also make parts stronger and stop cracks.

RIBS, BOSSES AND INSERTS DESIGN

Ribs make thin walls stronger in polyurethane casting. Make ribs thinner than the main wall to stop sink marks. Bosses hold fasteners and help put parts together. Put bosses where walls are thick enough. If you use inserts, design them so they stay in place. Plan for ribs, bosses, and inserts early in your design.

THREADS, HOLES AND CUTOUT CONSIDERATIONS

You can add threads, holes, and cutouts to polyurethane parts. Use bigger tolerances for these features. Small holes may need wider tolerances because molds have limits. Put holes away from thin walls to keep parts strong. For threads, use post-processing to get better accuracy.

SURFACE DETAILS AND ENGRAVING LIMITATIONS

Polyurethane casting lets you add surface details and engravings. Fine details may not always show up well. Keep text and logos simple and bold. Do not use very small or deep engravings. This tip helps you get clear and easy-to-read features.

Tip: Always check these important design rules before you start your polyurethane casting project. Using a good design guide helps you get the best urethane casting tolerances and reliable parts.

MATERIAL AND FINISHING IMPACT ON TOLERANCES

POLYURETHANE MATERIAL SELECTION

You have to pick the right polyurethane for your project. Polyurethane casting gives you lots of choices for materials. Each kind of polyurethane acts in its own way. Some types are soft and bendy. Others are hard and strong. The material you choose changes how much your part shrinks and how steady it stays. If you want tight urethane casting tolerances, pick a polyurethane that fits your needs. Ask your supplier which polyurethane is best for your part. You get better results if you use a material that does not shrink much and stays stable.

SHRINKAGE AND DIMENSIONAL STABILITY

Shrinkage happens when the part cools down and gets hard. Polyurethane casting always has some shrinkage. Shrinkage is the difference between the mold size and the finished part. You see more shrinkage if your part has thick walls or walls with different thicknesses. Thick walls cool slower than thin walls. This can make sunken spots in your part. To lower shrinkage, keep rib thickness between half and a little more than half of the wall thickness. A shrinkage rate of 0.15% is normal for polyurethane casting. If you see more shrinkage, you might need to change your mold design. Shrinkage depends on the material, how long it cures, the temperature, and the pressure. You must plan for shrinkage to keep your parts the right size.

Note: Polyurethane casting tolerances help you allow for shrinkage and keep your parts the right size.

POST PROCESSING EFFECTS ON ACCURACY

Post processing changes the final size and shape of your polyurethane parts. Sometimes, you need to trim or finish your parts to meet your design tolerances. Grinding and sanding can take away extra material. These steps help you get the right fit and look. If your part is not the size you want after molding, post processing can fix it. Polyurethane casting lets you use post processing to make your parts more accurate. You must check your parts after each step. Trimming and finishing help you reach your goals for tolerances and quality.

You can use post processing to make sure your polyurethane parts match your design. Always measure your parts after finishing to check if they are right.

HOW TO ACHIEVE TIGHT URETHANE CASTING TOLERANCES

DESIGN OPTIMIZATION FOR PRECISION

You can get better polyurethane casting results by improving your design. Make sure wall thickness is the same everywhere. This helps the polyurethane fill the mold and harden well. Try not to use sharp corners. Use rounded edges to stop cracks and lower stress. Add draft angles so you can take parts out of the mold easily. Keep ribs and bosses simple and put them where they help the part. If you want tighter tolerances, plan for them when you start your design. Talk with your supplier about what you need. They can help you change your drawings so your parts fit better.

Tip: Make a prototype to test your design. This helps you find and fix problems before you make lots of parts.

PROCESS CONTROL IN VACUUM CASTING

You need to control each step in polyurethane casting to get accurate parts. Keep the room temperature and humidity the same. Use clean molds and tools every time. Measure and mix the polyurethane carefully. Pour the resin slowly and at the right speed. Use a vacuum to pull out air bubbles. Let the part cure for the right amount of time. Check every part after casting. Good process control helps you get the tolerances you want and stops mistakes.

WORKING WITH EXPERIENCED MANUFACTURERS

You should pick skilled manufacturers for the best polyurethane casting results. They know how to make tricky shapes and keep tight tolerances. Share your drawings and goals with them. Ask them for tips on picking materials and making molds. Good suppliers check quality at every step. They help you avoid mistakes and save time. When you work with experts, you get good polyurethane parts that do what you need.

Note: Always ask your manufacturer if they know about urethane casting tolerances. This helps you pick the right partner for your project.

URETHANE CASTING TOLERANCE CAPABILITY AND LIMITS

WHAT IS THE MAXIMUM ACHIEVABLE ACCURACY

Polyurethane casting can make parts with good accuracy. Most small parts have tolerances of about ±0.3 mm. If you use simple shapes and control the process, you can get even tighter tolerances, like ±0.15 mm. Polyurethane casting is great for making prototypes and small batches. To get very accurate parts, you must watch every step. Pick the right polyurethane and keep your mold in good condition. You also need to measure your parts after they are made. Knowing about polyurethane casting tolerances helps you plan your project well.

LIMITATIONS OF VACUUM CASTING PROCESSES

Vacuum casting has some limits you should know. Thick or big parts may shrink more than small ones. If wall thickness is not even, polyurethane can bend or warp. Some shapes are hard to make with polyurethane casting. Deep holes or thin walls can make it tough to get the right size. Polyurethane casting works best for small or medium amounts of parts. If you need thousands of parts, you should use a different method. Polyurethane casting is flexible, but not every part will be super accurate.

Tip: Always check your design for thin walls, deep holes, or sharp corners. These features can make it hard to get the right size.

WHEN TO CHOOSE CNC OR INJECTION MOLDING INSTEAD

Pick CNC machining or injection molding if you need very tight tolerances or lots of parts. CNC machining makes very accurate parts with smooth surfaces. Injection molding is good for making many parts that all look the same. Polyurethane casting is best for testing ideas, custom parts, or small batches. If you want parts that fit together perfectly every time, CNC or injection molding is a better choice.

You can ask your supplier which method is best for your project. Always choose the process that fits your needs.

WORKING WITH URETHANE CASTING MANUFACTURERS

HOW TO COMMUNICATE TOLERANCE REQUIREMENTS

You must tell your manufacturer what tolerances you need. Give them drawings that show all the important sizes. Mark the spots where you want tight tolerances. Use easy words so they do not get confused. If you have special requests, write them down for your supplier. Ask your supplier to make sure they understand what you want. Good talking helps you get the right polyurethane parts.

Tip: Always ask your manufacturer for feedback. They might have ideas to make your design better or help you reach your urethane casting tolerances.

SUPPLIER EVALUATION CRITERIA

Pick a supplier who knows about polyurethane casting and can meet your quality needs. Use this checklist to help you choose:

• Has experience with polyurethane casting jobs

• Can meet your tolerances and design needs

• Has a clear way to check quality

• Answers fast and tells the truth

• Has good reviews or references from other customers

A good supplier will help you get great urethane casting services. They will also help if you have questions about polyurethane or urethane casting.

COMMON MISTAKES IN TOLERANCE SPECIFICATION

People sometimes make mistakes when picking tolerances for polyurethane casting. Here are some common mistakes:

1. Picking tolerances that are too tight for the process

2. Not thinking about how polyurethane parts shrink

3. Forgetting to mark important features on the drawing

4. Not talking with the supplier about special needs

5. Using mixed or unclear measurement units

Try not to make these mistakes to get better results. Always check your design and talk with your supplier before you start your polyurethane casting project.

BEST PRACTICES FOR TIGHT TOLERANCES

SUPPLIER COLLABORATION

You need to work closely with your supplier for tight tolerances. Talking clearly helps you stop mistakes before they happen. Show your drawings and tell your supplier what is most important. Ask them for help with picking materials and making the mold. They can help you choose the best polyurethane for your part. If you talk often, you will get better parts and fewer problems. Many suppliers use the Urethane Casting Design Guide to set rules for tolerances. This guide helps you and your supplier agree on what is needed.

PROTOTYPING AND ITERATIVE TESTING

You can make a prototype to test your design first. Make a few polyurethane parts and see if they fit right. Check for any problems with size or shape. If you find a problem, change your design and try again. This is called iterative testing. It helps you get the tight tolerances you want. Polyurethane casting is good for prototypes because you can change things fast. You also save money by fixing problems early.

• Works well for thick parts (up to 2 inches)

• Gives better size control than compression molding

• Makes less extra material to clean up

• Good for molds with many parts

• Makes parts with tight tolerances (±0.005 inches)

DOCUMENTATION AND TECHNICAL DRAWINGS

You need clear drawings and notes for every polyurethane casting job. Show all the important sizes and tolerances in your drawings. Mark the most important features. Use easy notes so your supplier knows what you want. Good drawings help you get the right parts every time. They also make it easier to check quality later. If you follow these steps, you have a better chance of meeting urethane casting tolerances.

Tip: Always look over your drawings with your supplier before you start making parts. This helps you avoid expensive mistakes.

FAQ

WHAT TOLERANCES CAN URETHANE CASTING ACHIEVE

Polyurethane casting can make parts with tight tolerances. Most small parts can be made within ±0.3 mm. If your part has a simple shape, you can get even closer. Sometimes, you can reach ±0.15 mm if you control the process well. Polyurethane casting is good for making prototypes and special parts. You should ask your supplier what tolerance is best for your project.

Note: Always measure your parts after casting to make sure the tolerance is right.

HOW ACCURATE IS VACUUM CASTING

Vacuum casting makes polyurethane parts with good accuracy. You can get repeatability between ±0.15 mm and ±0.3 mm. This process takes out air bubbles from the resin. It helps the polyurethane fill the mold evenly. Your parts will look like your design. Polyurethane casting works well for small batches and detailed shapes.

WHAT AFFECTS DIMENSIONAL ACCURACY IN CASTING

Many things can change how close your part is to the right size. Shrinkage can make your part smaller. Mold quality and tooling precision are important for details. Wall thickness and part shape also matter. The room’s temperature and humidity can change how polyurethane cures. You need to control these things to get the best results.

CAN URETHANE CASTING MEET TIGHT TOLERANCES

Polyurethane casting can meet tight tolerances if you follow good design steps. Keep wall thickness the same and use good molds. Work with suppliers who know how to control the process. Polyurethane casting lets you make parts that fit and work well. You should always test your parts and change your design if you need to.

Tip: Polyurethane casting is flexible, but you must plan for shrinkage and check your parts to make sure they are accurate.

You can get good results with polyurethane casting if you know about urethane casting tolerances. You should use a clear design guide and work with skilled suppliers. Polyurethane casting lets you make many shapes, but you must control tolerances for each part. Always test your polyurethane parts and check their size. Polyurethane casting helps you make strong and accurate parts. If you want better quality, follow these best steps and find more information about polyurethane casting.

• Use a design guide for every polyurethane casting job.

• Work with skilled suppliers to get the right tolerances.

• Test and measure your polyurethane parts to check accuracy.

Remember: Polyurethane casting works best when you plan for tolerances and keep your design easy.
