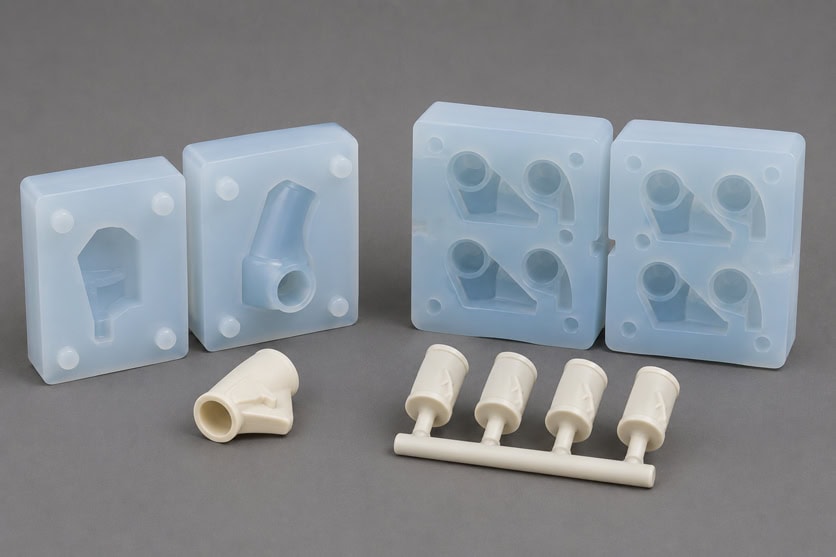

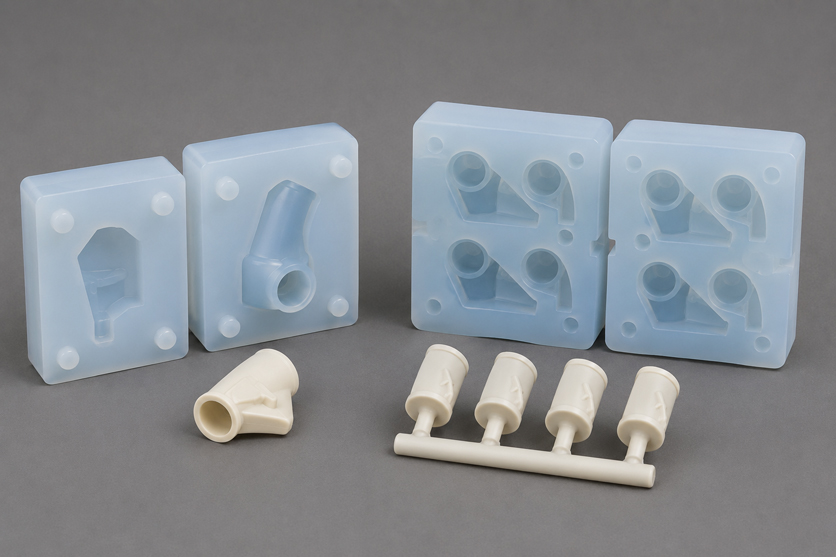

You will see that a multi cavity silicone mold can save money. It works well for vacuum casting when you need many good parts. Cost, output, and efficiency are important for picking your mold. The total cost depends on your mold design. It also depends on how complex your prototypes are. The quality you want matters too. Silicone molds are flexible for making things. They are good for saving money and getting parts fast. Always pick the right mold for your project needs. This helps you get the best results.
Key Takeaways
Single cavity molds work well for small batches and good prototypes. They help you control and test each part better.
Multi-cavity molds save time and money for big jobs. They make many parts at the same time. This lowers the cost for each part a lot.
You should pick your mold based on how many parts you need. If you need more than 50,000 parts each year, multi-cavity molds are usually best.
Think about how hard your design is when you pick a mold. Single cavity molds are better for tricky shapes. Multi-cavity molds are better for simple shapes.
Always look at the total cost, not just the first tooling cost. You can save more money later by picking the right mold for your job.

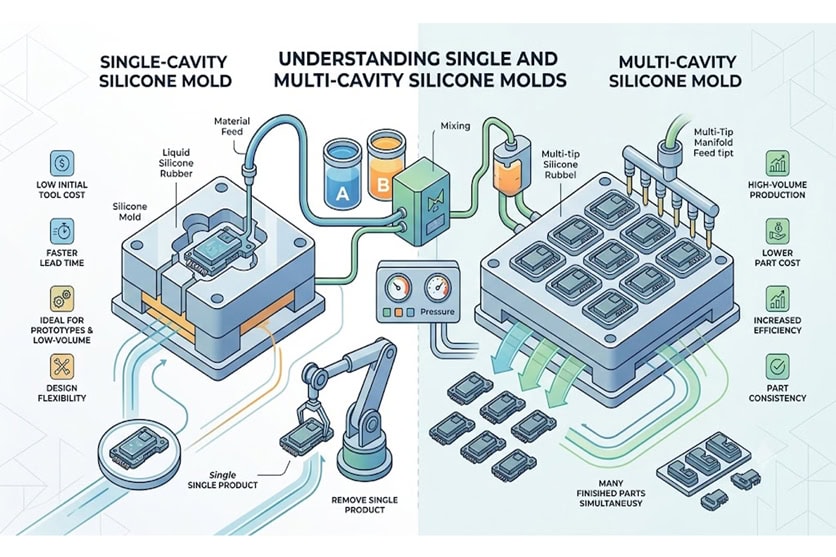

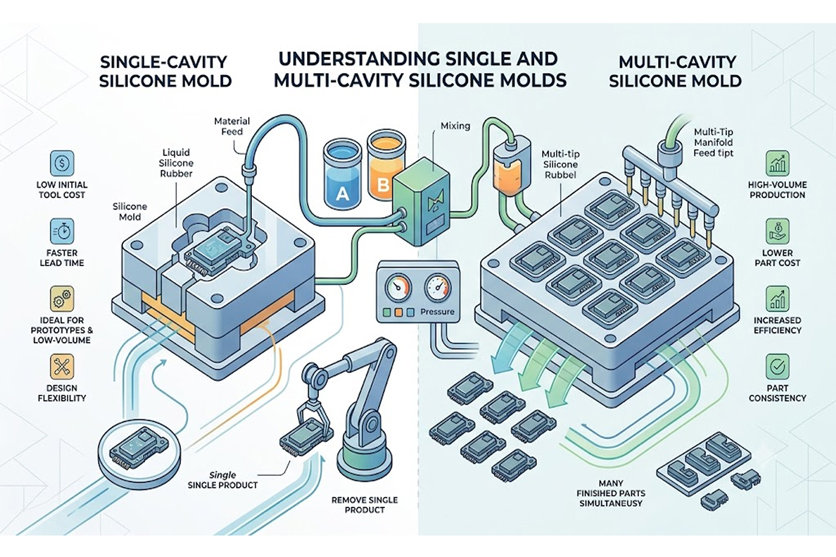

UNDERSTANDING SINGLE AND MULTI-CAVITY SILICONE MOLDS
WHAT IS A SINGLE CAVITY SILICONE MOLD
A single cavity silicone mold makes one part each time you use it. You pick this mold when you want to make a few items or test ideas. It lets you control how you make each part. This helps you focus on making good quality items. Many businesses use single cavity molds for special projects. You can find these molds in candle making, soap bars, lotion bars, and toys. The table below shows the main features and uses:
Characteristics | Applications |
|---|---|
Heat resistant up to 350°F | Molding of candles |
Can be produced as single or multi cavity | Custom forming of soap into soap bars |
Molded features can be less than 0.5 mm | Forming of lotion into lotion bars |
Special care in material selection | Molding of buttons and toy items |
| Repeat forming of any moldable materials |
| Standard silicone material not suitable for food |
WHAT IS A MULTI-CAVITY SILICONE MOLD
A multi cavity silicone mold lets you make many parts at once. You use this mold when you want to make more items faster. This mold is common when you need to make a lot of things. It helps you save time and money for each part. You can use it when you need many of the same item.
WHY THE CAVITY CONFIGURATION MATTERS
How you design the cavity in your silicone mold changes your results. The cooling system in silicone molding is very important. For example:
A Waterfall Cooling Channel cools faster than a Conformal Cooling Channel.
You get almost 50% better cooling in the core and cavity.
The pressure drop is about 56% lower with the Waterfall Cooling Channel.
Cooling time drops by about 265 seconds, so you finish faster.
You get better parts and make them quicker when you pick the right cavity design.
KEY DIFFERENCES BETWEEN SINGLE AND MULTI-CAVITY MOLDS
You should know how single and multi cavity silicone molds are different. The table below shows the main differences:
Feature | Single-Cavity Molds | Multi-Cavity Molds |
|---|---|---|
Production Volume | Low-volume production | High-volume manufacturing |
Cycle Time | Slower, one part per cycle | Faster, multiple parts per cycle |
Cost per Part | Higher cost per part | Lower cost per part |
Complexity | Simpler design | More complex, requires precise flow balancing |
Application | Ideal for prototypes and low runs | Suitable for mass production |
Tip: Always pick the silicone mold that fits your needs. This helps you get the best results when you do silicone molding, casting, and vacuum casting.
COST COMPARISON OF SINGLE VS MULTI-CAVITY SILICONE MOLDS
INITIAL TOOLING COST
When you start making silicone molds, you pay a big first cost. Single cavity molds cost less to make than multi cavity molds. You can see the price difference in the table below:
Mold Type | Cost Range |
|---|---|
Single-cavity molds | $400 - $4,000 |
Multi-cavity molds | $5,000 - $10,000+ |
If you want to test a new idea or make a few parts, single cavity molds help you save money. Multi cavity molds cost more at first, but they can save money later if you make lots of parts.
PER-PART MANUFACTURING COST
You should check how much each finished part costs. Here is what happens:
Single cavity molds keep the cost for each part high.
Multi cavity molds lower the cost for each part.
Multi cavity molds let you make more parts faster, so your costs go down.
This makes multi cavity molds a better choice for big jobs.
BREAK-EVEN POINT FOR PRODUCTION
You need to know when your casting costs start to pay off. If you plan to make over 100,000 parts each year, multi cavity molds are a smart pick. For projects with more than 500,000 parts, you almost always need multi cavity molds. This helps you balance your costs and how many parts you make.
LONG-TERM RETURN ON TOOLING INVESTMENT
Think about how your money works over time. The table below shows how single and multi cavity molds compare:
Factor | Single Cavity Molds | Multi-Cavity Molds |
|---|---|---|
Production Volume | Lower production volume | Higher production volume |
Part Cost | Generally higher per part cost | Reduced part cost with increased volume |
Design Complexity | Simpler design considerations | More complex design and engineering required |
Quality Control | Easier to maintain quality | Increased risk of defects due to complexity |
Prototyping | Critical for testing and validation | Often skipped, leading to potential issues |
Thermal Management | Less concern for thermal variations | Greater concern for thermal variations |
Multi cavity molds give you better value if you need lots of parts. For custom projects or small batches, single cavity molds work best. Always pick the mold that fits your casting, production, and quality needs.
OUTPUT AND PRODUCTION EFFICIENCY
PRODUCTION RATE AND CYCLE TIME
You want to finish making parts fast. Single cavity silicone molding makes one part each time. This is good for testing or making a few parts. Multi-cavity silicone molding makes many parts at once. You pour silicone one time and get several items. This saves time and helps you make more parts. You also spend less money when you make more parts quickly. If you need lots of good parts fast, multi-cavity molds are a smart choice.
BATCH SIZE CAPABILITY
Batch size is important in silicone mold making. Single cavity molds only let you make small batches. Multi-cavity molds let you make big batches in one go. You get more parts with less work. The table below shows how batch size helps you:
Advantage | Benefit |
|---|---|
Time-Saving | Make many candles at once, so you work faster. |
Uniformity | Every candle looks the same, so they match. |
Ease of Use | Silicone is soft, so you can take out candles easily. |
Cost-Effective | You can use the mold many times, so you save money. |
Versatile Designs | You can pick from many shapes and sizes for your candles. |
You can see that multi-cavity molds give you more ways to make different batch sizes and designs.
LABOR EFFICIENCY
Multi-cavity silicone molding helps you work better. You pour silicone once and get many parts. This saves you time and hard work. You do not have to do the same thing again and again. Multi-cavity molds also help your parts stay the same size and shape. This is good for quality. Here are some main points:
Multi-cavity molds let you make many parts at the same time, so you work faster.
You get parts that look the same, which is good for quality.
You spend less time and money on work. This helps you save money.
MANUFACTURING THROUGHPUT
Manufacturing throughput means how many parts you finish in a certain time. Multi-cavity silicone molding helps you make more parts every hour. This is good if you have big orders or need to finish fast. If you use a custom silicone mold, you can make your process fit your needs. You can also control your costs and quality. Single cavity molds are good for small jobs or special shapes. Multi-cavity molds help you make more parts and spend less money.
ENGINEERING CONSIDERATIONS FOR CAVITY SELECTION
PART SIZE AND GEOMETRY
You should think about part size and shape before picking a mold. Big or tricky parts can change how you use silicone molds. If you want to make large prototypes, you might need a single cavity mold. Small or simple parts can fit in multi-cavity molds.
Picking between single cavity and multi-cavity silicone molds depends on part size and shape. These things affect how hard the mold is to make, how fast you can produce parts, and how much it costs.
Parts that work in a single-cavity mold may need changes for multi-cavity molds.
Bigger and more complex molds change how molding works, which affects quality.
Heat differences and longer paths for plastic flow can cause problems like empty spots and bent parts.
You should always pick a mold that fits your part’s needs. This helps you save money and get good casting results.
MOLD LAYOUT AND CAVITY BALANCE
You need to plan your mold layout to get the best results. A good layout helps silicone flow evenly and keeps all parts the same.
Make sure cavity size and flow paths are balanced for good quality.
Add features to keep parts matched and even.
Use flow simulation when designing to see how silicone fills and to balance runners.
A balanced mold layout saves money and makes production faster. You get better casting and fewer problems.
GATE AND VENT DESIGN
Gate and vent design matters in every custom silicone mold. Gates let silicone go into the mold. Vents let air out during casting. Put vent channels at high spots and tight corners. This helps air and gases escape. Micro-venting can help air escape without hurting the mold. Good gate and vent design gives you better casting and lowers costs.
MOLD LIFE AND MAINTENANCE
You want your silicone mold to last a long time. Mold life depends on how you use and care for it. Clean your mold after each casting. Store it in a cool, dry place. Check for damage often. If you use vacuum casting, you can get more parts from each mold. Good care lowers costs and keeps your production going. You get more value from your mold and better casting results.

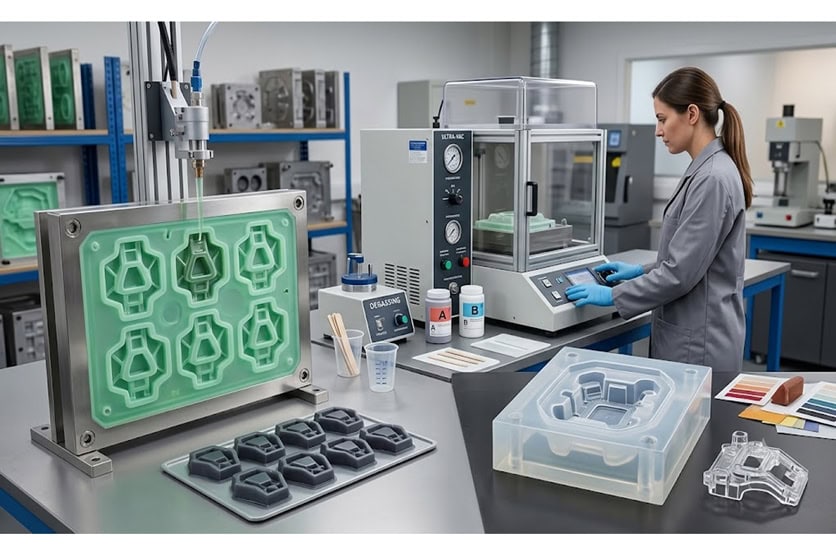

SINGLE VS MULTI-CAVITY SILICONE MOLDS IN VACUUM CASTING
HOW VACUUM CASTING AFFECTS CAVITY DESIGN
When you use the vacuum casting process, you must think about how the shape of your part changes the mold. Silicone molding works best when you avoid sharp corners and thin walls. If your part has deep features or undercuts, the mold stretches more during demolding. This can cause tears and shorten mold life. Thin walls make the mold fragile and easy to break. Sharp internal corners create stress points. You can make your mold last longer by rounding corners and keeping wall thickness even. Good silicone mold making helps you get better results and lower vacuum casting cost.
Deep undercuts stretch the mold and may cause damage.
Thin walls can tear during demolding.
Sharp corners increase stress and risk of tears.
Rounded corners and even walls help your mold last longer.
QUALITY CONSISTENCY FOR EACH MOLD TYPE
You want every part to look the same. Single cavity molds give you steady quality because you make one part at a time. You can check each part for defects. Multi cavity silicone mold lets you make many parts at once, but you must control the silicone flow. If the flow is not even, some parts may have bubbles or weak spots. You can use a custom silicone mold to improve flow and keep quality high. Good silicone molding and careful casting help you get the best results.
LIMITATIONS OF MULTI-CAVITY SILICONE MOLDS
Multi cavity silicone mold works well for many jobs, but it has limits. You may face problems if you need very tight tolerances or thin walls. Large parts need special equipment. The table below shows some common limits:
Constraint | Description |
|---|---|
Production Volume | Mold wears out after 50-100 parts, so high production is not cost-effective. |
Dimensional Tolerances | Silicone molding gives ±0.2mm, not as tight as CNC machining. |
Wall Thickness | Walls under 0.8mm are hard to fill, even with vacuum casting. |
Size of Parts | Parts over 500mm need special chambers. |
WHEN MULTI-CAVITY MOLDS ARE NOT THE BEST OPTION
You should not use multi cavity silicone mold for every project. If you need only a few prototypes, a single cavity mold saves money. When you need very precise parts, silicone molding may not meet your needs. Large parts or thin walls can cause problems in the casting process. You get better results by matching your mold choice to your design and production goals. Always check your casting needs before picking a mold.
HOW TO CHOOSE THE RIGHT SILICONE MOLD FOR YOUR PROJECT
WHEN TO USE A SINGLE CAVITY SILICONE MOLD
Pick a single cavity silicone mold if you need very exact parts. This mold is good when you want to keep your parts clean. It helps stop dirt from getting in during casting. You can make tricky shapes with this kind of mold. The closed system keeps your parts safe and high quality. If you want to try out new ideas or only need a few pieces, this mold is a smart pick. You can finish your casting fast and look at each part for mistakes. This way is great for custom silicone mold making and special designs.
High tolerance parts
Reduced contamination
Complex geometries
Quick testing of prototypes
Tip: Use a single cavity silicone mold if you want to check every part and detail.
WHEN TO USE A MULTI-CAVITY SILICONE MOLD
Choose a multi-cavity silicone mold if you need lots of parts quickly. This mold helps you save time and money when making many items. If you need more than 50,000 parts each year, this mold is a good choice. You can use it to lower the price for each part. Multi-cavity molds are best for big jobs and when you must finish fast. They work well for long-term products and tight deadlines. Vacuum casting also works better with multi-cavity molds because you get more parts each time.
Large production volume
Lower cost per part
Fast delivery needs
Long-term product runs
Note: Multi-cavity molds help you finish big jobs fast and keep costs down.
DECISION MATRIX BASED ON PRODUCTION VOLUME
A decision matrix can help you pick the right silicone mold. This tool lets you compare what you need and choose the best way to cast. How many parts you need is very important. It changes how much you spend on tools and what silicone you use. The table below shows how to match your needs to the right mold:
Consideration Factor | Importance | Recommendation |
|---|---|---|
Product Lifecycle | Short-term or long-term use | Fewer cavities for short-term, more for long-term to lower unit price |
Estimated Annual Usage | Number of parts you need each year | Under 50,000: up to 4-cavity mold; Over 500,000: use multi-cavity LSR mold |
Capital Budget | How much money you can spend at the start | Low budget: start with single or low-cavity mold, upgrade after market success |
Delivery Pressure | How fast you need your parts | Urgent and large volume: multi-cavity mold for faster production |
A decision matrix lets you see your choices and pick the best one before you start.
QUICK COMPARISON TABLE
Here is a simple table to help you compare single cavity and multi-cavity silicone molds:
Feature | Single Cavity Mold | Multi-Cavity Mold |
|---|---|---|
Best For | Prototypes, high tolerance parts | Large production, fast delivery |
Cost per Part | Higher | Lower |
Setup Cost | Lower | Higher |
Complexity | Handles complex designs | Best for simple, repeatable parts |
Mold Life | Longer for small runs | Shorter per cavity, but more output |
Quality Control | Easier to check each part | Needs careful flow control |
Remember: Always pick your silicone mold based on your casting process, how many parts you need, and your budget. This helps you get the best results and save money on your project.
COMMON MISTAKES WHEN SELECTING SILICONE MOLDS
FOCUSING ONLY ON TOOLING COST
You might think picking the cheapest mold saves money, but this can lead to bigger problems. When you focus only on cost, you may ignore important parts of silicone molding like material properties and precision. If you skip these, your parts may not meet the right standards. You could also miss out on good thermal management, which is key for the casting process. Uneven heat can cause defects in your parts. Always look at the full picture, not just the price tag.
Tip: Think about quality, safety, and how well your mold fits your design, not just the cost.
OVERESTIMATING PRODUCTION VOLUME
Many people guess they will need more parts than they really do. If you choose a large multi-cavity silicone mold for a small job, you waste money and materials. You may also end up with extra molds you do not use. Start with a smaller mold if you are making prototypes or testing ideas. This helps you control costs and avoid waste in silicone molding.
IGNORING MOLD LIFE
You want your mold to last through your whole production run. If you forget about mold life, you may face delays and extra costs. Thin or weak silicone molds can tear or wear out fast, especially during vacuum casting. Always check the type of silicone you use and make sure your mold is thick enough. Store your molds in a cool, dry place to keep them strong for more casting cycles.
CHOOSING TOO MANY CAVITIES
You might think more cavities mean faster production, but this is not always true. Too many cavities can make silicone molding harder to control. You may get air bubbles, uneven silicone flow, or lost details in your parts. It is better to use a custom silicone mold with the right number of cavities for your job. This helps you get better quality and makes the vacuum casting process smoother.
Remember: Good silicone mold making means balancing cost, design, and the needs of your casting process. Avoid these mistakes to get the best results from your molds.
FAQS ABOUT SINGLE AND MULTI-CAVITY SILICONE MOLDS
IS A MULTI-CAVITY SILICONE MOLD ALWAYS MORE COST-EFFECTIVE
You might think a multi-cavity silicone mold always saves money, but that is not true for every project. If you only need a few prototypes, a single cavity mold can keep your vacuum casting cost lower. Multi-cavity molds work best when you have high production needs. You should look at your casting goals before you choose. Sometimes, the extra cost of making a multi-cavity mold does not pay off if you do not use it for many parts.
HOW MANY CAVITIES SHOULD A SILICONE MOLD HAVE
The number of cavities depends on your production needs and your casting design. If you want to make a lot of parts, you can use more cavities. For small runs or special shapes, fewer cavities work better. You should also think about the size of your silicone parts and how easy it is to remove them from the mold. Good silicone molding means picking the right number of cavities for your project.
CAN MULTI-CAVITY MOLDS BE USED FOR LOW-VOLUME PRODUCTION
You can use multi-cavity molds for low-volume production, but it is not always the best choice. If you only need a few castings, a single cavity mold often works better. Multi-cavity molds help when you want to save time on large batches. For small jobs, you might spend more on silicone mold making than you save. Always match your mold to your casting needs.
DO MULTI-CAVITY MOLDS REDUCE CYCLE TIME
Multi-cavity molds can reduce cycle time in silicone molding. You pour silicone once and get several castings at the same time. This helps you finish your production faster. If you use the vacuum casting process, you can make more parts in each cycle. This is helpful when you need to meet a tight deadline or fill a big order.
WHICH MOLD TYPE PROVIDES BETTER PART QUALITY
Single cavity molds often give you better part quality. You can control the casting process for each part. This helps you spot problems early. Multi-cavity molds can make many parts at once, but you must watch for uneven silicone flow. If you want the best quality for your prototypes or special designs, a single cavity mold is a smart choice.
You should match your silicone mold choice to your production needs and budget. For small batches, single cavity molds work best. Multi-cavity molds save money when you need many parts. Vacuum casting costs less than injection molding and fits low-volume runs. Check the table below for mold lifespan:
Silicone Mold Lifespan | Good Copies Produced |
|---|---|
20 to 25 | 20 to 25 |
Vacuum casting works well for 5 to 100 parts.
You can test many prototypes without high costs.
Talk with a molding expert to plan your next steps.
