When you pick a high temperature urethane for prototypes, you should look at how well it handles heat and how it works. The chart below lists materials like AFP3320, AFP3400, AFP3600, and PT8958. It shows their hardness and the best ways to use them:
Material | Hardness (Shore D) | Heat Resistance | Applications |
|---|---|---|---|
AFP3320 | 80 | High | HVAC Components, Underhood Automotive Parts, Industrial Machinery Housings |
AFP3400 | 70 | Moderate | Living Hinges, Flexible Connectors, Dynamic Seals |
AFP3600 | ~82 | High | Lenses, Light Housings, Backlit Panels |
PT8958 | 85 | High | Medium to Large Medical Device Housings, Components for Diagnostic Equipment |
Heat resistance affects how strong the material is. It also affects how much it bends and how long it lasts. The chart lets you compare choices fast so you can pick the best material for your project.
Key Takeaways
High temperature urethane can handle heat up to 120°C. This makes it a good choice for prototypes in hot places.
Always look at the heat resistance and strength of urethane before you pick it for your project.
Use the heat resistance chart to compare urethane types fast. This helps you pick the best one for your needs.
Test your prototypes in real heat to make sure they work well and last longer.
Think about how many you need to make and the costs when you pick materials. These things can change your project budget a lot.
UNDERSTANDING HIGH TEMPERATURE URETHANE
WHAT IS HIGH TEMPERATURE URETHANE
High temperature urethane is used when heat and stress are a problem. This urethane has special features that help it work well. It stays strong and bends without breaking, even when it gets hot. You can see its main features in the table below:
Property | Description |
|---|---|
Thermal Stability | Handles high heat because of special chemicals inside. |
Wear Resistance | Lasts longer than normal materials in hot places. |
Chemical Resistance | Does not get ruined by oils, solvents, or water. |
Decomposition Temp. | Only starts to break down at very high heat (280°C to 320°C). |
Flexibility | Bends easily and still works well when hot. |
Customizability | Can be made for different heat and strength needs. |
HOW HIGH TEMPERATURE URETHANE DIFFERS FROM STANDARD URETHANE
There are big differences between standard polyurethane and high temperature urethane. Standard polyurethane starts to break down if it gets hotter than 80°C. High temperature urethane can handle heat up to 120°C or more. Standard types can get hard and crack after a while. High temperature urethane keeps working for years.
Property | Standard Polyurethane | Heat Resistant Polyurethane |
|---|---|---|
Thermal Limits | Breaks down above 80°C | Handles 120°C or more |
Long-Term Stability | Gets hard and cracks | Stays the same |
WHY HEAT RESISTANCE MATTERS IN PROTOTYPE APPLICATIONS
Prototypes need heat resistance to keep working right. If the material cannot take the heat, it might get weak or change shape. This can make your prototype stop working. Using high temperature urethane helps stop breakdown in hot places. This means your prototypes last longer and work better.
Tip: Always check how much heat your material can take before you build your prototype.
COMMON INDUSTRIES USING HIGH TEMPERATURE URETHANE
Lots of industries use high temperature urethane because it works well in tough spots. Here are some examples:
Industry | Typical Operating Temperature Range |
|---|---|
Aerospace | Up to 300°F |
Automotive | Up to 300°F |
Food Processing | -80°F to 200°F |
Military | Up to 300°F |
You can find this material in car parts, airplane parts, food machines, and military gear. These industries pick high temperature urethane because it stays strong and safe, even when things get really hot.
HEAT RESISTANCE OF HIGH TEMPERATURE URETHANE MATERIALS
CONTINUOUS SERVICE TEMPERATURE
It is important to know how much heat your material can take every day. Continuous service temperature means the highest heat urethane can handle for a long time without getting weak. Most high temperature urethane works well from -30°C to 120°C. If you use them in this range, they stay strong and keep their shape. Always check this number before picking a material for your prototype.
SHORT-TERM HEAT RESISTANCE
Sometimes, your prototype gets quick bursts of heat. High temperature urethane can handle these short times without damage. Here is what you should know:
These materials can take short heat up to 150°C.
They stay strong and keep their shape from -30°C to 120°C.
Special molecular designs help them stay stable and not break in hot spots.
This makes them a good choice for parts that get sudden heat, like engine covers or lighting housings.
HEAT DEFLECTION TEMPERATURE (HDT)
Heat deflection temperature, or HDT, shows when a material starts to bend from heat and pressure. If your part needs to stay stiff, pick urethane with a high HDT. Many high temperature urethane types have HDT above 100°C. This means they will not bend or sag in most hot places.
GLASS TRANSITION TEMPERATURE (TG)
Glass transition temperature (Tg) is when urethane changes from hard to rubbery. If you use a material above its Tg, it gets soft and flexible. After being in high heat for a while, Tg can go up because the material forms more crosslinks. This helps your prototype stay strong even after weeks in a hot place.
THERMAL STABILITY AND AGING
Thermal stability means your material keeps its properties over time, even in heat. Aging can change how strong or flexible your prototype is. Here is what happens as high temperature urethane ages:
Flexural strength drops from 436 kPa to 345 kPa after 8 weeks at 80°C.
Compressive strength falls from 284 kPa to 158 kPa after 4 weeks in seawater at 80°C.
Tensile strength can rise from 413 kPa to 608 kPa after 6 weeks in air at 80°C.
Tg goes up as the material crosslinks more.
Water absorption increases by 25% after 10 weeks at 80°C.
The foam can crack and lose its smooth look.
Note: Always test your prototype for aging if it will face heat for a long time. This helps you avoid surprises later.

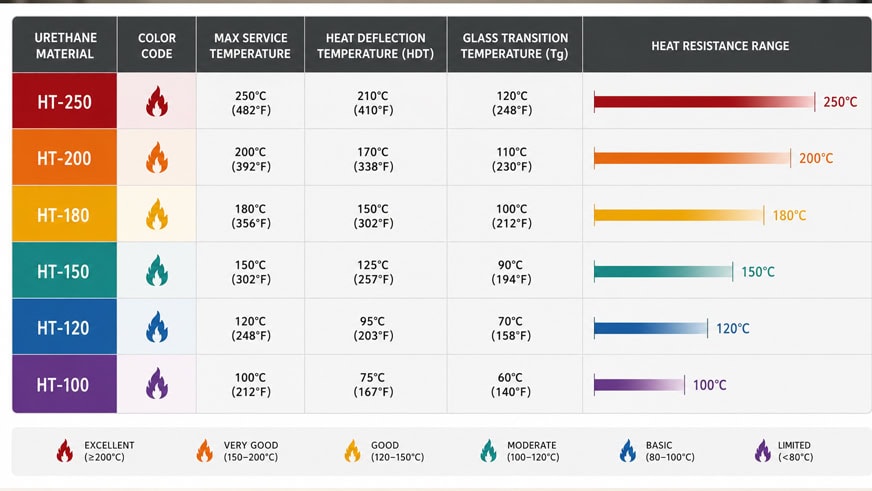

HIGH TEMPERATURE URETHANE HEAT RESISTANCE CHART

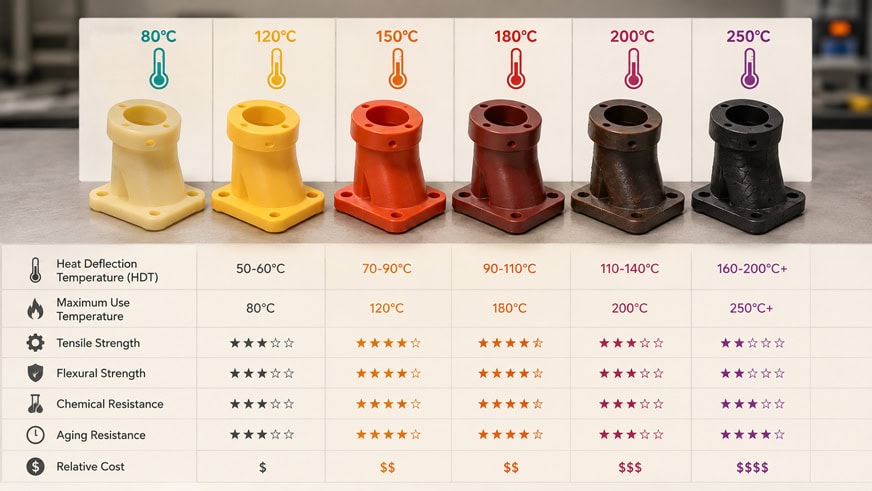

COMPARISON OF COMMON URETHANE MATERIALS
You can look at different urethane materials to see how they handle heat. The table below shows their heat limits and where they are used:
Material | Max Continuous Temp (°C) | Short-Term Max (°C) | Typical Uses |
|---|---|---|---|
AFP3320 | 120 | 150 | HVAC, Automotive, Machinery |
AFP3400 | 100 | 120 | Hinges, Seals, Connectors |
AFP3600 | 120 | 150 | Lenses, Light Housings |
PT8958 | 130 | 150 | Medical Housings, Diagnostics |
TEMPERATURE RATINGS AND PERFORMANCE
It is important to know how a material deals with heat. Here are some simple facts about temperature ratings:
Polyurethane works from -40°C to 120°C. Some special kinds can go up to 150°C.
If the heat goes over 200°C, the material starts to break down.
Glass transition temperature can be as low as -60°C or as high as 80°C. Above this, the material gets soft.
Polyurethane rubber can handle 80-100°C for a long time. Some types can take 120-150°C for short times.
When it gets hot, the rubber gets softer and may lose strength.
Note: Always check the temperature rating before using a material in a hot place.
MECHANICAL PROPERTY RETENTION AT ELEVATED TEMPERATURES
You want your prototype to stay strong when it gets hot. The table shows how well these materials keep their strength:
Property | Room Temp Value | Retention at High Temp |
|---|---|---|
Tensile Strength | 30–60 MPa | Over 80% after 168 hours at 120°C |
Elongation at Break | 300%–700% | Over 500% after 500 hours at 100°C |
Flexural Modulus | 1.0–2.0 GPa | HDT stays above 140°C with glass fiber |
Tear Strength | Over 100 kN/m | Remains high, even when cold |
Compression Set | N/A | Less than 30% after 22 hours at 100°C |
VACUUM CASTING MATERIAL COMPARISON
Vacuum casting uses urethane materials to make strong prototypes that can handle heat. You can pick the best one by thinking about:
The highest temperature the part will face
How long the part will stay hot
If the part needs to bend or stay stiff
The size and shape of your prototype
If you use high temperature urethane, your vacuum cast parts will last longer and work better in hot places.
COMPARING HIGH TEMPERATURE URETHANE WITH OTHER MATERIALS
HIGH TEMPERATURE URETHANE VS STANDARD URETHANE
It is important to see how these two materials are different. Standard urethane is good for normal parts. It starts to get weak if it gets hotter than 80°C. High temperature urethane can stay strong up to 120°C or more. This means it lasts longer in hot places. Standard urethane might crack or change shape after being hot for a long time. High temperature urethane keeps its shape and strength.
HIGH TEMPERATURE URETHANE VS SILICONE
You might think about using silicone for your prototype. Both have good and bad points. The table below shows how they are different:
Material | Advantages | Disadvantages |
|---|---|---|
High Temperature Urethane | Excellent abrasion resistance, high tensile strength | Poor performance with certain acids and solvents, not suitable for high heat consistently over 180°C |
Silicone | Excellent heat and steam resistance | Poor tensile strength, elongation at break, and tear resistance |
Silicone molds help you make parts fast and save money. You can use them again and again. Urethane resins let you pick different designs and materials. You get strong parts that look good. Silicone molds lower risk because you can reuse them.
HIGH TEMPERATURE URETHANE VS ENGINEERING PLASTICS
Sometimes you need to compare urethane with engineering plastics. Engineering plastics can take heat up to 150°C. Some special plastics can handle short bursts above 250°C. Polyimides can work up to 370°C. If your part needs to survive very high heat, you may want engineering plastics or polyimides. High temperature urethane works well for most uses under 150°C. It is easy to use and has good strength.
Material Type | Temperature Resistance |
|---|---|
Engineering Plastics | Up to 150°C (302°F) |
High-Performance Thermoplastics | Above 150°C, short term above 250°C |
Polyimides | Up to 370°C |
WHEN TO CHOOSE HIGH TEMPERATURE URETHANE
Pick high temperature urethane if your part needs to handle heat up to 120°C. It is good for parts that need to be strong and flexible. It works well in cars, medical tools, and machines. If your part will face more heat or strong chemicals, try engineering plastics or silicone. For most prototypes, high temperature urethane is strong and easy to make.
Tip: Always pick a material that matches the heat and stress your part will face. This helps your prototype work better and last longer.
HOW TO SELECT THE RIGHT HIGH TEMPERATURE URETHANE
SELECTING MATERIALS BASED ON OPERATING TEMPERATURE
You need to pick a material that matches the heat your prototype will face. Heat changes how strong and bendy polyurethane foam is. Most polyurethane works well from -62°C to 93°C. Some special kinds can handle up to 150°C. Always check the temperature range for your project. If your part gets hot a lot, choose a material that stays strong at those temperatures.
Heat changes how polyurethane works.
Special types let you use parts in hotter places.
Always design your prototype with the right heat limits.
BALANCING HEAT RESISTANCE AND MECHANICAL PERFORMANCE
You want your prototype to resist heat and stay tough. You can make both better by using special methods:
Add dynamic covalent bonds to make the material easy to reuse and keep it strong.
Use antiplasticizers to help the material take hits without losing clarity or hardness.
Change curing conditions to balance how stiff and stretchy the material is.
These steps help you get a part that works well in heat and stays strong.
CONSIDERING COST AND PRODUCTION VOLUME
Cost matters when you pick materials. How many parts you make changes the price for each one. Look at this table:
Factor | Impact on Cost |
|---|---|
Production Volume | Making more parts lowers costs; making fewer parts raises the price for each one. |
Material Selection | Special materials cost more and affect your project budget. |
Pricing Models | Knowing pricing helps you plan and manage costs. |
You should pick materials that fit your budget and the number of prototypes you need.
CHOOSING MATERIALS FOR VACUUM CASTING PROTOTYPES
Vacuum casting lets you make strong prototypes fast. You need to pick the right material for your design:
Pick urethane with high tear strength or heat resistance for parts that face stress or temperature changes.
Think about the shape and size of your part. Thick parts may need slow-curing resins.
Use low-viscosity materials for tricky molds to stop air from getting trapped.
Plan for post-processing like painting or machining if your prototype needs it.
Make sure your material stays stable at the temperatures your part will face.
If you follow these steps, your high temperature urethane prototype will last longer and work better.
COMMON CHALLENGES AND SOLUTIONS
PREVENTING THERMAL DEFORMATION
You want your prototype to keep its shape in heat. Pick urethane that has good thermal stability. How you mix and cure the urethane is important. Some resins can take up to 130–150 °F. Special grades can handle short bursts up to 200 °F. Post-curing makes your part even stronger. It adds more cross-links inside the urethane. This helps it fight heat and stops it from bending.
Tip: Always check the curing method and resin type first. This helps your prototype stay strong when it gets hot.
REDUCING HEAT-RELATED MATERIAL FAILURE
Heat can make parts break if you do not plan. Use these ideas to lower the risk:
Strategy | Description |
|---|---|
Select appropriate tooling materials | Pick materials with low CTE to match your production parts. |
Utilize high-temperature tooling foams | Use foams like LAST-A-FOAM® FR-4700 for better heat stability and easy cutting. |
Manage critical process parameters | Control casting steps to keep parts accurate and avoid heat problems. |
These steps help your prototypes last longer and work better in heat.
IMPROVING DIMENSIONAL STABILITY
You want your parts to keep their size and shape in heat. The chemicals in your urethane matter a lot. Fillers like sucrose and vermiculite make foam stiffer. This helps the part stay the same size, even in high heat.
The changed foams keep their shape and insulation. They change less than 1% in size, even in high heat. Your prototype will not shrink or swell much when it gets hot.
Polyurethane with more cross-links bends less.
Aromatic isocyanates give better heat resistance than aliphatic ones.
The right mix of polyols and chain extenders helps stability.
EXTENDING SERVICE LIFE UNDER HIGH TEMPERATURES
You want your prototype to last a long time in heat. Try these ways to help your urethane parts survive longer:
Method | Description |
|---|---|
Incorporation of heat-resistant segments | Makes the urethane stronger against heat, so it lasts longer. |
Crosslinking modifications | Builds a tougher structure inside the urethane, helping it resist damage from heat. |
Addition of thermal stabilizers | Adds extra protection against breaking down in high temperatures. |
Hybrid materials | Mixes urethane with polyimide for a balance of flexibility and heat resistance. |
If you use these ideas, your high temperature urethane prototypes will stay strong and work well, even in tough heat.
BEST PRACTICES FOR HIGH TEMPERATURE PROTOTYPES
MATERIAL VALIDATION BEFORE PRODUCTION
You should check your material before making prototypes. Material validation stops mistakes and saves time. Follow these steps:
Look at the datasheet for heat resistance and strength.
Test small pieces in your lab.
Match the results to your project needs.
Tip: Ask your supplier for test reports. These reports show how the material acts in heat.
PROTOTYPE TESTING UNDER HEAT
You need to test your prototype in real heat. This shows if the part will last. Try these methods:
Put your prototype in an oven at the right temperature.
Look for changes in shape, color, or strength.
Write down what happens after each test.
Test Type | What You Learn |
|---|---|
Heat Aging | How long the part lasts |
Thermal Cycling | If the part cracks or bends |
Mechanical Stress | Strength after heating |
QUALITY CONTROL FOR HIGH TEMPERATURE APPLICATIONS
Quality control keeps your prototypes safe and strong. Use these steps:
Check each part for cracks or bending.
Measure size and shape after heating.
Use simple tools like calipers and gauges.
Note: Keep a checklist for every batch. This helps you find problems early.
MATERIAL DOCUMENTATION AND TRACEABILITY
You need to track your materials from start to finish. Good records help you fix issues fast. Use a logbook or spreadsheet.
Write the batch number and supplier.
Record test results and dates.
Save photos of each prototype.
📝 Keeping records makes your project safer and easier to manage. If you find a problem, you can trace it back and fix it fast.
HIGH TEMPERATURE URETHANE SELECTION CHECKLIST
TEMPERATURE REQUIREMENTS
First, find out the hottest and coldest temperatures your part will face. Match the urethane’s heat resistance to your project needs. If your part gets hotter than 100°C, use high temperature urethane. For quick heat bursts, check the short-term max temperature. Always read the datasheet for these numbers.
Tip: Write down the temperature range for your project before picking a material.
MECHANICAL PROPERTY REQUIREMENTS
Think about how strong or flexible your part must be. Some urethanes stay tough in heat, others get soft. Use this table to help you choose:
Property | What to Check For |
|---|---|
Tensile Strength | Will your part stretch or snap? |
Flexibility | Does it need to bend or flex? |
Hardness | Should it feel soft or hard? |
Tear Resistance | Will it face sharp edges or wear? |
Test small pieces if you are not sure. This helps you avoid problems later.
PROCESS COMPATIBILITY
Check if the urethane works with your process. Some urethanes cure fast, others take longer. If you use vacuum casting, pick a resin made for that. Look for these things:
Does the resin pour easily into your mold?
Will it cure at the right speed for your setup?
Can you paint or machine the finished part?
Note: Ask your supplier if the material fits your process.
COST AND LEAD TIME CONSIDERATIONS
You need to balance your money and time. High temperature urethanes usually cost more than standard types. Lead times can change if supplies run low. Use this checklist:
Compare prices for each material.
Ask about delivery times.
Plan extra time if you need special grades.
🕒 Plan ahead: Order early to avoid delays and keep your project on track.
FAQS
WHAT IS THE MAXIMUM TEMPERATURE FOR HIGH TEMPERATURE URETHANE
High temperature urethane can handle short heat up to 150°C. Most types work best at 120°C for a long time. Always look at the datasheet for the right number. If your part gets hotter than 150°C, pick a different material.
Tip: Write down the hottest temperature your part will face before you choose a material.
IS HIGH TEMPERATURE URETHANE SUITABLE FOR VACUUM CASTING
You can use high temperature urethane in vacuum casting. This material moves easily and fills the mold well. It hardens fast and makes strong parts. Many engineers use it for prototypes that need to take heat. It works for both simple and tricky shapes.
Good for making small numbers of parts
Stays strong after casting
Handles heat during making
HOW DOES HIGH TEMPERATURE URETHANE COMPARE WITH SILICONE
You might wonder how these two materials are different. High temperature urethane is stronger and lasts longer. Silicone can take more heat but is not as strong. If you want tough parts, urethane is better. If you need parts for steam or very hot places, silicone is a good choice.
Property | Urethane | Silicone |
|---|---|---|
Heat Resistance | Up to 150°C | Up to 250°C |
Strength | High | Moderate |
Flexibility | Good | Excellent |
WHAT IS THE BEST HIGH TEMPERATURE URETHANE FOR PROTOTYPES
Pick the urethane that fits your project. AFP3320 and PT8958 are good for parts that face heat and stress. AFP3600 is best for clear parts like lenses. Always check the datasheet for heat and strength.
Note: Test small pieces before you make your final prototype.
HOW DO I CHOOSE THE RIGHT HIGH TEMPERATURE URETHANE MATERIAL
Think about the heat your part will face, how strong it needs to be, and your budget. Write down the temperature range for your project. Check if the material works with your process, like vacuum casting. Compare prices and how long it takes to get the material. Ask your supplier for help if you are not sure.
📝 Make a checklist for your project. This helps you pick the right material and avoid mistakes.
High temperature urethane is tough and can handle heat well. The chart shows some materials stay strong above 120°C. They do not bend or change shape in high heat. To pick the best material for your prototype, do these steps:
Choose the hardness your part needs.
Use bonding methods that make parts stick together well.
Make sure the material works in your environment.
Look at the chart and property list to help you decide. Check datasheets and supplier guides for more information.
