CNC Machining Sample Parts: What to Specify Before Ordering

An approved sample can stop being valid without anyone arguing about it. A drawing revision lands after approval, or a finish decision gets made on the shop floor and never written into the note, and the part in your hand no longer matches the part you signed off. The sample was fine. The record was not.

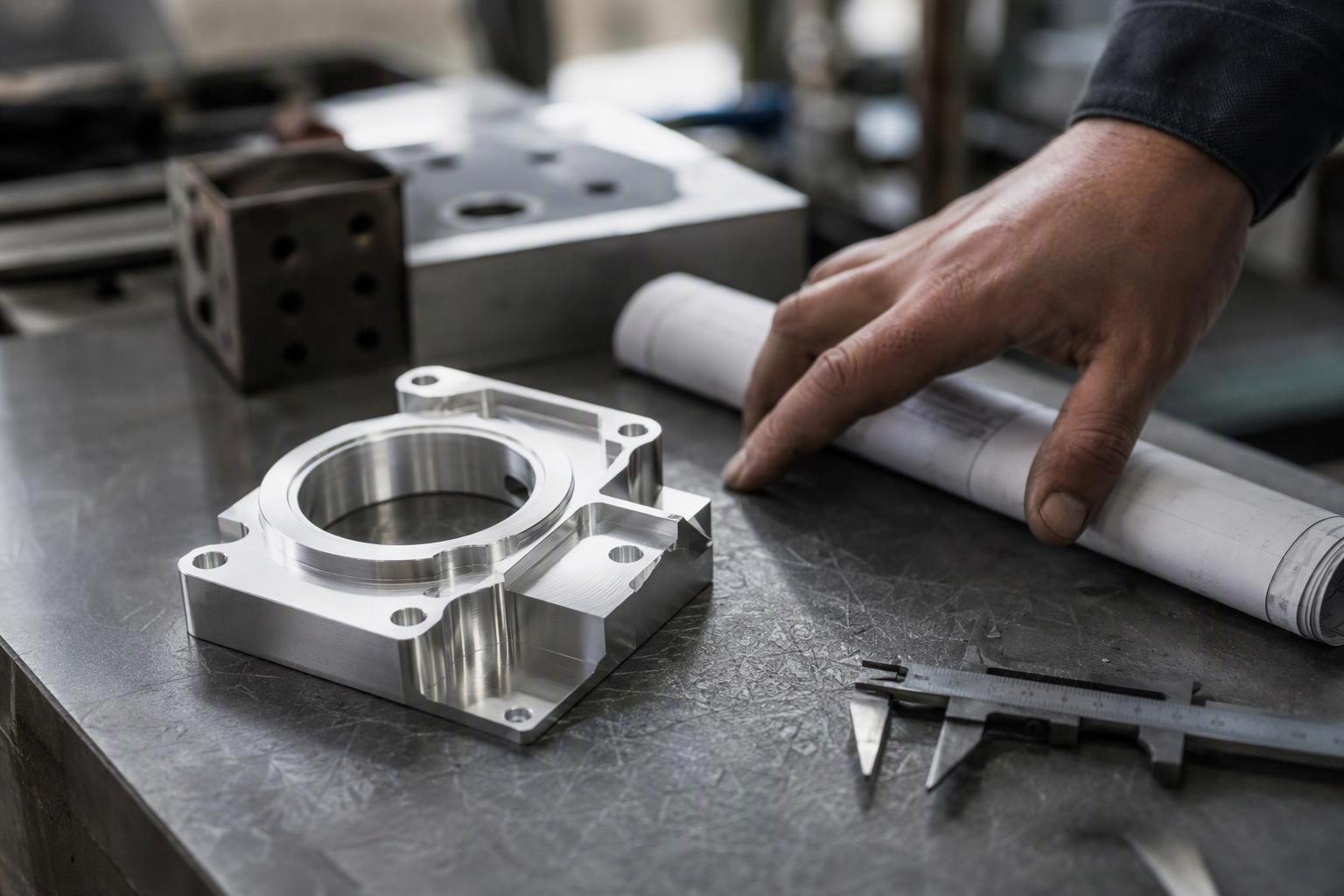

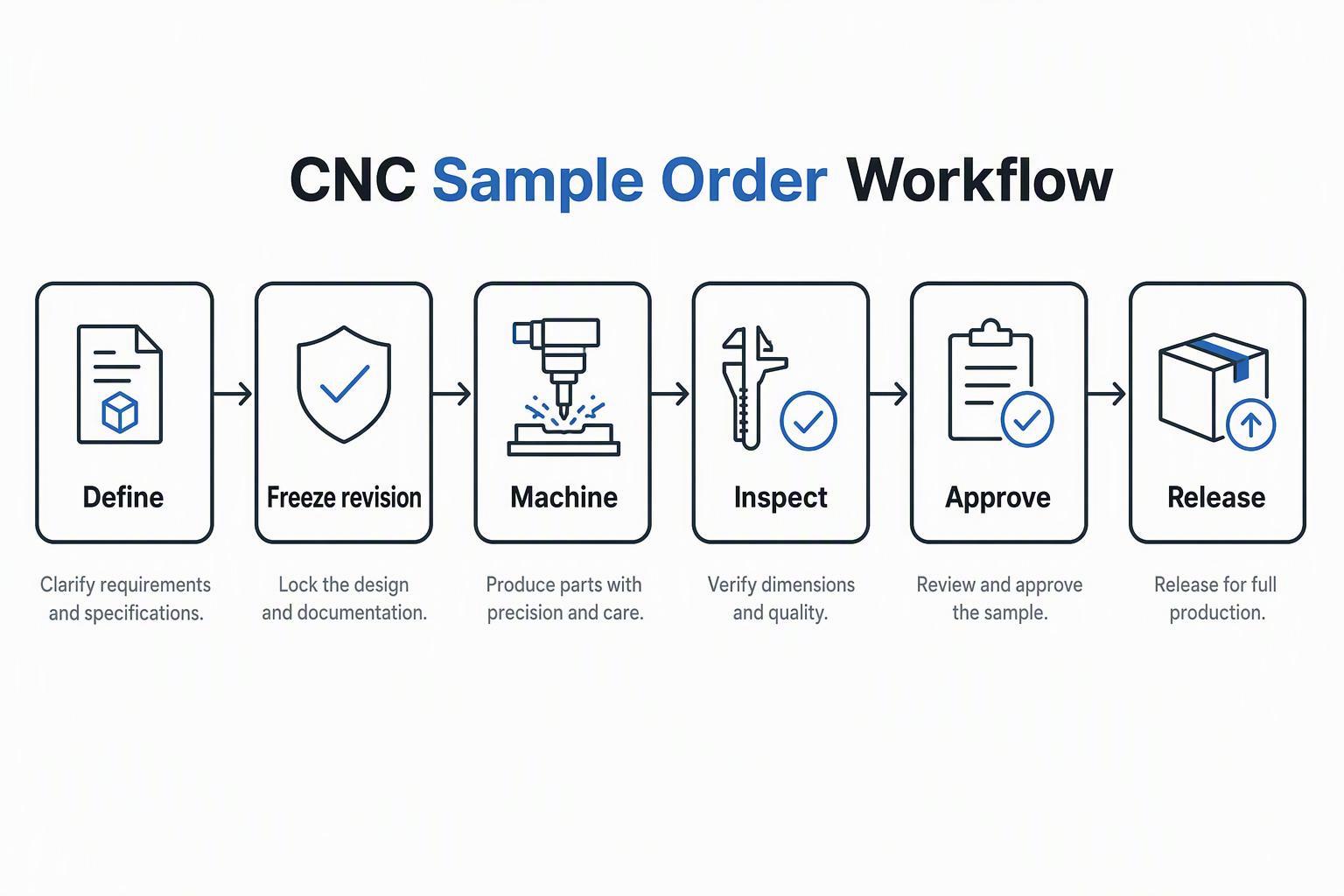

This article sets out the sequence we use for ordering CNC machining sample parts: define, freeze, inspect, approve, release. Each step produces a document, and each document answers a question a later reviewer will ask. It is a buyer-side control process. It does not replace the contract, the drawing, or your customer's quality agreement, and where the contract is stricter, the contract wins.

In this guide, "CNC machining sample parts" means custom parts machined from your own CAD and drawing for engineering, sourcing, or pre-production validation—not generic supplier sample kits or a gallery of previously machined parts.

Key Takeaways

• A sample approval covers the defined sample or sample set, one controlled revision, and one agreed scope of requirements. It does not automatically carry forward to a later revision.

• Freeze the revision in writing before the first cut, and re-verify after any change that affects a characteristic.

• State material condition, coating type, thickness and tolerance on the drawing. Surface finishing can affect finished dimensions, so coating requirements and inspection conditions should be defined before the sample is made.

• Mark only the features that carry function as critical. Tightening everything raises cost without buying anything the design needs.

• Decide the evidence package before ordering, based on what the sample must validate—such as dimensional results, material traceability, process evidence, or formal first-article documentation where required.

Quick Answer: What Should You Ask For When Ordering CNC Sample Parts?

For a CNC sample order, specify the CAD and drawing revision, the purpose of the sample, the material and condition, the critical dimensions and their acceptance criteria, the finish, and the quantity you need for validation. Agree the inspection scope and required documents up front, state how deviations will be handled and approved, and define what "approved" will mean before the first cut. That list is the basis for a defensible CNC sample approval, and it's what makes the quotation comparable between suppliers.

What Is a CNC Sample Part Compared with a Prototype or First Article?

CNC machining sample parts exist to settle one question before you commit to volume: does this part, made to this drawing, meet what you actually need? The word "sample" describes your purpose, not the machining method. What separates a prototype, a sample, a first article and a pre-production sample is the evidence that comes with each and what that evidence is allowed to prove.

A prototype answers a design question, often before the drawing is final—see our guide to CNC prototype machining if that's the stage you're at. A sample is machined to a drawing you intend to keep. A CNC first article sample is a formal verification step, and a pre-production CNC sample sits inside a supplier-approval process rather than acting as a prototype.

The obligations differ, so the terms are not interchangeable. Prototype approval may confirm specific agreed characteristics, but its scope should not be assumed to equal production approval unless explicitly defined. Approving a sample tells you one part matched one revision. Approving a first article tells you the process was verified against the applicable design definition. That is why CNC sample inspection evidence matters more than the label on the order: the report, not the word, is what you approve against.

When we quote custom CNC sample parts, we ask which of these four the buyer actually needs, because the answer changes the drawing package and the inspection plan. This article covers custom CNC sample parts specifically, not prototypes in general.

What Should You Specify in a CNC Sample Order?

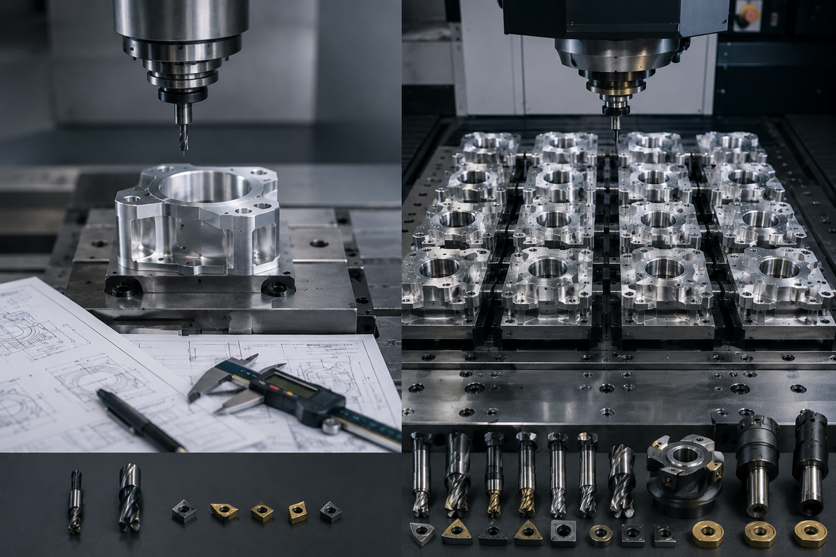

The buyer and supplier must agree which released engineering definition controls the sample. In a drawing-based workflow, this is typically the controlled drawing together with the 3D model.

In a model-based definition (MBD) workflow, an authoritative 3D dataset may also carry PMI such as dimensions, tolerances, datums, and other product-definition requirements.

Then make sure every relevant dimension or characteristic is controlled either by an explicit tolerance or by a clearly stated general tolerance scheme. An uncontrolled dimension is an argument waiting to happen at inspection.

What else belongs in the CNC sample order itself? Alongside the drawing package, put the sample purpose, quantity, inspection scope, required documents, delivery date and the agreed approval criteria in writing. That is the difference between a comparable quote and one you have to negotiate twice—our CNC machining quote guide walks through what a complete RFQ contains.

When Should a CNC Sample Be Re-Verified?

Freeze the revision in writing before the first chip is cut, and treat any later change as a new approval event. Drawing revision control is not paperwork for its own sake. It is the mechanism that lets you say, months later, exactly which configuration you accepted.

If your organization uses ASME drawing practices, follow the current ASME Y14.35 revision-control requirements applicable to the released product-definition dataset. Regardless of the system used, record each released change so the approved sample can be traced to the exact engineering definition it was evaluated against.

Warning: A sample approved at revision C does not automatically approve revision D. When requirements change after acceptance, review the change, update the controlled engineering definition, and determine which previously approved characteristics require re-verification.

The practical control is a one-line record in your approval file: part number, drawing number, revision letter, date, and the list of characteristics verified. If a later revision arrives, that record tells you immediately which characteristics are now unverified. Without it, you are relying on memory, and memory loses to a drawing change every time.

When Does Finish Affect CNC Sample Validation?

Finish can affect dimensions and function, not just appearance. Anodizing is a common example because coating buildup can change finished dimensions, especially on tightly controlled interfaces, bores, threads, and mating features.

Where coating thickness affects acceptance, specify the applicable finish requirement, masking, and whether dimensions are controlled before or after finishing.

The buyer decision is simpler than the specification stack: does the finish affect what this sample is meant to validate?

Does finish affect validation?

Yes — specify the finish type, the required thickness where it matters, masking, the critical finished dimensions, and the inspection point (before or after coating, or both).

No — finish may sometimes be deferred if that is approved and if it does not affect function, validation, safety, regulation, contract, or customer requirements.

If you need a specific coating thickness, write it and its tolerance. A specification's default is a fallback, not a design decision, and using one silently means you never actually chose. Where the current coating spec is MIL-PRF-8625, quote the class and type you need rather than assuming a nominal number communicates intent.

Material evidence follows the same logic. If material traceability is part of the approval scope, a grade name on the purchase order may not be sufficient by itself. Specify the certificate or traceability evidence required for the project. Certificate grades differ in how much independent inspection sits behind them, so decide which grade you need before you order, because it changes what the supplier has to buy in. For stainless parts, agree what passivation acceptance means—typically the test methods in ASTM A967/A967M—and record the result in the sample file.

Which Tolerances Should You Mark as Critical in CNC Sample Parts?

Mark as critical only the characteristics that carry function, safety, fit, or a customer or regulatory requirement. Other characteristics may be controlled by the applicable general tolerance scheme or by separately defined acceptance criteria where needed. Over-tightening is the most expensive mistake we see in sample orders, because it turns a straightforward machining job into a grinding, lapping or special-fixture job without improving the part.

The practical test is functional. A positional tolerance of Ø0.1 mm on a bolt circle drives a fixture and a measurement plan; the same tolerance on a clearance hole that only needs to pass a screw buys nothing. Tighten only what the validation objective requires.

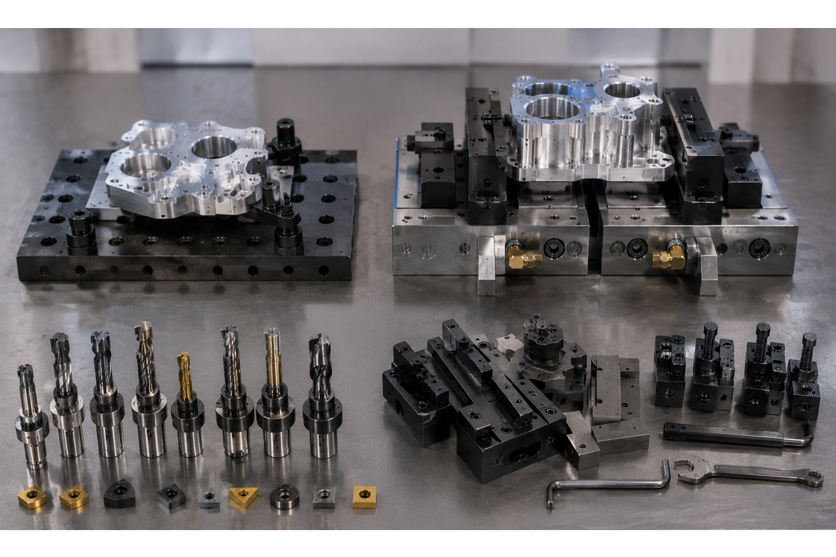

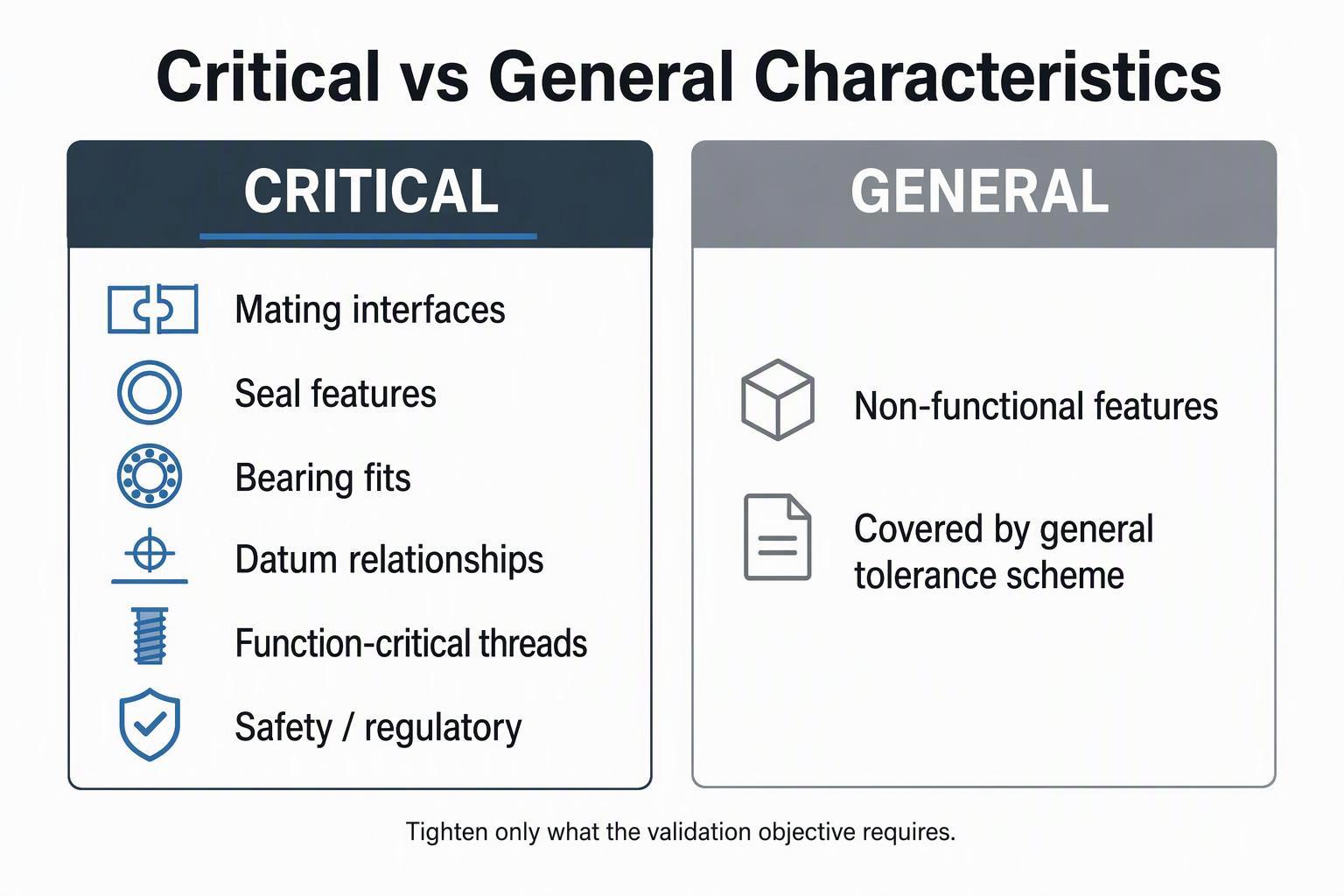

Critical vs general characteristics

Critical — mating interfaces, seal features, bearing fits, datum relationships, function-critical threads, and safety or regulatory characteristics.

General — non-functional features controlled by the applicable general tolerance scheme.

List each critical characteristic so the inspection report can address it directly. Where geometric control depends on a datum reference frame, define the applicable datums and feature control frames clearly.

Not sure whether your sample drawing defines enough for inspection? Send the CAD and drawing for engineering review before ordering.

Tolerancing too tight is often a quoting problem before it is a machining problem. Our guide to CNC prototype cost explains which drawing decisions move price.

What Inspection Evidence Should Come with CNC Sample Parts?

Decide the evidence package before you order, and match it to what the part has to prove. For many general commercial samples, a focused dimensional report may be sufficient when material, finish, traceability, formal quality documentation, or regulatory evidence are not part of the validation objective. A formal first article inspection or PPAP submission is required when your contract, your industry, or your customer's quality agreement says so—and not otherwise.

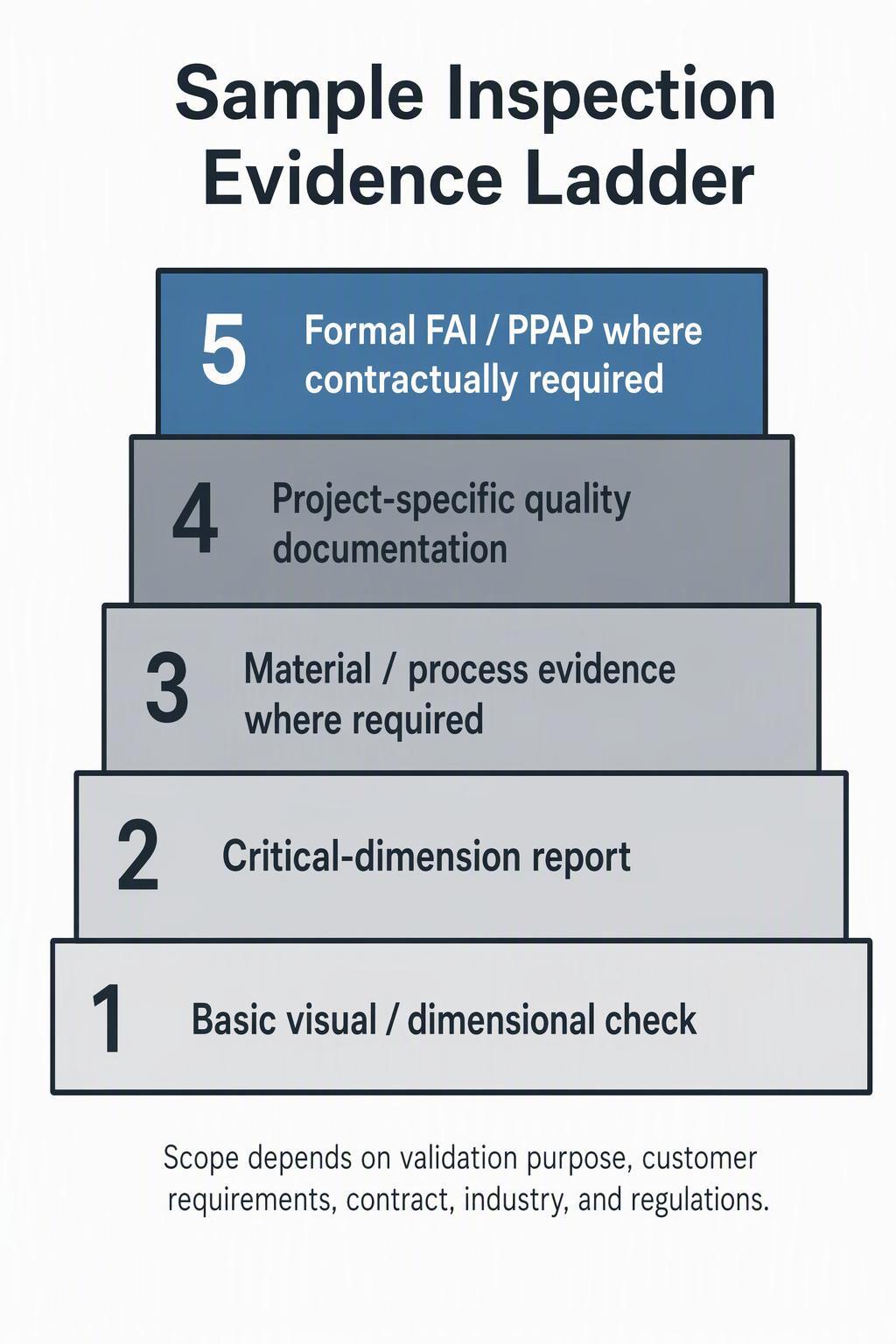

Sample inspection evidence ladder

1. Basic visual / dimensional check

2. Critical-dimension report

3. Material / process evidence where required

4. Project-specific quality documentation

5. Formal FAI / PPAP only where contractually or otherwise required

Scope depends on the validation purpose, customer requirements, contract, industry, and applicable regulations.

When a formal first article is invoked, be specific about the package from the start. A typical aerospace submission includes the AS9102 forms, a ballooned drawing, material and process certifications, and acceptance data with equipment identifiers (one aerospace buyer's FAI submission list). That list is a useful template even when AS9102 does not apply, because each item answers a question a reviewer will eventually ask. Where PPAP applies, the submission level decides what you receive—and interim approval is not full approval, so don't plan production around it.

For a CNC sample order, LKprototype reviews the CAD model, drawing, material, quantity, critical requirements, finish, inspection scope, and delivery requirements before quotation. Required inspection or documentation should be confirmed as part of the RFQ so the quotation reflects the actual approval scope. If your contract needs a formal FAI or PPAP package, raise it at enquiry and confirm the arrangement in writing, because it changes what the sample has to prove. See the full CNC machining services for prototype and production parts for what sits inside a standard scope.

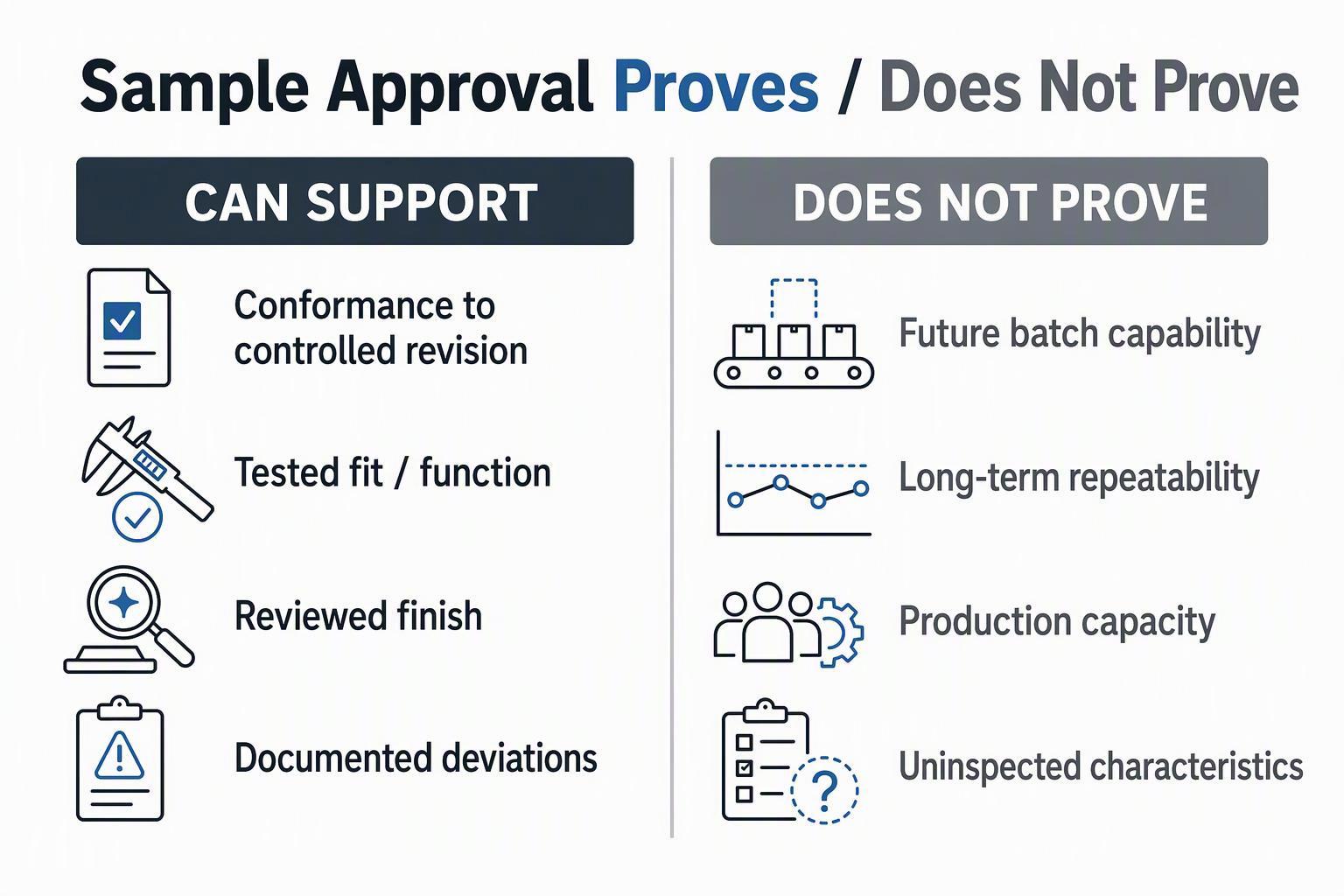

What Does CNC Sample Approval Actually Prove?

A deviation should be handled as a documented disposition. Record the affected requirement, actual condition, proposed disposition, effect on function where relevant, approved scope, approving authority, and date. The record should also make clear whether the deviation applies only to the sample, to a defined lot, or to a released design revision.

That gives you the fields a deviation record needs: part number and serial, drawing revision, the characteristic and the measured value, the requirement it misses, the proposed disposition, the effect on function, the approving authority, the date, and the scope (this part only, this lot, or this revision). A deviation that does not state its scope will be read as permanent.

State that limit in your own approval note, because it is the sentence that protects you later. Approval doesn't waive a nonconformance, change the design definition, or remove the supplier's responsibility for continued conformity. Release is the final gate. The agreed verification activities should be complete, the approval evidence should be retained, and the release should be traceable to the person or authorized role that approved it. If the approval authority and scope are unclear, the sample release is not closed.

Sample approval checklist

Keep this list on one page in the approval file. It is short enough to fill in before the sample ships and specific enough to settle a dispute months later.

• Sample purpose and the question it must answer

• Part number

• CAD revision

• Drawing revision

• Material and condition, with certificate requirement

• Critical characteristics list, with applicable datums and GD&T where required

• Finish, thickness and inspection point

• Quantity and which units were inspected

• Inspection scope and equipment

• Required documents

• Recorded deviations and their scope

• Approving authority and date

• Next-stage release decision

Sample approval workflow

1. Confirm the purpose and freeze CAD and drawing revision.

2. Agree material, critical characteristics and finish.

3. Agree quantity and inspection scope.

4. Machine, then inspect to the agreed scope.

5. Review results and record any deviations.

6. Approve with named authority and stated scope.

7. Release to the next stage or re-verify after change.

Frequently Asked Questions

How many CNC machining sample parts should I order?

There is no universal CNC sample quantity. Order enough parts to complete the planned validation—such as fit, functional, destructive, finish, environmental, or repeatability testing—without creating unnecessary inventory. If repeatability is part of the validation objective, machine the extra units from the production route you intend to run. If the sample doubles as your first article, take it from that route. Our guide to the minimum order quantity for CNC machining helps you set a sensible count.

Can I order from a CAD file alone?

Sometimes, if the project uses an authoritative model-based definition (MBD) dataset that contains the required PMI, material, finish, revision, and acceptance information. In a conventional drawing-based workflow, send both the controlled 3D model and 2D drawing and make sure their revisions agree.

What if the supplier proposes an equivalent material?

Treat it as a deviation, not a substitution. Ask for the proposed grade and its mill certificate, compare the mechanical and chemical properties against your specified grade, and record your accept or reject decision before machining starts. A silent swap removes the material traceability your sample approval depends on.

Can an approved sample be used for production?

Only inside the limits the approval record states. Sample approval confirms the part met the frozen drawing revision, the specified material and the inspection you asked for; it does not by itself release a production run, a different revision or a different process route. If the part is going into service, confirm in writing that the approval covers that use.

Does sample approval replace drawing revision control?

No, the two work together. Approval is pinned to one revision, so any later change reopens the question of whether the part still conforms. Keep the revision history with the approval record and re-verify affected characteristics when a critical one changes. If you cannot trace the revision on the part, the approval has no object to attach to.

What inspection report should I request for a CNC sample?

Request a report that lists the critical characteristics you named, each with the specified requirement, the measured value, and pass or fail against your acceptance criteria.

Add material and finish evidence if those are part of the validation objective. Formal first article or PPAP documentation only if your contract requires it. Match the report to the sample purpose, because a report nobody can use wastes inspection effort on both sides.

Is a CNC sample the same as a first article?

No. A CNC first article sample is verified against the applicable design definition as a formal step, usually with balloons, forms and process evidence. A general sample is machined to a frozen drawing and checked to the agreed scope. A sample can double as a first article if you plan it that way from the start, but the label alone doesn't make it one.

Does approving a CNC sample guarantee production quality?

No. Approval confirms conformance of the defined sample to a controlled revision, within the scope you inspected. It doesn't prove batch capability, long-term repeatability, capacity, or that materials, processes and subcontractors stay unchanged. Treat approval as one checkpoint in a control plan, and set separate requirements for production lots if the risk justifies them.

When should a CNC sample be re-made after a design change?

Re-make or re-verify when the change touches a critical characteristic, a datum, a material, a finish spec, or a manufacturing process. A change to a non-functional feature may only need a drawing update and a check that nothing else moved. Either way, record which characteristics are now unverified and decide who signs the new approval. The answer should be written down before the change is released.

Can an approved physical sample replace the engineering drawing?

No. A physical sample can't carry tolerances, datums, material callouts or acceptance criteria, and it can't be revised. Keep the approved sample as evidence of what was built, and keep the drawing as the definition of what should be built. Where the two disagree, the controlled engineering definition—drawing and/or authoritative MBD dataset—governs.

Conclusion

Sample approval is a record, not a feeling. The sequence that holds up is define, freeze, inspect, approve, release: a controlled engineering definition that applies an appropriate tolerance scheme to every relevant characteristic, a revision frozen in writing before machining, an inspection plan matched to what the part must prove, an approval note that states exactly what it covers, and a release signed by someone you can name.

Two common failures are both inexpensive to prevent. The first is a finish decision left off the drawing, which turns into a dimensional argument after anodize. The second is a tolerance tightened because it felt safer, which adds cost and inspection effort without protecting a function. Fix both at the drawing stage and the CNC sample order becomes predictable.

Preparing CNC sample parts? Send the CAD model, drawing revision, material, sample quantity, critical characteristics, finish, inspection requirements, and target delivery date. Our engineering team can review the manufacturing and quotation basis before you place the sample order. Request a CNC machining quote.

If you're still choosing a supplier, our guide to a CNC machining manufacturer audit covers what to check before you send a drawing package.
