SLA VS SLS FOR PROTOTYPES: ACCURACY, STRENGTH, SURFACE FINISH, AND COST COMPARED

When an engineering team needs a physical part to prove a design, the first fork in the road is almost always the same: SLA or SLS? Both are laser-based polymer 3D printing processes, yet they produce prototypes with meaningfully different properties. Choosing wrong can force a reprint, delay a milestone, or — worse — hand you test results that do not reflect your actual production intent.

This guide compares SLA versus SLS for prototypes across dimensional accuracy, tolerance, strength, material behavior, surface finish, geometry freedom, cost, and lead time. The aim is to give engineering teams a grounded basis for selecting the right process — so the SLA vs SLS prototypes decision rests on your validation goal rather than a spec sheet. Rather than ranking one process as universally "better," it is written around the question that actually matters for engineers: which process proves what my prototype needs to prove? Use it to match the process to your validation goal, not to compare spec sheets in isolation.

QUICK ANSWER: SLA OR SLS FOR PROTOTYPES?

There is no single correct answer between SLA and SLS for prototypes — the better choice depends on what you are testing, the material you need, the geometry involved, and the quantities you are building.

Broadly: SLA is usually the better choice when fine detail, smooth surface finish, or visual appearance is the priority. SLS is usually better when functional durability, tough nylon behavior, snap-fits, or complex support-free geometry matters more. In the sections below, both claims come with conditions.

WHEN SLA IS THE BETTER PROTOTYPING CHOICE

Choose SLA (stereolithography) when your prototype is judged mainly on how it looks and how precisely details are reproduced. Typical triggers include cosmetic review parts, small features and crisp text, smooth or translucent surfaces, and fit checks where dimensional definition matters. SLA builds from liquid photopolymer resin cured by a UV laser, which yields some of the smoothest as-printed surfaces and finest resolution among polymer processes.

Because the resin cures in very thin layers, SLA is well suited to reproducing sharp edges, small bosses, thin draft features, and intricate cosmetic detail. It is also the pragmatic route when you need a clear or translucent sample, since standard and specially formulated transparent resins exist for this purpose.

WHEN SLS IS THE BETTER PROTOTYPING CHOICE

Choose SLS (selective laser sintering) when your prototype must survive functional handling, repeated assembly, or impact. SLS fuses nylon powder in a self-supporting powder bed, so no printed supports are required and parts are typically tougher than standard SLA resin. Applications that favor SLS include working snap-fits, moving assemblies, enclosed or hollow geometry, and internal channels.

Because the unsintered powder cradles every surface, SLS can print overhangs, undercuts, and nested parts that would be awkward or impossible without supports in SLA. For functional testing where a production-grade nylon behavior is the goal, SLS is frequently the stronger starting point.

THE KEY TRADE-OFFS AT A GLANCE

A single row does not always settle the decision, because material grade and geometry can flip the outcome. Treat this table as a starting hypothesis, then read the sections below to confirm it.

WHY MATERIAL AND PART GEOMETRY CHANGE THE ANSWER

The clean trade-offs above assume typical materials and typical parts. Reality is messier. SLA is a process family that spans standard, tough, rigid, and high-temperature resins — and an engineering resin behaves differently from a standard one. SLS likewise spans PA12, PA11, glass- or mineral-filled nylons, and specialized electrostatic-dissipative or flame-retardant grades.

Geometry complicates things too. A fine cosmetic SLA part with support marks hidden on a non-critical face can be excellent; the same design with critical detail on a downward-facing surface may need heavy cleanup. Conversely, a durable SLS part is impressive, but its grainy surface may not suit a customer-facing sample. The process choice only makes sense once you fix the material family and the geometry you actually intend to print.

SLA VS SLS: HOW THE TWO PROCESSES DIFFER

SLA and SLS share a laser and a layer-by-layer build approach, but their physics, materials, and workflow are fundamentally different. Understanding how each builds a part explains most of the differences in accuracy, strength, and finish that follow.

HOW SLA BUILDS PROTOTYPE PARTS

Stereolithography starts with a vat of liquid photopolymer resin. A UV laser traces each cross-section onto the surface of the resin, curing (hardening) a thin layer wherever the beam passes. The build platform lowers by one layer thickness, a fresh film of resin coats the surface, and the laser cures the next slice.

Because the process works from liquid, it can resolve very fine geometry and produce a relatively smooth surface. The trade-off is that overhanging and island features need printed support structures to hold them in place during printing. After the build, parts are washed to remove uncured resin and usually exposed to UV light to complete the cure and stabilize mechanical properties.

HOW SLS BUILDS PROTOTYPE PARTS

Selective laser sintering begins with a bed of fine thermoplastic powder, typically a nylon such as PA12. A laser selectively fuses each cross-section of powder, after which a roller spreads a new layer of powder and the process repeats. Unsintered powder surrounds and supports every surface throughout the build.

Because the powder bed itself provides support, SLS does not require printed support structures for most geometries. After printing, the part is buried in a cake of powder and must cool, then the loose powder is removed (depowdered) before the part can be cleaned, blasted, and finished.

RESIN VS. NYLON MATERIAL SYSTEMS

The single most important material distinction is resin versus powder. SLA parts are built from photopolymers whose mechanical behavior ranges widely depending on formulation. Standard resins give glossy, detailed parts but can be brittle; tough, rigid, and high-temperature grades shift the balance toward durability and stiffness at the cost of other properties.

SLS uses thermoplastic nylons that are generally tougher and more resistant to fatigue than standard SLA resin. PA12 is the workhorse for balanced strength and surface quality; PA11 offers greater ductility and impact resistance; filled nylons add stiffness or other properties. This thermoplastic foundation is a main reason SLS parts often behave closer to injection-molded nylon.

SUPPORT STRUCTURES VS. SUPPORT-FREE PRINTING

SLA relies on supports for overhangs and islands, and those supports must be removed after printing. Removal leaves small scars that need cleanup, and support placement constrains how you orient the part and which surfaces end up smooth.

SLS needs no printed supports because the powder bed holds the part. This removes a whole category of cleanup and design constraints, which is why SLS excels at overhangs, undercuts, internal channels, and hollow or nested parts. The residual concern shifts instead to removing trapped powder from cavities and fine internal features.

SLA VS SLS ACCURACY AND TOLERANCES

Engineers often collapse accuracy, resolution, and tolerance into a single idea, but they are distinct and confusing them leads to wrong expectations. This section separates them and explains what actually controls the final dimensions of an SLA versus an SLS prototype.

RESOLUTION VS. DIMENSIONAL ACCURACY

Resolution describes the finest feature the printer can reproduce — governed largely by laser spot size and layer thickness. Dimensional accuracy describes how closely the finished part matches the CAD model in size and position. A process can have outstanding resolution yet weaker overall dimensional accuracy, because accuracy is influenced by shrinkage, calibration, orientation, and post-processing, not just by layer height.

SLA commonly prints at thinner layers than SLS, so it often wins on fine feature reproduction. But a thin layer does not by itself guarantee a precisely sized part. Do not equate layer thickness with guaranteed dimensional accuracy; both are reported better on good machines under controlled conditions, and each is affected by factors like material shrinkage and post-cure.

TYPICAL SLA ACCURACY AND TOLERANCE

Under controlled conditions, SLA is commonly reported to hold tighter tolerances than SLS, which is why it is favored for fit-check prototypes and parts with critical cosmetic dimensions. Specifying an exact figure is risky because accuracy depends on the machine, resin, part geometry, orientation, and how the part is cured.

In practice, dimensional accuracy on a well-calibrated SLA machine is often discussed in hundredths of a millimeter for small to mid-size features, but the number moves with part size, wall thickness, support strategy, and post-cure shrinkage. Treat printed SLA accuracy as a capable baseline to be verified by measurement on critical dimensions rather than assumed from a brochure.

For rough planning, well-calibrated SLA is commonly quoted by reputable engineering guides at around ±0.05–0.15 mm on small to mid-size features — often expressed as roughly ±0.15% of the nominal dimension with a lower limit near ±0.01 mm. Treat those published figures as a defensible starting point for a drawing review, then confirm critical dimensions by measurement on the actual part.

TYPICAL SLS ACCURACY AND TOLERANCE

SLS is usually reported with a slightly looser dimensional specification than SLA, partly because sintered nylon shrinks more and partly because the powder surface is less crisp. A commonly cited planning frame is on the order of ±0.3 mm, often expressed as roughly ±0.3% of the nominal dimension, though actuals vary by material, machine calibration, and feature geometry.

None of this makes SLS inaccurate for functional prototypes. For structural and snap-fit work, engineers budget assembly clearances and verify critical fits by measurement. The lesson is the same as for SLA: dimensional accuracy is part process capability and part design and verification discipline, not a fixed number you can assume.

HOW BUILD ORIENTATION AFFECTS ACCURACY

Orientation changes how each process holds a feature. In SLA, surfaces that are printed facing upward tend to be smooth, while downward-facing surfaces carry supports and are more prone to variation and marks. Material shrinkage also acts differently across axes depending on orientation, so a dimension can land slightly differently in the X, Y, and Z directions.

In SLS, the absence of supports removes one source of variability, but orientation still matters because powder behavior and shrinkage are not perfectly uniform in every direction. Isotropic filler behavior is often cited as an SLS advantage, yet real parts can still show small directional differences. Whichever process you use, orient critical cosmetic and dimensional faces to minimize finishing and verify the important dimensions after the part is finished, not just when it comes off the machine.

FIT, ASSEMBLY, AND CRITICAL DIMENSIONS

Accuracy only matters where a dimension has a consequence. For press fits, sliding fits, and assembly, clearance and interference determine success, so the relevant question is whether the process holds the functional tolerance, not its headline accuracy.

SLA's tighter dimensional control commonly suits close-fitting cosmetic and esthetic assemblies, while SLS's slightly looser frame is usually paired with clearance designed for nylon. In either case, prototype engineers identify critical dimensions, allow for finishing stock on surfaces that will be sanded or smoothed, and validate the fit on the physical part. Measurement is the arbiter, not the machine spec sheet.

HOW POST-PROCESSING AFFECTS FINAL DIMENSIONS

Post-processing changes dimensions, sometimes in ways that matter. Sanding SLA parts removes material and can shift a surface several hundredths of a millimeter or more; aggressive finishing on a critical face can ruin a fit unless extra stock was designed in. UV post-cure stabilizes mechanical properties but can also introduce modest shrinkage depending on resin and cure energy.

Blasting or vapor smoothing an SLS part improves appearance but can round small edges and subtly reduce feature definition, and aggressive smoothing enlarges or distorts certain dimensions. Dyeing typically has little dimensional effect. The practical rule is to define the finish you need early, add allowance for material removal where relevant, and re-measure critical dimensions after finishing rather than trusting as-printed values.

SLA VS SLS STRENGTH AND MATERIAL BEHAVIOR

Treating "SLA is weak and SLS is strong" as a universal rule hides the real picture. Both are process families built around many material grades, and mechanical performance depends on which resin or powder you select. This section separates process from material.

SLA STANDARD AND ENGINEERING RESINS

Standard SLA resins produce glossy, detailed parts that are convenient for cosmetic validation but are generally brittle and susceptible to breakage under impact or repeated flexing. They are not a good match for functional or snap-fit testing.

Engineering resin families close much of this gap. Tough resins add ductility and impact resistance, rigid and high-temperature resins raise stiffness and thermal capability, and specialty formulations address specific needs. The resin you choose sets the mechanical envelope of an SLA prototype, so match the formulation to the property you are actually trying to validate rather than assuming all SLA prints behave alike.

SLS PA12, PA11, AND FUNCTIONAL NYLONS

SLS is built around nylon powder, and nylon is inherently tougher than most standard SLA resins. PA12 is the most widely used grade, balancing stiffness, strength, and surface quality for functional parts. PA11 brings greater ductility and impact resistance, useful for parts that must yield rather than crack. Filled nylons trade some ductility for added stiffness, while specialized ESD or flame-retardant grades serve regulated environments.

Because these thermoplastic parts are sintered from the same nylon family used in production applications, SLS prototypes often behave closer to the real molded material — a key reason SLS is favored for functional and mechanical testing.

TENSILE STRENGTH AND ELONGATION

Engineering tables that pit "SLA tensile strength 55–65 MPa" against "SLS ~48 MPa PA12" are common but misleading because they compare a specific engineering resin against a standard nylon grade. Swap in a tougher SLS grade or a stiffer SLA resin and the ordering can change.

What stays broadly true is the shape of the behavior: engineering SLA resins can reach high stiffness and respectable tensile strength, while standard SLA resin is more brittle; SLS nylons generally offer better elongation and a more ductile, production-like response. Choose the data point from the specific datasheet that matches your material and loading, not from a one-line category comparison.

IMPACT RESISTANCE AND REPEATED LOADING

Where SLA and SLS diverge most clearly is under impact and repeated loading. Standard SLA resin cracks under sharp impact, and thin SLA features fatigue poorly under repeated flexing. SLS nylon, by contrast, absorbs more energy and tolerates repeated assembly and cycling far better.

This is why snap-fit and repeated-assembly prototypes so often go to SLS. If your test involves clipping, unlatching, bending a living hinge, or any load that repeats, treat SLS nylon (or a purpose-built tough SLA resin as a secondary option) as the safer baseline, and confirm the selected grade on the datasheet.

ANISOTROPY AND DIRECTIONAL PERFORMANCE

Additive parts rarely behave identically in every direction, and SLA is no exception. Layer adhesion and support placement can create directionally weaker zones, especially on thin, tall features. SLS is widely described as more isotropic because sintering fuses powder more evenly, and manufactures often cite this as a reason SLS parts carry loads more predictably in multiple axes.

That stated advantage should be treated as a tendency, not a law. Real SLS parts can still show directional differences, and thin walls, narrow features, or small cross-sections concentrate risk in both processes. If load direction matters, test the part in the orientation it will actually experience and treat datasheet values as typicals.

MOISTURE, UV, AND TEMPERATURE EFFECTS

Both material families respond to environment. SLA photopolymers can be sensitive to prolonged UV or elevated temperature depending on grade, so parts left in sunlight or near heat can degrade or soften. SLS nylon absorbs moisture, which can change dimensions and mechanical response if parts are not kept dry or are tested after long humid exposure.

Standard SLA resin is generally not intended for sustained high-temperature or heavy UV service, and high-temperature resin grades exist for that reason. PA12 and PA11 nylon offer good heat and chemical resilience but are not immune to moisture uptake. Match the material to the service environment of your test so the prototype reflects realistic conditions rather than an idealized lab state.

CHOOSING MATERIAL FOR FUNCTIONAL TESTING

The shortest path to a reliable functional test is to select a material whose mechanical signature matches what you intend to prove, then verify it on the datasheet. If you are chasing an injection-molded nylon-like behavior for repeated loading, SLS PA12 or PA11 is usually closer to the target. If you need high stiffness, fine features, or a specific cosmetic surface on a less demanding load case, an engineering SLA resin can be the right tool.

A useful safeguard is to ask what property the test is actually measuring. If it is durability and fatigue, lean on the tougher grades. If it is stiffness and detail under light load, an SLA engineering resin may answer the question of the design better. The process is a container; the material grade is what carries the mechanical meaning.

SLA VS SLS SURFACE FINISH AND POST-PROCESSING

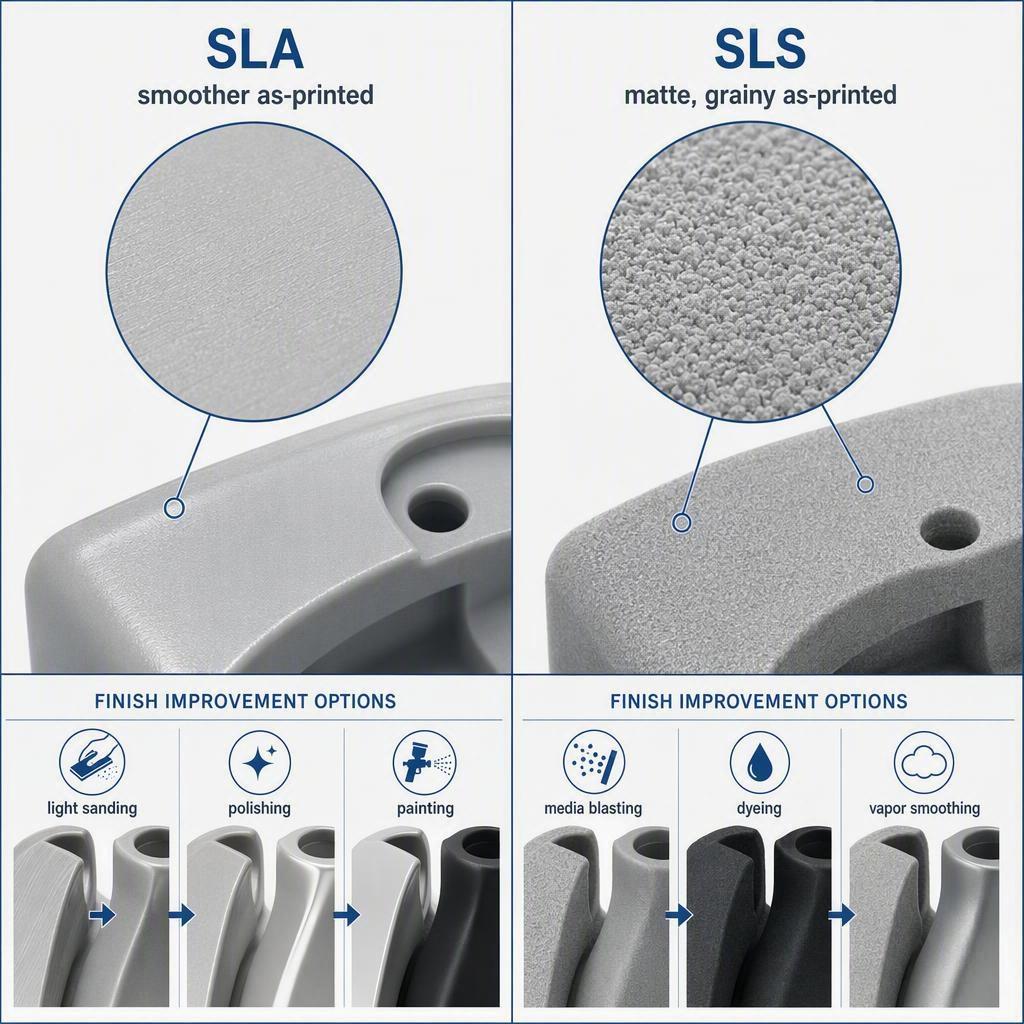

Surface finish is often the fastest way to tell the two processes apart, but it is also where claims get oversimplified. Compare them as printed first, then factor in how finishing changes appearance — and dimensions.

AS-PRINTED SLA SURFACE CHARACTERISTICS

SLA parts leave the printer with a smooth, finely layered surface that is closer to an injection-molded or machined appearance than most other polymer processes. Because each layer is only a few hundredths of a millimeter thick, the stepping is subtle and can be difficult to see by eye. Unsupported faces are smooth; supported faces show small attachment points that need cleanup.

The cosmetic result can be quite refined straight off the machine, which is a principal reason SLA dominates visual and presentation prototypes.

AS-PRINTED SLS SURFACE CHARACTERISTICS

SLS parts come out with a matte, slightly grainy, powder-like surface that mirrors the fused nylon. This texture is uniform across the part, but it is visibly rougher than SLA and reads as more "industrial." The grainy look is a design feature for functional parts, since blasting and dyeing work well on it, but it is rarely the finish you want for a glossy customer presentation without extra work.

Be careful treating every figure as a hard standard. As-printed surface roughness for SLS is commonly discussed in the low-to-mid micrometer range, but the number shifts with material, machine, and measurement method.

SURFACE ROUGHNESS AND RA EXPECTATIONS

A precise Ra table tempts engineers, but surface roughness varies with material, machine condition, and how it is measured, so treat published values as indicative ranges rather than guarantees. As a practical rule of thumb, SLA is commonly reported toward the smoother end of the polymer spectrum and SLS toward the rougher end, with the gap shrinking or growing depending on grade and finishing.

For relative planning, expect SLA to need less surface work when a fine finish is the requirement, and expect SLS to start grittier but respond well to blasting and smoothing. Confirm the actual finish against your own measurement method before locking it into a drawing.

SLA SUPPORT REMOVAL AND UV POST-CURING

SLA post-processing is dominated by support removal and UV curing, with optional sanding and coating for higher finishes. Supports are removed manually where they attached, and the resulting scars are sanded or touched up on visible faces. The part is then washed and given a final UV cure to stabilize mechanical properties.

If a high-gloss or glass-like finish is needed, technicians wet-sand through fine grits and may apply a clear coat or polish. Because each of these steps removes or alters material, they can slightly shift dimensions on finished surfaces, so plan finishing stock on critical faces.

SLS BLASTING, DYEING, AND VAPOR SMOOTHING

SLS finishing centers on powder removal, then media blasting to clean and unify the surface, optionally followed by dyeing for color. Blasting is near-standard and gives a consistent matte finish while removing surface powder. Dyeing adds color in a range of shades without heavy dimensional change.

For a smoother, sometimes glossy surface, vapor smoothing reflows the outer layer of nylon, which can dramatically improve feel and appearance. The trade-off is that vapor smoothing can round edges, reduce fine detail, and shift dimensions more than blasting, so reserve it for parts where cosmetics matter more than tight geometry.

HOW FINISHING CAN CHANGE PART DIMENSIONS

Every material-removing finish changes dimensions to some degree. Sanding and polishing SLA surfaces can reduce thickness and blur fine features. Blasting SLS parts slightly rounds edges, and vapor smoothing has an even larger effect on outer dimensions and detail.

The reliable workflow is to decide the finish before you print so the design can carry extra stock on surfaces that will be worked, then verify critical dimensions after finishing. Prototype teams that order a blasting or smoothing step by default — without checking which surfaces are tolerance-critical — are the ones who discover fits that no longer hold.

MASKING CRITICAL FEATURES DURING FINISHING

When a finish step would damage a tolerance-critical feature, technicians mask that feature first. Threads, press-fit bores, sealing seats, and precision datum surfaces can be shielded from sanding, blasting, or smoothing so their dimensions survive intact while the rest of the part is finished.

If your design has a critical bore or thread, flag it to the finishing shop up front. Working out which surfaces can tolerate material removal and which cannot is part of a sound DFM review, and it usually sits alongside the DFM feedback a prototyping service can provide before the part is produced.

SLA VS SLS GEOMETRY AND DESIGN FREEDOM

Geometry is where the support difference between SLA and SLS has its strongest effect. Some shapes are trivial in one process and costly or impossible in the other.

COMPLEX INTERNAL CHANNELS AND CAVITIES

SLS is generally the stronger choice for internal channels, hollow features, and enclosed cavities because the powder bed supports the interior as it builds. Channels can be printed with realistic internal cross-sections, and trapped powder is removed during depowdering.

SLA can produce internal geometry too, but support structures inside channels and cavities are hard or impossible to remove cleanly at small sizes. For flow paths, cooling channels, or enclosed hollows, SLS usually offers more practical design freedom.

UNDERCUTS, OVERHANGS, AND SUPPORT REQUIREMENTS

Undercuts and long overhangs expose the SLA support penalty. Every significant overhang needs a support lattice, and that lattice must be designed, printed, and later removed — adding time and leaving marks that can be hard to clean on intricate geometry.

SLS treats overhangs and undercuts as a non-issue because unsintered powder holds them. As a result, a design full of undercuts or perching features is frequently far easier and cleaner to realize in SLS than in SLA.

SNAP-FITS, HINGES, AND MOVING ASSEMBLIES

For geometry that must flex and survive use — snap-fits, clips, living-hinge demonstrators, or multi-part moving assemblies — SLS nylon is typically the safer choice. Nylon's ductility and fatigue response let these features live through repeated cycles, whereas standard SLA resin is prone to cracking.

This is both a material and a geometry story. SLS also prints interlocking parts and enclosed assemblies in one build because it needs no supports between components, letting you validate motion without separate assembly labor.

LATTICES AND NESTED PARTS

Lattices and nested components play directly to SLS strengths. Powder supports thin lattice arms and multiple interlocking parts inside a single build, which makes SLS efficient for lattice-damped or duplicated small parts.

SLA can print fine lattice detail beautifully, but lattices and nested parts tend to multiply support and cleanup work. When the goal is a dense batch of small functional or nested parts, SLS packing efficiency and support-free interiors usually win.

THIN WALLS, SMALL FEATURES, AND TEXT

Where the win flips back to SLA is fine feature reproduction. SLA's thin layers and crisp detail make it excellent for thin walls, small bosses, sharp text, and intricate cosmetic geometry that must be cleanly legible.

SLS can print fine features too, but the grainy surface and powder behavior make very small text and razor-thin detail less crisp than SLA. For tiny, sharply defined cosmetic features — logos, part numbers, fine draft angles — SLA is usually the cleaner route.

WHEN SUPPORT REMOVAL BECOMES A DESIGN LIMIT

The real boundary between SLA and SLS on geometry is often support removal, not raw capability. SLA can print remarkably complex shapes, but if the supports needed to build them land inside inaccessible cavities or on every cosmetic face, cleanup becomes the limiting factor.

If you find yourself redesigning a part to make SLA supports removable — orienting it awkwardly, thickening features, or hiding surfaces — that is a signal SLS may be the more pragmatic process. Conversely, if cosmetic fine detail is the whole point, SLA's support management is a price worth paying for the finish.

SLA VS SLS COST, LEAD TIME, AND BATCH EFFICIENCY

Cost is not a single price tag; it is the sum of material, machine time, labor, and finishing. Because SLA and SLS spend those inputs differently, their economics change as quantity scales.

MATERIAL AND MACHINE COST DRIVERS

For SLA, the dominant material cost is resin used plus the portions of the build the supports consume. Machine cost tracks build time, which scales with how many layers and how the part fills each layer.

For SLS, the dominant material cost is powder consumption across the whole build volume, including powder that is not part of the final part and cannot always be fully reused. High packing density spreads that powder cost across more parts, so SLS economics reward filling the build chamber.

SUPPORT MATERIAL AND POST-PROCESSING LABOR

SLA carries a per-part labor load for support removal, washing, UV curing, and often sanding or finishing. A part dense with supports can be cheap to print yet pricey to finish by hand.

SLS avoids support removal entirely, trading it for powder removal, blasting, and cleanup. For complex parts, that avoidance can save considerable labor even when the material cost per part is higher.

BUILD VOLUME AND PART PACKING

How well parts pack into the build volume changes unit cost for both processes. In SLA, packing affects build height and the machine time to reach the tallest layer, so stacking parts vertically can increase cost even side next to side is efficient.

In SLS, powder fills the whole chamber regardless, so packing density directly controls how many parts you get from one powder load. Well-nested SLS builds can be dramatically cheaper per part than under-filled ones.

SINGLE-PART VS. BATCH PRODUCTION ECONOMICS

A single piece tells you little about process economics. For one cosmetic SLA part, support and finishing labor is minor and the outcome is excellent. For one functional part, SLS may cost more per piece in powder but skip most finishing labor.

At batch scale the comparison flips. Multiple small SLS parts that nest tightly can share one powder bed and one cool-down, lowering per-part cost substantially. The same batch in SLA may need more individual finishing and taller builds, so SLA per-part cost tends to stay higher as volume grows.

LEAD TIME FROM PRINTING TO FINISHED PART

Print time is not the whole lead time. Total schedule runs through quote, engineering review, build preparation, printing, cooling or post-cure, support removal or depowdering, finishing, inspection, and packaging.

SLA can be fast for small, simple, cosmetic parts. SLS builds bake and then need time to cool inside the powder before depowdering, which lengthens apparent cycle time, but SLS can be faster overall for dense batches of complex parts because it skips support removal. If schedule is critical, ask for the full turnaround including finishing and inspection, not just the print step.

HOW QUANTITY CHANGES THE COST COMPARISON

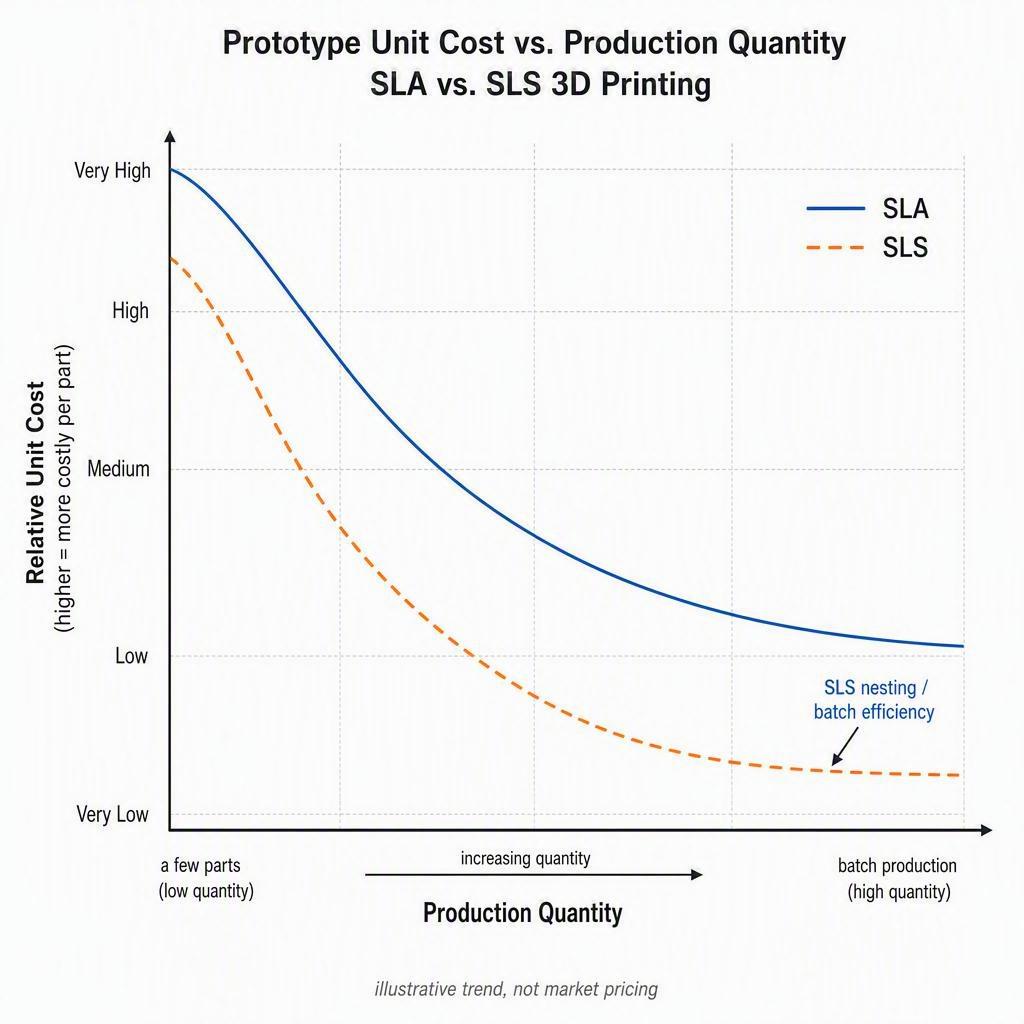

As a rough mental model, a single cosmetic sample is typically most economical in SLA, while repeated batches of small functional parts tend to favor SLS as packing and labor savings compound. This is an illustrative shape, not a universal pricing formula — suppliers quote differently and quote on material, build utilization, and finishing.

The useful habit is to estimate cost per part at your actual quantity, compare SLA versus SLS at that quantity, and remember a one-off sample and a densely nested batch can have very different unit economics even for the same nominal process.

SLA VS SLS FOR DIFFERENT PROTOTYPE APPLICATIONS

The most reliable way to choose is to define the application first. Different prototype goals reward different processes, and the table at the end of this section summarizes the tendency for each.

VISUAL AND COSMETIC PROTOTYPES

For prototypes judged by appearance, SLA is usually the preferred route. Its smooth, finely detailed surface and ability to receive sanding, polishing, and paint make it a strong stand-in for a finished plastic part in a review session or customer meeting. SLS can look cleaner after blasting and dyeing, but its matte, grainy texture rarely beats SLA for cosmetics.

FIT AND ASSEMBLY PROTOTYPES

For fit and assembly checks where dimensional definition and close clearance matter, SLA often leads because of its tighter dimensional control and crisp features. If the test is about whether two SLA-grade surfaces mate precisely, SLA is a sound baseline.

That said, a fit test on a part destined for injection-molded nylon may be more meaningful in SLS or a machined sample, because material stiffness and tolerance differ. Define what the fit is checking, then match the process to the material target.

FUNCTIONAL AND MECHANICAL PROTOTYPES

For functional prototypes that must resist real loads — a bracket under stress, a casing handled repeatedly — SLS nylon is usually the stronger starting point. Thermoplastic toughness and better fatigue behavior let the part survive testing that would crack standard SLA resin.

If the function needs only modest stiffness and fine geometry, an engineering SLA resin can be enough, but for anything load-bearing or fatigue-prone, plan on SLS and verify the grade.

SNAP-FIT AND REPEATED ASSEMBLY TESTS

Snap-fits and repeated assembly are the classic SLS territory. The ductility of nylon lets a snap arm deflect and return without cracking through many cycles, which is exactly what the test demands. Standard SLA resin usually fails this test, so unless a purpose-built tough resin proves otherwise, SLS is the safer choice.

CLEAR AND TRANSLUCENT PROTOTYPES

For clear or translucent samples, SLA is typically preferred because transparent resin formulations and fine finishing can produce genuinely see-through parts. SLS nylons are opaque and not a realistic route to a transparent sample.

If translucency or clarity is the requirement, plan on SLA with a transparent resin and appropriate smoothing, and confirm the optical result on an early sample.

COMPLEX INTERNAL GEOMETRIES

For parts with internal channels, hollow cavities, or enclosed structures, SLS generally wins because the powder bed supports interiors and removes the support-cleanup problem. If you need to validate a real internal flow path or a sealed hollow feature, SLS is usually the more practical route.

SMALL-BATCH FUNCTIONAL PARTS

For a small batch of functional parts, SLS's nesting efficiency and support-free interiors can make it attractive, letting many parts share one build. If the batch also needs functional nylon properties, SLS is the clear favorite; if it is a batch of cosmetic samples, SLA still leads on finish.

SLA VS SLS DECISION MATRIX FOR ENGINEERS

The fastest way to decide is to rank your prototype's priorities and read off the recommendation. Use the decision matrix below as a self-selection tool rather than a fixed verdict.

PRIORITIZE ACCURACY AND FINE DETAIL

If dimensional accuracy and fine detail are your top concern, SLA is the safer default. Its resolution, surface smoothness, and tighter tolerance under controlled conditions suit cosmetic and fit-critical parts with small features. Keep critical faces oriented up and verify dimensions after finishing.

PRIORITIZE STRENGTH AND DURABILITY

If strength, durability, and repeated use drive the test, lean on SLS nylon. Thermoplastic toughness and fatigue response make SLS the more reliable container for functional loads, snap-fits, and moving parts. Confirm the specific grade against your load case.

PRIORITIZE SURFACE FINISH AND APPEARANCE

If surface finish and appearance matter most, SLA is the clear lead. Its smooth as-printed surface supports fine finishing and a market-ready look, while SLS requires more work — blasting, and possibly vapor smoothing — to close the same cosmetic gap.

PRIORITIZE COMPLEX SUPPORT-FREE GEOMETRY

If your part depends on overhangs, undercuts, internal channels, or nested components, SLS is usually stronger because it needs no supports. When support removal would limit your design, SLS removes that constraint at the source.

PRIORITIZE BATCH COST AND THROUGHPUT

If you are producing a batch and cost per part dominates, compare well-packed SLS against shorter SLA builds at your exact quantity. Nesting and support-free interiors often give SLS better batch economics, while a single cosmetic piece stays cheaper in SLA.

WHEN A HYBRID SLA AND SLS STRATEGY MAKES SENSE

Many product programs do not need to pick a single process. A visual SLA part can sell the design to stakeholders while a functional SLS part validates mechanics, and both can inform the same design review. Using SLA for cosmetics and SLS for function on one program is common, and each part earns its process on its own validation role.

HOW LKPROTOTYPE CAN SUPPORT PROTOTYPE PROCESS SELECTION

Selecting between SLA and SLS is only half the job; the other half is executing the choice cleanly and validating the result. A prototyping partner can take the decision from a spec sheet to a tested part.

LKprototype offers rapid prototyping and low-volume manufacturing across plastic 3D printing, CNC machining, vacuum casting, and injection molding, with engineering support and quality control behind each build. When engineers are weighing SLA versus SLS for a prototype, LKprototype can support the decision with DFM review, material and finish recommendations, and prototype validation backed by dimensional inspection under its quality system.

This workflow runs under an ISO 9001:2015-certified quality system. Parts move through coordinate CMM metrology checks, and customers can receive CMM dimensional reports and material certificates of conformance on request — documented verification that lets an SLA or SLS prototype be treated as evidence rather than just a sample.

DFM REVIEW FOR SLA AND SLS PROTOTYPES

A design-for-manufacturing review catches the issues that hide on a drawing: support-heavy surfaces, clearance that will close under finishing, wall thickness at process limits, and unpackable geometry. For each process, an engineer can identify whether the part should be oriented one way, where finishing stock belongs, and where the design fights the process.

Getting DFM feedback before committing to a process saves reprints and rework. It is the difference between ordering parts and ordering the right parts the first time.

MATERIAL AND FINISH RECOMMENDATIONS

Matching a material grade to a validation goal is not always obvious from a datasheet. An experienced partner can recommend the SLA resin family or SLS nylon grade that best reproduces the property you are testing, and pair it with the finish that delivers the appearance you need without wrecking a critical dimension.

These recommendations sit on the boundary between process and application, which is exactly where most selection mistakes happen. Asking for guidance on material and finish is a low-cost way to raise the odds the first prototype is usable.

DIMENSIONAL INSPECTION AND PROTOTYPE VALIDATION

A prototype is only useful if its numbers hold. Dimensional inspection against critical dimensions, and a documented check that the part meets the functional requirement, convert an unverified sample into evidence your design will work. A service with CMM-based inspection and ISO 9001:2015 traceability in its workflow supports this validation rather than just shipping a print.

WHEN TO CONSIDER CNC OR VACUUM CASTING

SLA and SLS are not always the endpoint. When a prototype must be metal, carry threads, or hold the tight mechanical tolerances of a machined component, CNC machining for precision prototype parts fills the gap the polymer printers cannot. CNC suits functional metal testing, high-temperature applications, and parts that need the dimensional stability of a machined surface.

And when you move past a one-off toward a low volume of parts that should behave like a molded product, vacuum casting for low-volume polyurethane prototypes offers production-like appearance and a range of hardness levels for multiple parts at modest tooling cost. Where 3D printing validates the design, these downstream processes carry it toward low-volume supply.

SLA VS SLS PROTOTYPES FAQS

WHICH IS MORE ACCURATE, SLA OR SLS?

Under controlled conditions, SLA is generally reported to hold tighter dimensional accuracy and tolerances than SLS, which is why it is preferred for fit and cosmetic prototypes where dimensional definition matters. Accuracy still depends on machine calibration, material shrinkage, orientation, and post-processing, so verify critical dimensions by measurement rather than assuming the printed value.

WHICH IS STRONGER, SLA OR SLS?

For functional strength and durability, SLS nylon is generally tougher and more resistant to impact and repeated loading than standard SLA resin. SLA is a process family, however, and engineering or tough resin grades can reach high stiffness — so compare the specific resin and powder grades against your load case instead of relying on a category answer.

WHICH HAS A BETTER SURFACE FINISH?

SLA generally produces a smoother, finer as-printed surface than SLS, making it the stronger choice for cosmetic and presentation prototypes. SLS starts matte and grainy but can be improved with media blasting and vapor smoothing, with the caveat that aggressive smoothing can round edges and shift dimensions.

WHICH IS CHEAPER, SLA OR SLS?

A single cosmetic SLA part is usually economical, while a densely nested batch of small functional parts often favors SLS because its powder bed and support-free interiors spread labor and material. Actual cost depends on material, build utilization, finishing, and quantity, so suppliers quote differently and the comparison changes as volume scales.

IS SLA OR SLS BETTER FOR FUNCTIONAL PROTOTYPES?

For functional prototypes that must survive loads and repeated handling, SLS nylon is generally the better choice because of its toughness and fatigue response. If the function needs only modest stiffness and fine geometry, an engineering SLA resin can suffice, so match the material grade to the specific property the test is validating.

IS SLA OR SLS BETTER FOR VISUAL PROTOTYPES?

SLA is generally better for visual prototypes because its smooth, detailed surface and ability to be sanded, polished, and painted produce a more finished, market-like appearance. SLS looks more matte and industrial even after blasting and dyeing, which makes it a weaker match for pure cosmetic reviews.

IS SLS BETTER FOR COMPLEX GEOMETRIES?

SLS is usually better for overhangs, undercuts, internal channels, hollow and nested geometry because its self-supporting powder bed removes the need for printed supports. SLA can make complex shapes too, but support removal in hard-to-reach features often becomes the limiting factor.

CAN SLA AND SLS BE USED FOR THE SAME PROJECT?

Yes. A common strategy uses SLA for cosmetic, fine-detail, or clear parts and SLS for functional, durable, or support-free parts within the same product program. Each process then earns its place based on what the individual part must prove.

HOW DO YOU CHOOSE BETWEEN SLA AND SLS?

Define your prototype's validation goal first: what property, material, geometry, finish, and quantity you need. If fine detail, appearance, or clarity matters, choose SLA; if toughness, repeated loading, or complex support-free geometry matters, choose SLS — and confirm the material grade and critical dimensions with measurement. The SLA vs SLS prototypes choice is a mapping of your test objective to the process that best reproduces it.

CONCLUSION: CHOOSE SLA OR SLS BASED ON PROTOTYPE TESTING GOALS

There is no universally better process in the SLA vs SLS prototypes comparison. The right choice depends on what the prototype needs to prove, and both technologies serve different validation goals well.

Choose SLA when fine detail, smooth surface finish, appearance, clarity, or a cosmetic review is the objective. Choose SLS when functional strength, durability, snap-fits, complex support-free geometry, or batch efficiency drives the test.

Where a prototype must go further — into metal, tighter machined tolerances, or a low-volume batch that should behave like a molded part — CNC machining and vacuum casting extend the manufacturing path beyond the polymer printers. Match the process to the goal, verify the numbers, and let each prototype answer the question it was built to answer.
