When you look at vacuum forming or vacuum casting, focus on your part’s details. Use vacuum forming if you need a simple, large, low-number plastic part. Choose vacuum casting for small, detailed, low-number parts. Think about how hard the part is to make, its size, what it’s made of, how many you need, cost, and speed. Each vacuum process works best for different needs. The best way depends on how vacuum forming or vacuum casting shapes your part and what results you want.
Key Takeaways
Vacuum forming works best for big, simple parts. Vacuum casting is better for small, detailed pieces.
Think about your budget. Vacuum forming costs less for each part. It is good for making many parts. Vacuum casting costs more but gives more detail.
Pick vacuum casting if you need fine details and smooth surfaces. Use vacuum forming if you want to make simple shapes fast.
Look at what your project needs. Think about the size, how hard the part is to make, and how many you need. This helps you pick the best way to make your parts.
Talk to a manufacturing expert. They can help you choose the right process for your project.
QUICK ANSWER: VACUUM FORMING VS VACUUM CASTING
WHAT IS THE MAIN DIFFERENCE?

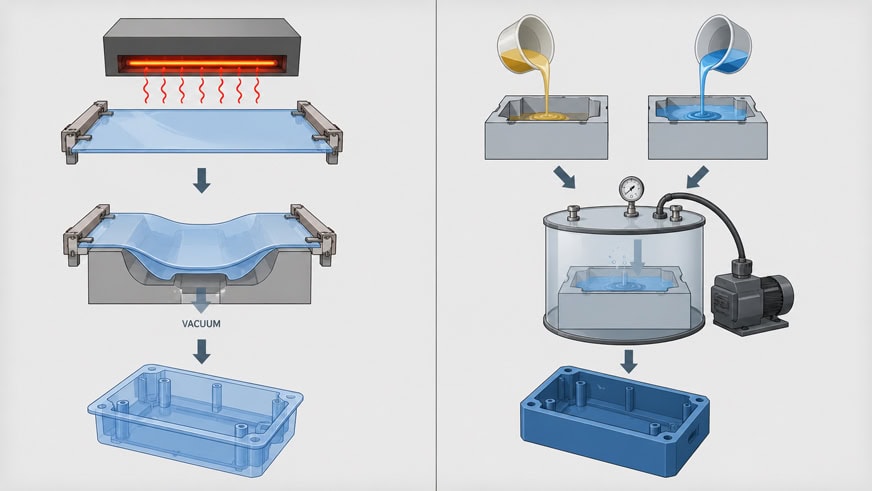

You should learn how vacuum forming and vacuum casting work. Vacuum forming uses heat to bend a plastic sheet over a mold. Vacuum casting makes a silicone mold around a master shape and fills it with liquid resin. Each process gives you different results. Vacuum forming makes bigger, simple parts. Vacuum casting makes smaller, detailed parts. Check this table to see the main steps:
Process Step | Vacuum Forming | Vacuum Casting |
|---|---|---|
Methodology | Heating a thermoplastic sheet | Making a silicone mold around a master pattern |
Material Used | Thermoplastic sheet | Liquid polyurethane resin |
Complexity of Parts | Good for larger, shallow parts | Makes smaller, precise parts |
WHICH PROCESS IS BEST FOR PROTOTYPES?
You want prototypes that fit your project. Vacuum casting gives high detail and accuracy. It works for small parts with smooth finishes. Vacuum forming is good for bigger, simple prototypes. If you need a large plastic cover or tray, use vacuum forming. If you need a small, detailed device, vacuum casting is better.
Tip: Pick vacuum casting for prototypes with fine details and tight fits. Choose vacuum forming for simple shapes and bigger sizes.
WHICH PROCESS IS MORE COST-EFFECTIVE?
Think about cost when planning your project. Vacuum forming is cheaper for making a few parts. You pay less per part, usually $1 to $20. Vacuum casting costs more, from $10 to $100 per part. If you want to save money and make simple parts, vacuum forming is best. If you need detailed parts and can spend more, vacuum casting is right for you.
Vacuum casting costs more, from $10 to $100 per part.
Vacuum forming is cheaper, costing $1 to $20 per part.
You get the best value when you pick the right process for your project.
VACUUM FORMING VS VACUUM CASTING: SIDE-BY-SIDE COMPARISON
COMPARISON TABLE
This table shows how vacuum forming and vacuum casting are different. It lists important things to think about for your project:
Factor | Vacuum Casting | Vacuum Forming |
|---|---|---|
Tooling Cost | $200–$1,000 for silicone molds | $500–$2,000 for metal or wooden molds |
Lead Time | 10–20 days (includes mold curing) | 3–7 days (once mold is ready) |
Part Cost | $10–$100 per part | $1–$20 per part |
Tolerances | ±0.05 mm or ±0.3% (over 100 mm) | ±0.5 mm or more |
Surface Finish | Matte, gloss, or textured | Depends on mold; polishing adds cost |
Material Choice | Urethane resins, elastomers | Thermoplastics like ABS, HIPS, PETG |
KEY DIFFERENCES AT A GLANCE
Vacuum casting uses liquid resin and a silicone mold. It makes small parts with lots of detail. The parts are very accurate. Vacuum forming uses a hot plastic sheet and a mold. It makes bigger parts that are simple. These parts cost less to make. Vacuum casting lets you pick from many materials. Some are flexible and some are hard. Vacuum forming only works with thermoplastics.
Tip: Pick vacuum casting for tiny details. Use vacuum forming for big, easy shapes.
ADVANTAGES AND LIMITATIONS OF EACH PROCESS
Vacuum Casting:
It saves money for small or medium batches.
You can make good prototypes fast.
You have lots of material choices.
You can make tricky shapes and fine details.
The surface may change and need extra work.
You cannot use it for making lots of parts.
Vacuum Forming:
It is quick and parts cost less.
You can make big, simple parts easily.
You do not have many material choices.
The parts have less detail and are not as accurate.
Both vacuum processes help you make parts fast and cheap. You should pick the one that fits your project best.
WHAT IS VACUUM FORMING?
HOW VACUUM FORMING WORKS

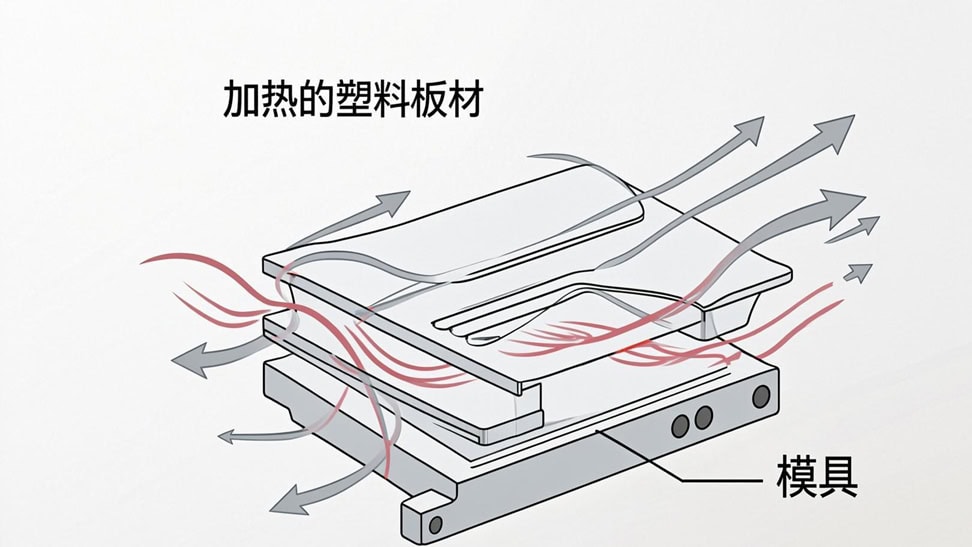

Vacuum forming shapes plastic sheets into parts. First, you make a mold and set up tools. Next, you heat a plastic sheet until it is soft. Then, you place the hot sheet over the mold. The vacuum pulls the plastic tight to the mold. After that, the plastic cools down. You take the part off the mold. You cut away extra plastic and add features. You can paint, print, or put parts together to finish. Vacuum forming machines help you make parts quickly. You can use them for testing or making many parts.
MATERIALS USED IN VACUUM FORMING
You can pick from many materials for vacuum forming. Most machines use thermoplastics. Here are some common choices:
PETG: Hard, clear, and strong.
HIPS: Cheap and tough.
EVA: Good for cold and sunlight.
Acrylic (PMMA): Clear and sturdy.
ABS: Strong and resists heat.
PC: Light and lasts long.
PP: Handles heat and chemicals.
LDPE and HDPE: Flexible or strong, both resist chemicals.
PVC: Tough, stiff, and stops fire.
Polystyrene: Light and keeps water out.
These materials are strong, easy to shape, and save money.
COMMON VACUUM FORMING APPLICATIONS
Vacuum forming is used in many fields. Machines help make:
Car parts like bumpers and mats
Packages for electronics, makeup, and cleaners
Trays and displays for stores
Models and test parts for schools
Note: Vacuum forming is popular because it is fast and works well for big, simple shapes.
PROS AND CONS OF VACUUM FORMING
Here are the main pros and cons:
Pros | Cons |
|---|---|
Low cost to make parts | May need extra finishing steps |
Shapes and sizes stay the same | Thick sheets can bend during vacuuming |
Can be changed and customized | Only simple designs; not much detail |
Extra plastic can be recycled | Bad molds can cause problems |
Good for quick testing | Moisture can make bubbles in clear parts |
Vacuum forming machines make plastic parts in a simple way. But you must remember the limits of the design. Vacuum forming works best for basic shapes and making a medium number of parts.
WHAT IS VACUUM CASTING?
HOW VACUUM CASTING WORKS
Vacuum casting helps make parts with lots of detail. You start with a digital 3D model. Then, you build a master pattern, often using 3D printing. After that, you make a silicone mold around the pattern. Next, you mix liquid resin and pour it into the mold. The vacuum pulls out air bubbles. It also helps the resin fill every tiny space. Once the resin cures, you take out the finished part. You can add extra touches if needed.
Here is a simple table showing the steps:
Step | Description |
|---|---|
1 | Build a 3D model for the master pattern. |
2 | Make the master pattern, often with 3D printing. |
3 | Create a silicone mold using the master pattern. |
4 | Mix and pour casting resin under vacuum. |
5 | Cure and remove the finished part from the mold. |
Tip: Vacuum casting makes parts that look like injection-molded ones. You do not need expensive tools for this process.
MATERIALS USED IN VACUUM CASTING
You can pick from many resins for vacuum casting. Each resin has special features. Here are two common types:
Material Type | Properties | Advantages | Disadvantages |
|---|---|---|---|
ABS-like Resins | Hard, tough, resists impacts | Works for many uses, saves money | Not good with heat |
PC-like Resins | Tough, clear, keeps shape | Very clear, strong, stays stable | Costs more, needs careful handling |
These materials help your parts look and feel like real products.
COMMON VACUUM CASTING APPLICATIONS
Vacuum casting is used in many fields. Here are some common uses:
Making engine parts, dashboards, and housings for cars
Creating custom prosthetics and medical device housings
Testing smartphone cases and smart home devices
Producing small batches of industrial equipment parts
Making molds and packaging for the food industry
Vacuum casting lets you try designs before making lots of parts.
PROS AND CONS OF VACUUM CASTING
Vacuum casting has many good points and some limits. Check this table to see both sides:
Pros | Cons |
|---|---|
Easy to change designs and flexible | Not good for making lots of parts |
Smooth finishes like injection molding | Mold wears out after 15–20 parts |
Saves money for short runs | Not as stable as CNC or injection molding |
Many material choices, hard or soft | Mostly uses polyurethane resins |
Quick to make molds and parts | Mold strength limits size and shape |
Many ways to finish parts | Mold ages and can cause visual flaws |
Note: Vacuum casting works best for small batches of tricky or test parts. If you need big, simple parts, vacuum forming may be better.
HOW TO CHOOSE BETWEEN VACUUM FORMING AND VACUUM CASTING
DECISION CHECKLIST
When you need to pick between vacuum forming or vacuum casting, you should look at a few key points. Use this checklist to guide your choice:
Think about your part’s geometry and function. Does your part need fine details or simple shapes?
Decide how many parts you need. Are you making just a few prototypes or a small batch?
Check the surface appearance you want. Do you need a smooth, branded finish or a basic look?
Review your budget and timeline. Can you wait longer for detailed parts, or do you need them fast?
Consider the weight and size. Vacuum forming machines work best for lightweight, large parts. Vacuum casting suits smaller, detailed items.
Tip: If you want lightweight, simple designs and lower costs, vacuum forming machines are a strong choice. For detailed, textured, or more complex parts, vacuum casting is better.
SELECTION FLOWCHART
Follow this simple flowchart to help you decide:
Do you need a large, simple part?
Yes → Use vacuum forming machines.
No → Go to step 2.
Does your part need fine details or a smooth, branded surface?
Yes → Choose vacuum casting.
No → Go to step 3.
Is your production volume low (under 100 parts)?
Yes → Both processes work, but vacuum casting gives better detail.
No → Vacuum forming machines are more cost-effective for higher numbers.
WHICH PROCESS FITS YOUR PROJECT?
You should match your project needs to the right process. Vacuum forming machines help you make big, basic shapes quickly and at a low cost. This process works well for packaging, trays, and covers. Vacuum casting gives you small, detailed parts with smooth finishes. You can use it for prototypes, models, and short runs of end-use parts. If your project needs high detail, flexible materials, or a finish like injection molding, vacuum casting is the best fit. For fast, budget-friendly manufacturing of simple shapes, vacuum forming or vacuum casting both offer strong benefits, but your part’s size and detail level will guide your final choice.
COST, QUALITY, AND PRODUCTION CONSIDERATIONS
TOOLING COST
You need to think about tooling cost before you start your project. Vacuum forming usually needs a mold made from metal or wood. This mold can cost more at the start, but you can use it for many cycles. Vacuum casting uses a silicone mold. The cost is lower, but the mold wears out after making about 20 parts. If you want to keep costs down for small batches, vacuum casting is a smart choice.
PART COST
Vacuum forming gives you a lower part cost when you make many parts. You can make each part for just a few dollars. Vacuum casting costs more per part because the process takes longer and uses more expensive materials. If you need high accuracy and fine details, you may find the extra cost worth it.
LEAD TIME
You want your parts fast. Here is what you can expect:
Vacuum casting can give you up to 20 parts in 15 days or less, depending on your design and how many you need.
Vacuum casting works well for small batches of prototypes or end-use parts that need to look and feel like injection-molded pieces.
Vacuum forming can be even faster once you have the mold ready. You can start production in just a few days.
DIMENSIONAL ACCURACY
You should know how precise your parts will be. Vacuum casting offers high accuracy, especially for small parts. Check this table for typical tolerances:
Part Size | Tolerance |
|---|---|
Under 100 mm | ±0.05 mm |
Larger parts | ±0.3% of nominal size |
Vacuum forming gives less accuracy, but it works well for large, simple shapes.
SURFACE FINISH
Surface finish matters for how your part looks and feels. Vacuum casting can copy the master pattern’s surface up to Ra 0.4 μm. If you want a smooth finish, you need to prepare the mold well. Some makers sand the master pattern to a mirror finish before pouring the silicone. Vacuum forming depends on the mold’s surface, so polishing the mold can help you get a better finish.
Tip: For a glossy or textured look, spend time on mold preparation before starting production.
PRODUCTION VOLUME
You should match your process to your production needs. Vacuum forming can make up to 10,000 units, so it works well for medium runs. Vacuum casting is best for low-volume production, such as prototypes or short runs, because the silicone mold wears out quickly. If you need high accuracy and only a few parts, vacuum casting is your best option.
REAL-WORLD APPLICATION EXAMPLES
AUTOMOTIVE COMPONENTS
Vacuum forming and vacuum casting are used for car parts. Vacuum forming makes dashboards, air-vent ducts, lens covers, and housing elements. These parts need to be light and strong. Vacuum casting is good for intake manifolds, exhaust systems, and body panels. You can use vacuum casting to test new shapes or materials before making many parts. This process gives you detailed parts that fit well in car designs.
Dashboards
Air-vent ducts
Lens covers
Housing elements
Intake manifolds
Exhaust systems
Body panels
Tip: Pick vacuum casting for parts with fine details or special materials.
MEDICAL DEVICE PROTOTYPES
Vacuum casting is important for medical device prototypes. It helps make personalized prosthetics and housings for medical devices. You can build complex parts for imaging equipment and surgical tools. Vacuum casting also lets you create models for planning surgeries. This process helps you test and improve designs before making lots of them.
Personalized prosthetics
Housings for medical devices
Complex parts for imaging equipment
Surgical tool prototypes
Patient-specific models
CONSUMER ELECTRONICS
Vacuum forming and vacuum casting are used for electronics parts. You can make television casings, computer housing, and remote control housing. Vacuum casting works for speaker enclosures, phone and tablet casings, and router or modem housings. It is also used for telecommunications equipment enclosures. These methods let you test new designs and make small batches fast.
Television casings
Computer housing
Remote control housing
Speaker enclosures
Phone and tablet casings
Router and modem housings
Telecommunications equipment enclosures
PACKAGING AND DISPLAY PRODUCTS
Vacuum forming is used for packaging and display products. You can make trays, clamshell packaging, and display stands. Vacuum casting helps make custom packaging for special or limited products. Both processes let you try new ideas and change things quickly. You get strong, light packaging that protects products and looks nice in stores.
Note: Vacuum forming is fast for big, simple packaging. Vacuum casting is best for detailed or custom packaging.
ALTERNATIVES TO VACUUM FORMING AND VACUUM CASTING
When you want to make parts, you have other choices. Each way has its own good points. Some ways work better for certain projects. Here are four main options besides vacuum forming and vacuum casting:
CNC MACHINING
CNC machining uses computers to control cutting tools. These tools cut shapes from solid blocks. You can make parts that are very exact. This method works for metals and plastics. People use CNC machining for prototypes or small batches. You do not need molds, so setup is faster. CNC machining can cost more for tricky shapes or lots of parts.
Very accurate and repeatable
Good for strong parts
Works with many materials
3D PRINTING
3D printing builds parts layer by layer. It uses digital files to guide the process. You can make shapes that are hard to do with other ways. This process is fast and flexible. You do not need molds, so you can change designs quickly. 3D printing works for plastic and metal parts. It is great for prototypes and custom items. The surface may need extra work, and big parts take longer to print.
Note: 3D printing lets you try new designs fast, like vacuum casting.
INJECTION MOLDING
Injection molding pushes melted plastic into a metal mold. You use this way to make thousands of the same part. The mold costs a lot at first, but each part costs less when you make many. Injection molding gives you strong, detailed parts with smooth finishes. This process is used for mass production. Compared to vacuum casting, injection molding costs more at the start but less per part if you make a lot.
Method | Setup Cost | Part Cost | Volume | Detail Level |
|---|---|---|---|---|
Injection Molding | High | Low | High | High |
Vacuum Casting | Low | Medium | Low | High |
THERMOFORMING
Thermoforming uses heat to shape plastic sheets over molds. Vacuum forming is one kind of thermoforming. Other types are pressure forming and drape forming. You can make big, simple parts quickly. These ways work well for packaging, trays, and panels. You get lower costs for medium runs. Thermoforming does not give as much detail as vacuum casting, but it is faster and cheaper for bigger parts.
Fast for making large items
Good for simple shapes
Tooling costs are lower than injection molding
When you look at these options, think about what your project needs. Vacuum methods are quick, let you change designs, and use many materials. Other ways may be better for making lots of parts or using special materials.
FAQ
IS VACUUM FORMING THE SAME AS VACUUM CASTING?
No, vacuum forming and vacuum casting are not the same thing. Vacuum forming shapes a hot plastic sheet over a mold. Vacuum casting pours liquid resin into a silicone mold using vacuum. Both use vacuum, but they make different parts. Vacuum forming is best for big, simple shapes. Vacuum casting is good for small, detailed parts.
WHICH PROCESS IS BETTER FOR LOW-VOLUME MANUFACTURING?
Pick vacuum casting if you need detailed parts in small numbers. You can make up to 20 parts from one silicone mold. The parts have smooth finishes and high accuracy. Vacuum forming is better for simple, bigger parts when you need more pieces. Both methods work for low amounts, but vacuum casting gives more detail.
CAN VACUUM CASTING PRODUCE CLEAR PARTS?
Yes, vacuum casting can make clear parts. You can choose special resins that look like glass or clear plastic. The vacuum removes air bubbles, so the parts are smooth and see-through. These clear parts are used for lenses, covers, or display items.
IS VACUUM FORMING SUITABLE FOR FUNCTIONAL PARTS?
Vacuum forming can make functional parts if you pick the right material and design. You can create trays, covers, and panels for real products. The parts are strong for many uses, but they do not have fine details like vacuum casting parts.
WHICH PROCESS OFFERS BETTER DIMENSIONAL ACCURACY?
Vacuum casting gives better dimensional accuracy. You can make parts with tight fits and smooth surfaces. Vacuum forming is less accurate, especially for big or thick parts. If you need parts to fit together perfectly, vacuum casting is the best choice.
CONCLUSION: WHICH PROCESS SHOULD YOU CHOOSE?
You now have the facts to help you choose between vacuum forming or vacuum casting. Each process gives you different results. Your project needs will guide your decision.
If you want to make large, simple parts, vacuum forming or vacuum casting may both work, but vacuum forming is usually faster and cheaper. You can use vacuum forming for trays, covers, or packaging. This process uses a heated plastic sheet and a vacuum to shape the part. You get strong, lightweight items quickly.
Vacuum casting works best for small, detailed parts. You can use it for prototypes, models, or short runs. This process uses a silicone mold and a vacuum to remove air bubbles. You get smooth surfaces and fine details. Vacuum casting lets you test designs before you move to mass production.
Tip: Always match your project’s size, detail, and budget to the right process. If you need high detail and a smooth finish, vacuum casting is the better choice.
Here is a quick checklist to help you decide:
Choose vacuum forming or vacuum casting for low-volume runs.
Pick vacuum forming for big, simple shapes.
Select vacuum casting for small, complex, or detailed parts.
Think about how fast you need your parts and how much you want to spend.
You can also talk to a manufacturing expert. They can help you pick the best process for your needs. When you know what you want, you can get quotes and start your project with confidence.
You now know when to use vacuum forming or vacuum casting. Choose vacuum forming for large, simple parts that need to be made quickly and at a low cost. Pick vacuum casting for small, detailed parts that need high accuracy and a smooth finish. Match your project needs to the process features. If you feel unsure, talk to a manufacturing expert or request a quote to get started.
